Product Description
Product information:
Master control: XR872
Memory: 32MB flash
Sensor: 30W GC0328 CMOS sensor
Lens: 100 ° wide angle lens
Sensor Performance: supports automatic white balance, automatic gain control, and automatic backlight compensation.
Signal-to-noise ratio: ≥ 41dB
Minimum illumination: 0.8Lux/F1.4 (color mode),0.3Lux/F1.4 (black and white mode)
Night vision: 2 850nm2-28mil high-power infrared lamps
Night vision distance: 1 m the best effect, the longest distance is 3 m
Video Format: JPG
Video size/frame rate: 480p/7fps
Video recording method: 1. Button trigger video recording;
Cloud storage map: 5 seconds (5 images)
Battery Type/capacity: Polymer 803035/800mAh
Battery Discharge Time: Polymer battery sleep standby for 1 year
Network Protocol: TCP/IP/HTTP/TCP/UDP/DHCP/DNS/DDNS/NTP/RTP/P2P
WIFI connection: 2.4GHz wifi, supported (802.11 B/g/n)
Ding Dong: supports RF 433MHZ ding dong
Storage: Supports Cloud Storage (without TF card),3 days free circulation cloud storage"
Operating voltage: Polymer 803035/3.7V
Work current: Work current 219mA, deep sleep current 10mA, open infrared work current 280mA
USB charging voltage: DC 5V / 1.5A
Storage Temperature (℃) :(0℃ ~ 50℃)
Operating temperature (℃) :-10 ~ 50℃, working humidity <95%
Wake-up mode: 1. Doorbell button wake-up,
Packing list:
Visual doorbell * 1

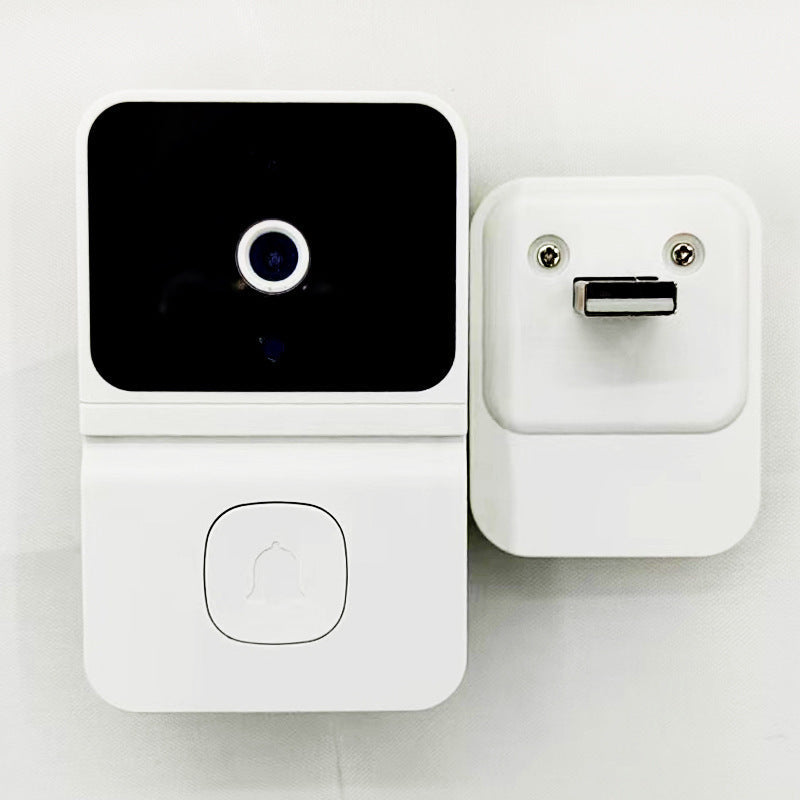

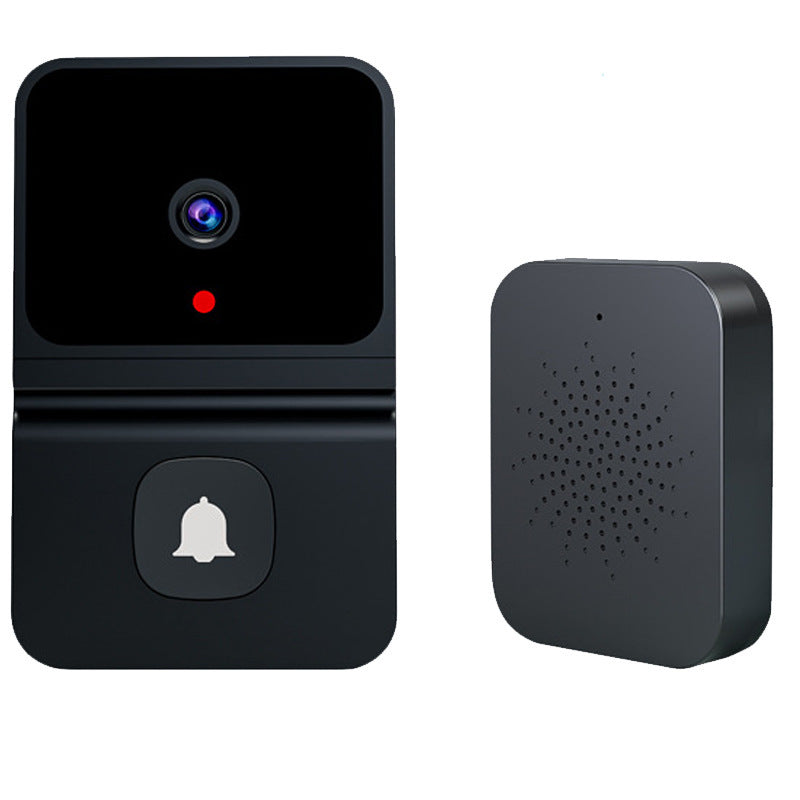

Product Image:
