Product Description
Product Description
SPEC:
Size:6AN-8AN
Brand:YOMIRACING
Color:Black,Straight-2pcs
Material: 6061-T6 Aluminum Alloy

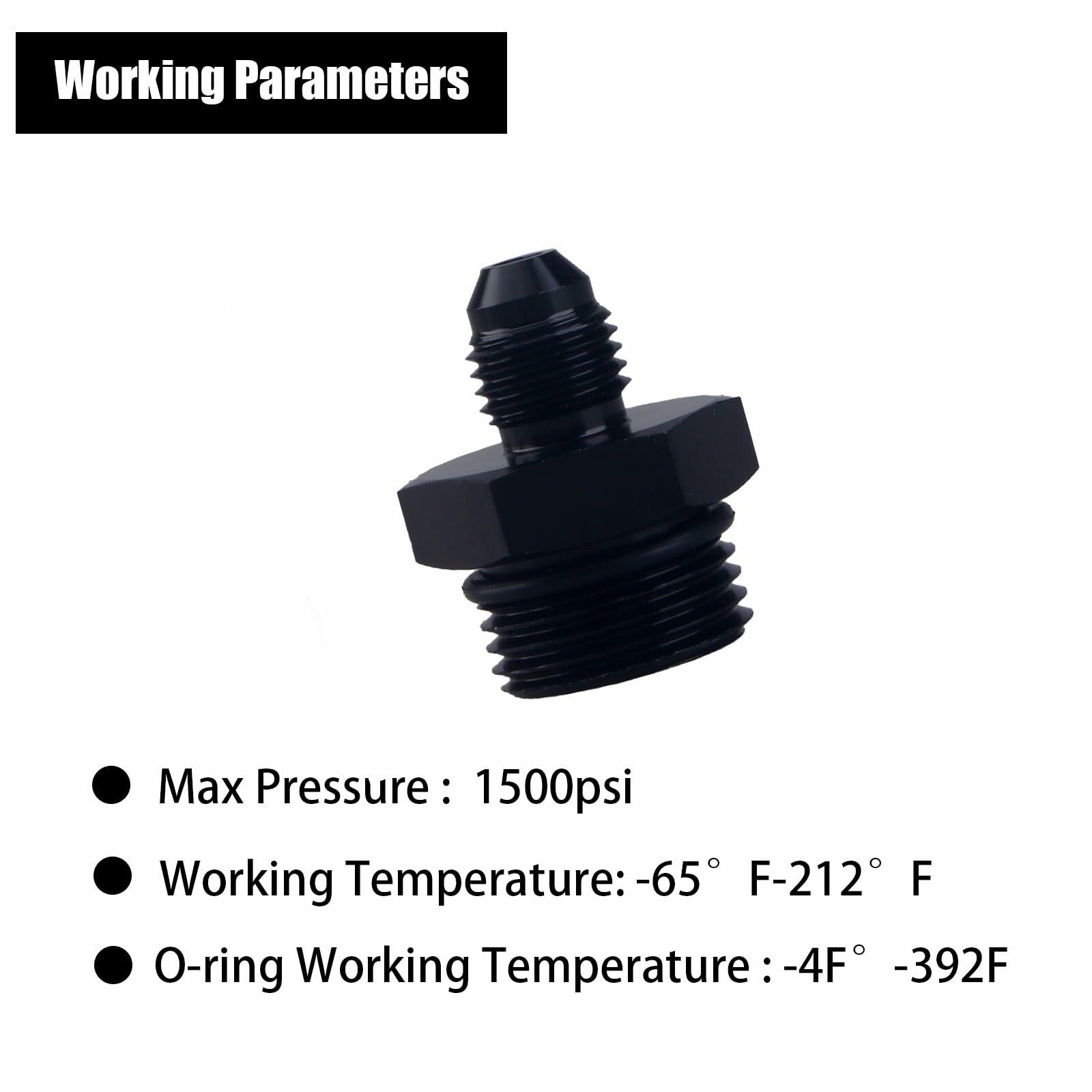

Max Pressure:1500PSI
Working Temperature:-65°F to 212°F
O-ring Working Temperature:-4°F to 392°F

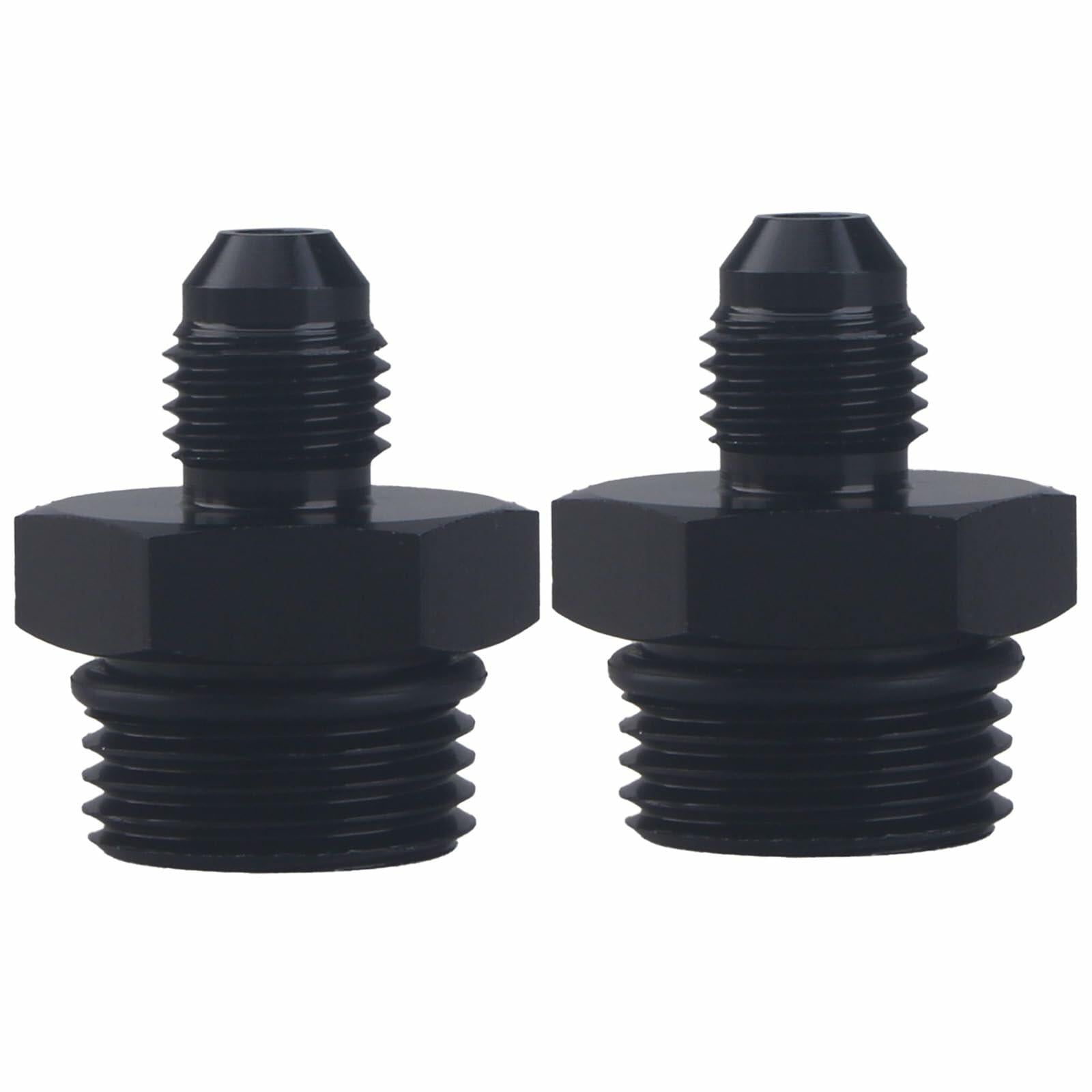

Inclusive kit:2 black automotive fuel connectors
About this item :

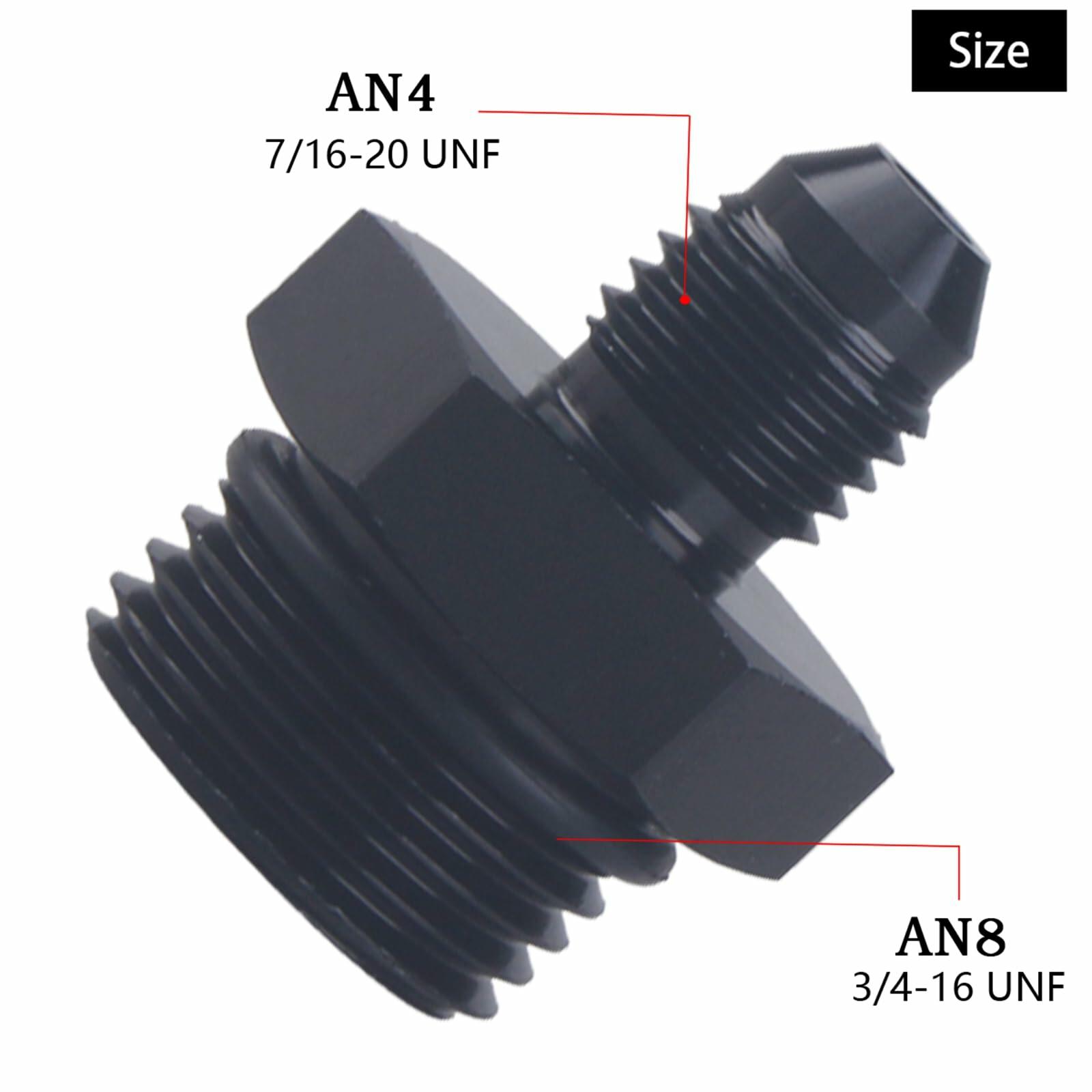

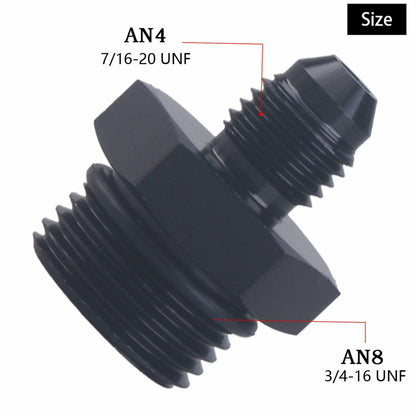

Thread sizes for 6AN are 9/16-18UNF to 8AN are 3/4-16 UNF and1/4 NPT.

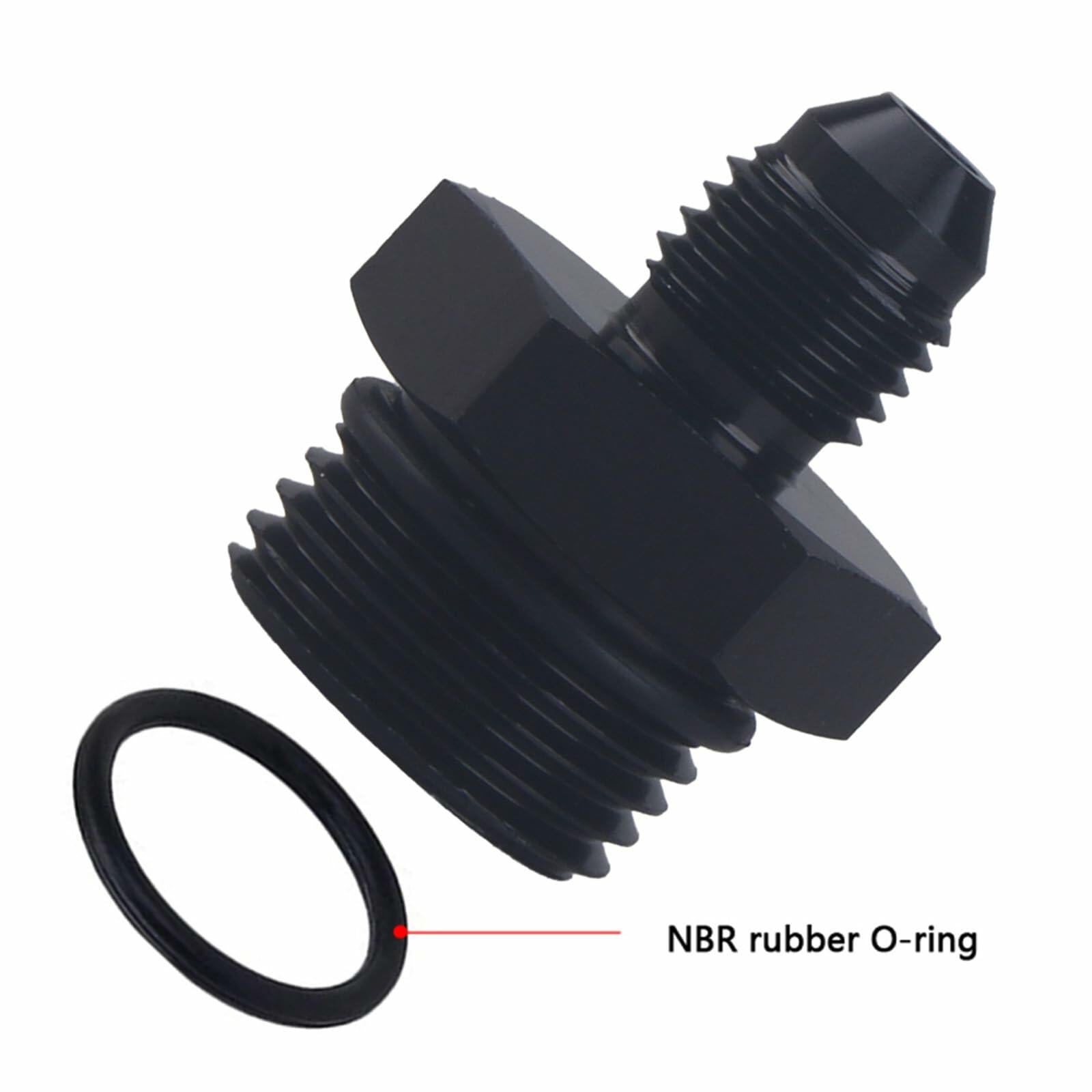

Features a 6061-T6 aluminum alloy body and NBR rubber o-rings.
The AN side of the flare is sealed with a 37-degree angle seal and the ORB side is sealed with an o-ring.
Max working pressure is 1500PSI and working temperature range is -65°F-252°F and O-ring working temperature range is -4°F-392°F.

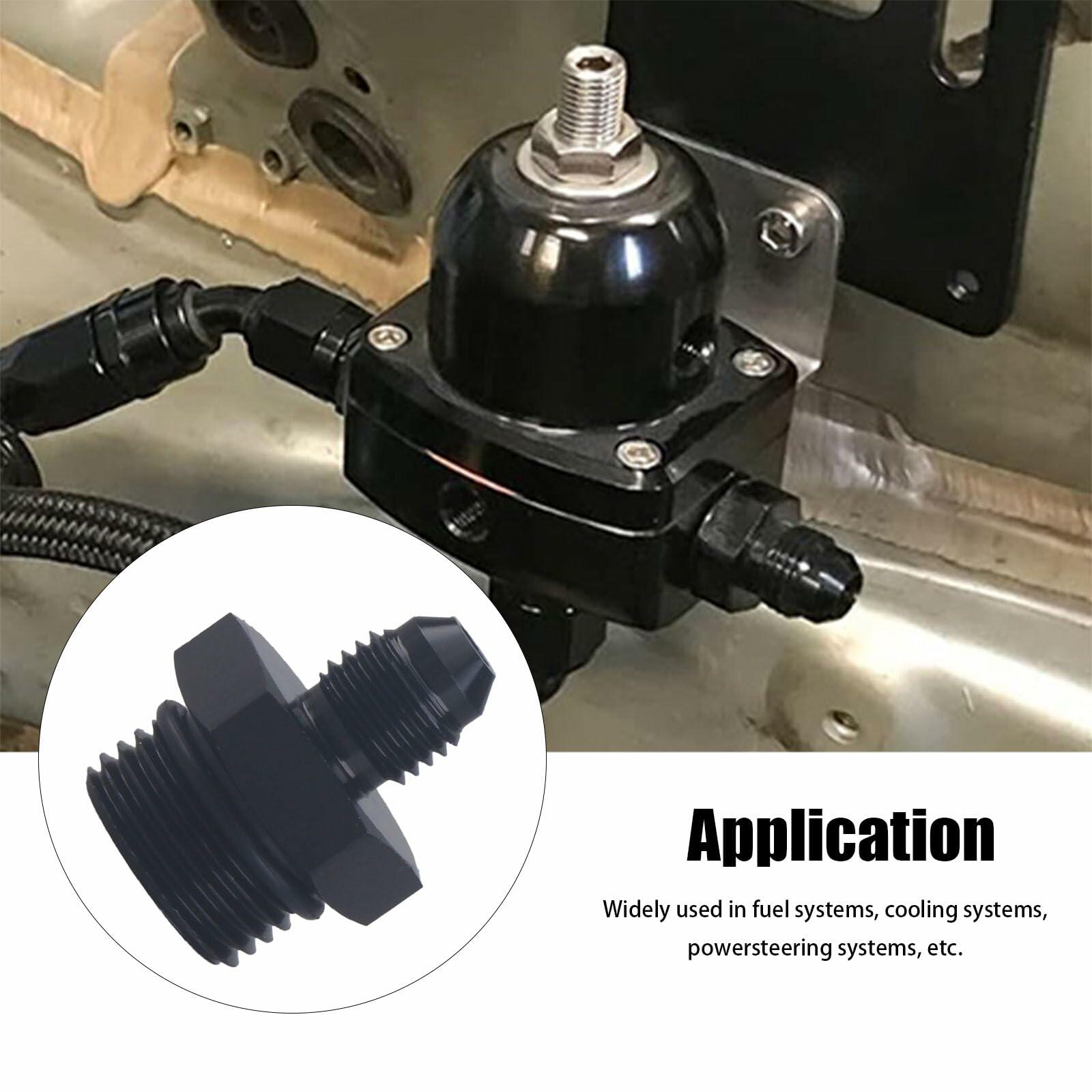

oil cooler，Suitable for fuel rail，fuel pressure regulator，fuel filter， fuel pump，power steering system，and so on
FEATURES
- 【Size】：Thread sizes for 6AN are 9/16-18 UNF and 8AN are 3/4-16 UNF and 1/4NPT.
- 【Material】：Features a 6061-T6 aluminum alloy body and NBR rubber o-rings.
- 【Sealing】：The AN side of the flare is sealed with a 37-degree angle seal and the ORB side is sealed with an o-ring.
- 【Parameter】：Max working pressure is 1500PSI and working temperature range is -65°F-252°F and O-ring working temperature range is -4°F-392°F.
- 【Application】：oil cooler，Suitable for fuel rail，fuel pressure regulator，fuel filter， fuel pump，power steering system，and so on
