PRODUCT DESCRIPTION
Key Features
- Fast cooling and heating for 2 independent zones
- 7 operating modes and 8 fan speeds to suit your comfort needs
- High energy efficiency with inverter technology and R454B refrigerant

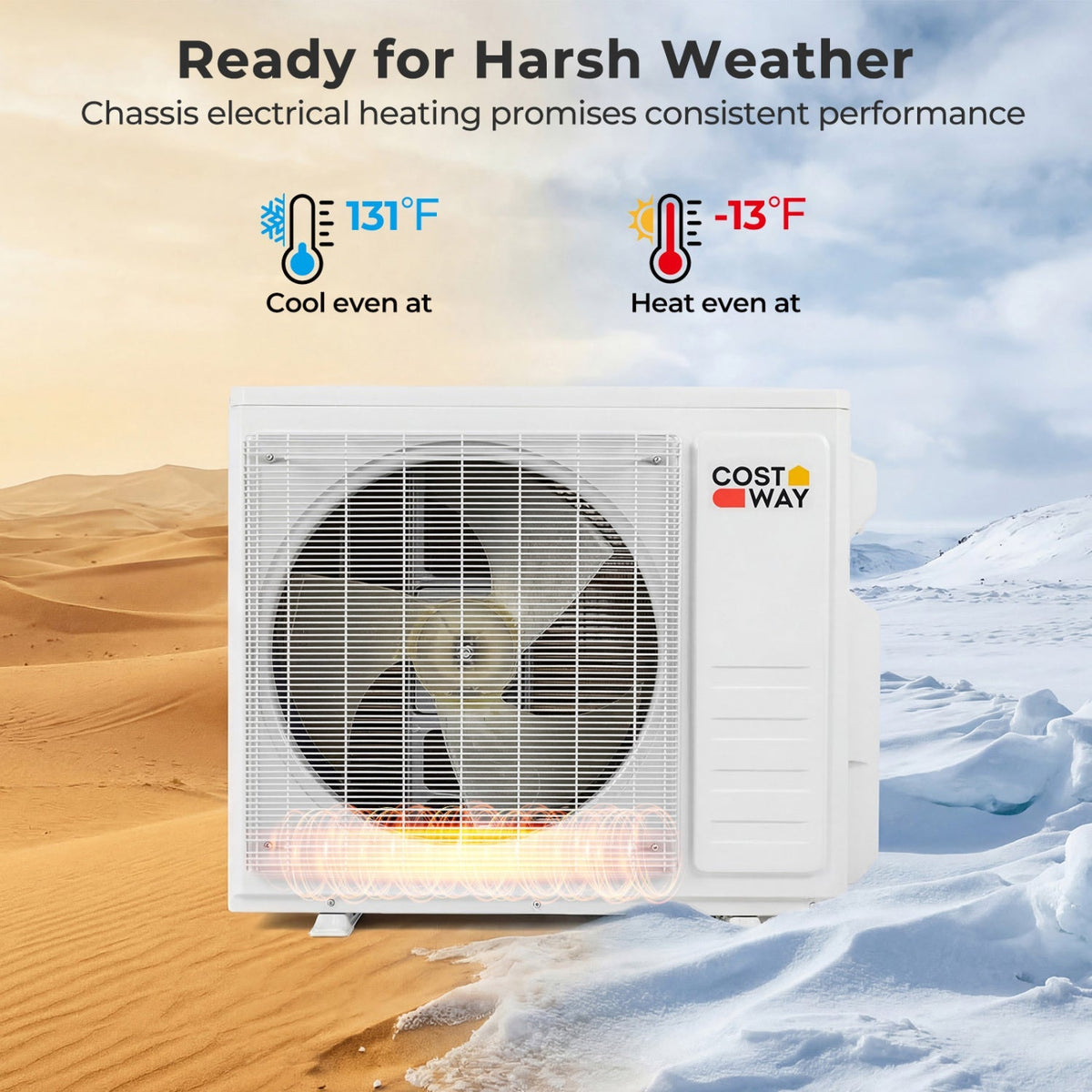

- Chassis electrical heating promises consistent performance
- Convenient control via smartphone app remote or voice commands
- Sleep mode for peaceful nights alongside screen off function
- 24-hour timer for effortless scheduling while saving energy
- 4D swing ensures even air distribution for added comfort
- Removable and washable filter for easy cleaning
- Self-clean function maintains fresher airflow over time
- Child lock to prevent accidental changes to settings
- Certified by Energy Star
Specifications
- Color: White

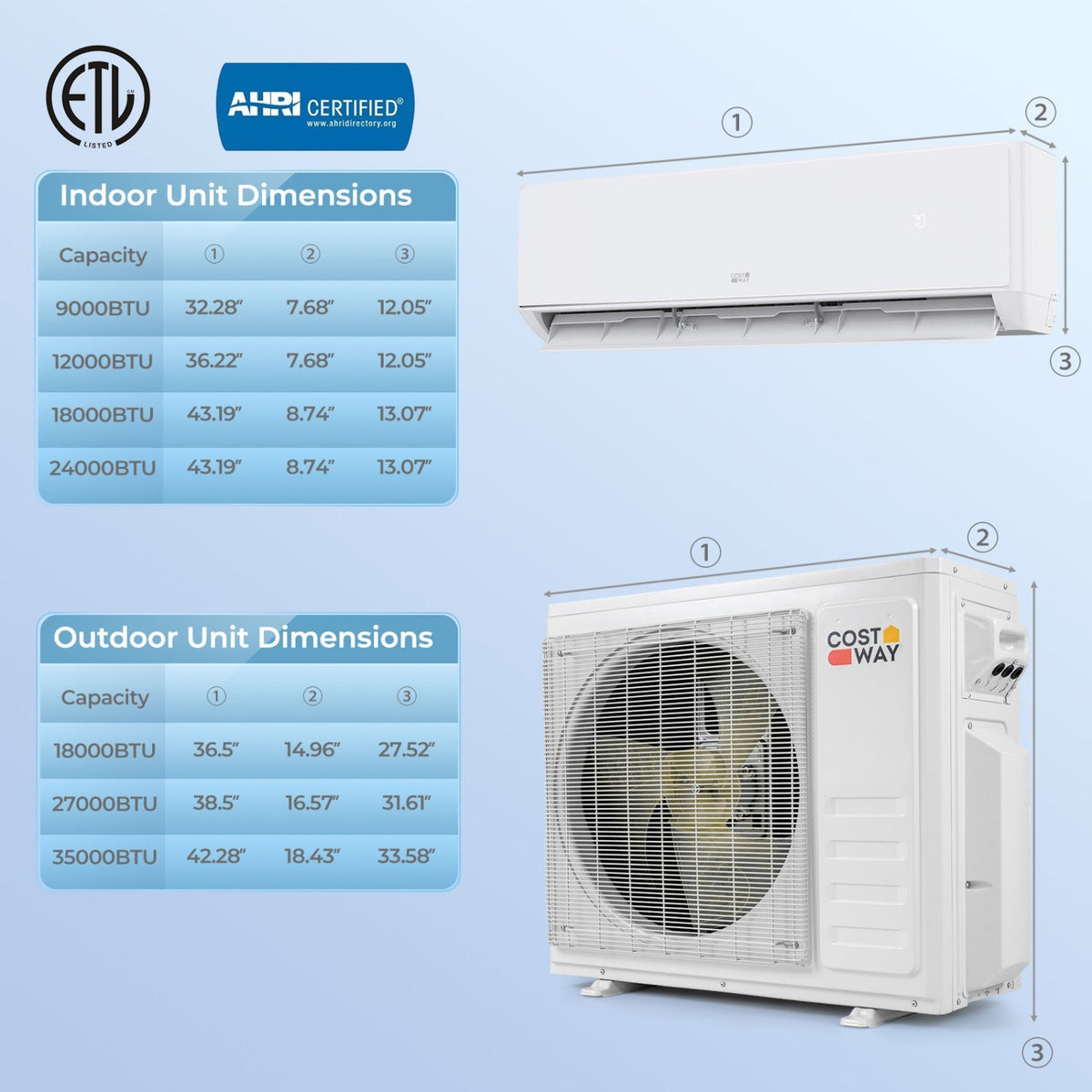

- Material: Cold-rolled Steel Sheet Copper Aluminum Indoor Unit Dimensions . 9K 32.28" x 7.68" x 12.05" 12K 36.22" x 7.68" x 12.05" 18K 43.19" x 8.74" x 13.07" 24K 43.19" x 8.74" x 13.07" Outdoor Unit Dimensions . 18K 36.5" x 14.96" x 27.52" 27K 38.5" x 16.57" x 31.61" 35K 42.28" x 18.43" x 33.58" Multi Zone Combination 2
- Voltage: 208-230V Frequency 60Hz Temperature Setting Range 60℉~88℉ Refrigerant R454B Indoor Unit Noise Level 30 dB Max Remote Control Distance 39.5 ft Coverage Area-9K 450 Sq.Ft Coverage Area-12K 750 Sq.Ft Coverage Area-18K 1250 Sq.Ft Coverage Area-24K 1500 Sq.Ft Dehumidification Capacity-9K 55.8 Pints/Day Dehumidification Capacity-12K 81.2 Pints/Day Dehumidification Capacity-18K 111.6 Pints/Day Dehumidification Capacity-24K 131.9 Pints/Day Maximum Air Flow Volume-9K 326 CFM/554 m³/h Maximum Air Flow Volume-12K 500 CFM/554 m³/h Maximum Air Flow Volume-18K 735 CFM/554 m³/h Maximum Air Flow Volume-24K 735 CFM/554 m³/h 18K SEER2 24 27K SEER2 24 35K SEER2 22.5 18K HSPF2 10.5 27K HSPF2 10.5 35K HSPF2 10 Diameter of Liquid Pipe 1/4" Diameter of Gas Pipe-9K 3/8" Diameter of Gas Pipe-12K 3/8" Diameter of Gas Pipe-18K 1/2" Diameter of Gas Pipe-24K 5/8"
- Net Weight: of 18K(Outdoor Unit) 92.6 lbs

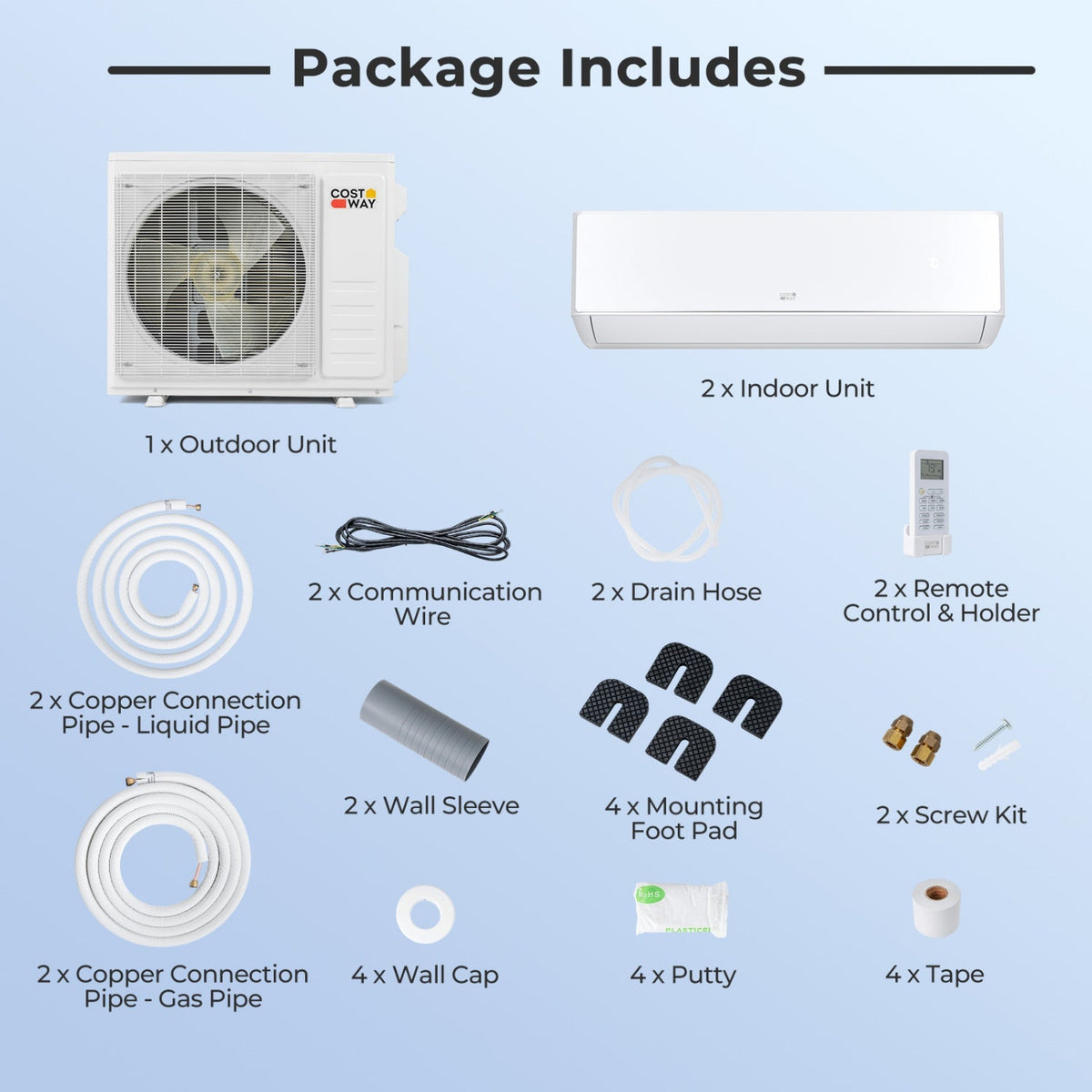

- Package Includes: 1 x Outdoor Unit 2 x Indoor Unit 2 x Copper Connection Pipe - Gas Pipe 2 x Copper Connection Pipe - Liquid Pipe 2 x Communication Wire 2 x Drain Hose 2 x Remote Control & Holder 2 x Wall Sleeve 4 x Wall Cap 4 x Tape 4 x Putty 2 x Screw Kit 4 x Mounting Foot Pad 5 x User Guide
