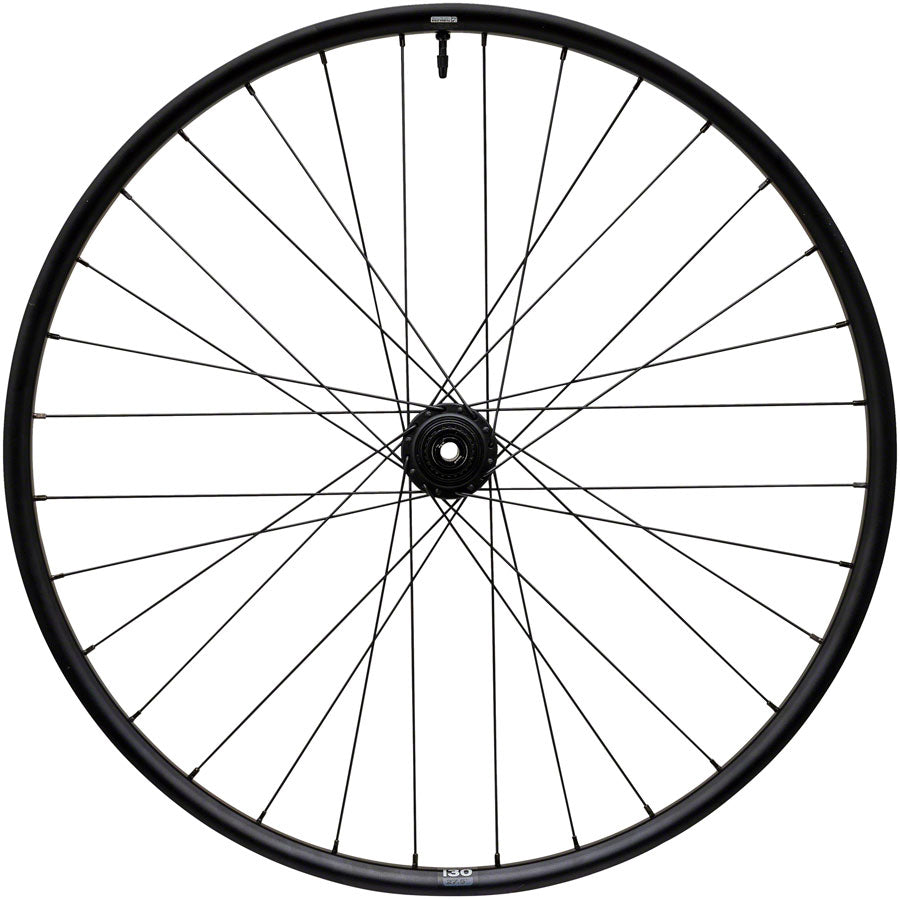

HTZ i30 wheels are the perfect choice for your e-assist trail enduro or downhill bike; ready for more distance more laps more climbs and more descents. With all those “mores” also comes more weight continually bashing on the components of an e-bike. In order to overcome the increased forces induced by the technological progression of modern e-bikes WTB designed the HTZ wheels to be reliable sturdy and safe; keep riders rolling.
Capable of withstanding the forces of a modern e-bike HTZ rim walls are 25-30% thicker in comparison to those of standard rimsTCS 2.0 Tubeless ready for a dependable tubeless systemHTZ hubs feature a heat sink attached directly to the 6-bolt rotor mount to dissipate heat and reduce brake fade while using oversize 220mm rotorsDouble-stacked Enduro sealed bearings to further increase stiffness and extend bearing lifeHeat-treated steel freehub body with six pawls that simultaneously engage to evenly distribute torsional forces while pedalingIncreased rear hub axle sleeve outer diameter to 17mm (that’s 2mm thicker than a standard MTB hub) while remaining compatible with all traditional 12mm thru-axles. This eliminates axle flex improves ride quality and increases bearing longevity by reducing angular load while cornering or pedaling
| Rear Axle |
12mm Thru x 148mm |
| Rim Width (Internal) |
30 |
| Cassette Body Type |
Shimano Micro Spline |
| Valve |
Presta |
| Color |
Black |
| Wheel Size |
29" |
| Designed for ebike |
Yes |
| Defined Color |
Black |
| ISO Diameter |
622 / Road / 29" |
| Tire Type |
Tubeless Ready |
| Rim Material |
Alloy |
| Hub/Brake Compatibility |
6-Bolt Disc |
