| Product name: |
P2P network HD video camera |
| Product model: |
X9100C-PH36 |
| technical parameter |
|
| Processor: |
AK3918E+SC1145 |
| Platform: |
360eye.cc |
| Operating system: |
Embedded LINUX operating system |
| Image sensor: |
1/4 HD CMOS 1 megapixel CMOS sensor; |
| Video format: |
HD (1280*720P) VGA (640*480) |
| Video coding: |
H.264 |
| Video frame rate: |
1-30 frame |
| Video mode: |
Manual video recording, time recording, alarm recording |
| Video playback mode: |
Mobile client + PC client |
| Audio input and output: |
Input:built-in microphone 45DB; output:built-in 8Ω2W speaker |
| Built in lens: |
3.6MM (standard) optional |
| Infrared night vision effect: |
The photosensitive resistance sensor switch, the LED lamp night vision 10 meters, (IR-CUT switch) |
| Focusing method: |
Manual |
| Minimum illumination: |
0.1Lux/F1.2 |
| PTZ control: |
Horizontal rotation 355 degrees vertical 100 |
| Local storage |
Support MicroSD inserted 64GB card, support 24 hours of video or video alarm |
| Support multiple protocols: |
TCP/UDP, IP, HTTP, SMTP, DHCP, UPNP, NTP, ONVIF |
| Wifi: |
3DB built-in antenna support IEEE 802.11b/g/n |
| Image rotation: |
Mirror / upside down |
| Video control: |
Support |
| Motion detection: |
Support |
| Alarm action: |
The alarm bell / mobile phone client push |
| Firmware upgrade: |
Remote upgrade through the network |
| System interface: |
1 USB interface ,1 TF interface |
| Supply voltage: |
5V2A |
| Working temperature: |
0 degrees C ~55 C |
| Applicable scenarios: |
indoor |
| Single size: |
8.6*8.7*11cm |
| Packing size: |
16.5*12.4*10.1cm |
| Single weight: |
179g |
| Packing weight: |
367g |
| Outer box: |
64*34*52.5CM |

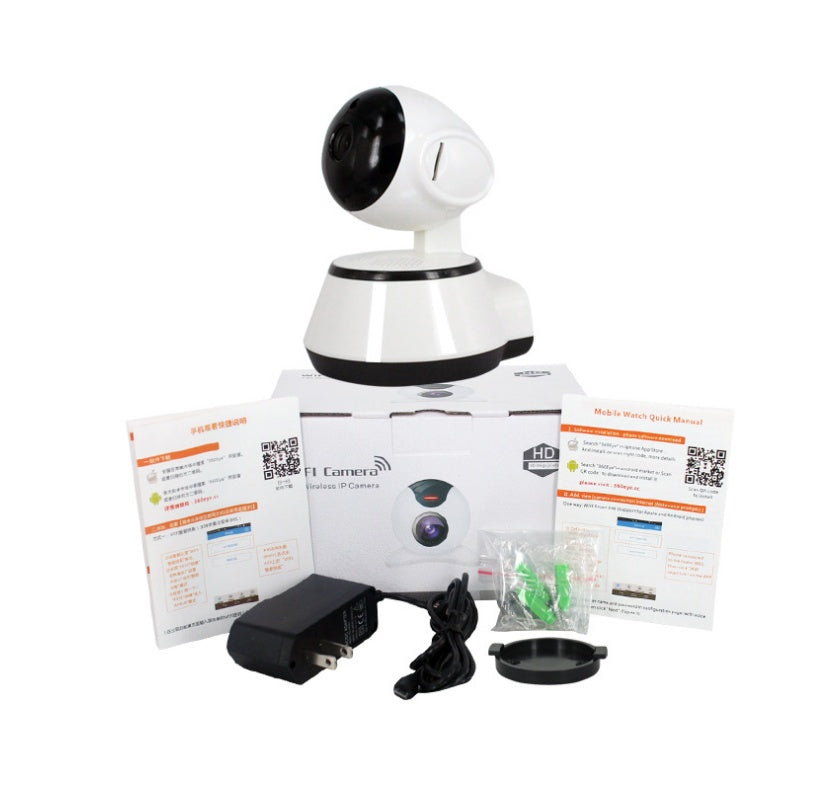

| Packaging accessories |
1 color box |
| 2 inner support |
| 3 Instructions |
| 4 power supply |
| 5 screw package |
