Product Description
Powerful, portable vector network analyzer for antenna tuning, RF testing, spectrum inspection and ham radio diagnostics. Compact 2.8 inch touchscreen, USB-C connectivity and SD card support make field measurements fast and convenient.
Specifications:
- Measurement Frequency: 10 kHz - 1.5 GHz
- RF Output: -13 dBm (maximum -9 dBm)
- Frequency Accuracy: < 0.5 ppm
- Measurement Range: 70 dB (50 kHz–300 MHz), 50 dB (300 MHz–600 MHz), 40 dB (600 MHz–900 MHz with extended firmware)
- Port SWR: < 1.1
- Display: 2.8 inch TFT (320 x 240) — 2.8 in (71 mm)
- PCB Dimensions: 54 x 85.5 x 11 mm (2.13 x 3.37 x 0.43 in) without connectors
- USB Interface: USB Type-C (CDC serial)
- Power: USB 5V 120 mA; built-in 650 mAh battery (included); max charging current 0.8 A
- Calibration Points: 101 (fixed)
- Scanning Points: 101 (fixed)
- Display Tracking / Markers: 4 tracking traces, 4 markers, 5 saved settings
- Functions: S-parameters, VSWR, phase, delay, Smith chart, time domain reflectometry (TDR)
- SD Card: SD card slot, supports up to 32 GB
- Battery Included: Yes (built-in 650 mAh)
Package Includes:

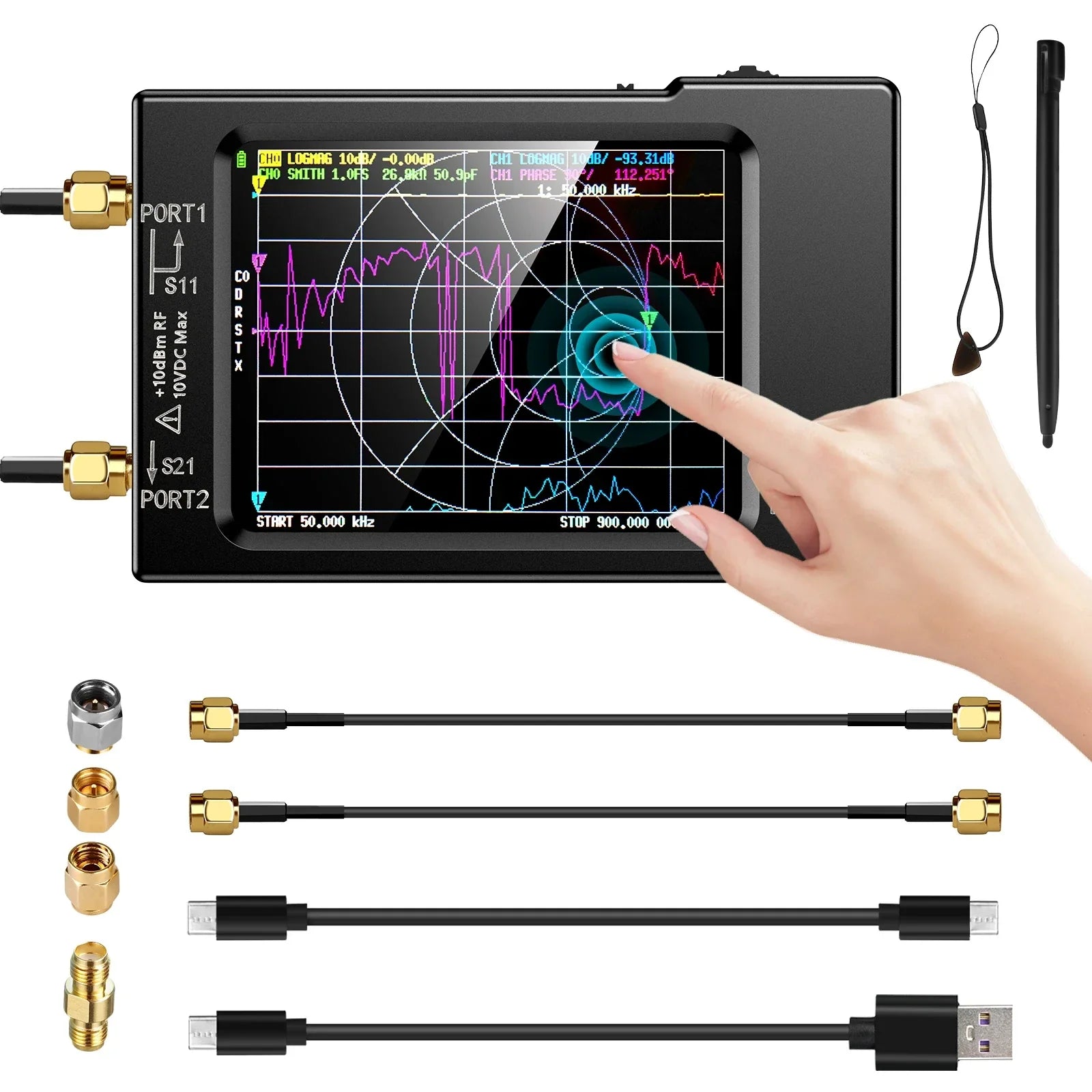

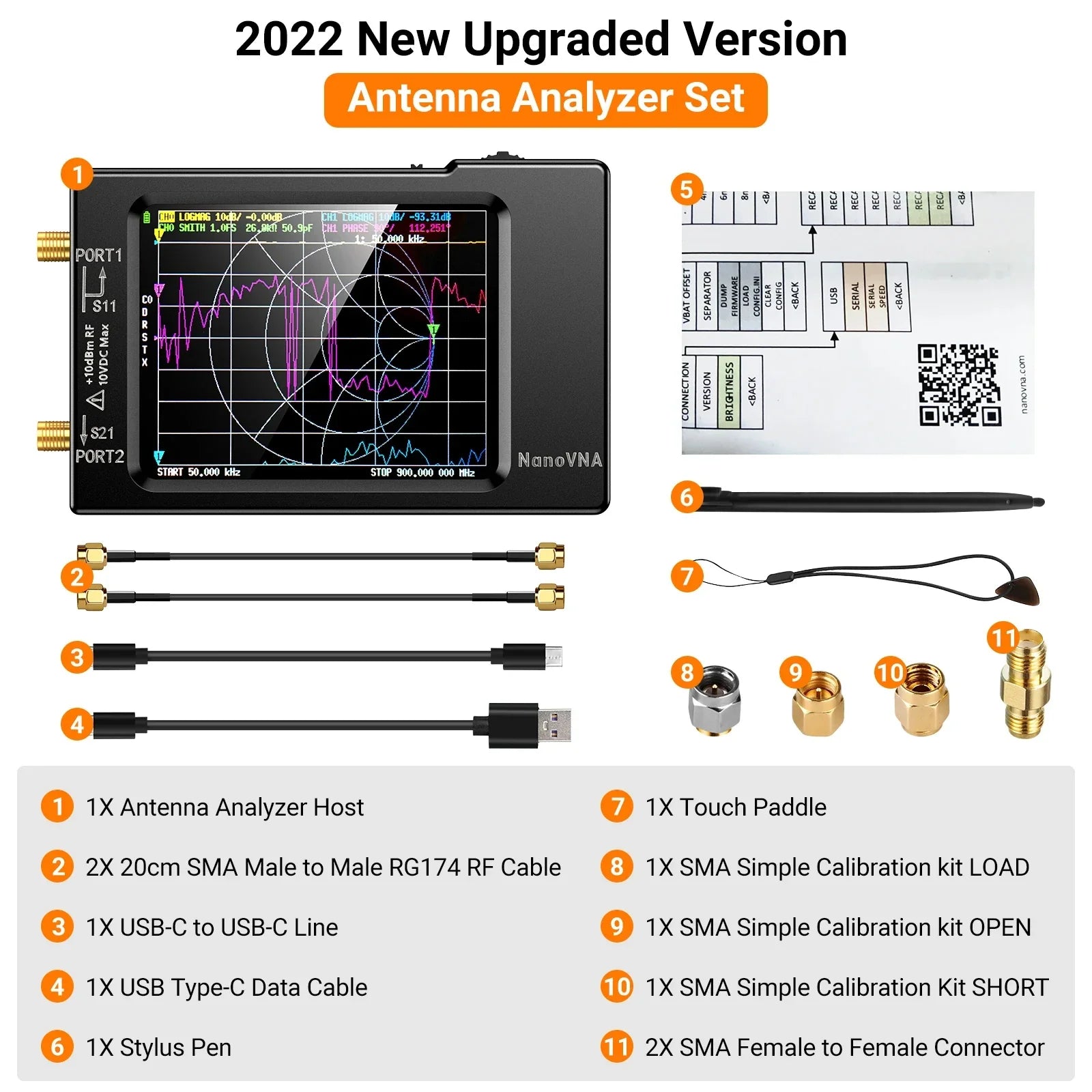

- Main Unit: 1x VNA host with 2.8 inch touchscreen and 650 mAh battery
- RF Cables: 2x 20 cm SMA male-to-male RG174 cables
- Adapters: 2x SMA female-to-female connectors
- Calibration Kit: 1x SHORT, 1x OPEN, 1x LOAD
- Cables: 1x USB Type-C data cable, 1x Type-C to Type-C cable
- Accessories: 1x touch paddle
Key Features:
- Portable Design: ABS shell for protection and improved durability
- Mobile Display Support: USB-C to USB-C display support for many Android phones (does not support iPhone)
- TDR Support: Time domain analysis for cable fault location
- Easy Data Storage: Save measurements to SD card for later analysis
#VNASpectrumAnalyzer #HamRadio #FanzyMarket
