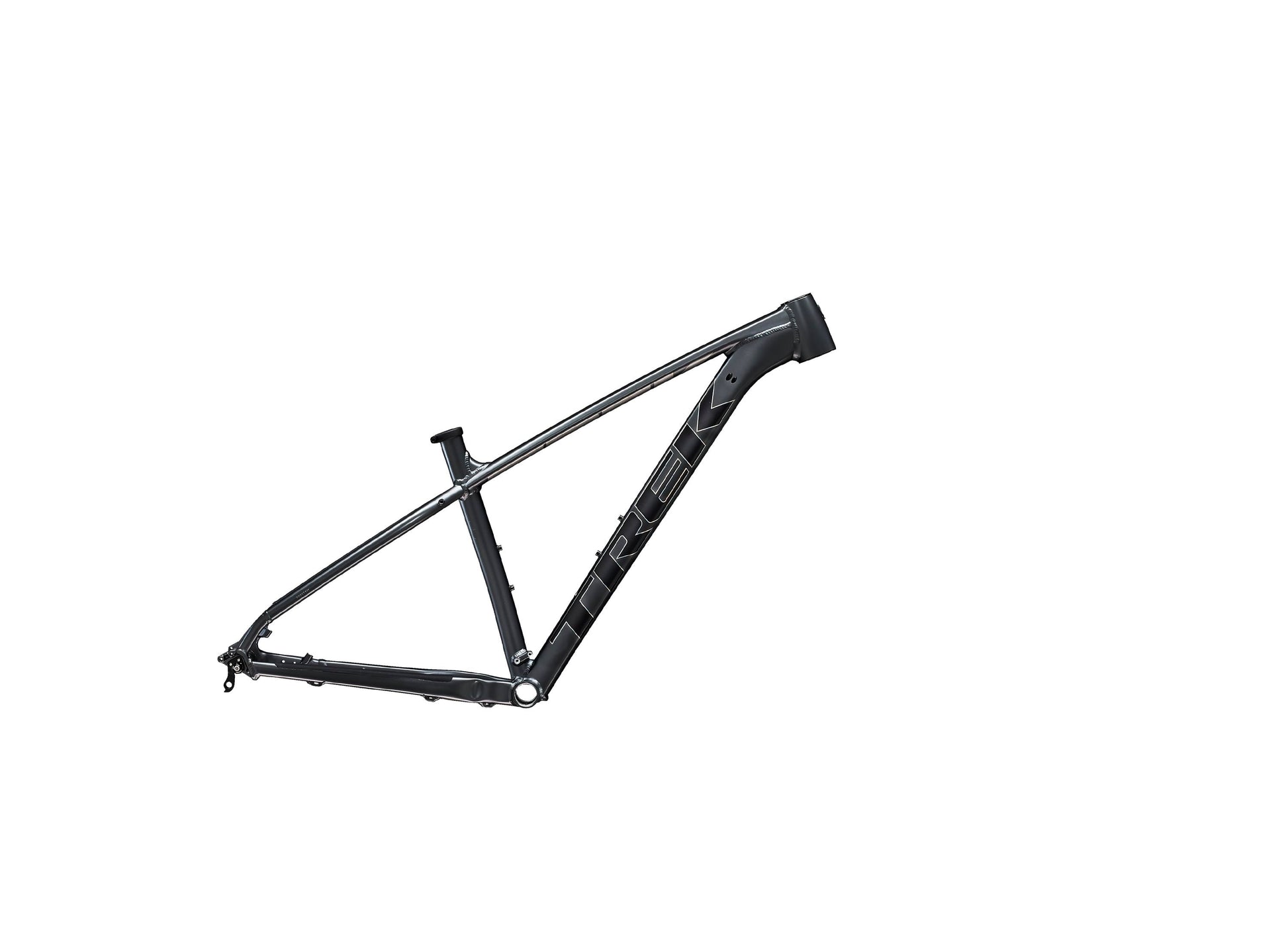

X-Caliber frameset is a high-value alloy mountain bike frameset for fast singletrack rides. Lightweight Alpha Aluminum tubes, shorter chainstays for extra agility, and an incredible amount of versatility make it a great starting point for your cross country mountain bike.
- It gets you into the world of cross country riding and racing at a great price, and it's a mountain bike that can grow with you as your skills advance
- The sleek internal cable routing gives you clean looks, protects your cables, and makes it easy to upgrade to a dropper post for even more capability
- The frame is fully compatible with higher-end parts, like race wheels and a dropper post
- Mounts on the frame make it easy to add a rear rack if your XC bike doubles as your daily commuter
High tech frame
The Alpha Gold Aluminum frame is packed with features that make your ride better. A tapered head tube gives you more precise, confident handling on the front end, while Boost 141 rear hub spacing gives you shorter chainstays for more nimble handling out back.
![]()
| Frame |
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR |
| Seat Collar |
Bolt-on, 36.4mm |
| Headset |
Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
Geometry Chart
| B B Drop |
5.8 |
| B B Height |
29.2 |
| Chainstay Length |
42.5 |
| Eff Seat Tube Angle |
73.5° |
| Eff Top Tube |
54.4 |
| Frame Reach |
37.6 |
| Frame Size Letter |
XS |
| Frame Size Number |
13.5" |
| Frame Stack |
56.5 |
| Head Angle |
69.3° |
| Head Tube Length |
9 |
| Offset |
4.2 |
| Seat Tube |
34.3 |
| Seat Tube Angle |
73.5° |
| Standover |
69.8 |
| Trail |
8.8 |
| Wheelbase |
103.6 |
| Wheel Size |
27.5" |
