Product Description

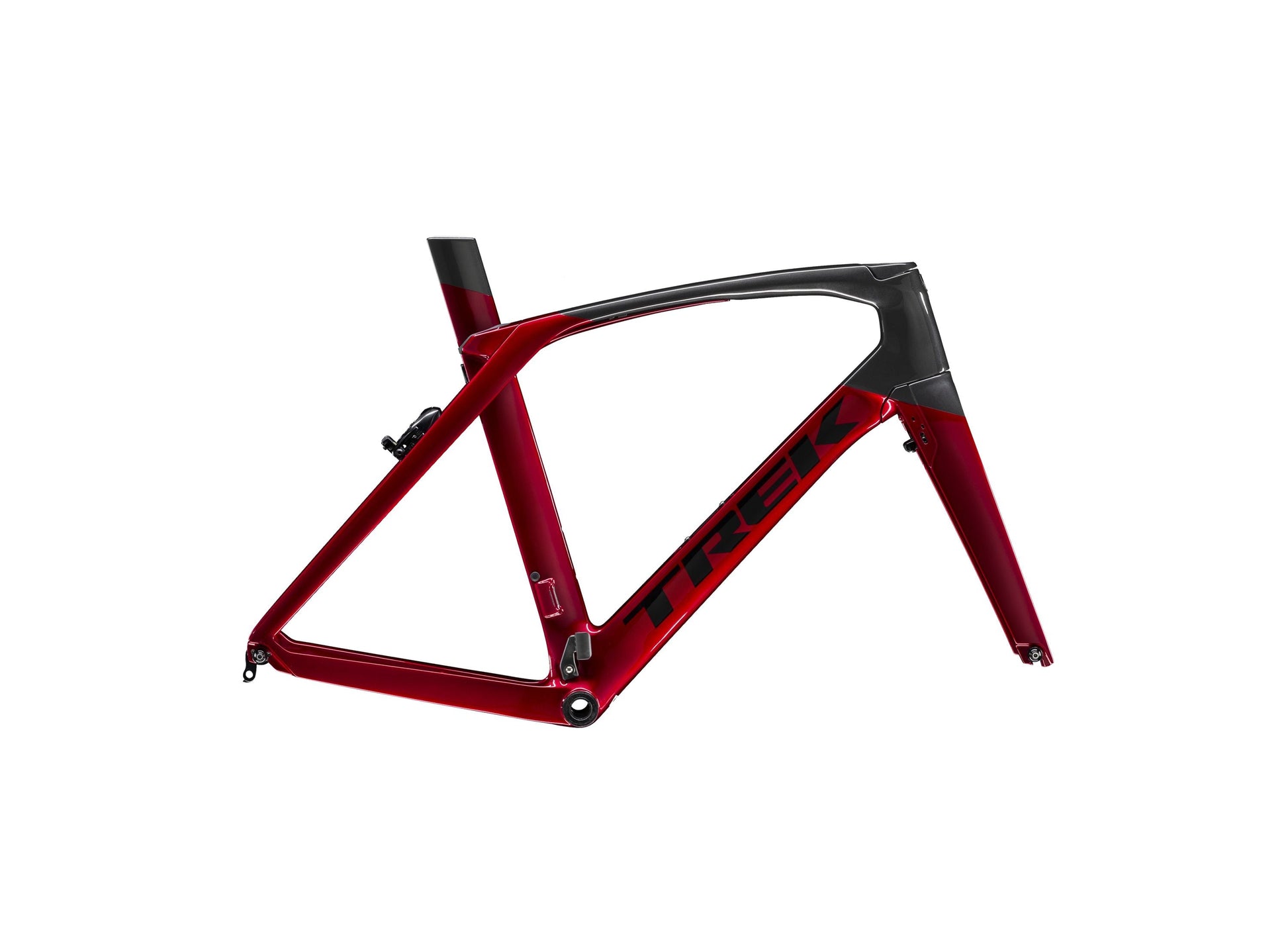

Madone SLR frameset is ready to make your racing dreams come true. This light, aero frame is built from 700 Series OCLV carbon, and features IsoSpeed technology for added comfort Let your imagination run wild with the custom build of your dreams.
- Madone Gen 6 takes tried-and-true road-smoothing IsoSpeed comfort technology and bundles it into a lightweight, race-ready package for fast rides
- Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
- Let's be honest: this bike looks awesome, like it's breaking speed records even when it's parked at the café for a post-ride espresso
- Madone Project One ICON paint schemes make the ultimate race bike a true piece of artwork
| Frame | 700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, direct mount rim brake, DuoTrap S compatible, 130x5mm QR |
| Fork | Madone KVF full carbon, tapered carbon steerer, invisible cable routing, carbon dropouts, 5x100mm QR |
| Front Derailleur | Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs) |
| Bottom Bracket | Trek BB90 |
| Brake | Madone aero, integrated, SwissStop Flash EVO Black Prince pads |
| Seatpost | Not included |
Geometry Chart
| B B Drop | 7.2 |
| Chainstay Length | 41 |
| Eff Top Tube | 52.1 |
| Frame Reach | 37.8 |
| Frame Size Number | 50cm |
| Frame Stack | 52.1 |
| Head Angle | 72.1° |
| Head Tube Length | 11.1 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 65 |
| Saddle Rail Height Max Tall | 68.5 |
| Saddle Rail Height Min Short | 58 |
| Saddle Rail Height Min Tall | 62.1 |
| Seat Tube | 45.3 |
| Seat Tube Angle | 74.6° |
| Standover | 72.9 |
| Trail | 6.2 |
| Wheelbase | 97.4 |
| Wheel Size | 700c |
| Color | RAGE RED/DNISTER BLACK |
