Product Description

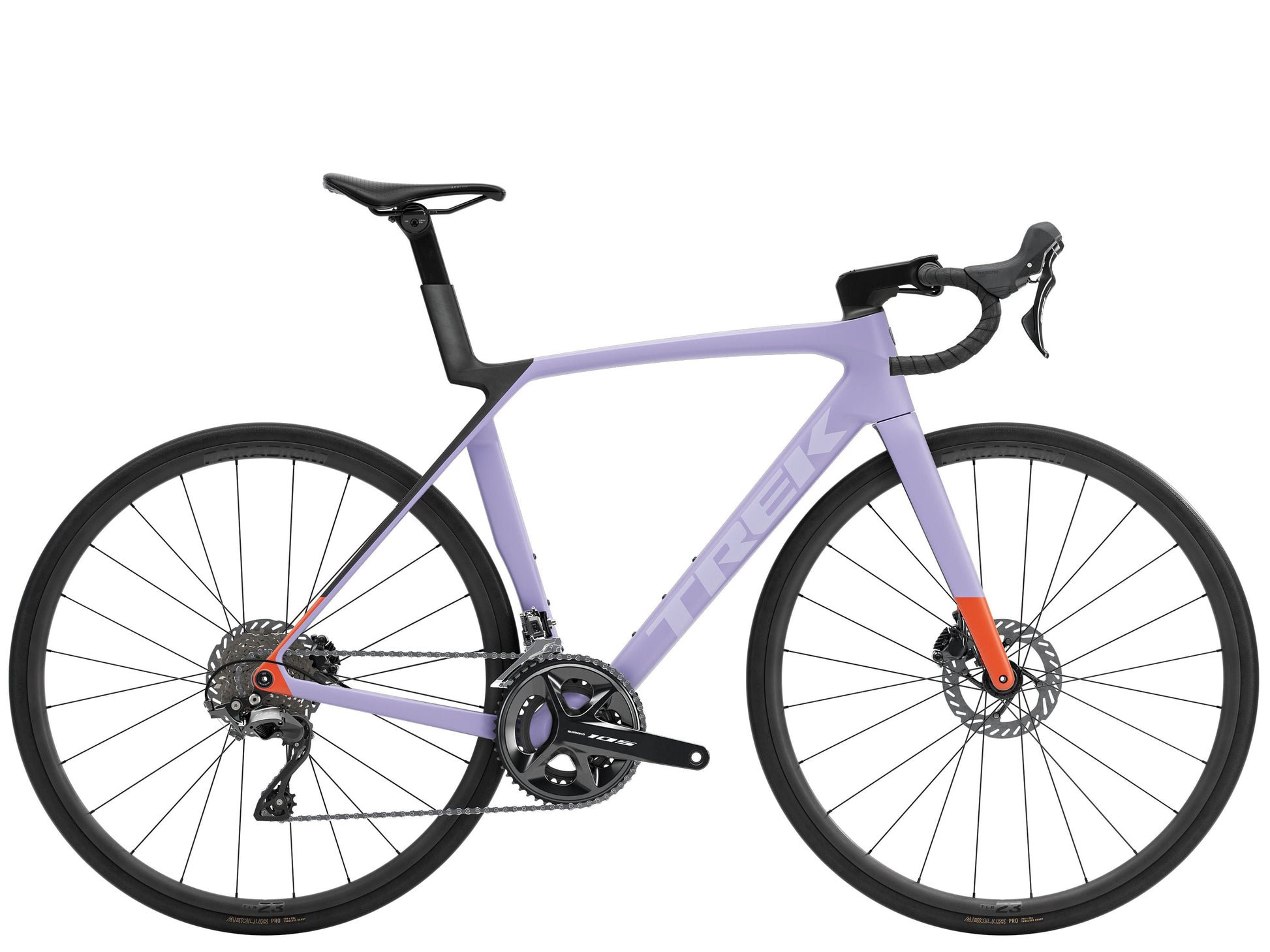

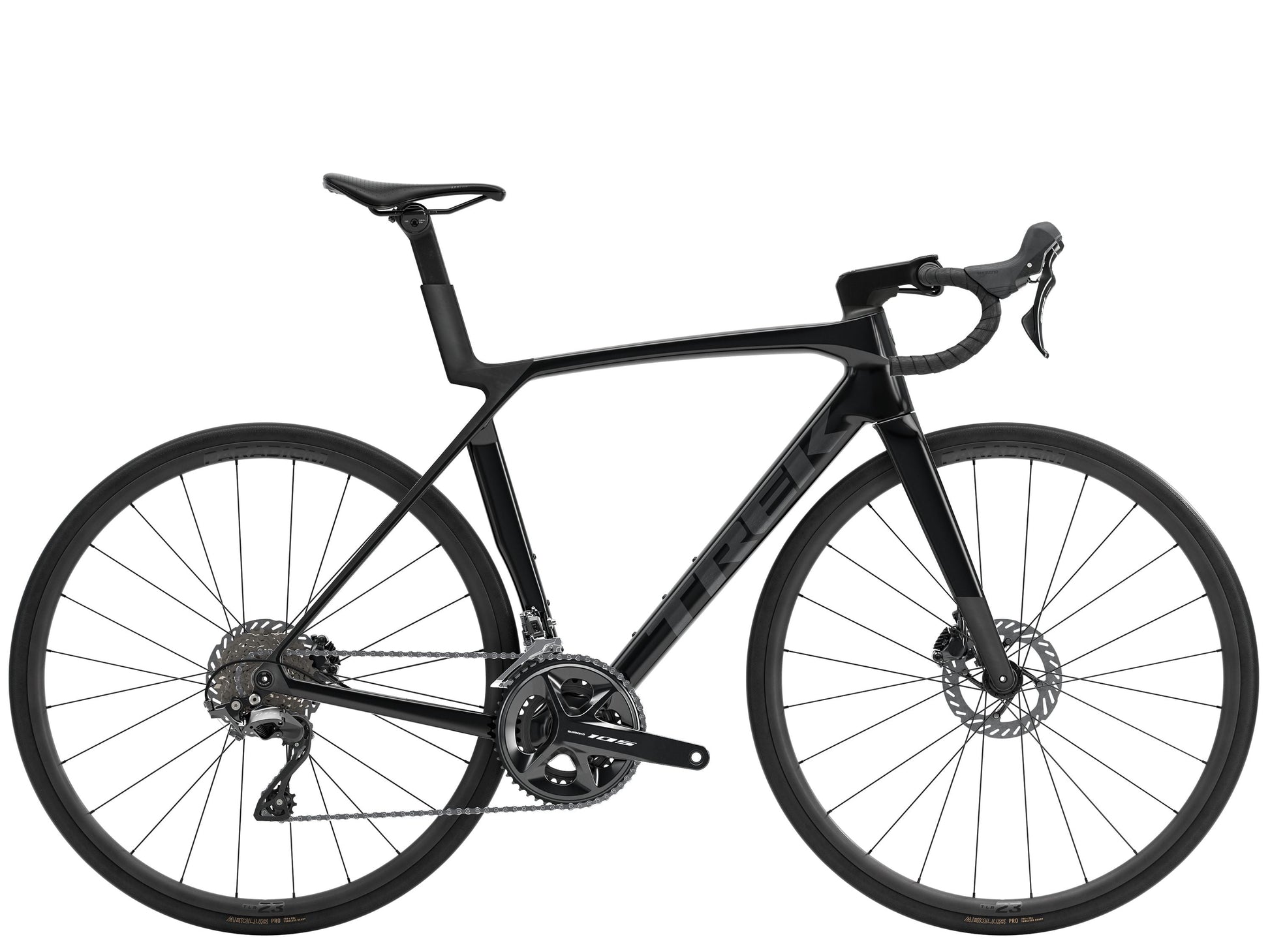

Our lightest Madone SL Disc ever
New light and fast aero tube shaping paired with light-yet-economical 500 Series OCLV Carbon makes Gen 8 our lightest Madone SL Disc f/s ever and the ideal climbing bike.
Redefines what fast looks like
Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.
80% more vertically compliant IsoFlow
We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.
Rooted in racing
Madone SL was informed by feedback from Lidl-Trek's fastest sprinters and climbers.
Adjustable aero cockpit
Madone Gen 8 features hoods that are narrower than the drops so you can adjust your positioning to prioritize aerodynamics or power. Plus, the two-piece design lets you quickly and easily dial in your fit.
Add-on aero bottles to make your whole bike faster
Add-on RSL Aero Bottles and Cages were designed with Madone Full System Foil aero shapes to make the whole rider system even faster.
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Tire | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Hub Front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve |
| Skewer Front | Bontrager Switch chamfered thru axle |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Shifter | Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed |
| Front Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Shimano 105 R7100, 50/34, 165mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake Rotor | Shimano CL700, centerlock, 160mm |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width, 50th anniversary edition |
| Seatpost | Madone aero carbon seatpost, 0mm offset, short length |
| Handlebar | Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width |
| Stem | Trek RCS Pro, -7 degree, 80mm length |
Geometry Chart
| B B Drop | 7.2 |
| Chainstay Length | 41 |
| Eff Top Tube | 51.7 |
| Frame Reach | 37 |
| Frame Size Letter | XS |
| Frame Stack | 50.7 |
| Head Angle | 71.6° |
| Head Tube Length | 10 |
| Offset | 5 |
| Saddle Rail Height Max Short | 61.2 |
| Saddle Rail Height Max Tall | 65.4 |
| Saddle Rail Height Min Short | 54.9 |
| Saddle Rail Height Min Tall | 59.2 |
| Seat Tube | 40.4 |
| Seat Tube Angle | 73.8° |
| Standover | 70.4 |
| Trail | 6.1 |
| Wheelbase | 97.1 |
| Wheel Size | 700c |
