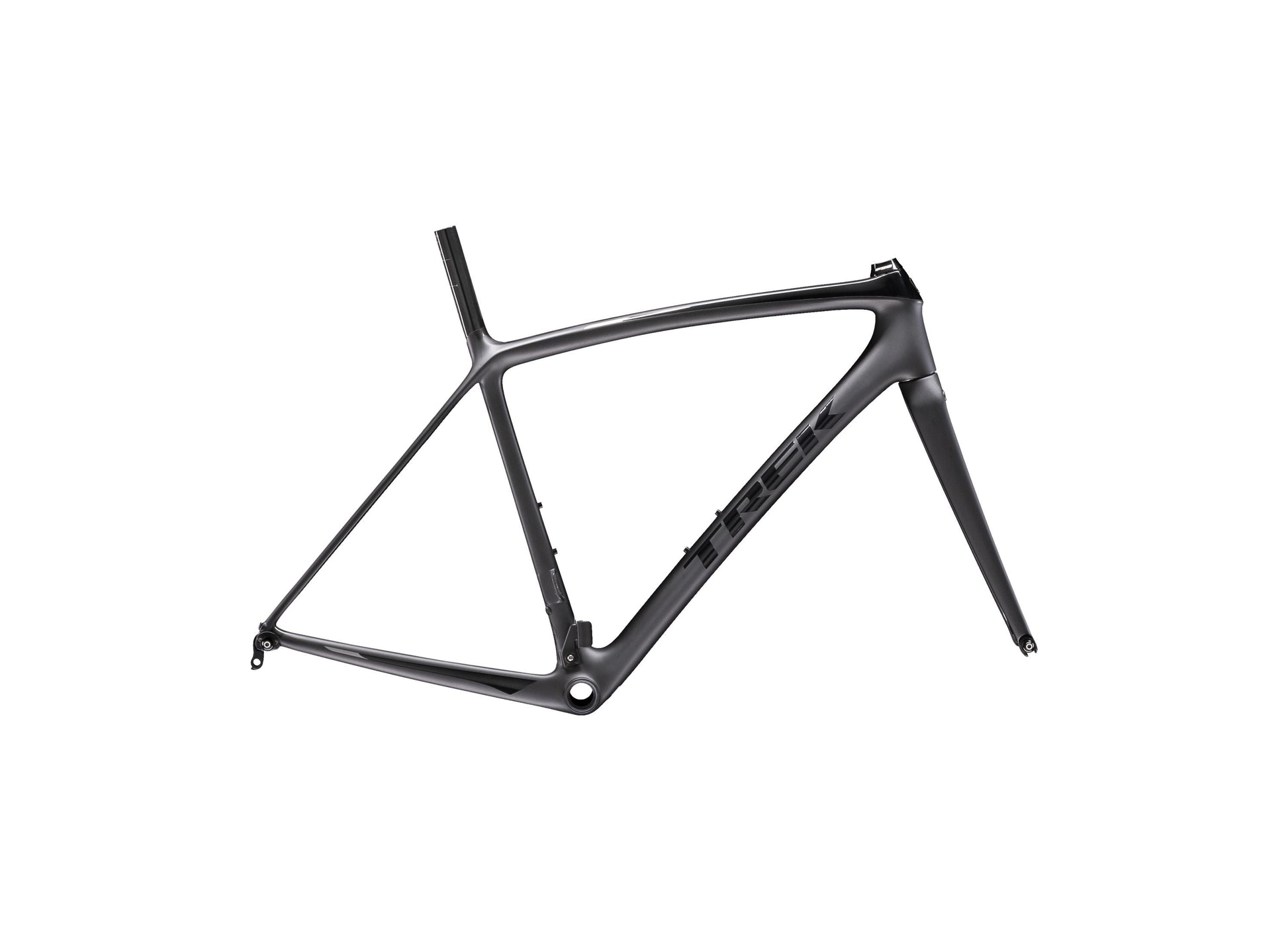

Émonda SLR RSL H1 Frameset delivers the same ultralight performance as other models in our lightest Émonda family, with a lower and longer H1 geometry favored by elite racers.
- The H1 geometry is best for racers who prefer being in a more aggressive riding position
- We optimized our carbon layup process specifically for this frame to achieve the lightest weight and finest ride quality possible
- You can immediately feel Émonda’s lightweight benefits on the biggest climbs
- Yes, Émonda SLR H1 Frameset is super lightweight — but it's a super lightweight frameset with exceptional ride quality, balance, and stiffness, too
More choice for all genders
We believe every rider—regardless of gender, body type, riding style, or ability—deserves a great bike. One that gets you excited to hop in the saddle and ride. A bike that makes you want to go faster and farther than ever before. A bike that feels like it was made just for you. Because it was. Trek is introducing new bikes to give better fits and more options to female and male riders alike. Historically, we’ve offered smaller frame sizes geared towards women on women’s models exclusively. We’re now offering smaller sizes and more colorways on every single 2020 Émonda. A smaller rider, no matter their gender, can now choose from every model we offer in these performance lines. There is no specific women’s offering for these bikes. They’re all women’s bikes. They’re all men’s bikes. Why are we doing this? To give more fit and color options to all riders, regardless of gender or size.
![]()
| Frame |
Ultralight 700 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, DuoTrap S compatible, BB90, direct mount rim brake, 130x5mm QR |
| Fork |
Emonda SLR full carbon, tapered carbon steerer, direct mount brake, carbon dropouts, 5x100mm QR |
| Seatpost |
Not included |
Geometry Chart
| B B Drop |
7.2 |
| Chainstay Length |
41 |
| Eff Top Tube |
52.2 |
| Frame Reach |
38.3 |
| Frame Size Number |
50cm |
| Frame Stack |
50.6 |
| Head Angle |
72.1° |
| Head Tube Length |
10 |
| Offset |
4.5 |
| Saddle Rail Height Max Short |
64.5 |
| Saddle Rail Height Max Tall |
68 |
| Saddle Rail Height Min Short |
58.5 |
| Saddle Rail Height Min Tall |
62 |
| Seat Tube |
45.3 |
| Seat Tube Angle |
74.6° |
| Standover |
69.6 |
| Trail |
6.1 |
| Wheelbase |
97.4 |
| Wheel Size |
700c |
