Product Description

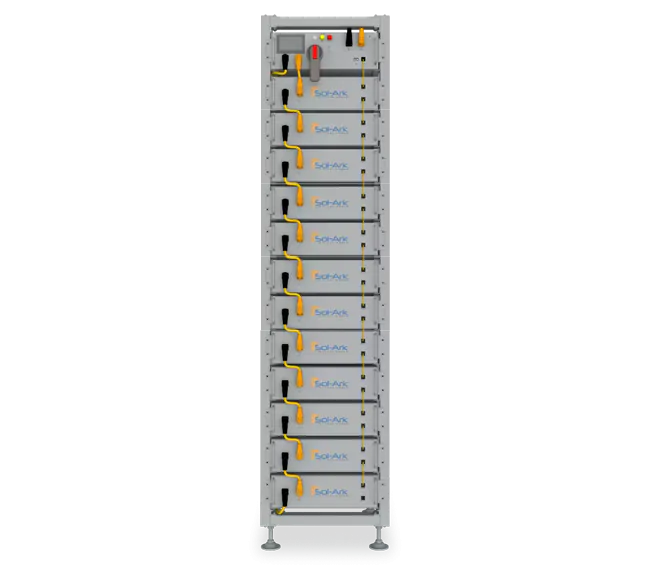

Sol-Ark L3 HV-60KWH-60K | 480V Indoor Energy Storage System | 60kWh LiFePO4
Designed for commercial and industrial operations that can't afford downtime, the Sol-Ark L3 HV-60 delivers 61.4kWh of LiFePO4 energy storage with 60kW AC output. Ideal for facilities focused on demand charge reduction, load shifting, and long-term energy independence.
- Scales to 9.6MWh
- Indoor-ready and Quiet (under 40 dBA)
- Stable LiFePO4 Chemistry
About the Product
The Sol-Ark L3 HV-60KWH-60K is a commercial battery energy storage system built for facilities that demand serious energy reliability. It delivers 55.3kWh of usable DC capacity with 60kW of continuous AC charge/discharge power—enough for peak shaving, load shifting, and whole-facility backup in large-scale commercial operations.
Scalability is where the Sol-Ark L3 stands apart. You can start with one cabinet and expand to 160 units across 10 parallel inverters (compatible with the Sol-Ark 30K-3P-208V inverter). This way, you can scale up to 9.6MWh of total storage without replacing existing hardware.
Also, its lithium iron phosphate chemistry offers 94% round-trip DC efficiency and operates reliably from 40°F to 110°F. The IP20-rated indoor enclosure (NEMA 1) keeps the system clean and silent (< 40 dBA at 86°F), making it a natural fit for electrical rooms and dedicated energy centers.
CAN2.0/RS485 communication ports enable seamless inverter integration and remote monitoring. With UL1973, UL9540, and UL9540a certifications, the system meets stringent commercial compliance standards. A 10-year product warranty and performance coverage up to 196MWh of throughput round out a compelling long-term ROI for any grid-tied commercial solar installation.
Specifications
|
Type |
Lithium Iron Phosphate (LiFePO4) |
|
System Energy |
61.44kWh nameplate / 55.3kWh usable |
|
System Nominal Voltage (DC) |
614.4V |
|
System Operating Voltage (DC) |
588V – 672V DC |
|
Battery Module Nominal Energy Capacity |
5.12kWh |
|
Battery Module Nominal Voltage and Capacity |
51.2V / 100Ah per module |
|
Communication Interfaces |
CAN2.0 / RS485 |
|
Scalable |
Up to 16 units per inverter / 10 inverters in parallel |
|
Nominal Charging Current |
50A recommended |
|
Nominal Discharging Current |
100A max continuous |
|
Max. Discharging Current |
125A peak (60 sec @ 25°C) |
|
Environment |
Indoor |
|
Operating Temperature |
40°F – 110°F (disabled below 32°F) |
|
Storage Temperature |
-4°F – 95°F at SOC 30% |
|
Altitude |
Up to 9,843 ft |
|
IP Rating |
IP20 (NEMA 1) |
|
Dimensions |
23 x 23 x 86 inches |
|
Weight |
1,705 lbs |
|
Installation |
Freestanding Rack Mount |
|
Warranty |
10 Years |
Download full specifications here.
Download installation manual here.
