PRODUCT DESCRIPTION

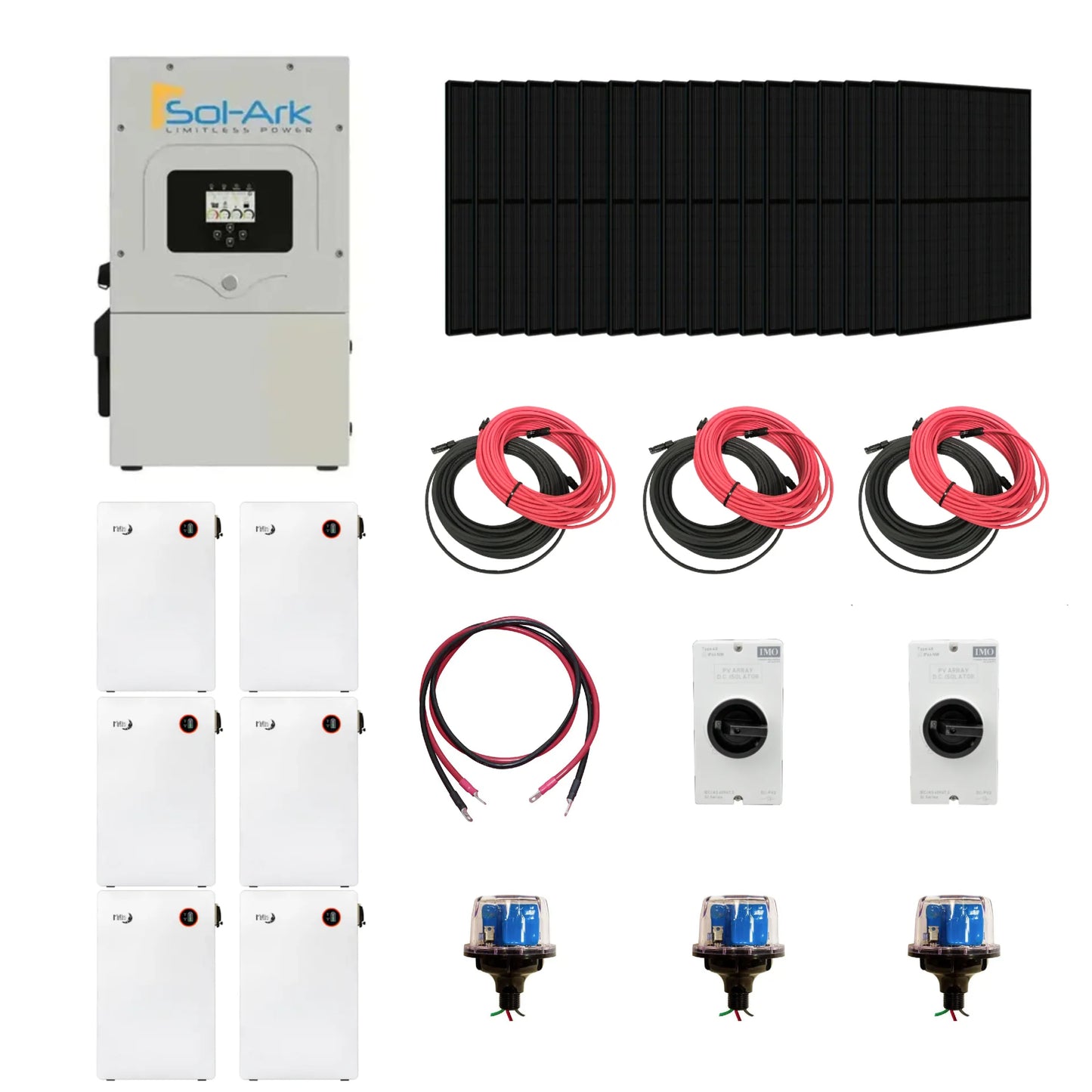

Complete Solar Kit – Sol-Ark 15K Hybrid Inverter | MidNite Power 16.1kWh Battery | 13.5kW+ PV
Built for homeowners, small businesses, and off-grid properties that need dependable energy independence, this complete hybrid solar kit Sol-Ark pairs a 15kW inverter with 16.1kWh of LiFePO4 storage and 13.5kW+ of solar PV. Flexible installation on rooftops, ground mounts, or carports.
- All-in-One System Design
- Whole-Home Backup with <5ms Transfer
- Weather-Resilient LiFePO4 Storage
About the Product
This complete hybrid solar kit brings together every component needed for a reliable solar-plus-storage system.
At the core of this complete hybrid solar kit is the Sol-Ark 15K hybrid inverter. It delivers 15kW of continuous 120/240V split-phase output and three MPPT trackers with integrated rapid-shutdown controls. Fast transfer under 5ms keeps essential circuits running through grid outages, making it well-suited to high-demand homes and critical-load subpanels.
Energy storage comes from the MidNite Power AllWeather LiFePO4 battery, offering 16.1kWh of usable capacity. Its stable lithium iron phosphate chemistry, outdoor-ready enclosure, and self-heating feature ensure consistent performance in any climate.
The kit includes essential balance-of-system hardware—MidNite Solar surge protection, code-compliant disconnects, and pre-terminated MC4 PV wire sets—chosen for safety and reduced installation labor. You can pair 13.5kW+ of premium bifacial solar PV, mounted on rooftops, ground mounts, or carports.
Consult NABCEP-certified technicians before pairing a MidNite Power battery with another brand of inverter.
What’s Included in this Complete Hybrid Solar Kit?
In this complete hybrid solar kit, you get a solar inverter, battery storage, solar panels, and system protection and balance.
Inverter
|
Model |
Sol-Ark 15K-2P |
|
Type |
Hybrid |
|
AC Output Power |
15,000W continuous (12,000W battery-only) |
|
Phases |
Split-phase |
|
Efficiency |
97.5% peak / 96.5% CEC weighted |
|
DC Input Voltage |
150-500V MPPT range / 125V startup / 500V max |
|
MPPT Trackers |
3 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
120/240V, 120/208V, 220V (configurable) |
|
Operating Conditions |
-13°F to +131°F with derating above 113°F |
|
Warranty |
10 years (manufacturer standard) |
Battery Storage
|
Model |
MidNite Power MNPowerflo16 |
|
Type |
Lithium Iron Phosphate (LiFePO4) |
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
314Ah |
|
Energy |
16.1kWh |
|
Cycle Life |
8,000 cycles @77°F (25°C) 0.5C/0.5C |
|
Communication Interfaces |
CAN/RS485/RS232 |
|
Scalable |
Up to 16 units |
|
IP Rating |
IP65 |
|
Dimensions |
31.50 x 19.69 x 8.94 inches |
|
Weight |
284lbs |
