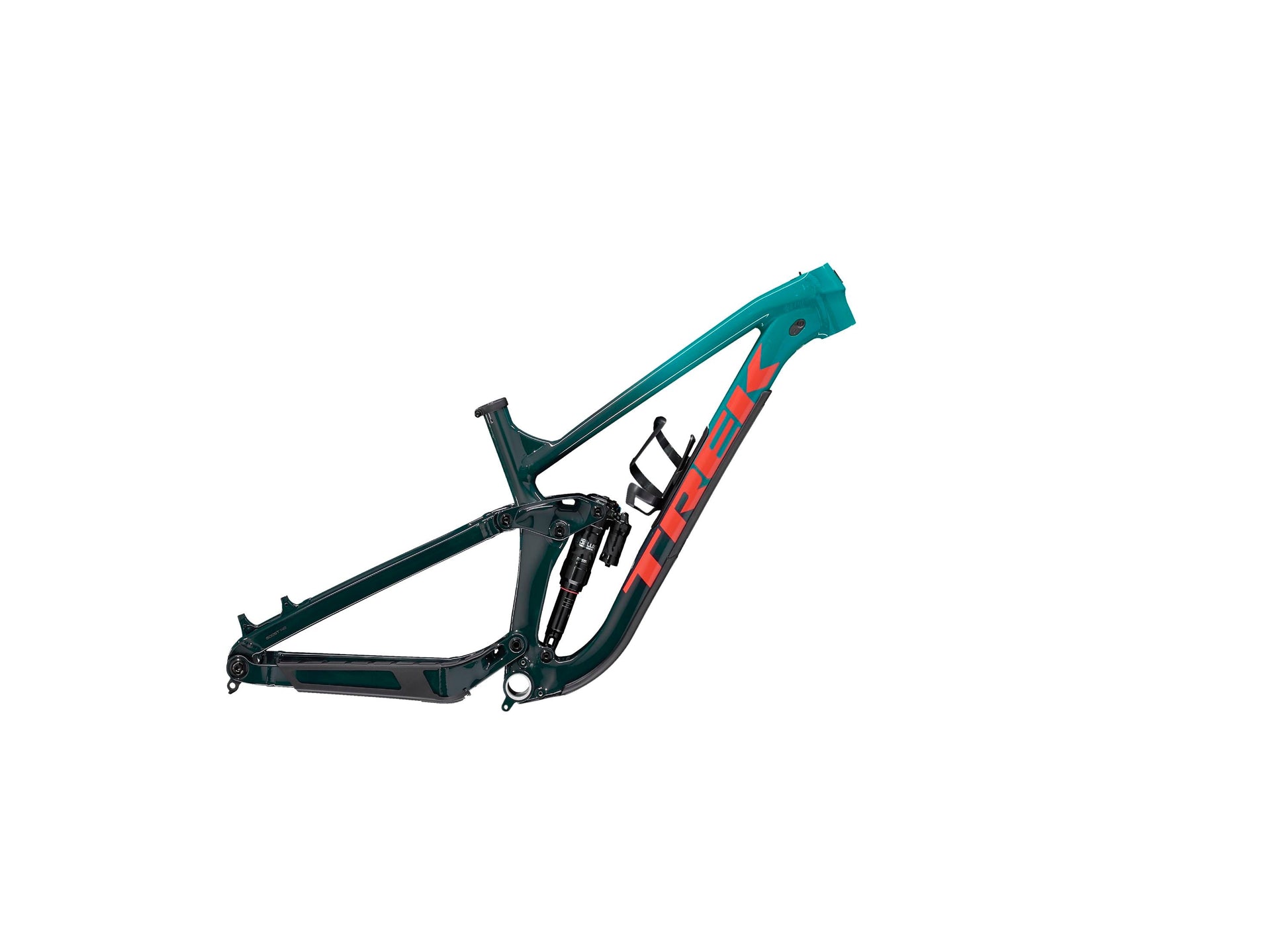

Slash AL Frameset is the perfect platform for a fast 29er enduro or trail bike build. With a burly Alpha Aluminum frame, Trek's exclusive RE:aktiv shock, and a Knock Block 2.0 integrated headset, you have all the bones for a mountain bike that can handle everything from the biggest all-mountain descents to the most competitive enduro races.
- It's equally at home between the tape and in the rugged wild—Yes, Slash is a race bike, but it's ridiculously fun on gnarly trail rides, too
- A large internal storage compartment in the down tube lets you stow tools and gear
- Mino Link lets you adjust the geometry, so you get both an enduro race bike and an ultra-capable trail bike in one
- New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
Internal Storage
Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
![]()
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
![]()
Complete frame protection
Replaceable down tube guards protect the underside of your frame from rock strikes, trail debris, and janky shuttle vehicles so you can forget about damage worries and focus on blasting the next run.
![]()
| Frame |
Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, downtube guard, shuttle guard, threaded BB, ISCG 05, 34.9mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160mm travel |
| Shock |
RockShox Super Deluxe Select+ RT, 230mm x 62.5mm |
| Skewer Rear |
Bontrager Switch thru axle, removable lever |
| Stem |
Bontrager Elite, 35mm, 0 degree, 45mm length |
Geometry Chart
| B B Drop |
2.2 |
| B B Height |
35.2 |
| Chainstay Length |
43.5 |
| Eff Seat Tube Angle |
76.1° |
| Eff Top Tube |
68.3 |
| Frame Reach |
52.1 |
| Frame Size Letter |
XL |
| Frame Size Number |
21.5" |
| Frame Stack |
65.4 |
| Head Angle |
64.6° |
| Head Tube Length |
14 |
| Offset |
4.3 |
| Position |
High |
| Seat Tube |
50 |
| Seat Tube Angle |
67.1° |
| Standover |
78 |
| Trail |
13 |
| Wheelbase |
130.4 |
| Wheel Size |
29" |
