Product Description

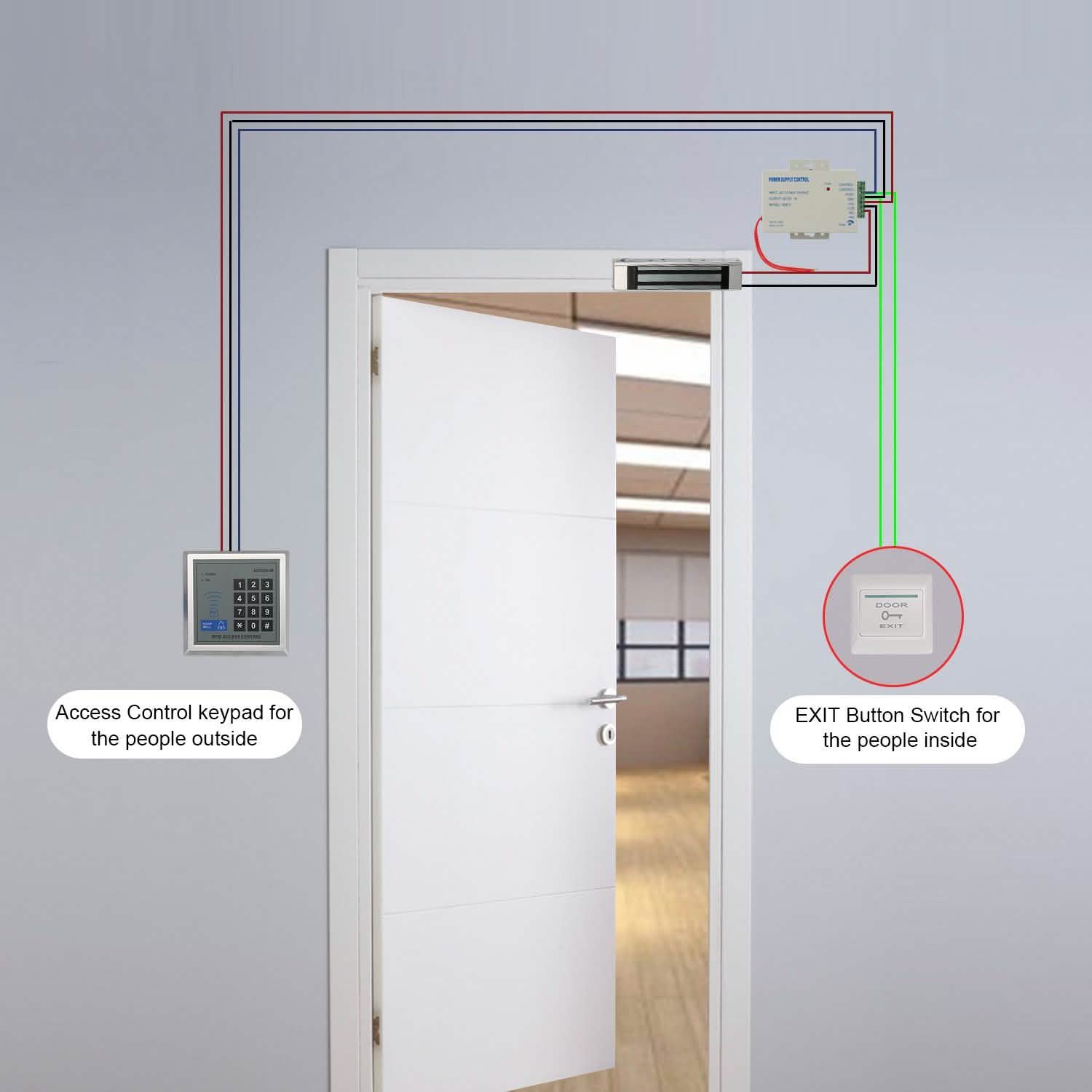

RFID Door Access Control System Kit 350LB Electric Magnetic Lock + Power Supply + Entry Keypad + 10 Key Fobs.
Features:

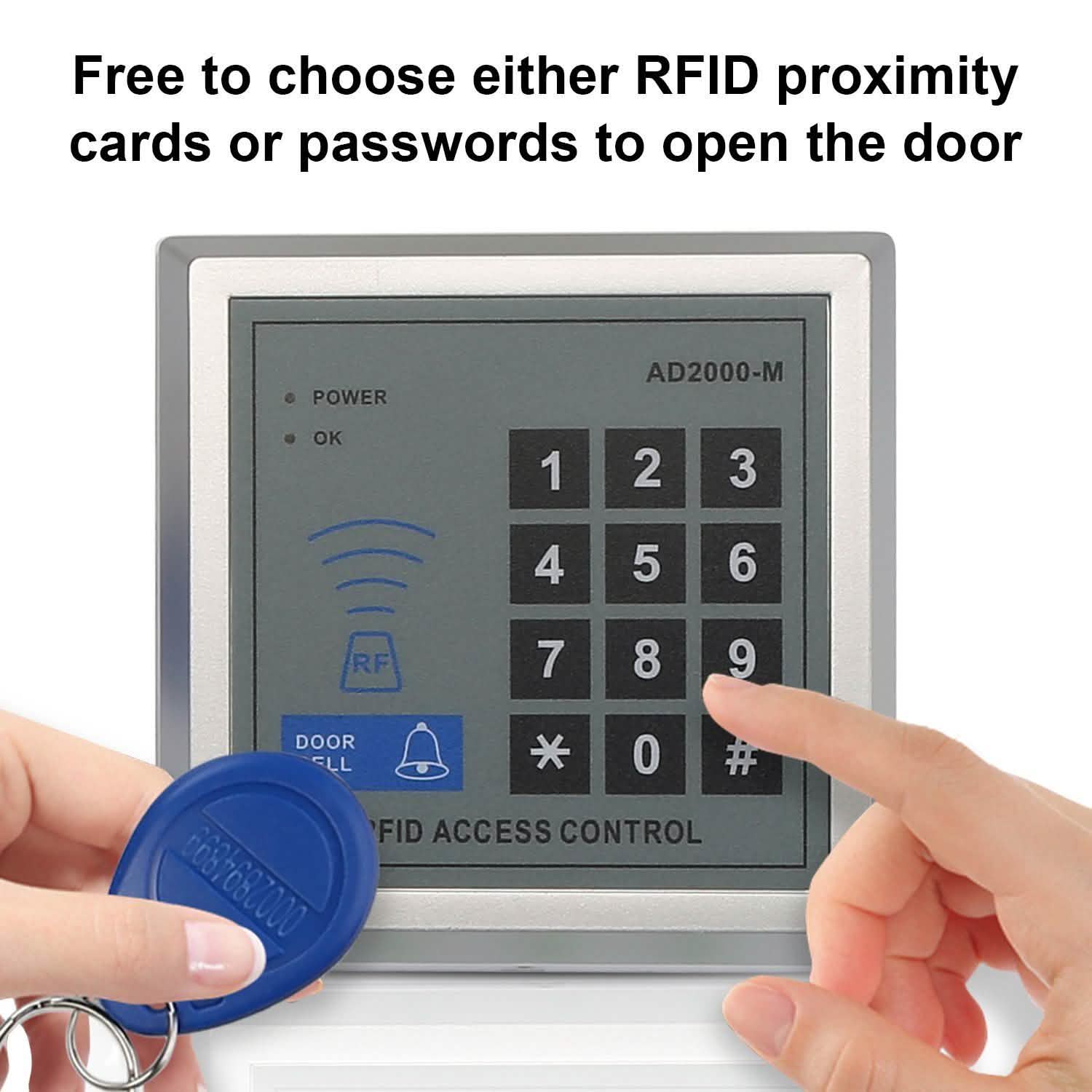

- Modern Technology: Due to this modern electronic access control system, there are two ways for you to open the door with this RIFD door access control. One way is to use RFID proximity card and another way is to enter passwords.

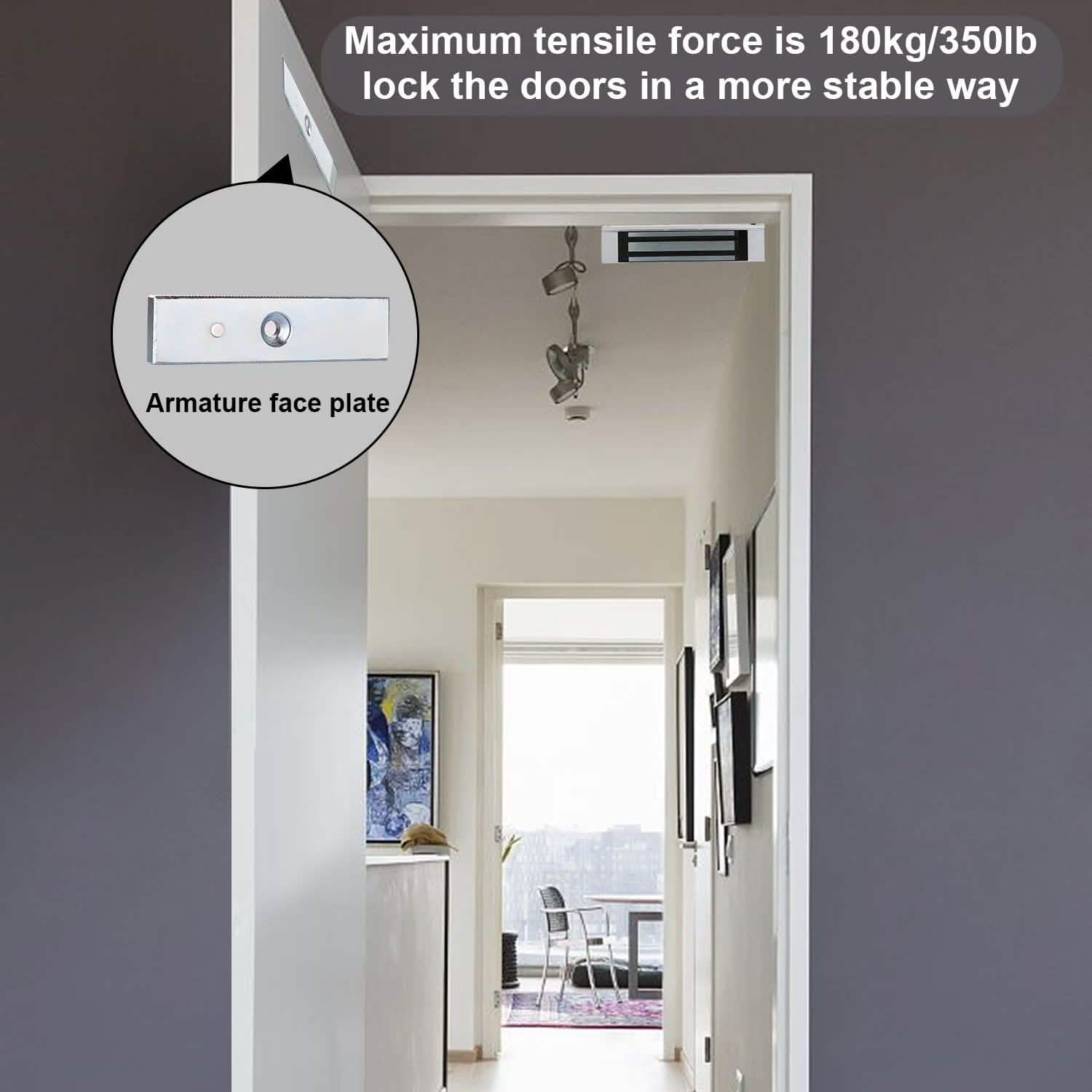

- Easy-to-go: You can add 500 users in total to this RFID access control system. With this high-tech design, you can go in and out of the building without using traditional keys. Moreover, the magnetic lock can bear a tensile force of around 180kg/350LB.
- Safe, Reliable & Durable: It will be locked right away once the power is on and meanwhile, it unlocks immediately when it is in a state of power failure. By doing this, it can help people to evacuate quickly if a power failure causes an unexpected accident.
- Convenient To Use: The RFID lock kit reacts so quickly that you can set up the time length to open the door. Besides, it is ideal equipment that can be used in offices, factories, apartments, dormitories and shopping malls, etc.
Specifications:

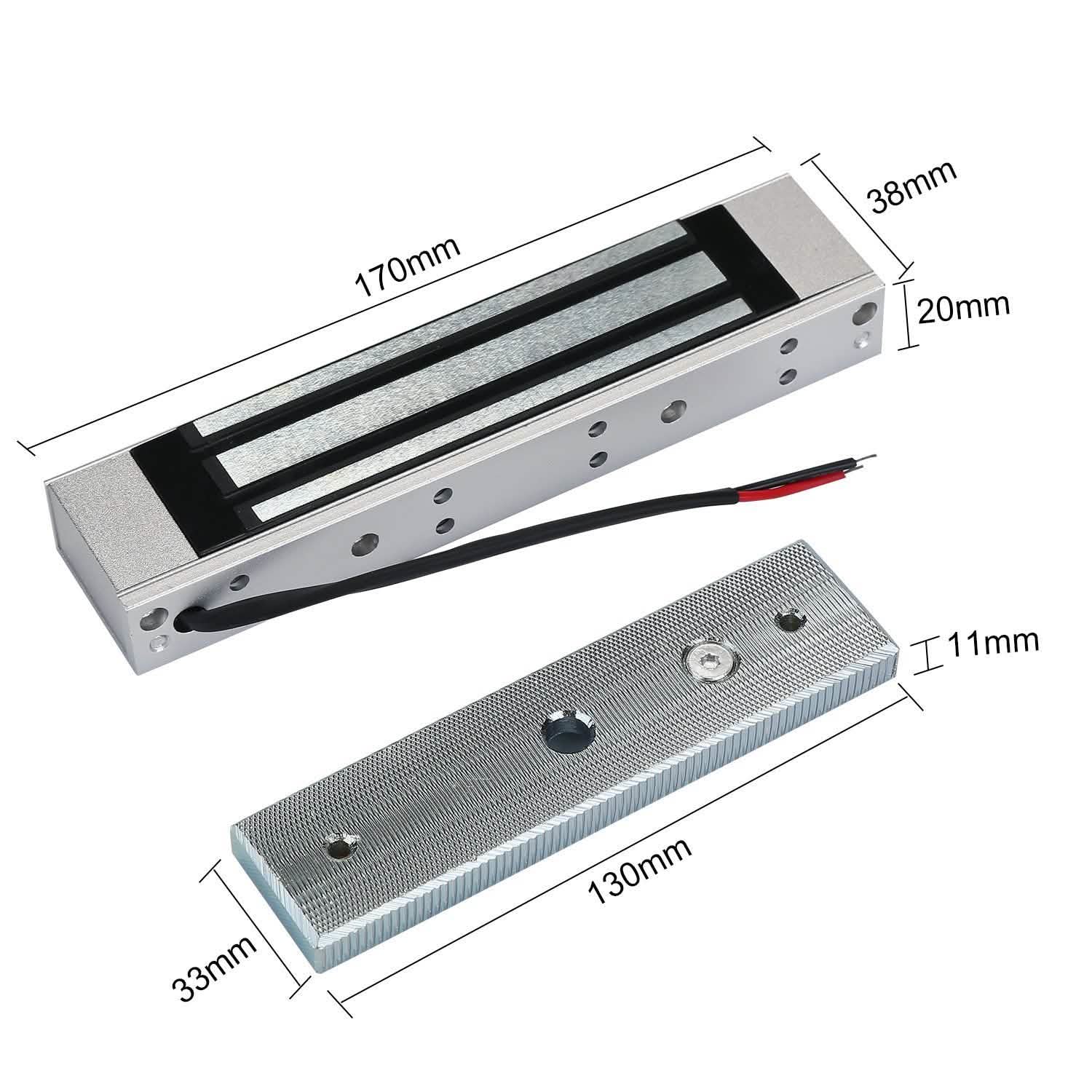

- Electric Magnetic lock Specifications:
- Material: Steel
- Input voltage: DE12V
- Power rate: 5W
- Item size: 17 * 3.8 * 2 cm/6.7*1.5*0.78inch
- Item weight: 450g

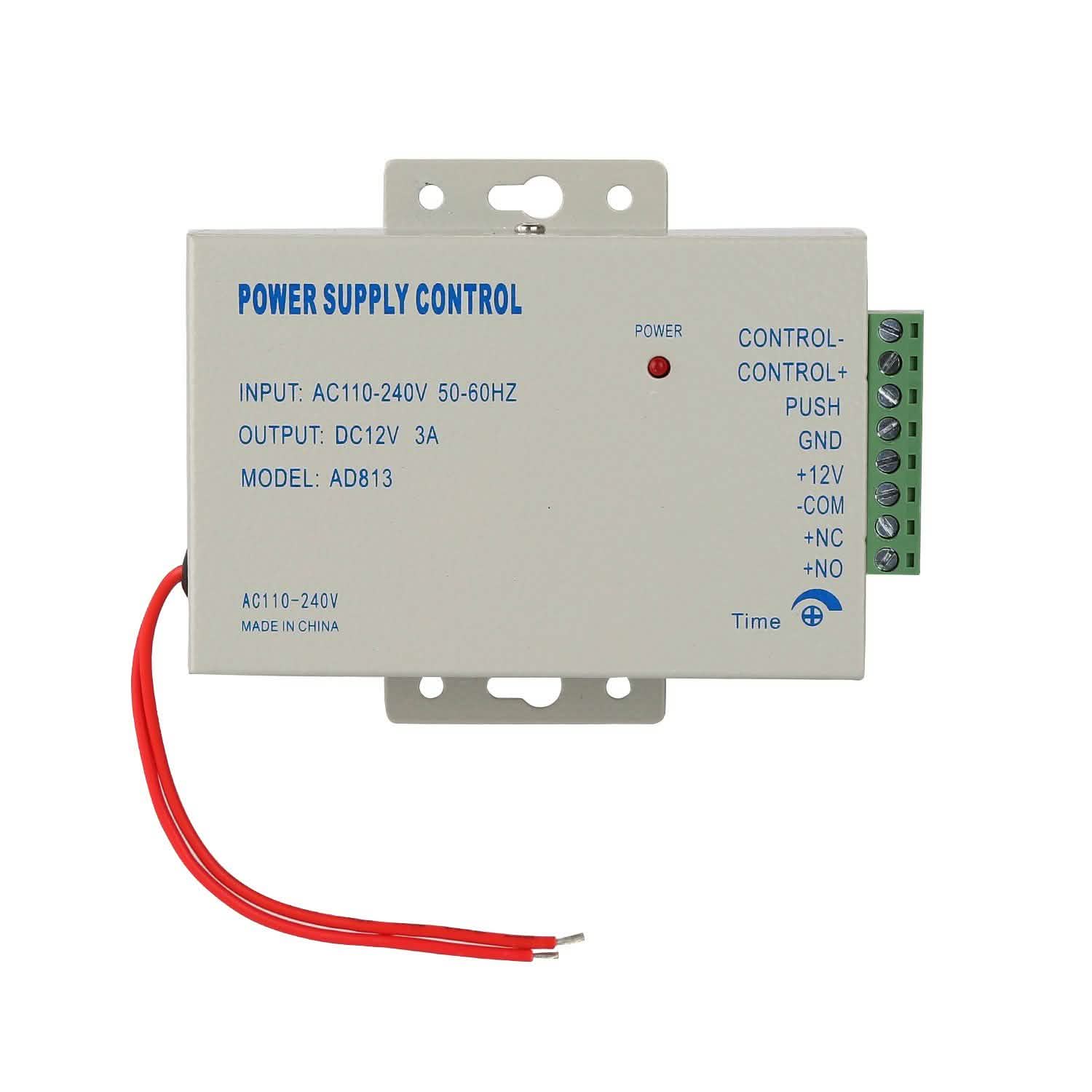

Power Supply Specifications:
- Material: Steel
- Input voltage：110V-260V
- Output voltage: DC12V
- Size：10.5*6.8*3.4cm/4.13*2.7*1.33inch
Control System keypad Specifications:
- Power Supply: DC: voltage
- Dimension:116mm×116mm×20mm/4.56*4.56*0.79inch
- Memory capacity:500 user cards or 50 door opening passwords
- Working distance:5－15CM
- Card Type: EM or EM compatible cards

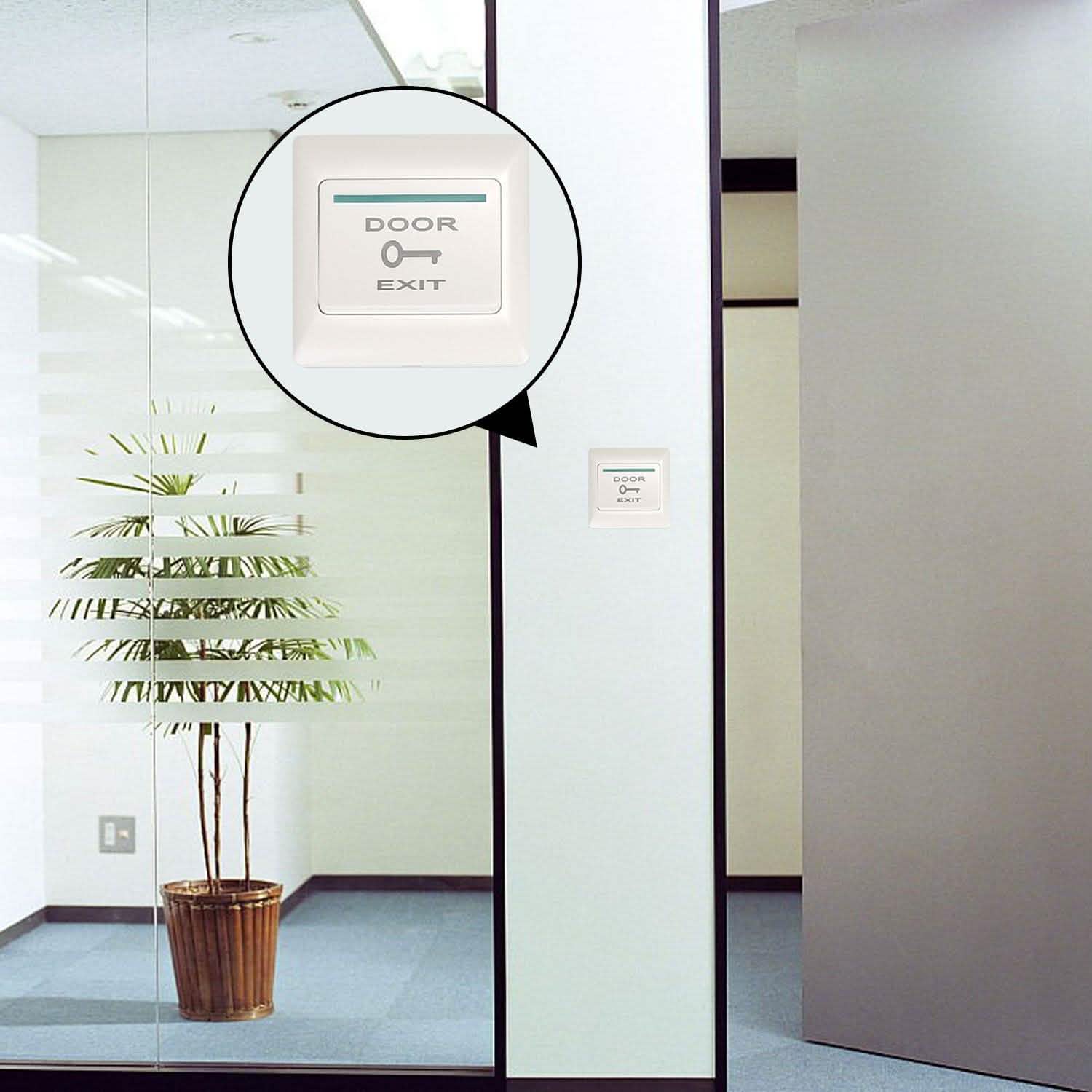

Push Release Button Exit Switch Specifications:
- Dimensions: 86Lx86Wx20H(mm)
- Current Rating: 3A@36VDC Max
- Suitable for Door: Hollow Door
- Operating temp: 10～+55℃(14-131F)
- Operating Humidity: 0-95% (non-condensing)
- Panel Material: Fireproof Material

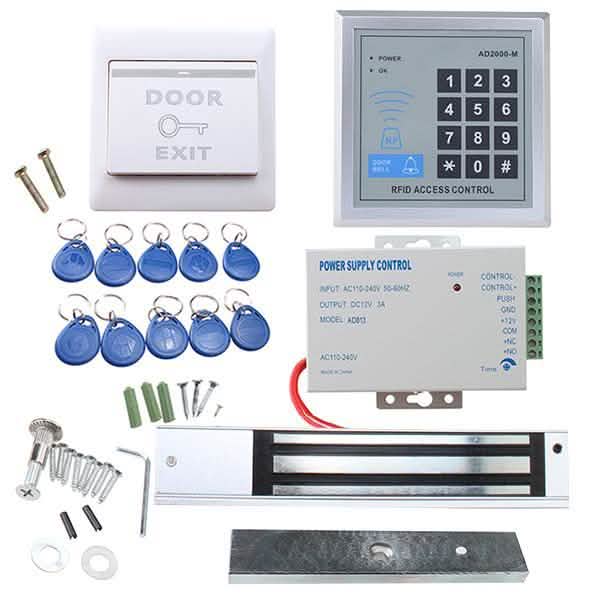

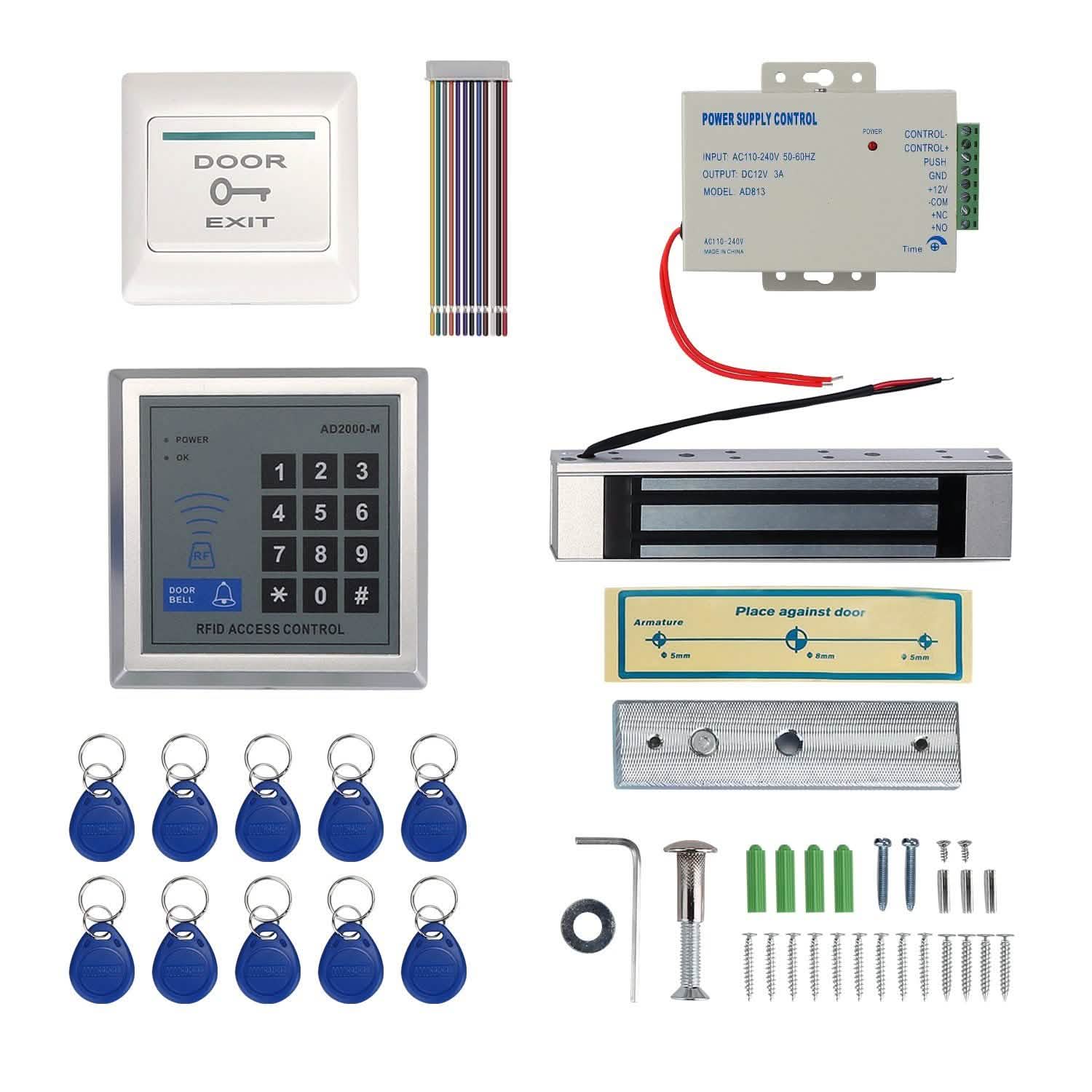

Includes:
- 1 x Magnetic Door Lock main body 280kg Strong Force(NC mode)
- 1 x Armature face plate
- 1 x Access Control Power Supply
- 1 x Push Release Button
- 1 x RFID Proximity Door Entry keypad

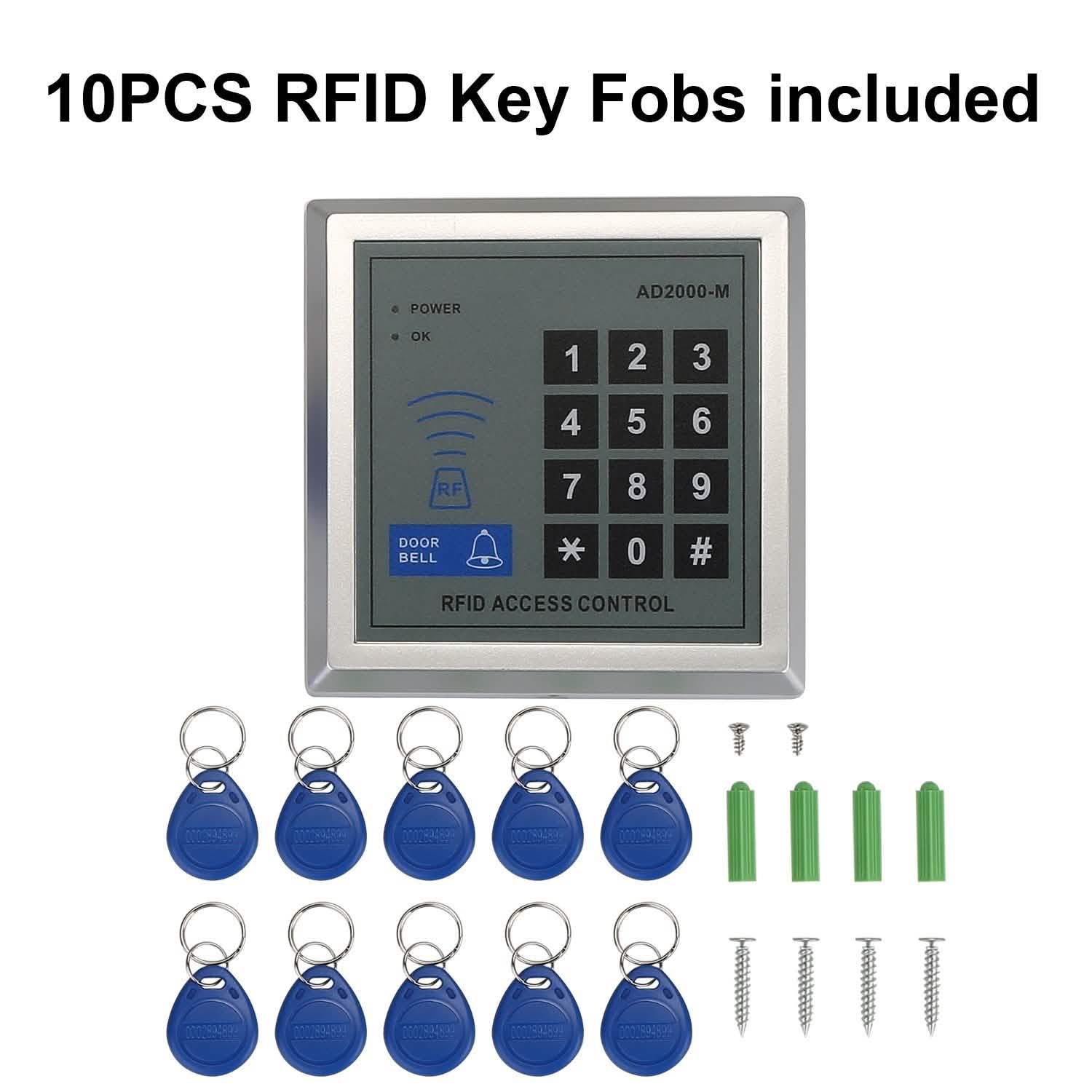

- 10 x RFID Key Fobs
- 1 x package Mounting hardware kit (for Magnetic lock)
- 1 x package Mounting hardware (for keypad)
- 1 x package mounting accessories. (for button)
- 1 x Manual(for magnetic lock)
- 1 x Manual(for power supply)
- 1 x Manual(access control keypad)
