Product Description
- 'Wait for me,' said no Remedy rider ever. This bike has a lot of travel, but it's also extremely quick on the flats and climbs
- You’ll fade before the FOX Performance Elite Float X shock does — it's built to help you squeeze the most out of long, gnarly descents
- Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
- Wider is more stable: Remedy has clearance for up to 27.5x2.8˝ tires
- Control Freak cable routing lets you run any set-up, like a right-front brake, internally-routed dropper, or electronic shifting
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Straight Shot w/Knock Block
Trek's Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough.
Will my bike have a curved top tube?
Smaller frames (S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
OCLV Mountain Carbon
Trek's mountain-specific carbon fiber is tougher carbon, with unique materials and layup procedures, Trek's advanced engineering, and a higher standard of testing.

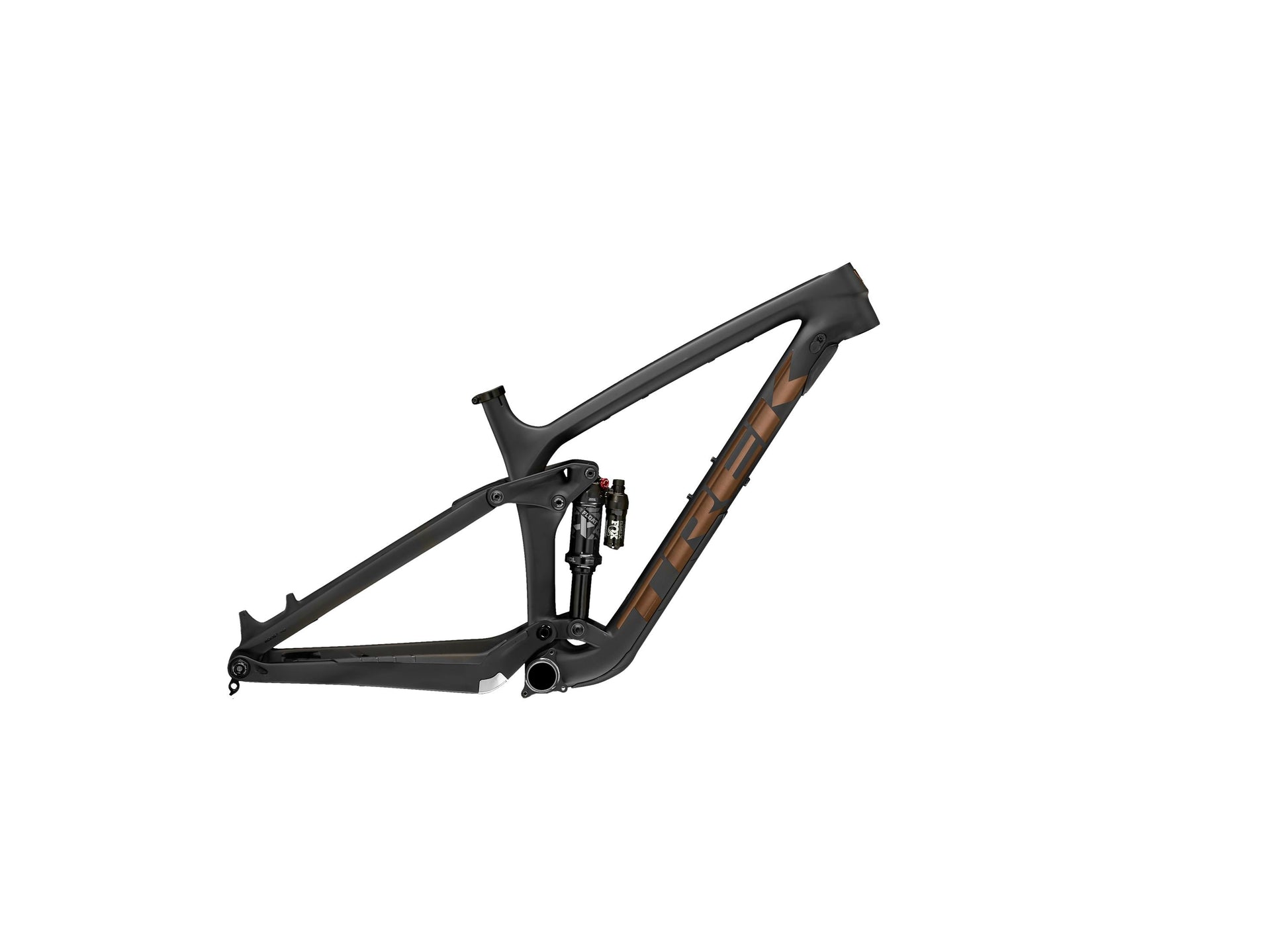

| Frame | OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150mm travel |
| Shock | Fox Performance Elite Float X, 2-position damper, open-mode adjustment, 230mm x 57.5mm |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Stem | Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Geometry Chart
| B B Drop | 9.4 |
| B B Height | 35.6 |
| Chainstay Length | 43.3 |
| Eff Seat Tube Angle | 74.7° |
| Eff Top Tube | 64.8 |
| Frame Reach | 48.1 |
| Frame Size Letter | XL |
| Frame Size Number | 21.5" |
| Frame Stack | 61 |
| Head Angle | 66.1° |
| Head Tube Length | 12.5 |
| Offset | 4.6 |
| Position | High |
| Seat Tube | 52.1 |
| Seat Tube Angle | 68.5° |
| Standover | 78.2 |
| Trail | 11.2 |
| Wheelbase | 123.1 |
| Wheel Size | 27.5" |
