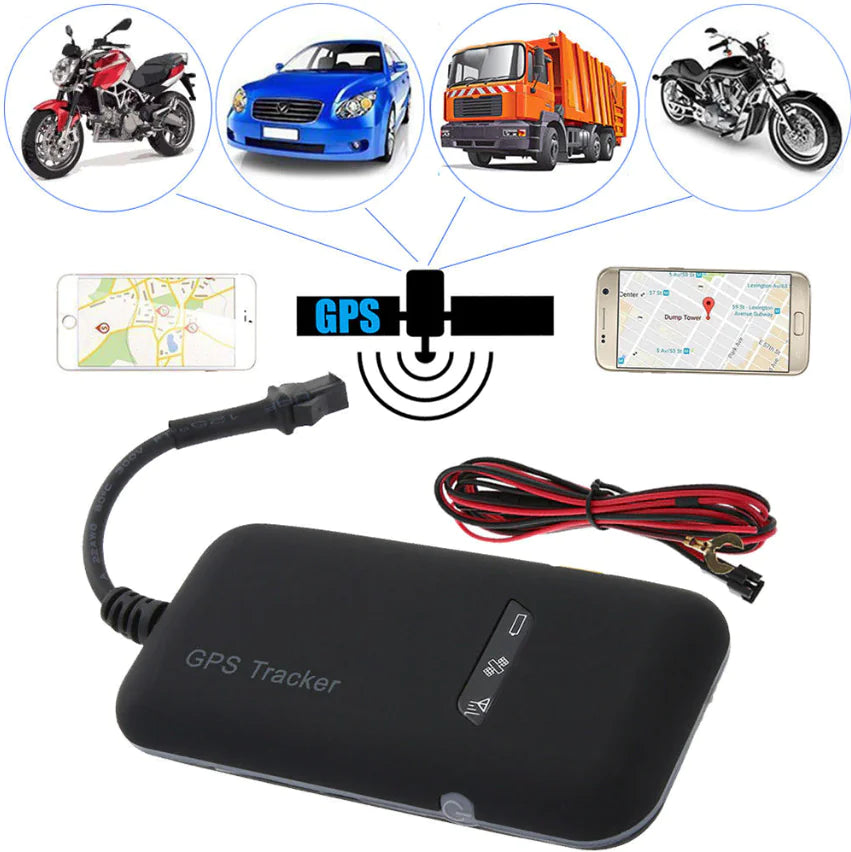

Real Time GPS Tracker GSM GPRS Tracking Device For Car Vehicle Motorcycle Bike
- Vehicle Positioning: Global satellite positioning, 24 hours to provide vehicle location, driving direction, driving speed, mileage information, and can display the location of the vehicle through Google satellite map and most detailed MAPABC map.
- Track Playback: You can arbitrarily query the driving situation of the vehicle at any time, dynamically display the driving track of the vehicle on the map, and playback the driving situation.
- Mileage Management: Using satellite trajectory calculation technology, statistical analysis of vehicle mileage in any period of time.
- Speeding Alarm: Alarm for exceeding the specified safe speed.
- Mobile Phone Query: The monitoring platform software can be installed on Android or Apple mobile phones to grasp the situation of the vehicle in real time.
- Power Failure Alarm: When the vehicle is trimmed, the battery is stolen, or the GPS is removed, the system can automatically send a battery removal alarm to the monitoring platform, and cyclically call the owner's mobile phone to remind.
- Vibration Alarm: When the car is stationary for 5 minutes, the vibration alarm will be activated automatically.
Specifications:
- Color：Black
- Material: ABS

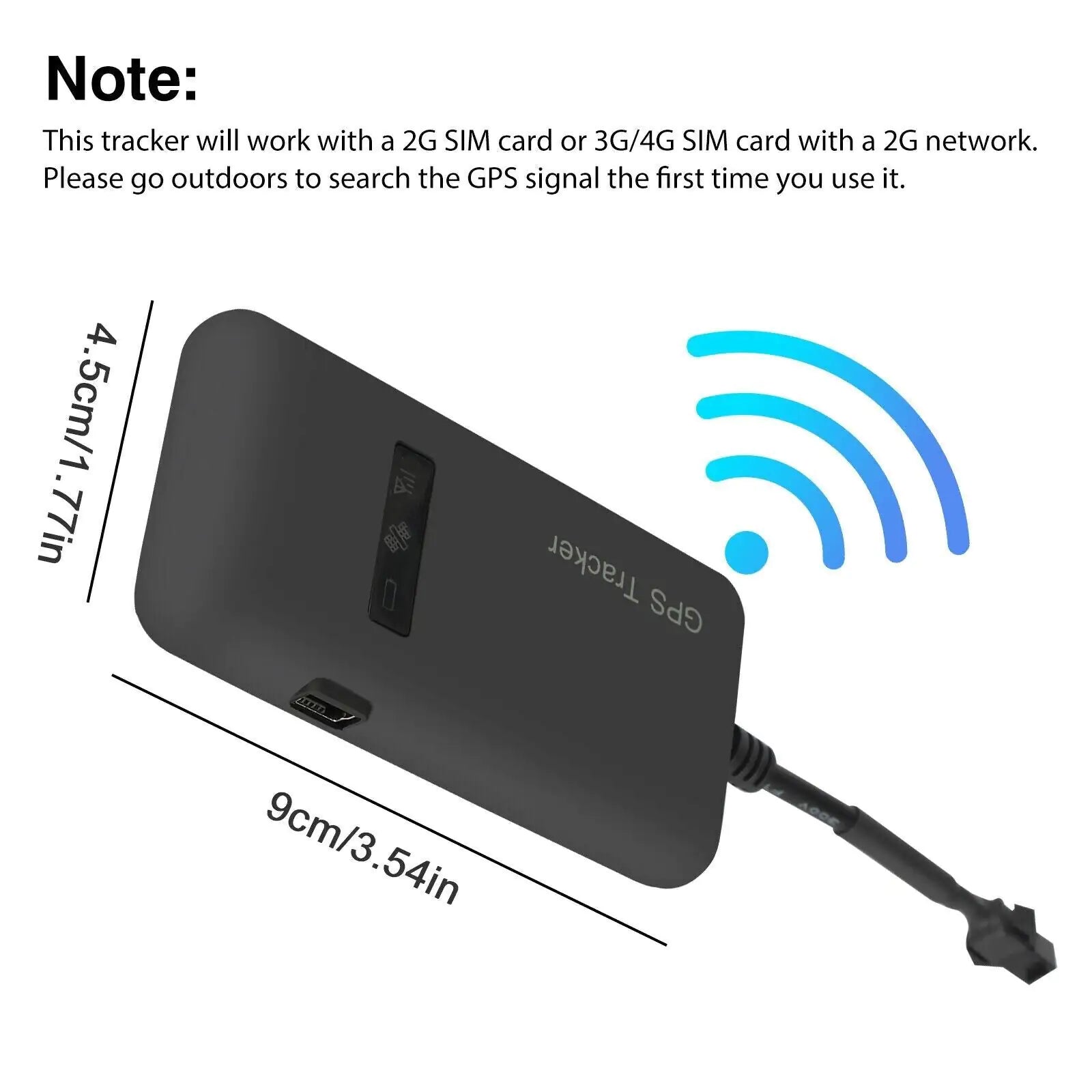

- Dimensions: 90 x 45 x 12mm/3.5" x 1.8" x 0.5"(L x W x H)
- Type: GPS Tracker
- Power Input: 12-36V DC
- GSM Frequency: 850/900/1800/1900MHz
- GPRS Frequency: Class2, TCP/IP built-in GSM Module
- GPS Module: SIRF Star III/LP
- GPS Channels: 20
- GPS Tracking Sensitivity: -159dBm
- Acquisition Sensitivity: -144dBm
- Hot Start: <1 Sec (Open Sky)
- Warm Start: <35 Sec (Open Sky)
- Cold Start <45-85 Sec (Open Sky)
- Antenna: Antenna Built-in GSM, GPS antenna with low noise and high gain
- Functions Buttons: Power/SOS

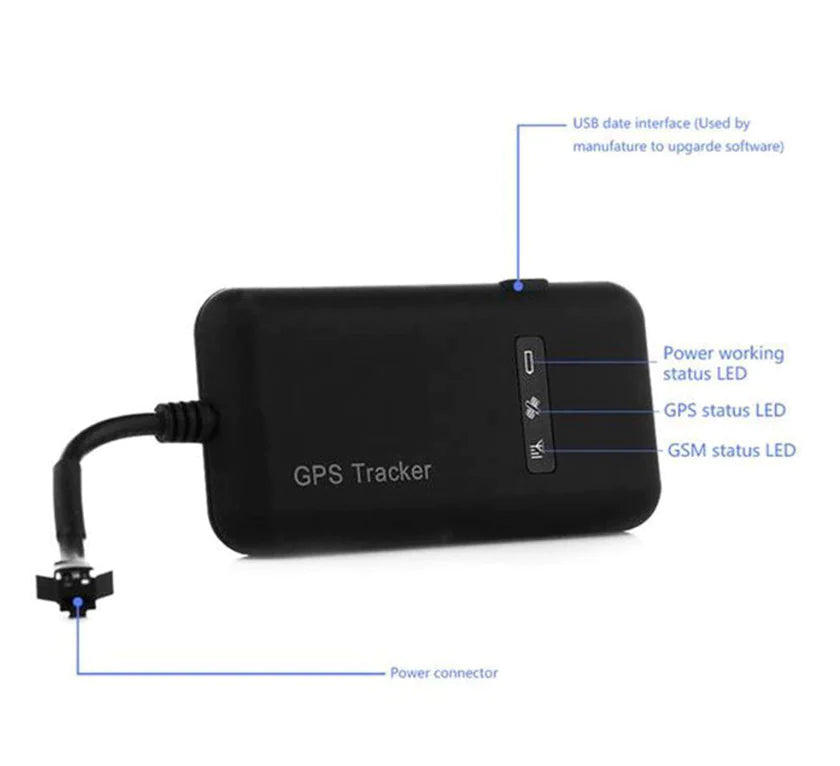

- 3 LED Indicators: GPS-Blue, GSM-Green, Power-Red
- Working Temperature: -10 to 60℃
- Working Humidity: 45% to 80%RH
-
- Usage
-
1) Open the top cover off the device, insert the SIM card, and connect the external power supply. You must turn on the switch next to the card slot.
- 2) Place the device outdoors, and the three indicator lights of the device will remain on for about 30 seconds, indicating that the device has been positioned.
- 3) Dial the device number, it will hang up and reply with valid longitude and latitude information, which means that the device is working normally and can be used.
- Support web, SMS and Google map link, no need of platform registration. It needs password to make and change any setup, protect your privacy. Built-in turn on/off power, supports 7-30V input voltage, suitable for all cars. It can take power supply from car cigarette lighter or car storage battery. It can detect and fix some problems by built-in monitor CPU. It can accurately position even when the signal is weak. Two way locating methods based on MBS and GPS. Location inquiry by SMS or GPRS (TCP/IP).

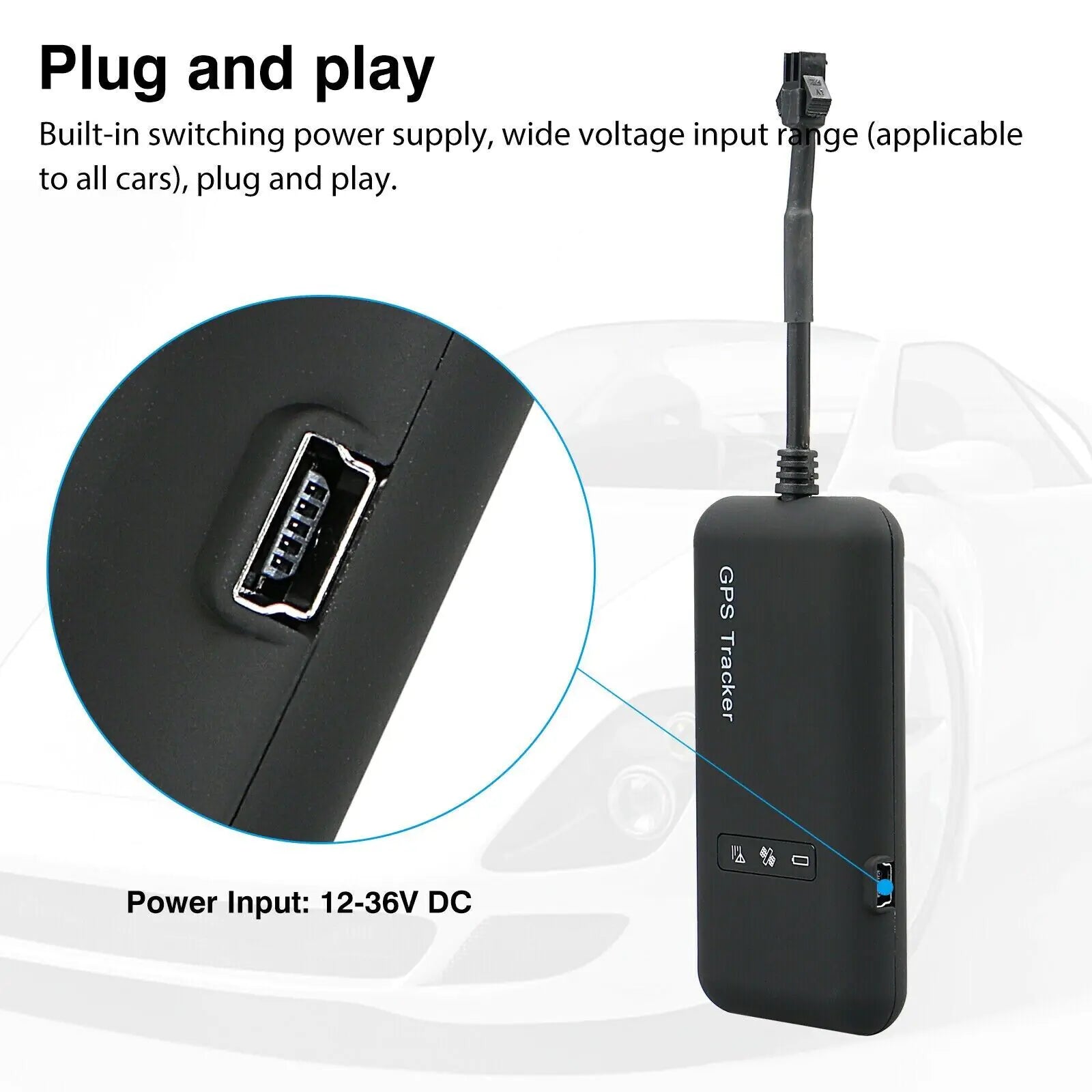

Plug and Play
Built-in switching power supply, wide voltage input range for all cars. Simply plug and it will function right away.

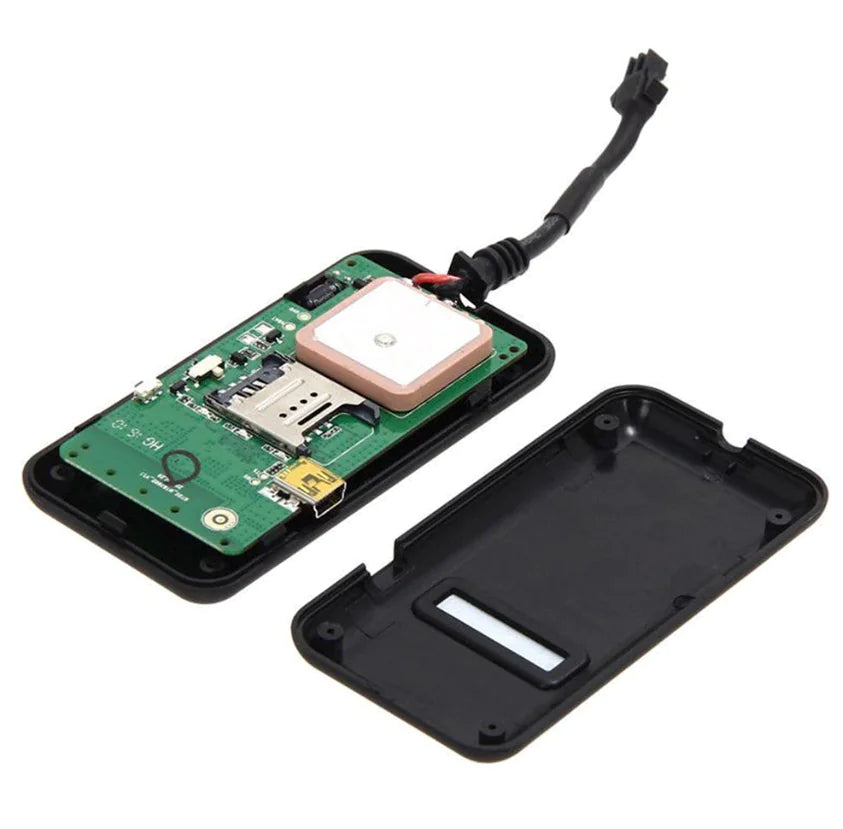

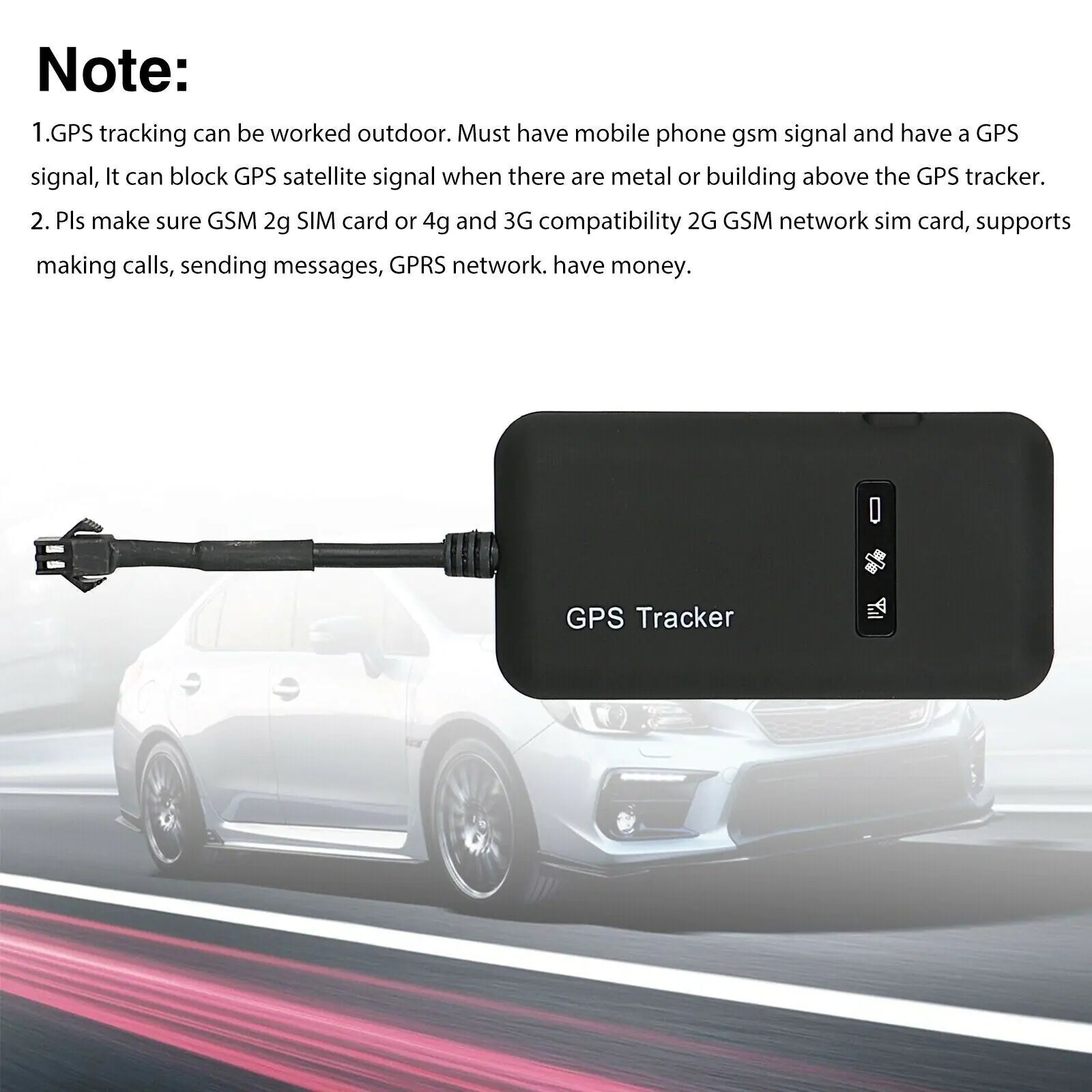

InternalsUtilizing the best GPS components and chipsets, it also has a slot for your sim card. We recommend ordering a sim card for GPS units. This tracker will work with a 2G Sim Card or 3G/4G Sim card with a 2G network.
Easy to ReadSimply plug in the power connector, then monitor the LED lights on the unit to see connection status.
Whats in the box?This item comes with everything you need to get started. The power connector with fuse to connect to your vehicles 12v power for fast setup.

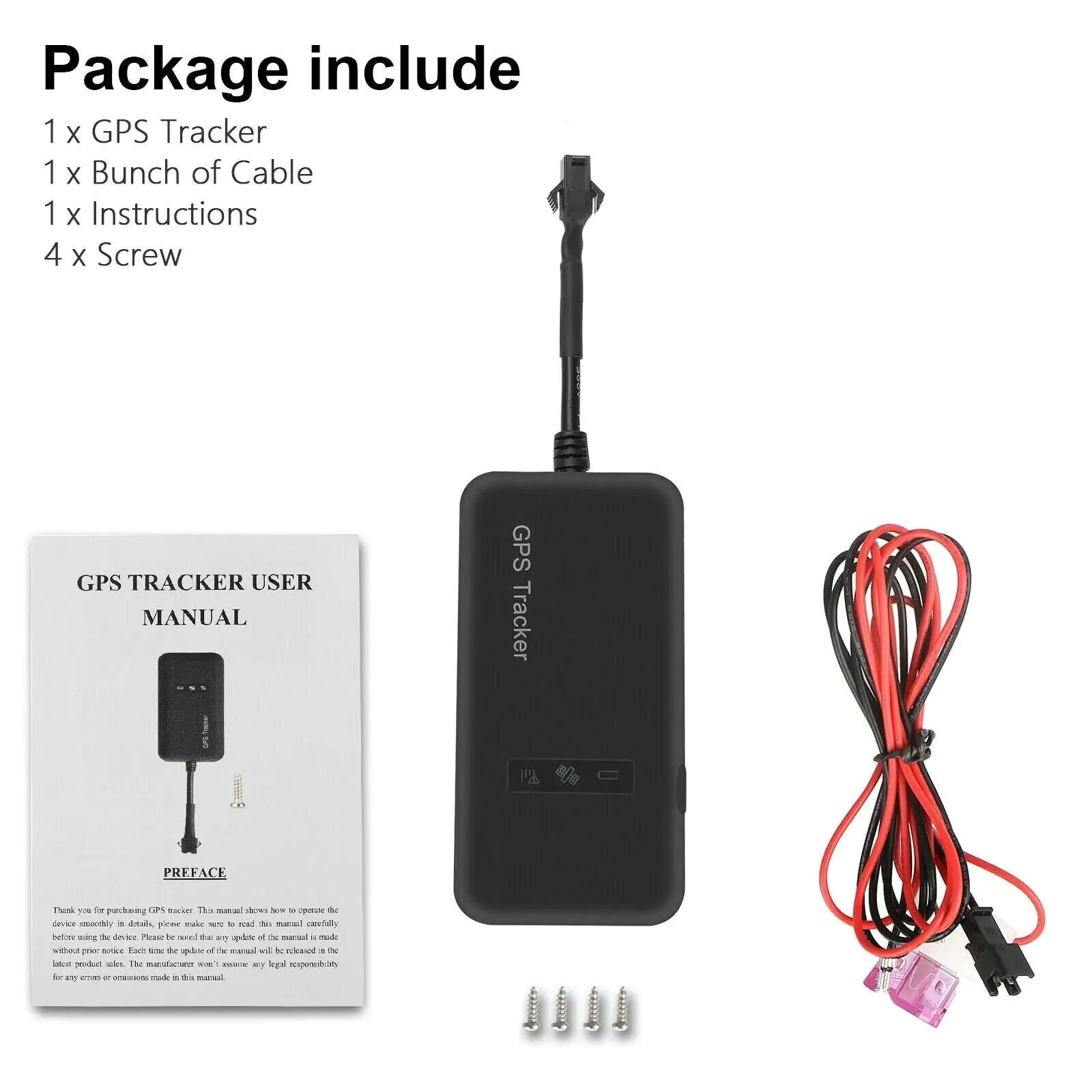

Package includes:
- 1 x Real Time GPS Tracker GSM GPRS Tracking Device For Car Vehicle Motorcycle Bike
