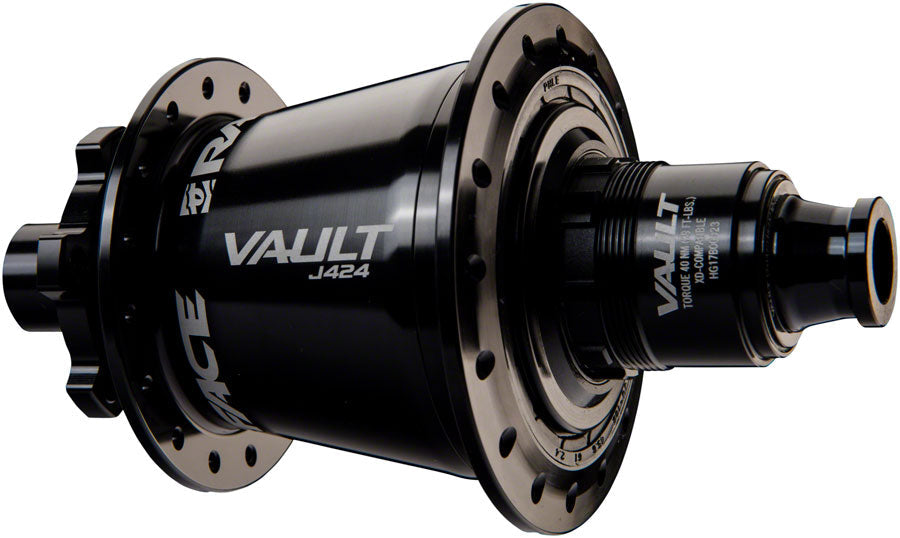

Vault hubs feature an oversized hub shell for increased torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60 tooth drive ring alternately engages six double tooth pawls giving you 3degree engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster but adapts faster.
| Flange Diameter, Left |
61.5 |
| Rear Axle |
12mm Thru x 148mm |
| Flange Diameter, Right |
71.5 |
| Cassette Body Type |
SRAM XD |
| Center to Flange, Left |
36.5 |
| Center to Flange, Right |
23 |
| Color |
Black |
| Skewer Included |
No |
| Bearing Type |
Sealed Cartridge |
| Defined Color |
Black |
| Spoke Interface |
J-Bend |
| Hub Drilling |
32 |
| Hub/Brake Compatibility |
6-Bolt Disc |
| Axle Size |
12Mm Thru X 148Mm |
