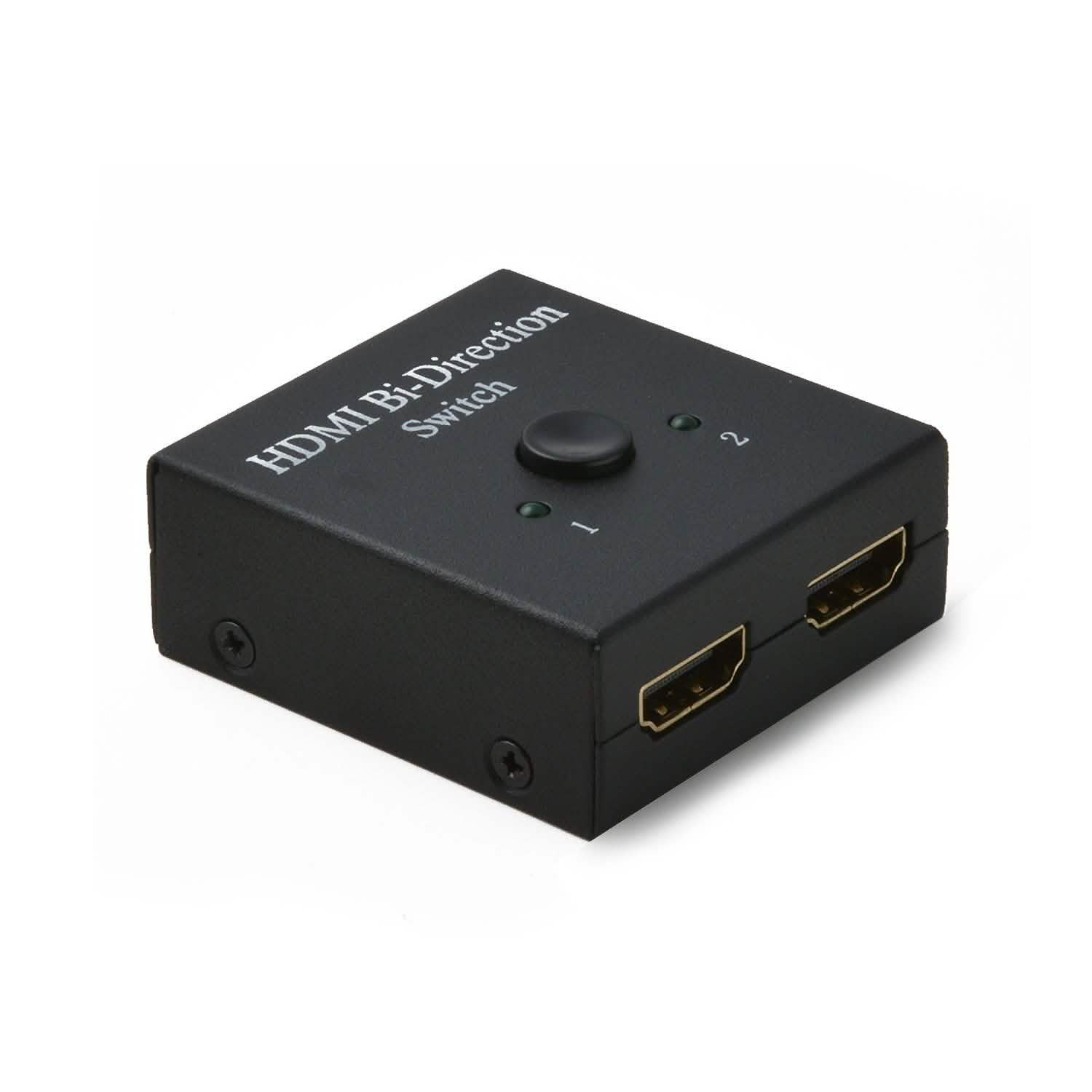

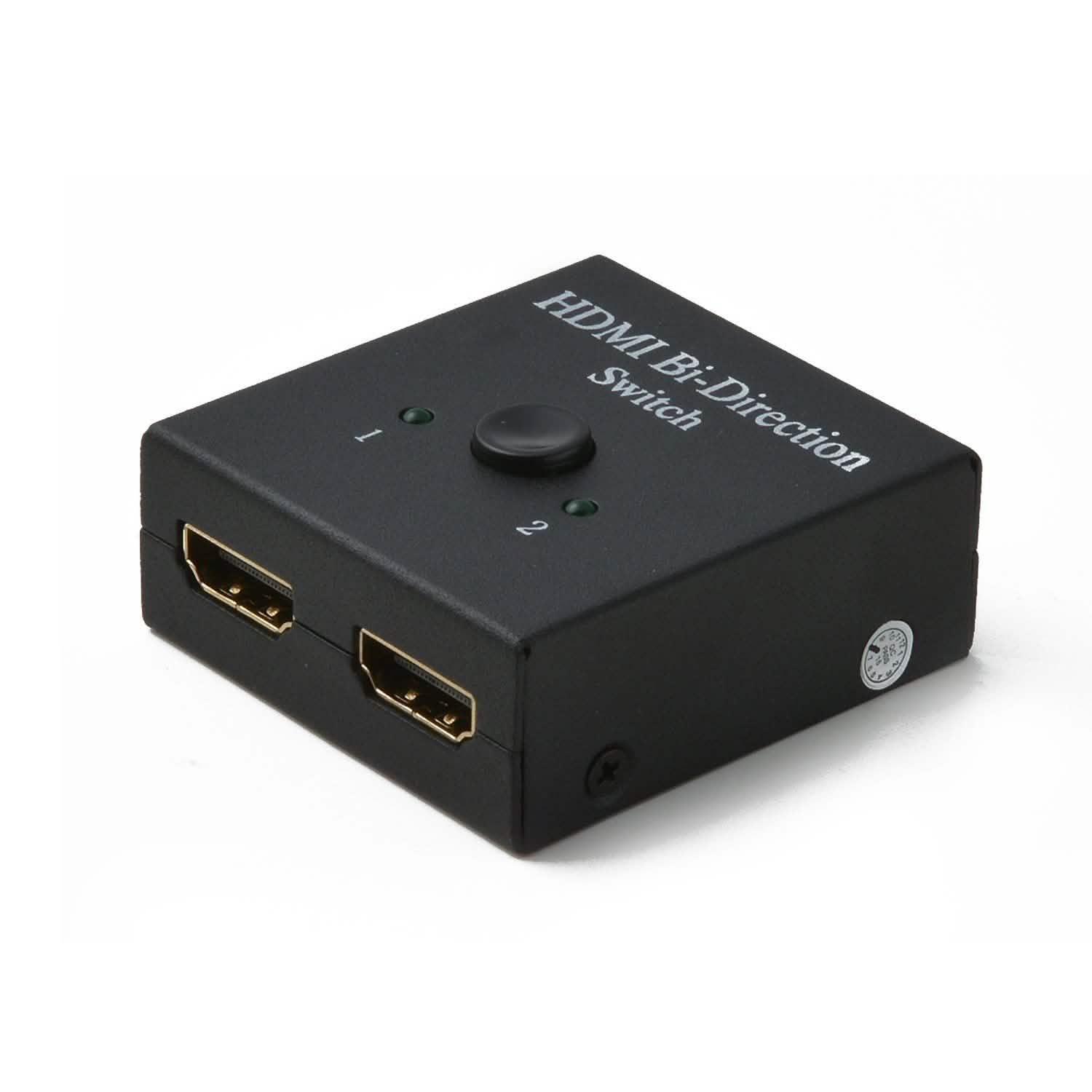

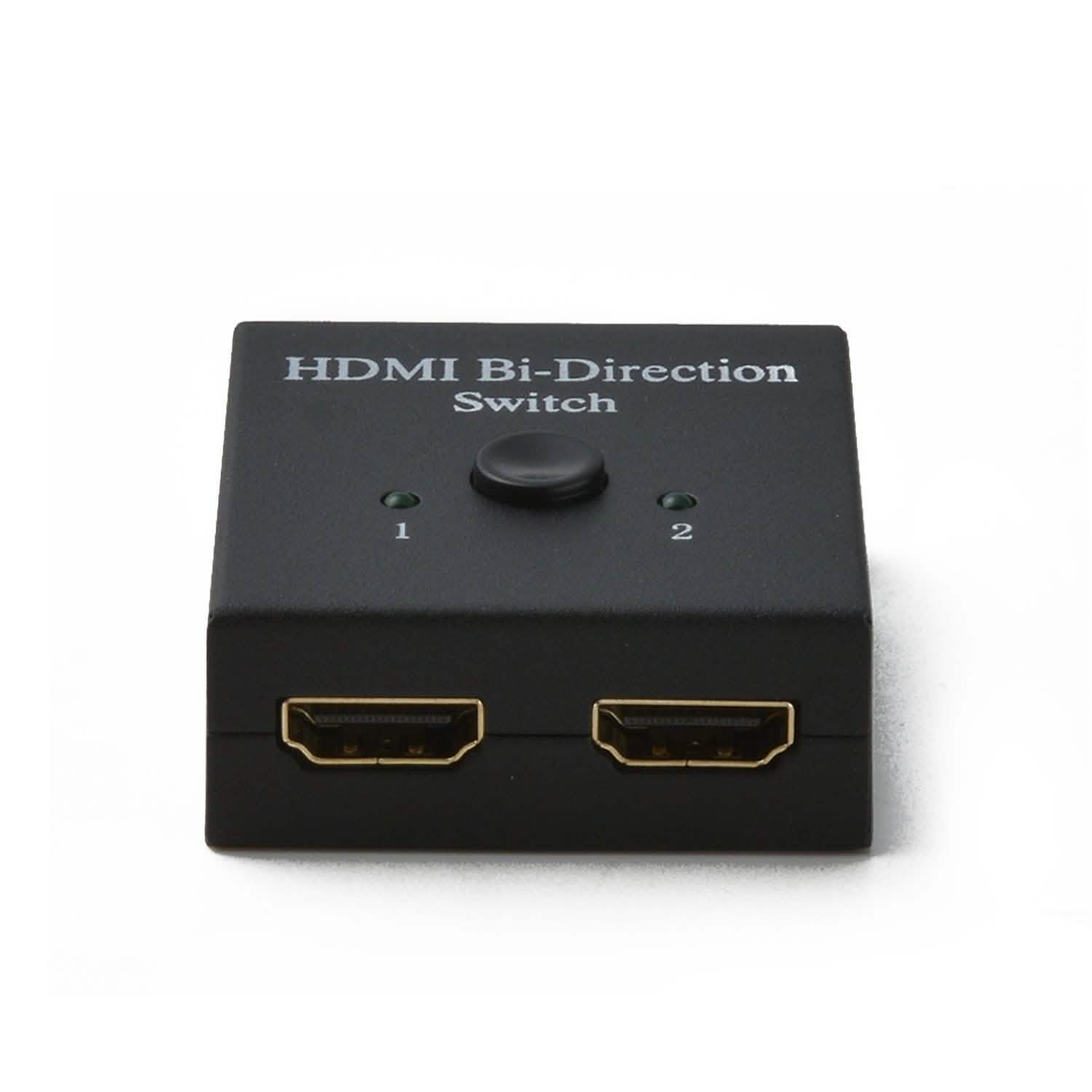

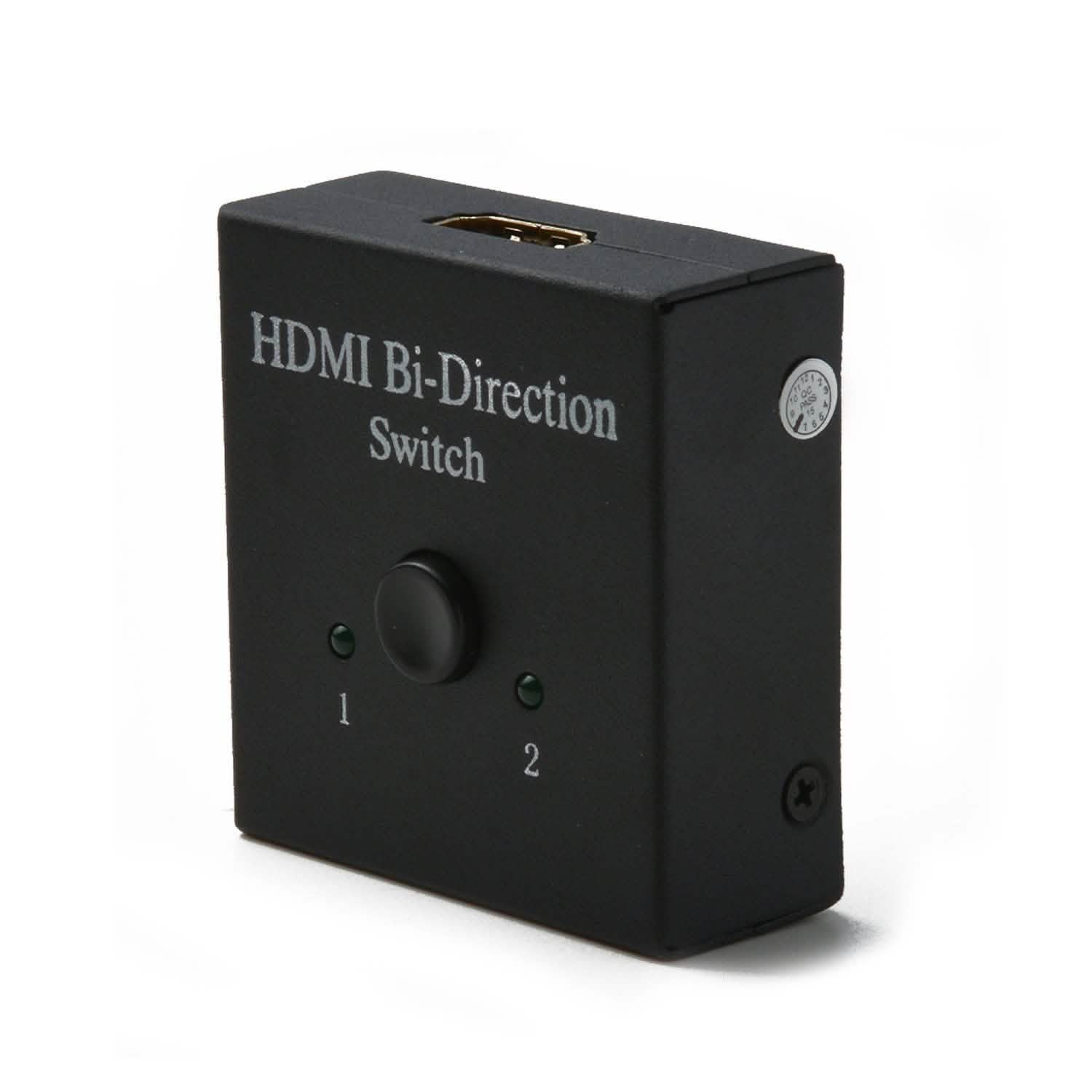

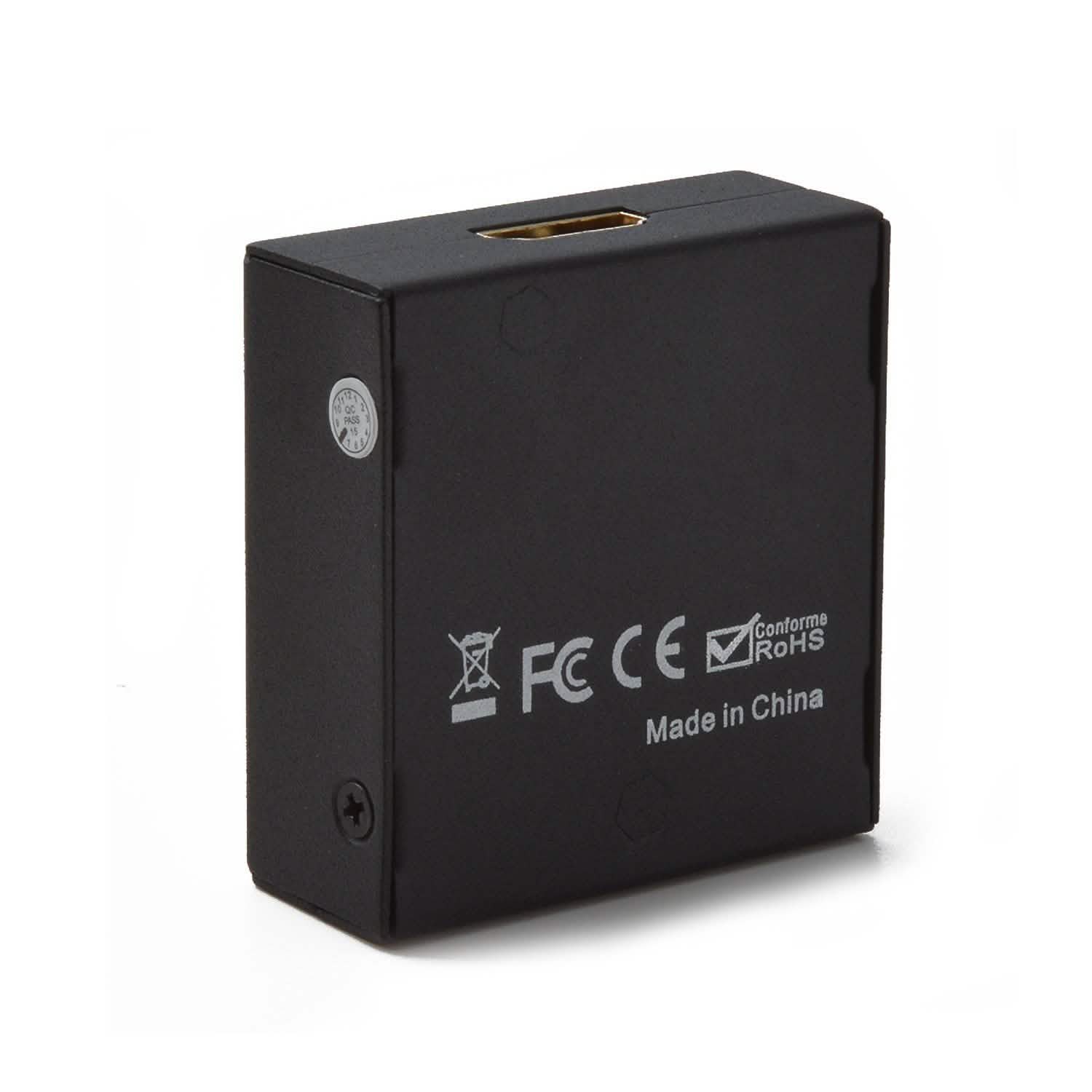

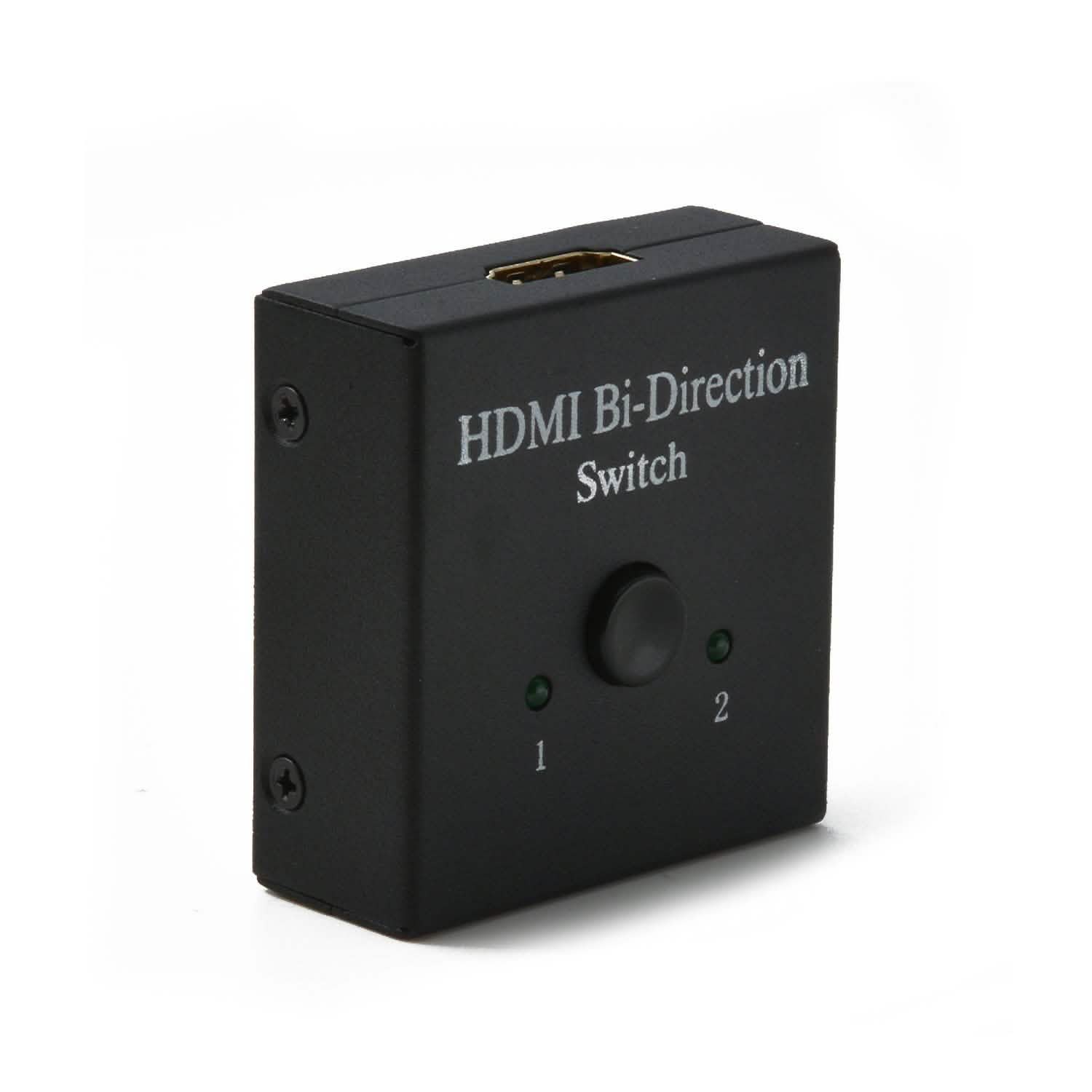

Product Description
This is one device of HDMI 2 ports bi-direction manual switcher. It can easily switch two routes of HD Source to any one HD display or projector. Also, it can distribute one HD Source to two HD Display or projectors.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
- 2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV
- 1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV
- Power free
- MAX operation current:15ma
- Full compliance with HDMI Specification v1.0, v1.1, v1.2, v1.3 and v1.4
- Main control: Manual electron select
- With 2 LED & display working port
- 3 HDMI A/F connectors
- Easy install & operation
- Support HDMI Plug & Play
- Support HDMI 1920 * 1080P * 60(MAX)
- Support MAX cable length:5m (total)
- Plug & Play
- Dimensions:42*50*25 mm(L,W, H)
- Weight:35g
- Housing: Plastic
- Note: The unit runs on the power provided by the HDMI input source; therefore, if an HDMI switcher is used before it, then the HDMI switcher must have a power adapter to provide sufficient power to run that switcher and this bi-directional AB switcher.
Includes:
- 1 x HDMI Bi-direction 2x1 Switch
- 1 x User Manual
