Product Description
Compact and versatile, this handheld TinySA spectrum analyzer delivers portable RF testing and signal generation for hobbyists, ham radio operators, and electronics technicians. Ideal for antenna tuning, field diagnostics, and bench measurements with built-in calibration and PC control.
Specifications:
- Battery Included: Yes — built-in rechargeable battery
- Battery Life: Minimum 2 hours (approx.)
- Frequency Range: MF/HF/VHF input 0.1 MHz to 350 MHz (100 kHz to 350 MHz); UHF input 240 MHz to 960 MHz
- Resolution Bandpass Filters: Switchable between 2.6 kHz and 640 kHz

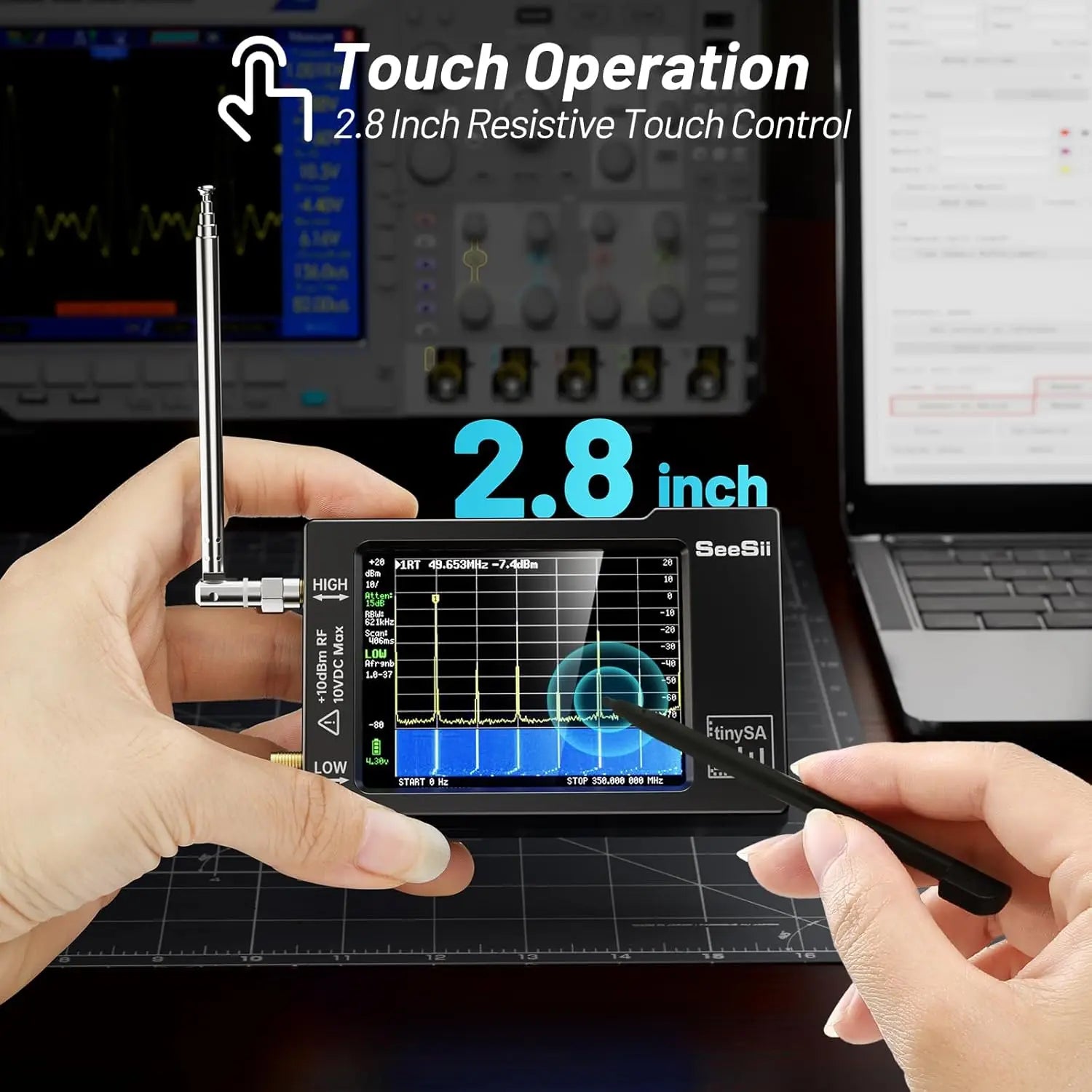

- Display: Color display with 290 scan points covering low and high frequency ranges
- Built-in Signal Generator: MF/HF/VHF sinusoidal output 0.1 MHz–350 MHz; UHF square wave output 240 MHz–960 MHz; also used for automatic self-test and low-input calibration

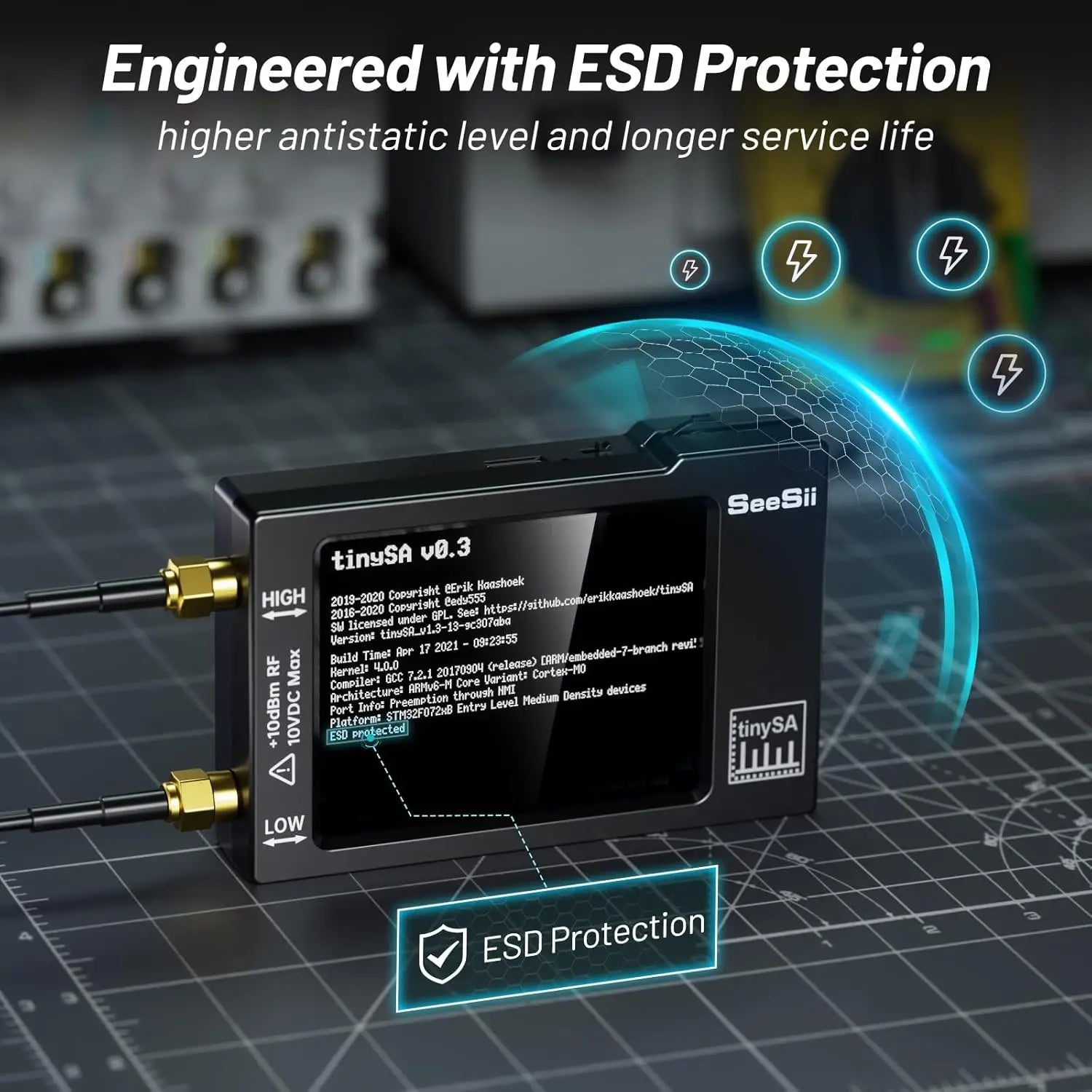

- ESD Protection: Enhanced antistatic protection for improved stability and longer service life

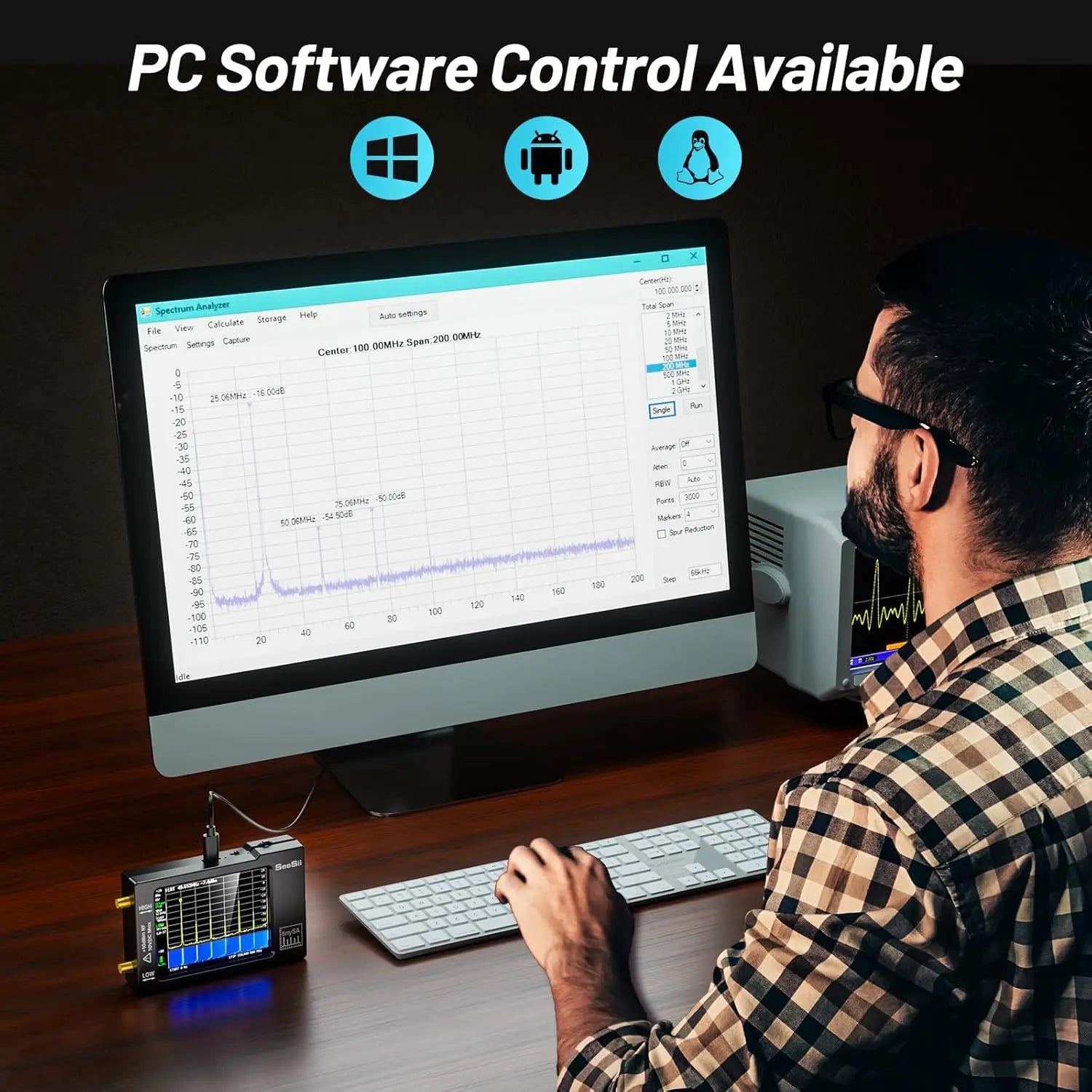

- PC Control & Connectivity: USB connection implements Serial over USB (CDC) for PC control and firmware updates; Windows drivers install automatically, Linux support available

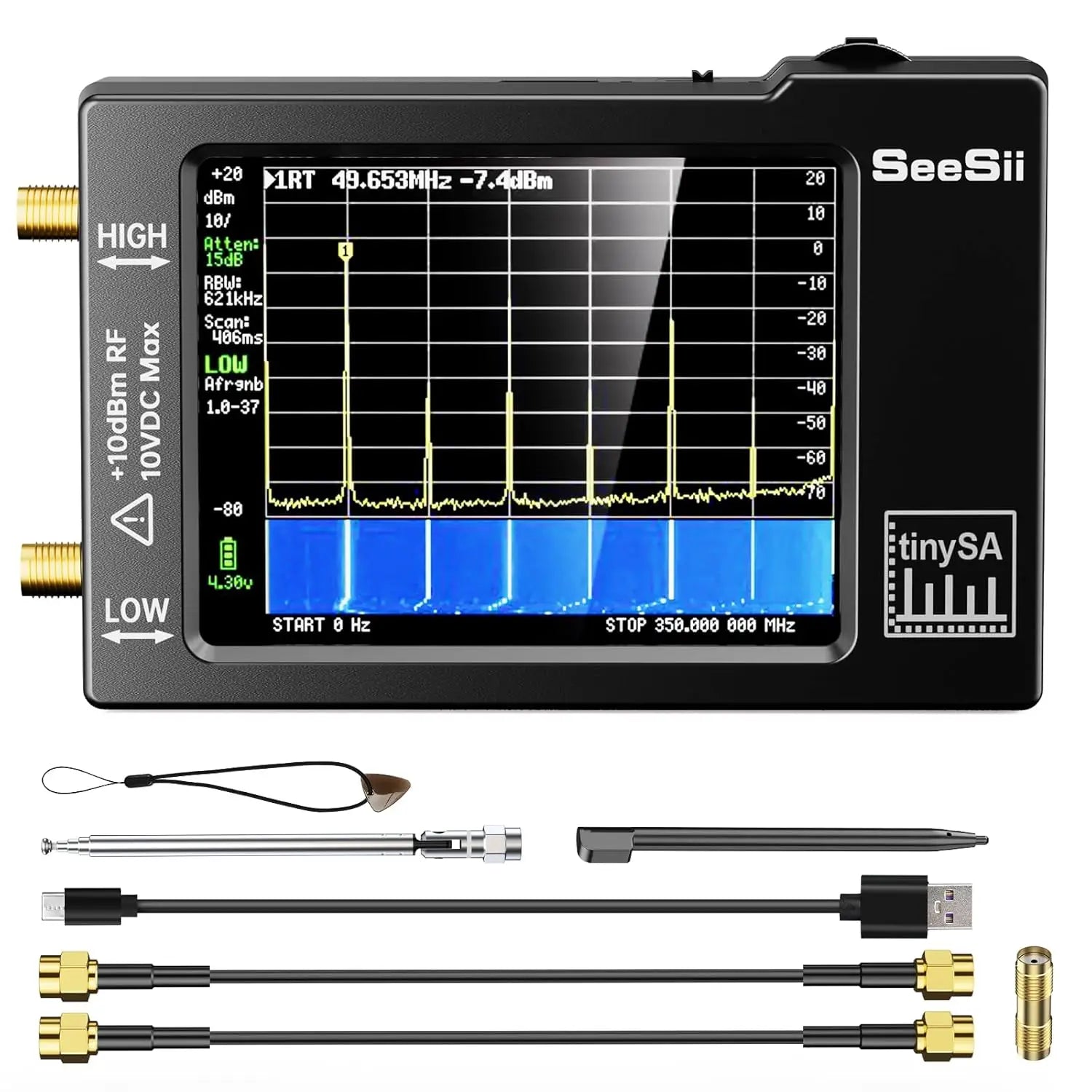

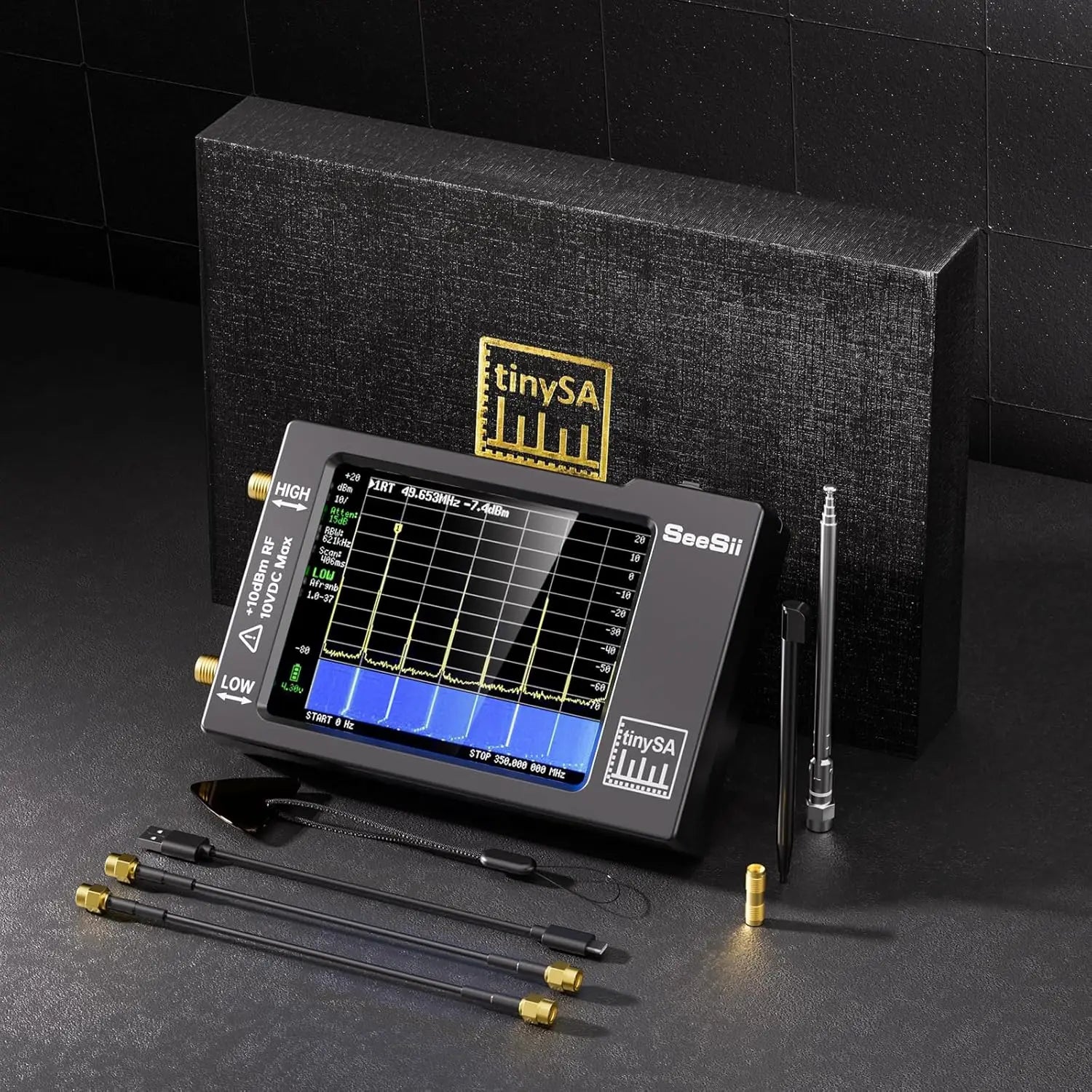

- Included Accessories: 1x Tiny Spectrum Analyzer; 2x RF cables 20 cm (7.87 in) each; 1x USB cable; 1x SMA female-to-female connector; 1x touchscreen pen; 1x SMA telescopic antenna
- Use Cases: Antenna analyzer for ham stations, field RF testing, electronics troubleshooting, education and lab use
