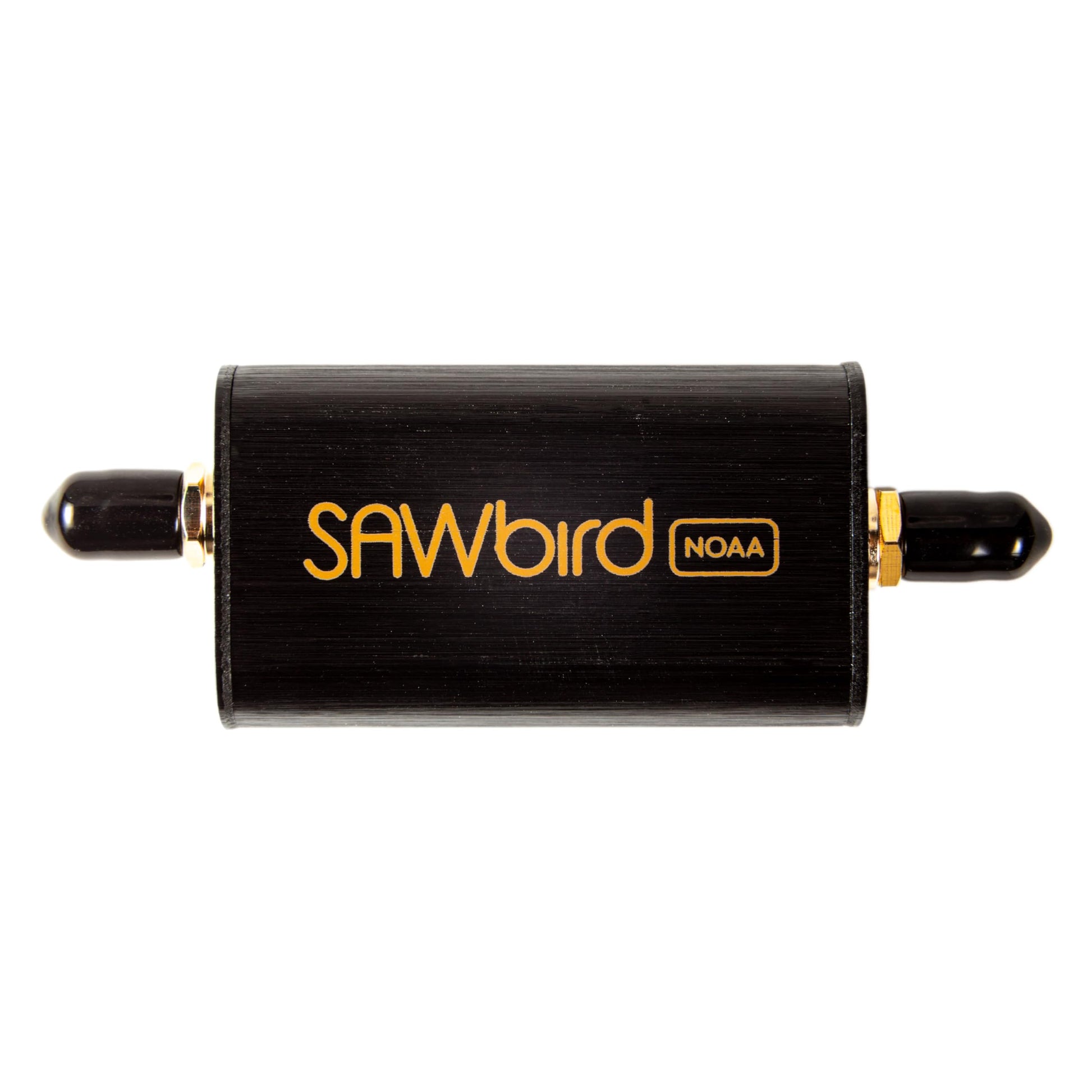

Nooelec SAWbird NOAA - Premium LNA and Saw Filter for Weather Satellite Applications. Ultra-Low Noise Amplifier Module to Capture NOAA (APT) & Meteor M2 Images. 137MHz Center Frequency 20dB Gain
Available Offers
Fastest Delivery Tomorrow With Vip DealOrder within 1 hr 8 mins.
Instant 10% Discount On HDFC Banks Credit/Debit Cards EMI and CreditCard
Couldn't load pickup availability
Product Details
Flight Range: Up to 1,000 meters (3,280 feet)
Maximum Speed: 45 kilometers per hour (28 miles per hour)
Shipping And Return
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Product Description
For full product details please visit the product page at nooelec.com!SAWbird NOAA is a self-contained LNA module designed for capturing beautiful weather images available from NOAA and Meteor-M2 satellites at ~137MHz. It has a minimum of 20dB of gain within the passband region centered around 137.5MHz and a very high out-of-band attenuation. This along with its miniscule noise figure of ~0.7dB ensures optimum performance with nearly any compatible application.Each module allows for 3 different power options: biastee USB and DC barrel connector. The recommended voltage to apply through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee) is 3V-5V DC. As the current consumption is only ~80mA SAWbird NOAA is compatible with most SDR biastee circuits. Alternatively if you dont have a biastee capable SDR or if your SDR or radio cannot provide sufficient power you can use the external power options through the microUSB port or the power input header (female 0.1" header). The recommended external power input is 3.3V-5.5V DC. Note that you should only power with one of these options at any given time.Though there is protection circuitry on the SAWbird for overvoltage conditions and voltages of up to 12V DC should still work and will not damage the device this is not recommended for long-term usage.An EMI shield is installed to separate the sensitive LNA from external interference. There are also M3 mounting holes available on the PCB to facilitate mounting with standard hardware in a separate custom enclosure or project.
