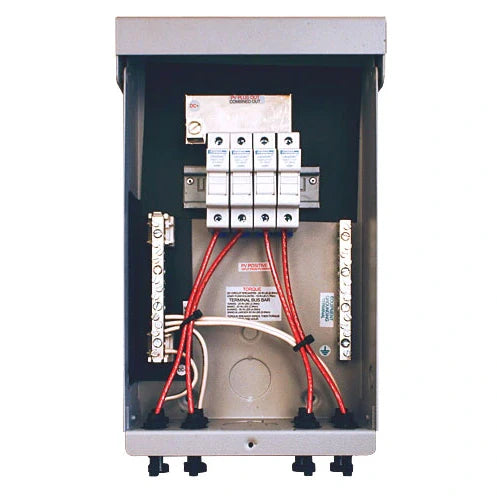

MidNite Solar MNPV4 Combiner Box: Your Durable, High-Voltage Solar Solution
Streamline your solar array connections and ensure top-tier protection with the MidNite Solar MNPV4 Combiner Box. Engineered for outdoor use and designed to handle high-voltage strings (up to 600V DC), this combiner box features an all-aluminum, powder-coated housing that won’t rust, plus touch-safe DIN rail fuse holders for safe, convenient operation. Rated for up to 80 amps, the MNPV4 delivers robust performance and an easy, secure installation process for residential or commercial solar applications.
Key Features & Benefits
-
Outdoor-Ready Design
- Type 1 environmental rating protects internal components from moisture and debris, ensuring reliable outdoor performance.
-
High-Voltage Capability
- Safely combine solar strings up to 600V DC using 10mm x 38mm fuses, making it perfect for large or high-output PV arrays.
-
Rugged, Rust-Proof Housing
- All-aluminum, powder-coated enclosure stands up to harsh weather and resists corrosion for long-lasting durability.
-
Touch-Safe DIN Rail Fuse Holders
- MNTS fuse holders with 15-amp fuses included (supports up to 30-amp fuses) allow quick, safe operation and easy replacement.
-
Easy Installation & Maintenance
- Flip-up cover can remain open during wiring, and the dead front cover (MNPV6DF) snaps on afterward for added protection.
- Integrated PV Negative and Chassis Ground bus bars accommodate #6 and 1/0 connections, simplifying setup.
-
Versatile Connection Options
- Industry-standard connectors pre-installed on the bottom for PV in and PV out, plus additional knockouts on the bottom and sides.
- Top surface conduit entry allows direct access from above for hassle-free wiring.
-
Safety & Quality Assured
- ETL listed for the US and Canada.
- 5-year warranty and proudly made in the USA.
Specifications Overview
- Model: MNPV4
- Max Current Rating: 80A
- Max Voltage: 600V DC
- Fuses Supported: 10mm x 38mm fuse holders (MNTS), 15-amp fuses included, up to 30 amps each
- Dimensions & Weight: Compact, all-aluminum housing
- Certifications: ETL Listed for US & Canada
- Warranty: 5 Years
Enhance your solar system’s safety and reliability with the MidNite Solar MNPV4 Combiner Box. Built to withstand the elements and handle high-voltage arrays, it’s the go-to choice for clean, efficient installations. Trust MidNite Solar’s proven performance to power your journey toward energy independence!
