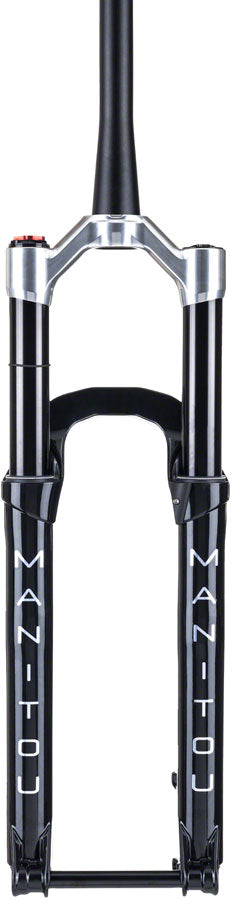

The Mattoc Pro is the fruit of one of the most profound development cycles in Manitou history. Capable of not only pulling duty in a wide range of disciplines ranging from XC to light enduro but doing so with zero compromise makes it “best-in-class”. Maximizing weight and stiffness with a variety of tuning adjustments available makes the Mattoc Pro is an amazingly versatile product that’s capable of improving your ride. A true no-compromise authentic fork serving the real needs of MTB riders offering serious performance advantages no matter how you choose to ride.
Dorado Air spring with Infinite Rate Tune (IRT) features a unique balancing valve that equalizes the positive and negative air chambers during the air fill process creating a consistent feel without any flat or dead spots in the strokeSealed Dampers offer more consistent damping and lighter break away force especially over long descents. The Damper uses a bladder system to compensate for head build up along with a relief valveTSR (Trail Side Relief) casting bleed screws allow users to release casting pressure from the fork. Releasing casting pressure can improve overall fork feel and small bump complianceReduced weight of 59 grams from the previous model
| Steerer Type |
Tapered |
| Lockout Switch |
None |
| Brake Type |
Post Mount 160 |
| Negative Spring |
Air |
| Travel (mm) |
120 |
| Offset |
44 |
| Axle to Crown Length |
532 |
| Front Axle |
15mm Thru x 110mm |
| Maximum Tire Width |
67 |
| S.H.I.S. Stem Clamp Diameter |
28.6 |
| Color |
Black w/Polished Crown |
| Crown Race |
40 |
| Weight |
1760 |
| Wheel Size |
29" |
| Designed for ebike |
Yes |
| External Adjustments |
Bottom Out Resistance |
| Defined Color |
Black |
| Positive Spring |
Air |
| Stanchion Diameter |
34 |
| Steerer Tube Length (mm) |
250 |
