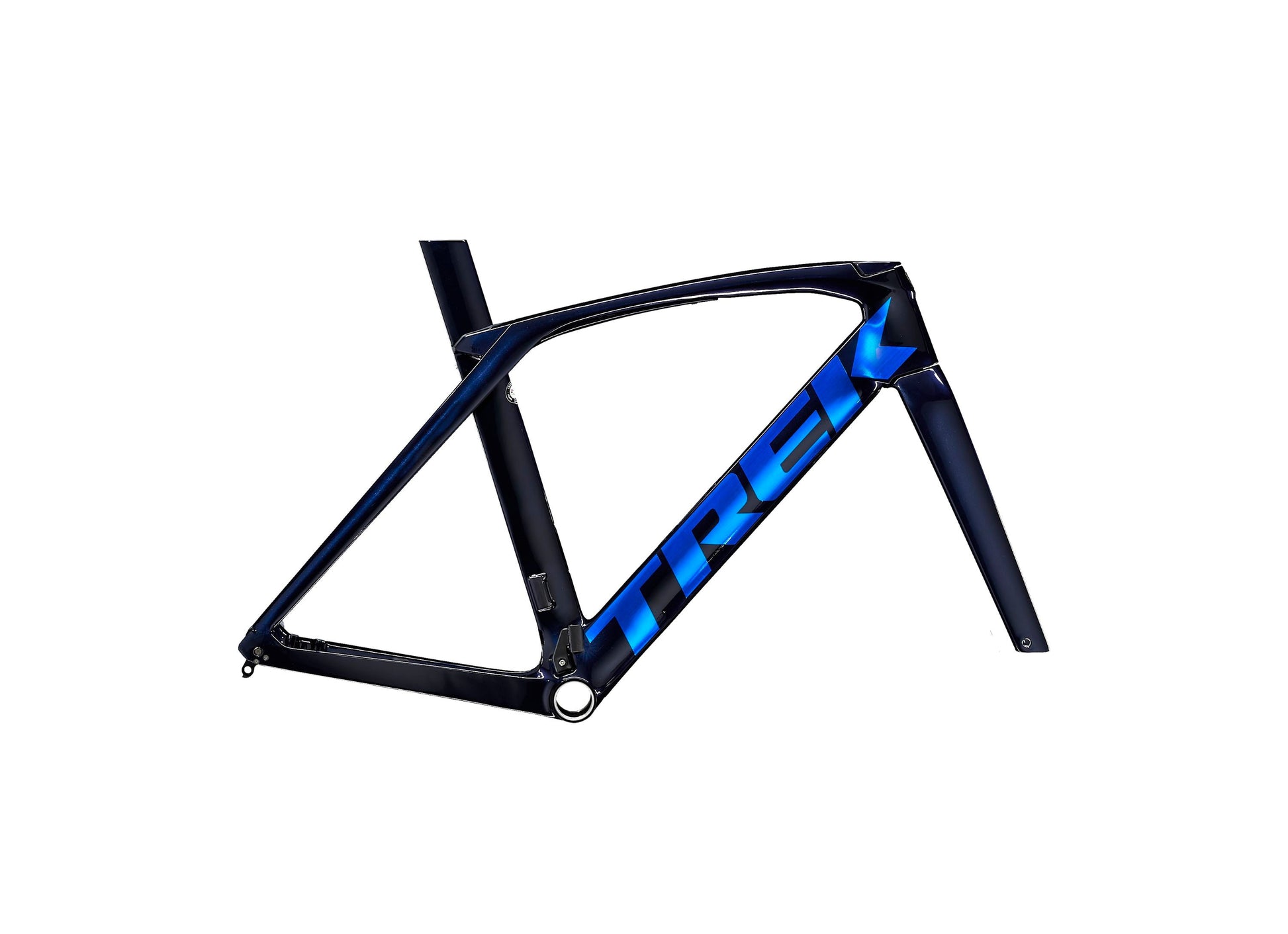

Madone SL Disc frameset is the ultimate platform for a high-value custom aerodynamic race bike. It's built with our lightweight 500 Series OCLV Carbon layup and Adjustable Top Tube IsoSpeed for an incredibly smooth ride.
- Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
- This bike looks awesome, like it's breaking speed records even when it's parked at the café for a post-ride espresso
- Disc brakes offer better braking performance and extra clearance for wider, more stable tires
- Includes a bearing top cap compatible with traditional stems
- Seatpost (available in two lengths/two offsets) sold separately
Race-winning aerodynamics
On the road and in the wind tunnel, Madone’s exclusive Kammtail Virtual Foil tube shape ranks among the most aero in the world.
![]()
Madone IsoSpeed decoupler
Trek engineers designed a decoupler that allows the seat tube to rotate independently from the top-tube-to-seatstay junction, increasing vertical compliance to twice that of our nearest competitor, without compromising pedaling efficiency. Result: you can ride harder, longer.
![]()
![]()
| Frame |
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, Duo Trap S compatible, 142x12mm thru axle |
| Fork |
Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Skewer Front |
Bontrager Switch thru axle |
| Skewer Rear |
Bontrager Switch thru axle, removable lever |
| Front Derailleur |
Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs) |
Geometry Chart
| B B Drop |
7.2 |
| Chainstay Length |
41 |
| Eff Top Tube |
51.2 |
| Frame Reach |
37.3 |
| Frame Size Number |
47cm |
| Frame Stack |
50.7 |
| Head Angle |
72.1° |
| Head Tube Length |
10 |
| Offset |
4.5 |
| Saddle Rail Height Max Short |
61.5 |
| Saddle Rail Height Max Tall |
65 |
| Saddle Rail Height Min Short |
55.5 |
| Saddle Rail Height Min Tall |
59 |
| Seat Tube |
42.4 |
| Seat Tube Angle |
74.6° |
| Standover |
69.2 |
| Trail |
6.8 |
| Wheelbase |
97.2 |
| Wheel Size |
700c |
| Color |
DEEP DARK BLUE |
| Size |
47 |
