Product Description

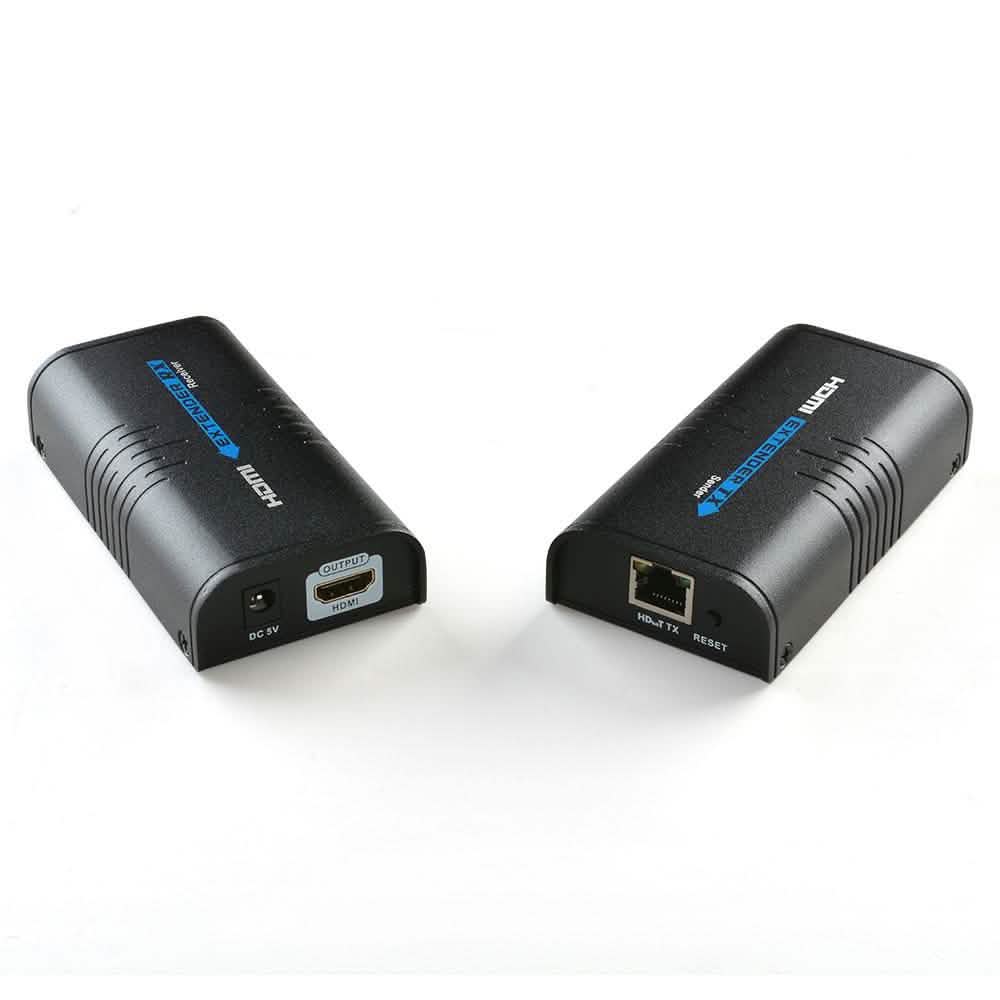

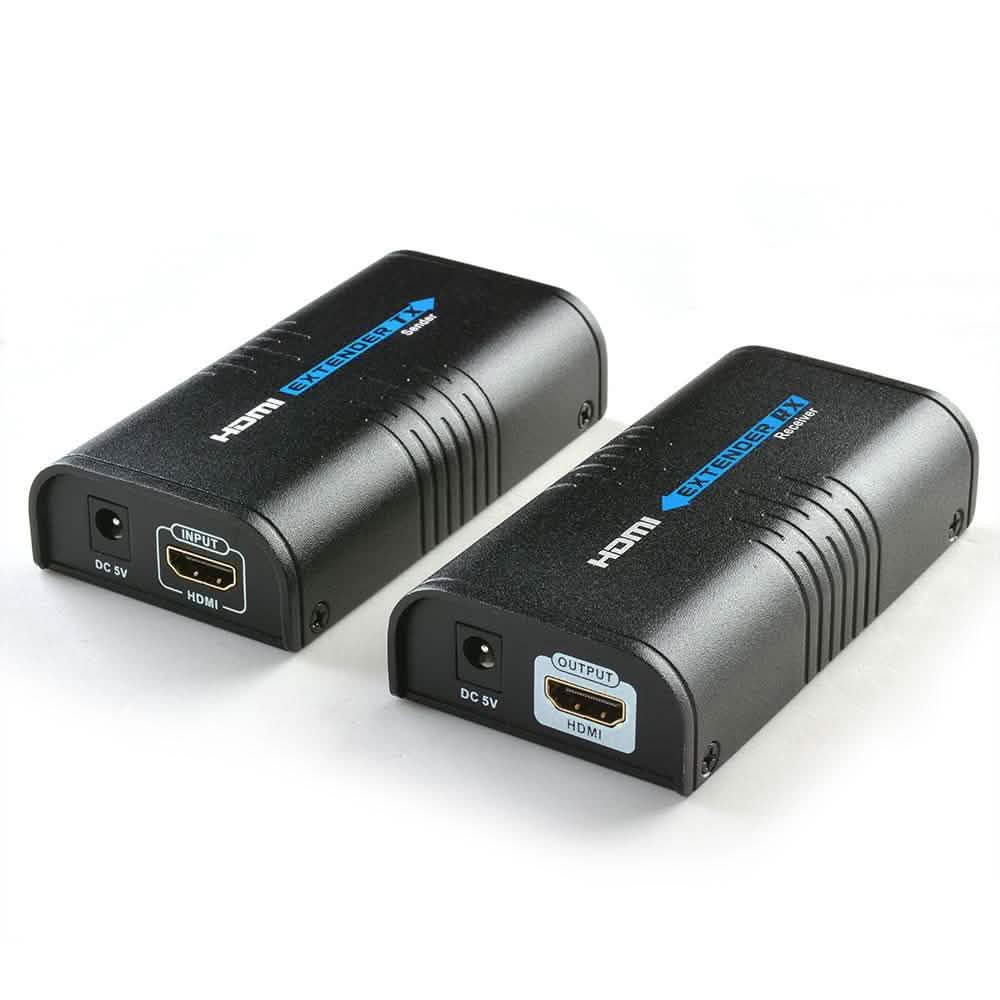

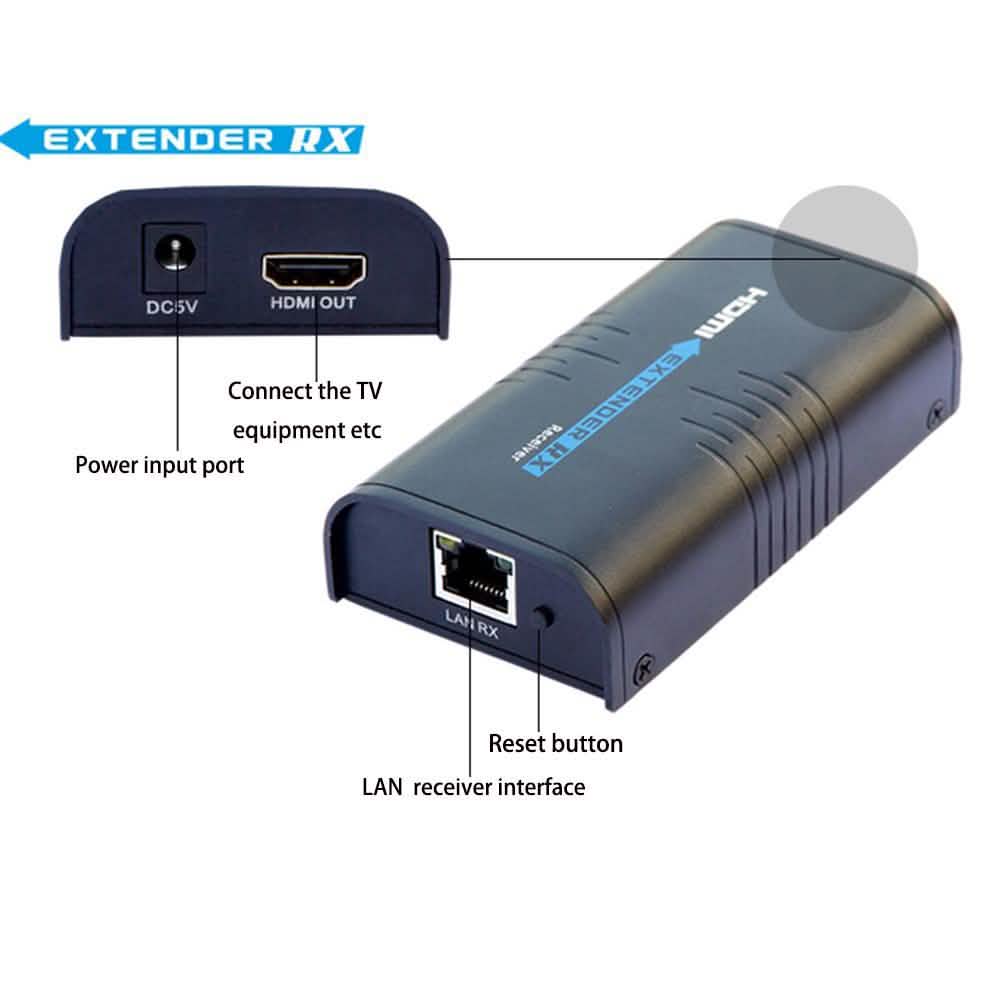

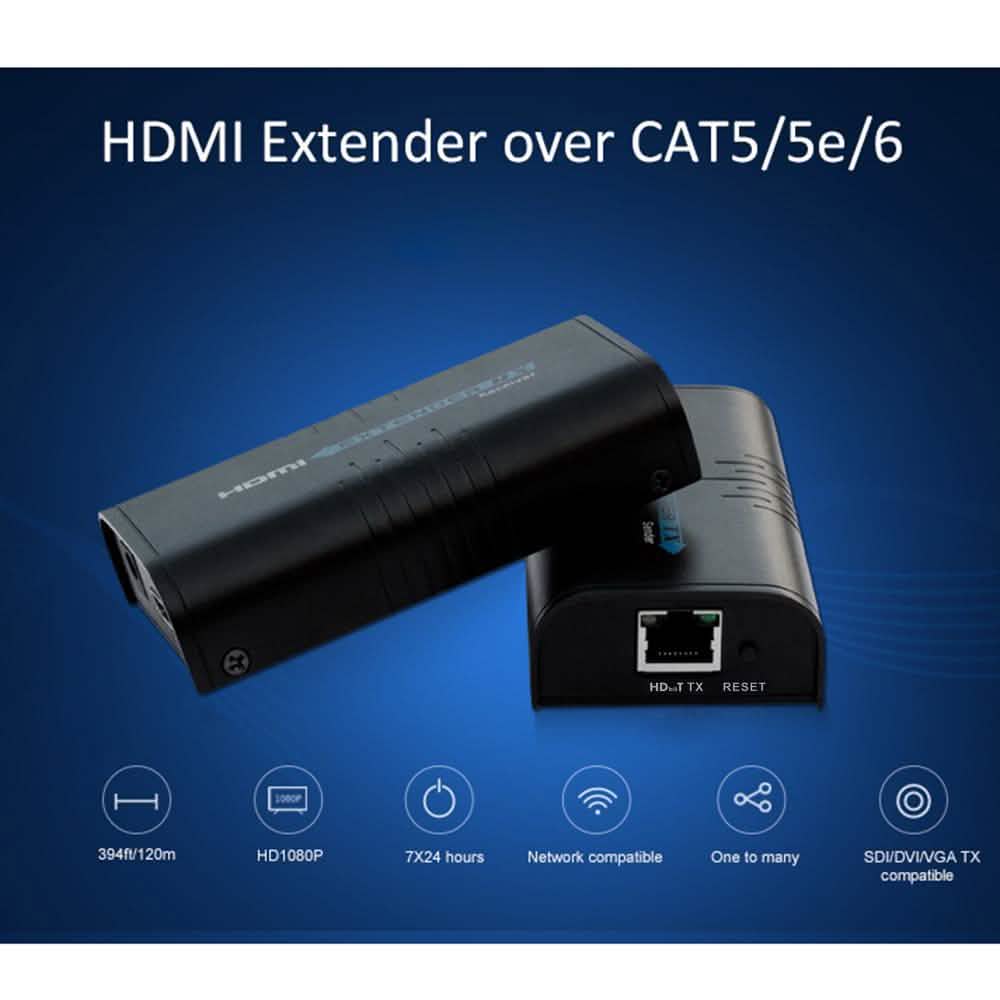

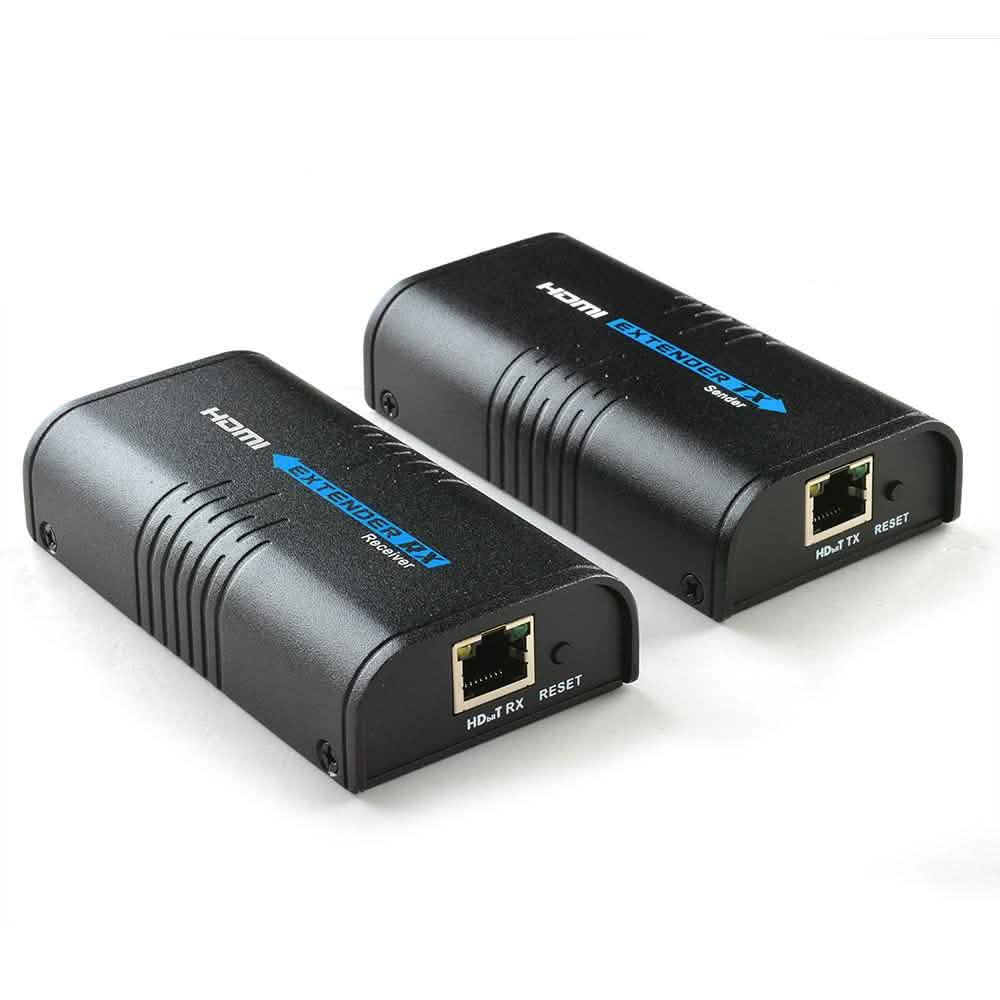

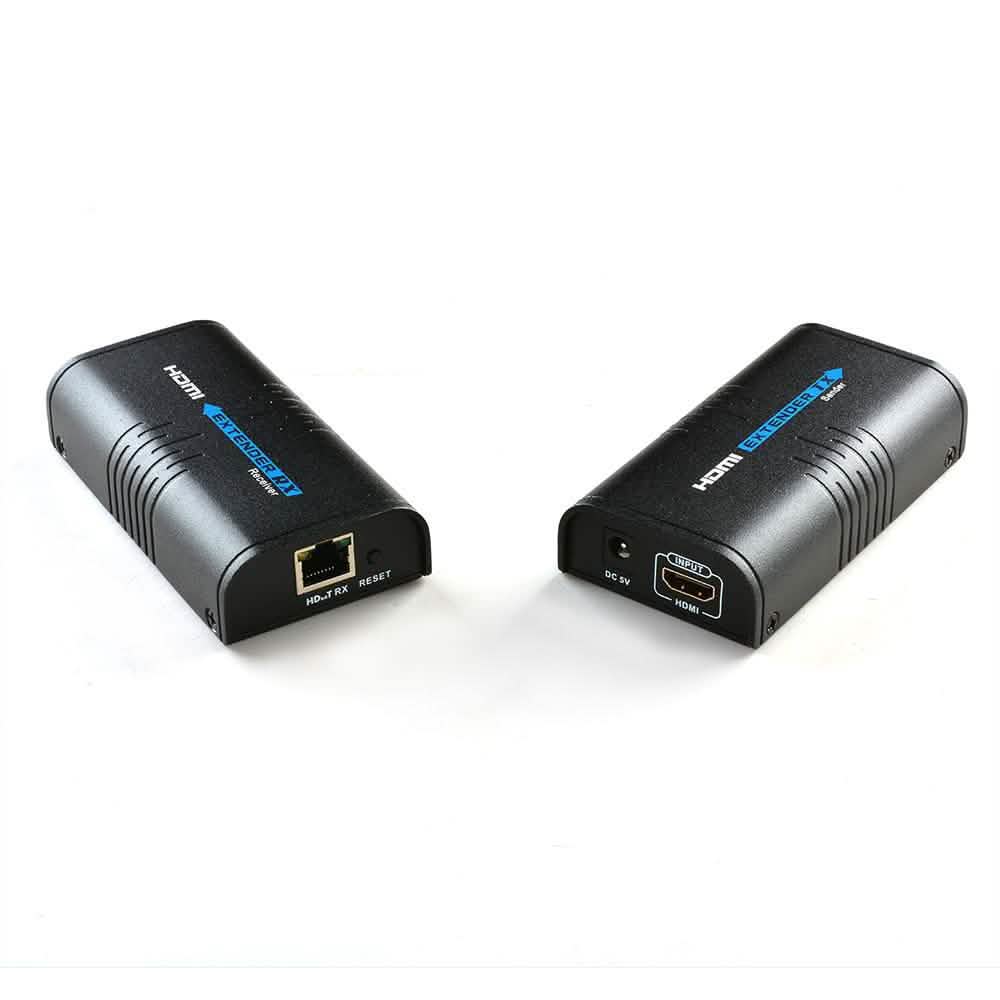

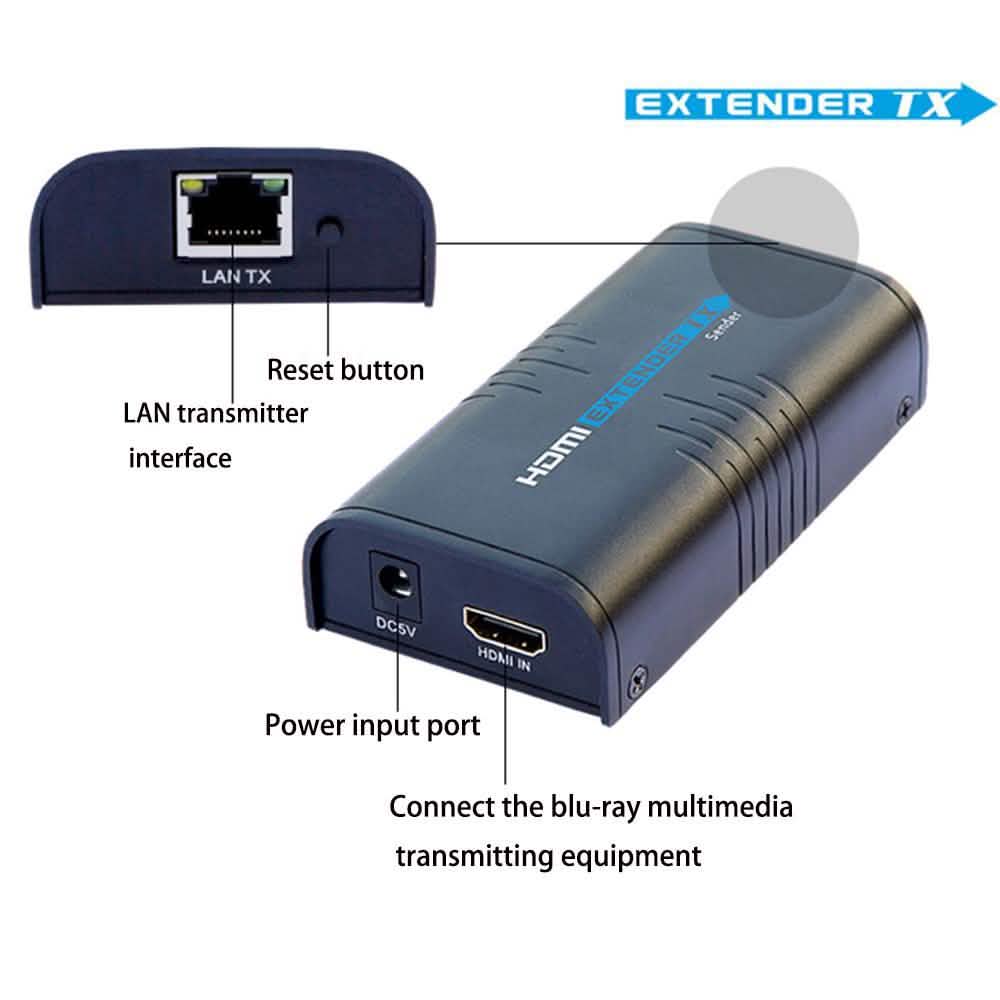

LKV373A Version 4.0 HDMI Extender Sender+Receiver 120M 1080P for HD STB DVD PS3.
Features:
- Apply M-JPEG technology to process image compressing.
- Supported HDMI format: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- Supports TCP/IP, extends HDMI signal unlimitedly over router or hub/switch
- Follow the standard of IEEE-568B
- Supports resolutions up to 1080p Full HD
- Supports Ethernet bandwidth: 100M
- HDCP compliant
- Extends by Router connection or LAN connection
Cable length requirements are as follows:
- CAT5 Maximum 80 meters between two Devices
- CAT5e Maximum 100 meters between two Devices
- CAT6 Maximum 120 meters between two Devices
Specifications:
- Supports resolutions: 480i@60Hz,480p@60Hz,576i@50Hz, 576p@50Hz,720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz
- Working Temperature: -10℃ ~60 ℃
- Link Connector (Sender/Receiver): UTP/STP CAT5e/6
- Power Consumption: 3W (max) each
- Relative Humidity: 20%~90%
- Power Supply: DC 5V/1A
- Dimensions: 110 x 58 x 26 mm
- Weight: 239g
- Cat5e/6 cable: Follow the standard of IEEE-568B
Includes:
- 1 x HDMI Extender Sender
- 1 x HDMI Extender Receiver
- 2 x power supplier
- 1 x User manual
