Product Description

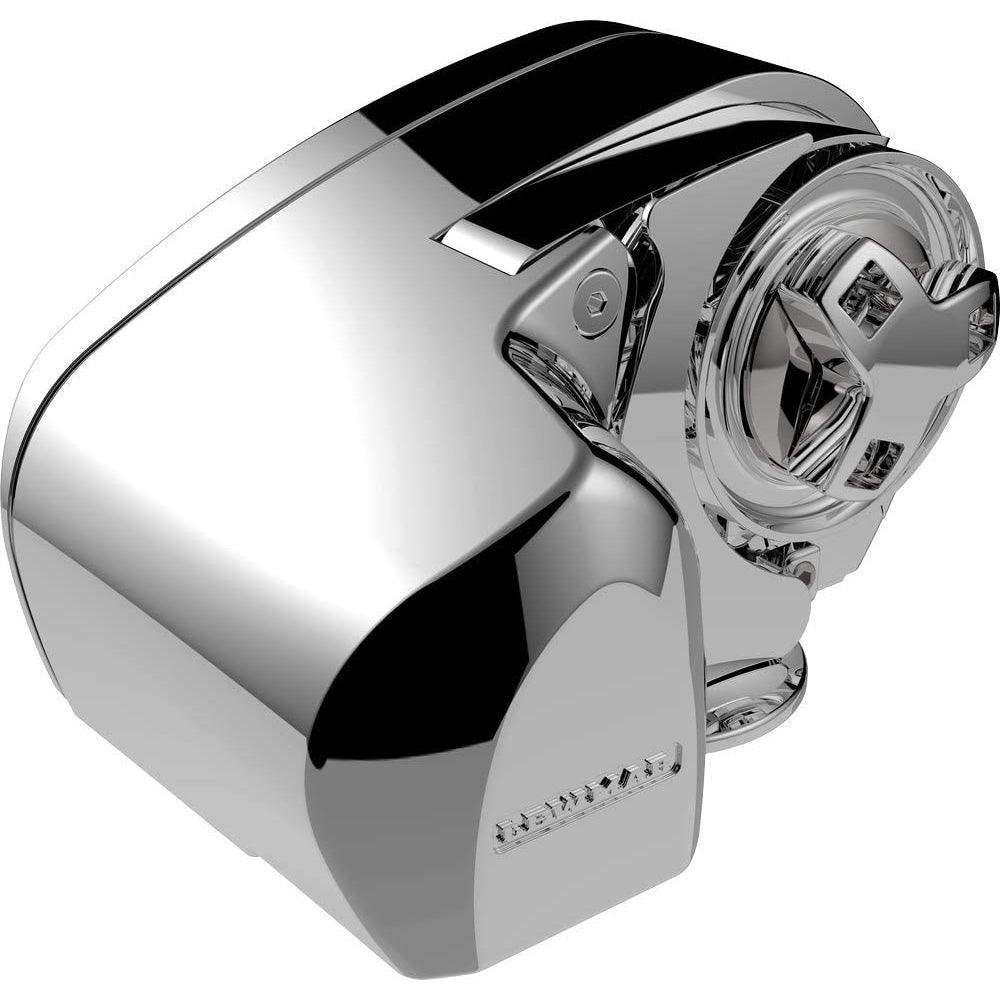

Pro-Series Horizontal 1000H Windlass Kit - 12V
Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats. It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.
Anchoring has never been easier.
Features:
- Powerful motor providing fast line speed
- Manual emergency recovery equipped
- Convenient above-deck installation
Technical Specifications:
- Material - Stainless Steel
- Maximum Pull - 1,000lbs
- Maximum Line Speed - 88'/min
- Maximum Chain Size - 5/16"
- Maximum Rope Size - 5/8"
- Power - 12 V
- Maximum Boat Length - 38'
- Mounting Position - Horizontal
In the Box:
- Windlass
- Switch
- Circuit breaker
- Dual direction contactor/solenoid
- Instruction manual
*Sold as an Individual
Specifications:
- Chain - Diameter (Inches): .45
- Freefall: Yes
- Rope Diameter (Inches): .65
- Vertical/Horizontal: Horizontal
- Box Dimensions: 10"H x 10"W x 18"L WT: 30 lbs
- UPC: 743683319891
Owner's Manual (pdf)
