Product Description
Install flexible solar power where a rigid panel is not practical. This JINGYANGPV monocrystalline panel is listed as flexible, non-foldable, and suitable for compatible RV, boat, motorhome, vehicle-roof, camping, and outdoor energy setups.
Product Overview
The panel uses monocrystalline silicon cells and is listed with a 24% module efficiency. The detailed electrical ratings below correspond to the 125W panel specification. A 250W panel option is also shown, but the supplied source does not provide separate electrical values for that variant.
Key Features
- Flexible monocrystalline solar panel
- 125W panel option with detailed ratings supplied
- 250W panel option shown, with separate specifications not supplied
- 24% module efficiency listed
- 33 cells listed
- Thin 2.5 mm profile

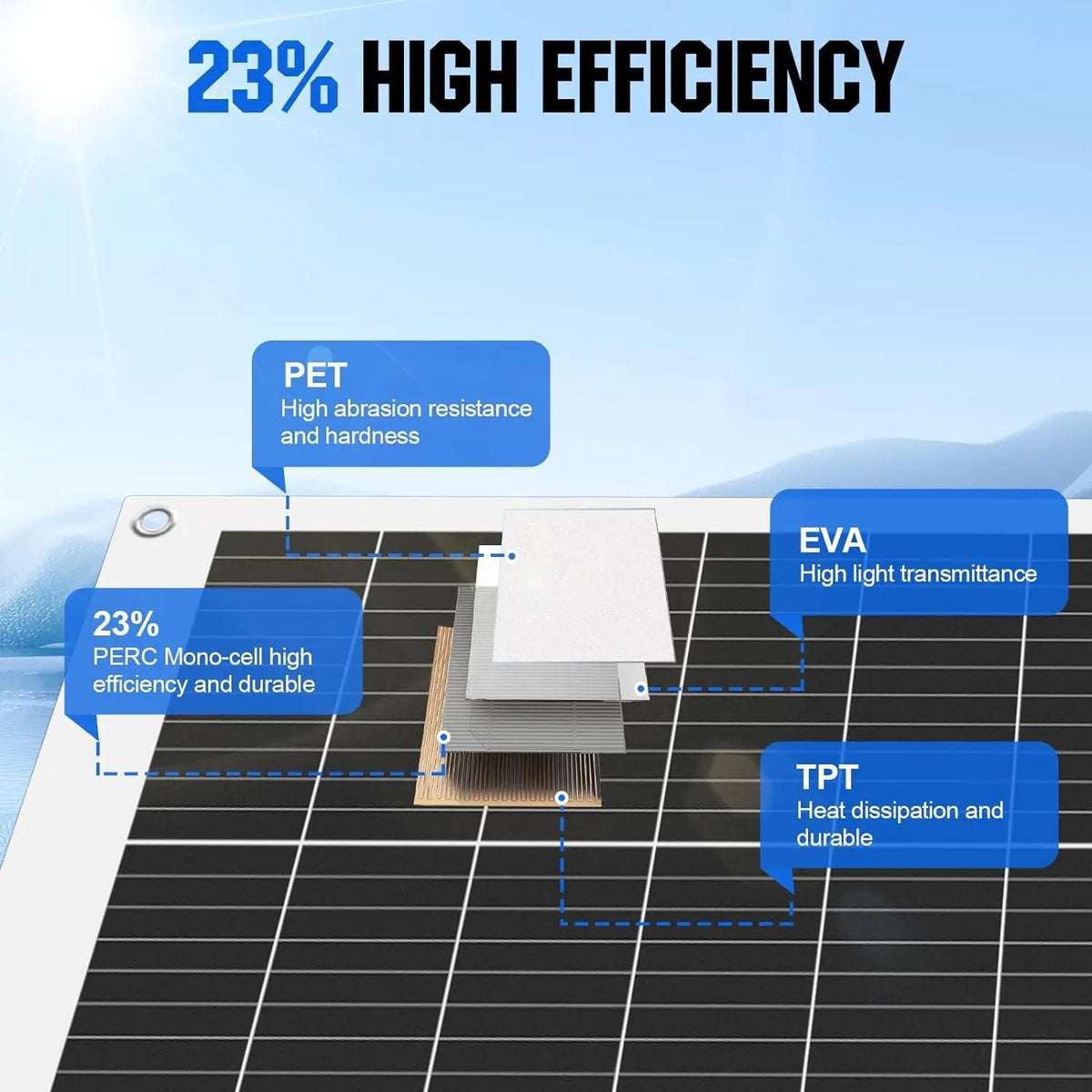

- Plastic cover-film coating and four EVA layers described in the source
- MC4 connector cables referenced
- Approximately 900 mm cable length listed
- Four rear drill holes for installation
- CE, RoHS, and UL certifications listed
- Not foldable

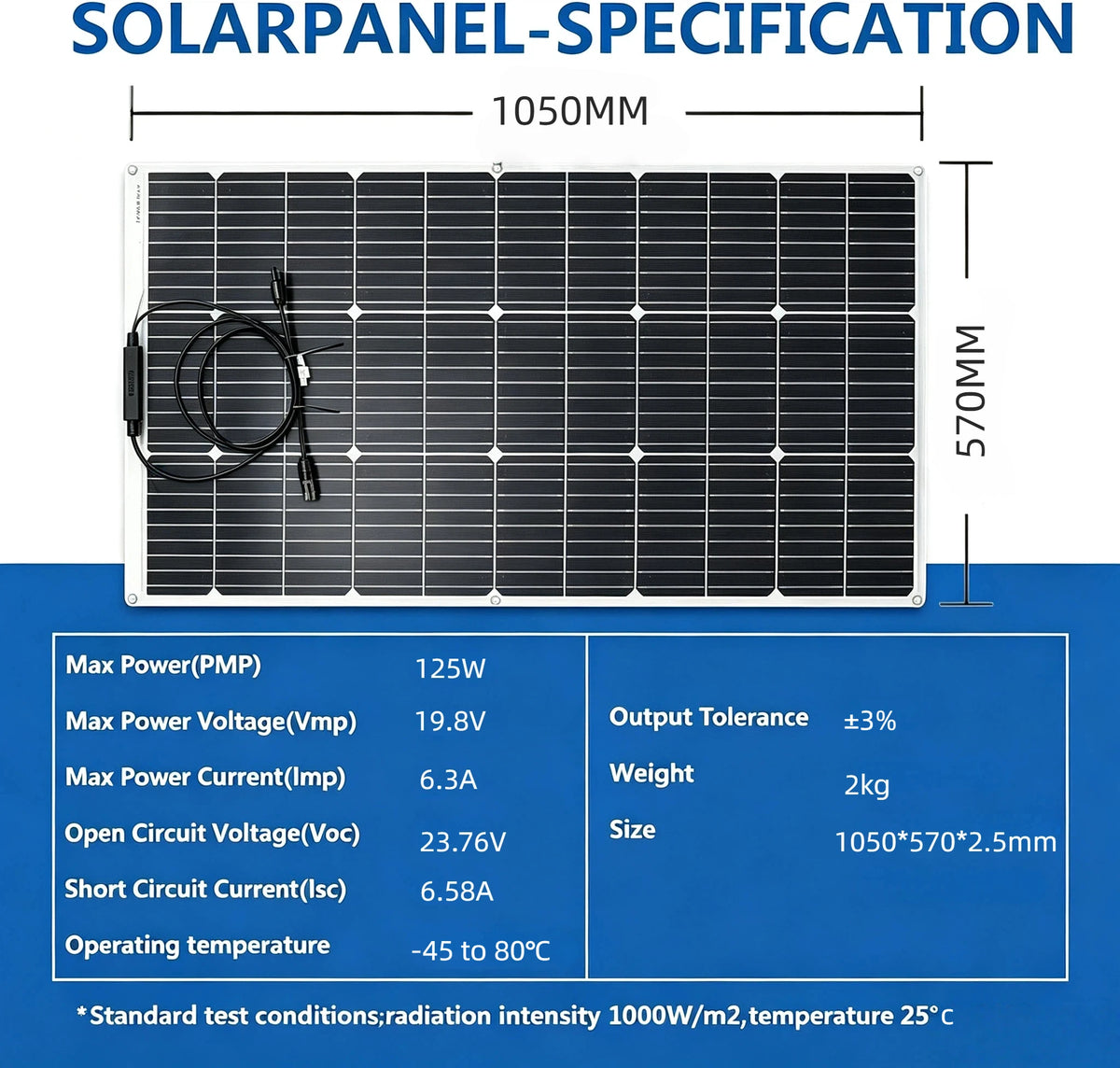

125W Panel Specifications
- Brand: JINGYANGPV
- Model: BPS 33-18BB-125
- Material: Monocrystalline silicon
- Maximum power: 125W ±3%
- Maximum power voltage: 19.8V
- Maximum power current: 6.3A
- Open-circuit voltage: 23.76V
- Short-circuit current: 6.85A
- Module efficiency: 24%
- Number of cells: 33
- Nominal capacity field: 125
- Nominal operating cell temperature range listed: -45°C to 80°C
- Maximum system voltage: DC1000V
- Maximum series fuse: 15A
- Panel dimensions: 1,055 x 569 x 2.5 mm
- Panel count: 1
- Origin listed: Mainland China
- Ships-from options shown: Poland, Spain, United States, France, Czech Republic, and Germany

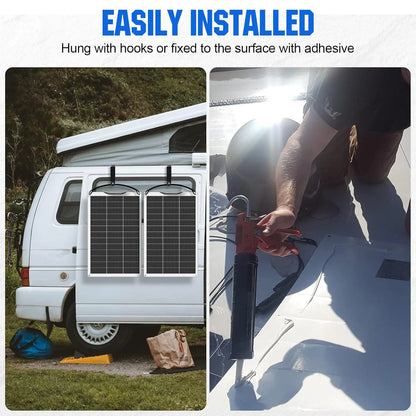

Construction and Installation
The supplied description references a plastic cover-film coating, four EVA layers, water resistance, snow resistance, and resistance to small hail. It also references a pair of cables with MC4 connectors and four rear drill holes for installation. Confirm the manufacturer's current installation and exposure guidance before mounting the panel outdoors.
Ideal Uses
Use the flexible panel for compatible curved or weight-sensitive surfaces on RVs, boats, motorhomes, buses, and other outdoor projects. Confirm that the mounting surface, electrical system, charge controller, and battery are compatible with the panel's ratings.
Before You Buy
- Choose between the 125W PANEL and 250W PANEL variant labels.
- The detailed electrical ratings provided are for the 125W panel. Confirm the voltage, current, dimensions, and efficiency of the 250W option before ordering.
- Match the panel's voltage and current to your charge controller or power station.

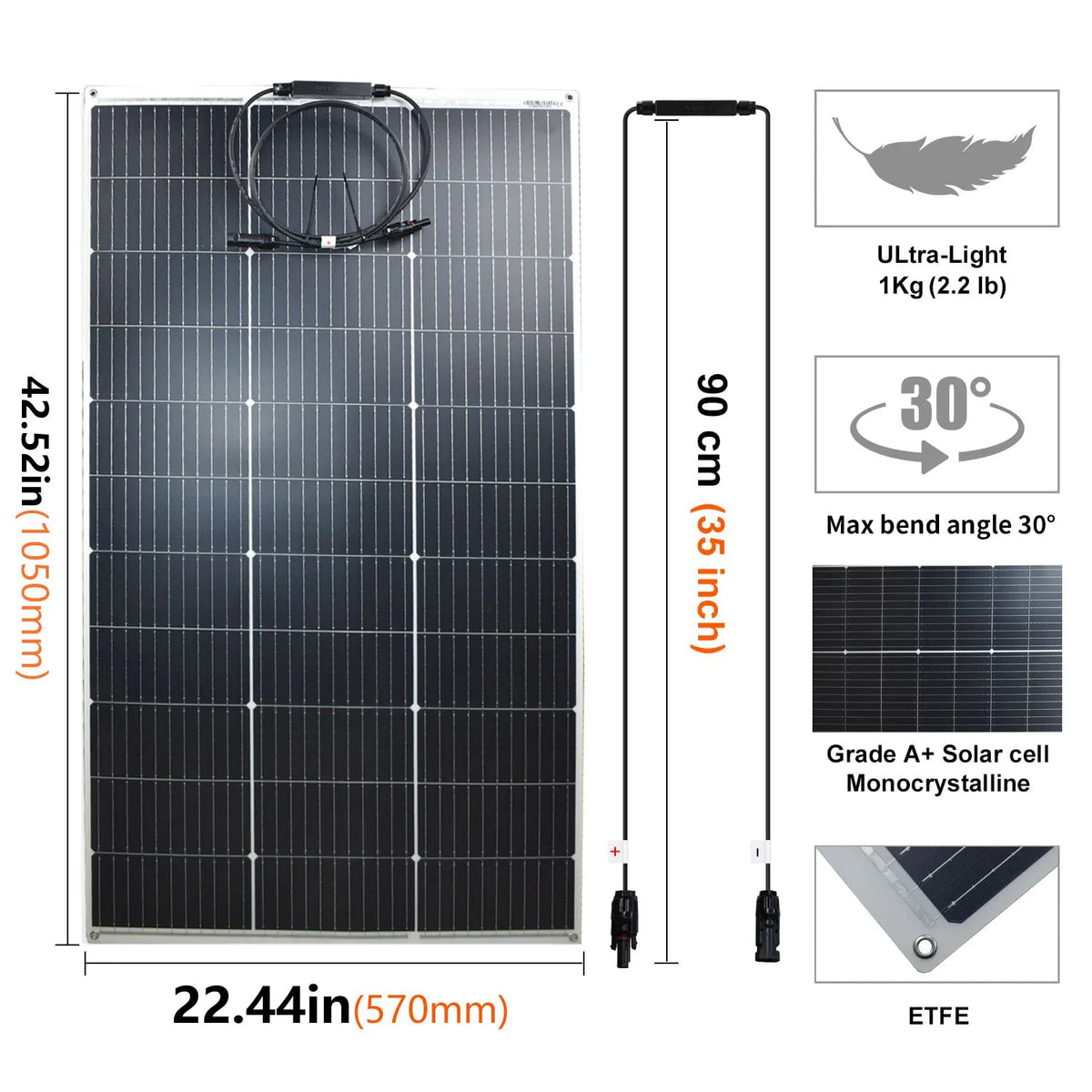

- Confirm the panel will fit the intended surface. The detailed 125W dimensions are 1,055 x 569 x 2.5 mm.
- This panel is flexible but not foldable.
- Confirm the connector type, cable length, mounting method, and polarity before installation.
- The source claims a service life of more than 8-10 years, but warranty and service terms were not provided.
- The source does not provide bend-radius limits, panel weight by variant, operating-current details for the 250W option, or a complete mounting guide.
Frequently Asked Questions
Is the panel flexible?
Yes. The specifications list it as a flexible solar panel.
Is it foldable?
No. The supplied specifications list it as not foldable.
What output does the detailed model provide?
The detailed BPS 33-18BB-125 specification lists 125W ±3%, 19.8V maximum-power voltage, and 6.3A maximum-power current.
Is there a 250W option?
Yes. A 250W PANEL variant label is shown, but the supplied source does not provide separate electrical specifications for it.
What are the 125W panel dimensions?
The listed dimensions are 1,055 x 569 x 2.5 mm.
What connectors are included?
The source references a pair of cables with MC4 connectors and approximately 900 mm cable length.
Where can it be used?
The source references RVs, boats, motorhomes, buses, camping, and outdoor energy projects. Confirm the mounting and electrical requirements for your specific application.
