Product Description
IntegraRack IR-45ASA Solar Panel Ground Mount | 15-45 Degree Adjustable Angle | Aircraft Grade Aluminum
The IntegraRack IR-45ASA is an adjustable, scalable, and DIY-friendly racking system for any size solar array. These racks can be secured with innovative anchoring systems such as the EarthBallast, AnchorSpike, Concrete anchors, or even concrete curb stops or low-profile water tanks – installation has never been easier!
- No earth augers, concrete piles, or post ponding required

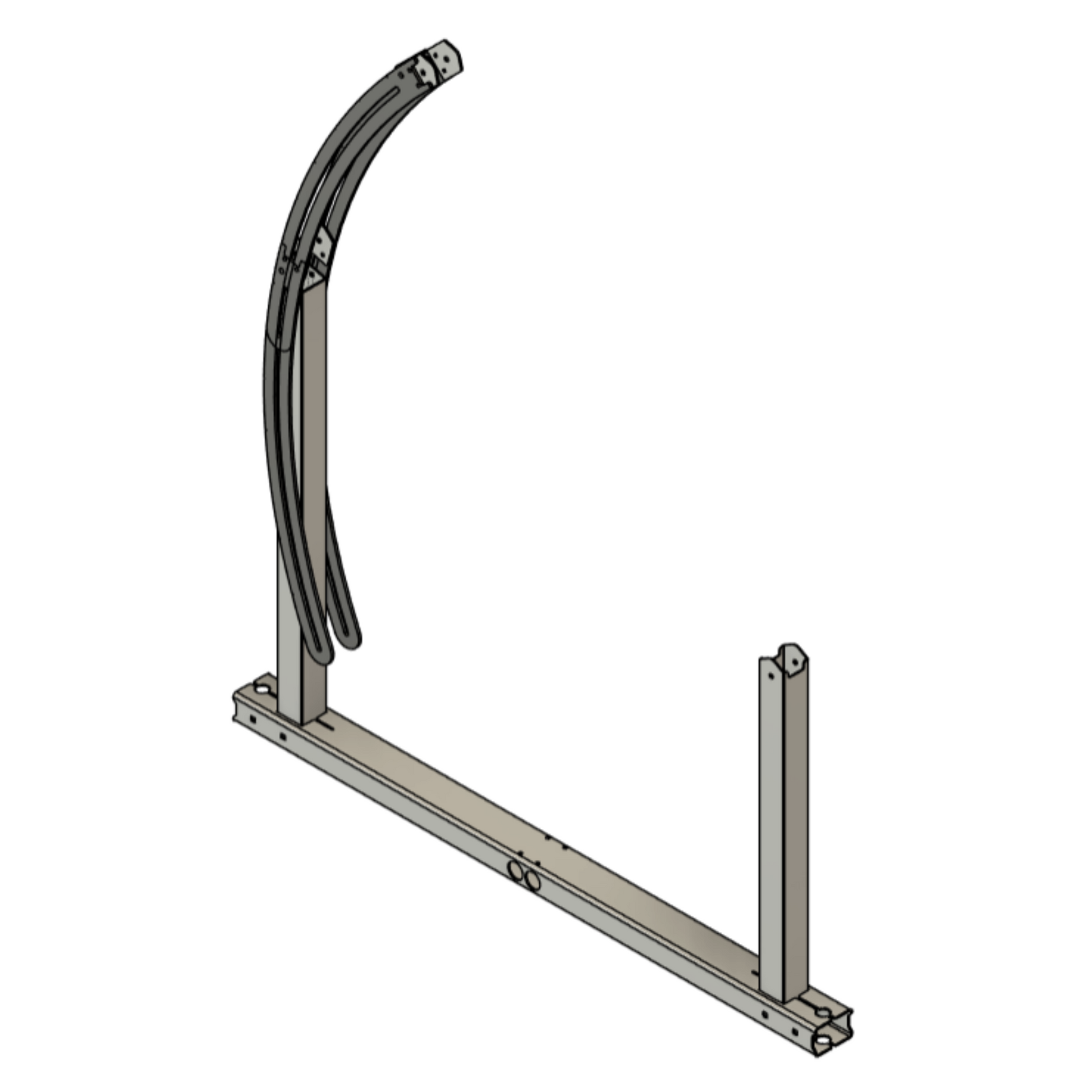

- Each frame is laser-cut from high-grade aluminum, and secures to panels with stainless-steel hardware
- Compatible with any full-size (300W+) solar module without any modification to the module

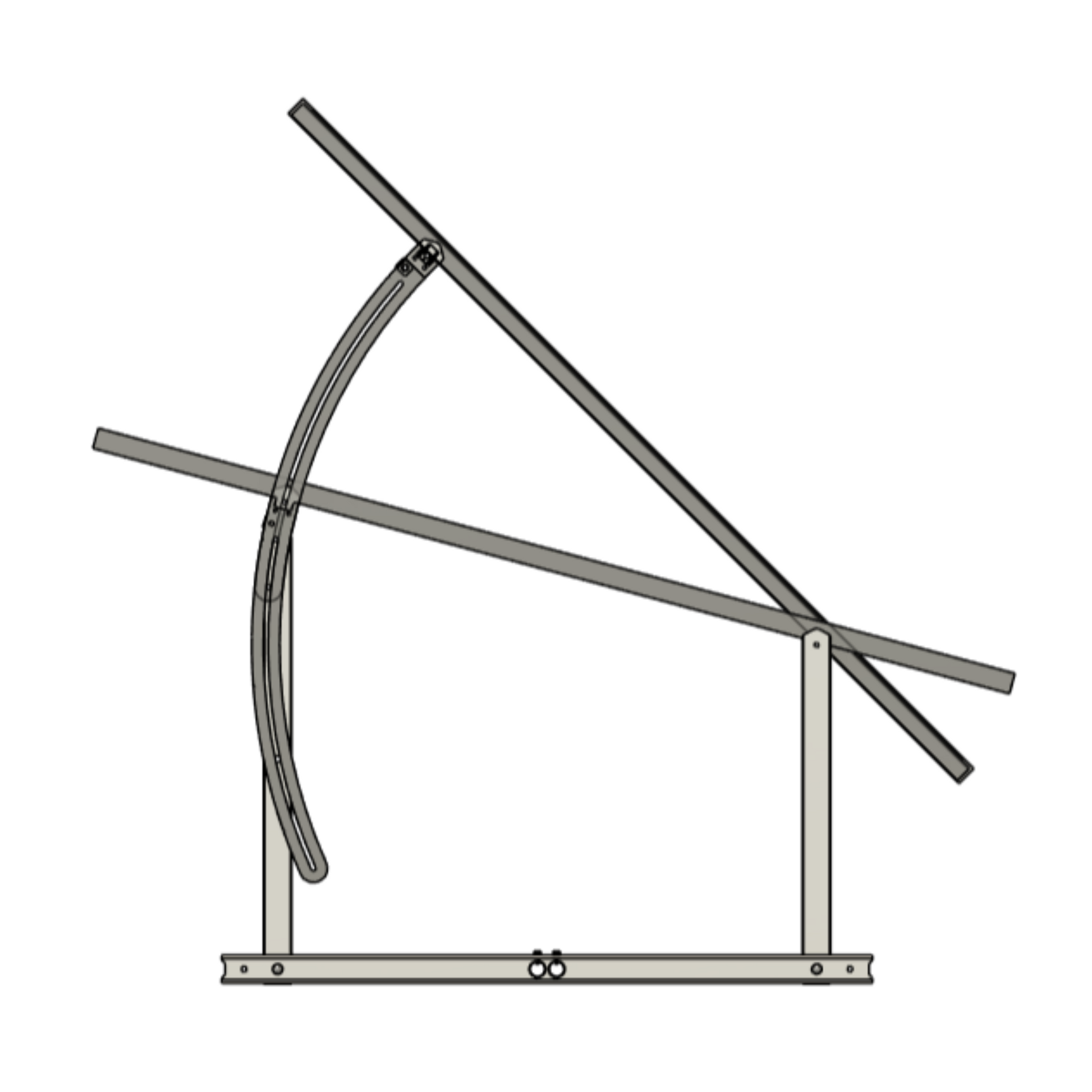

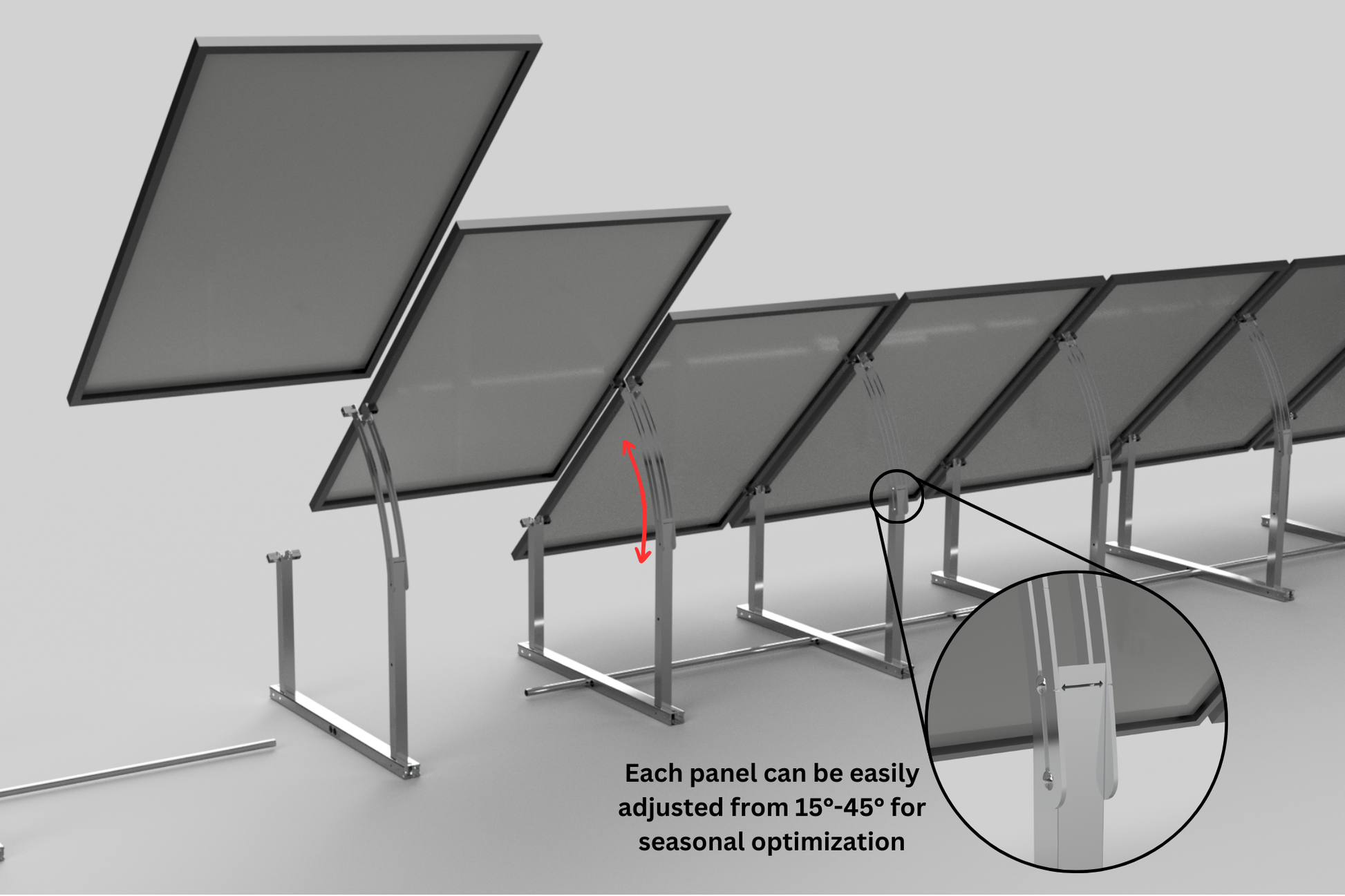

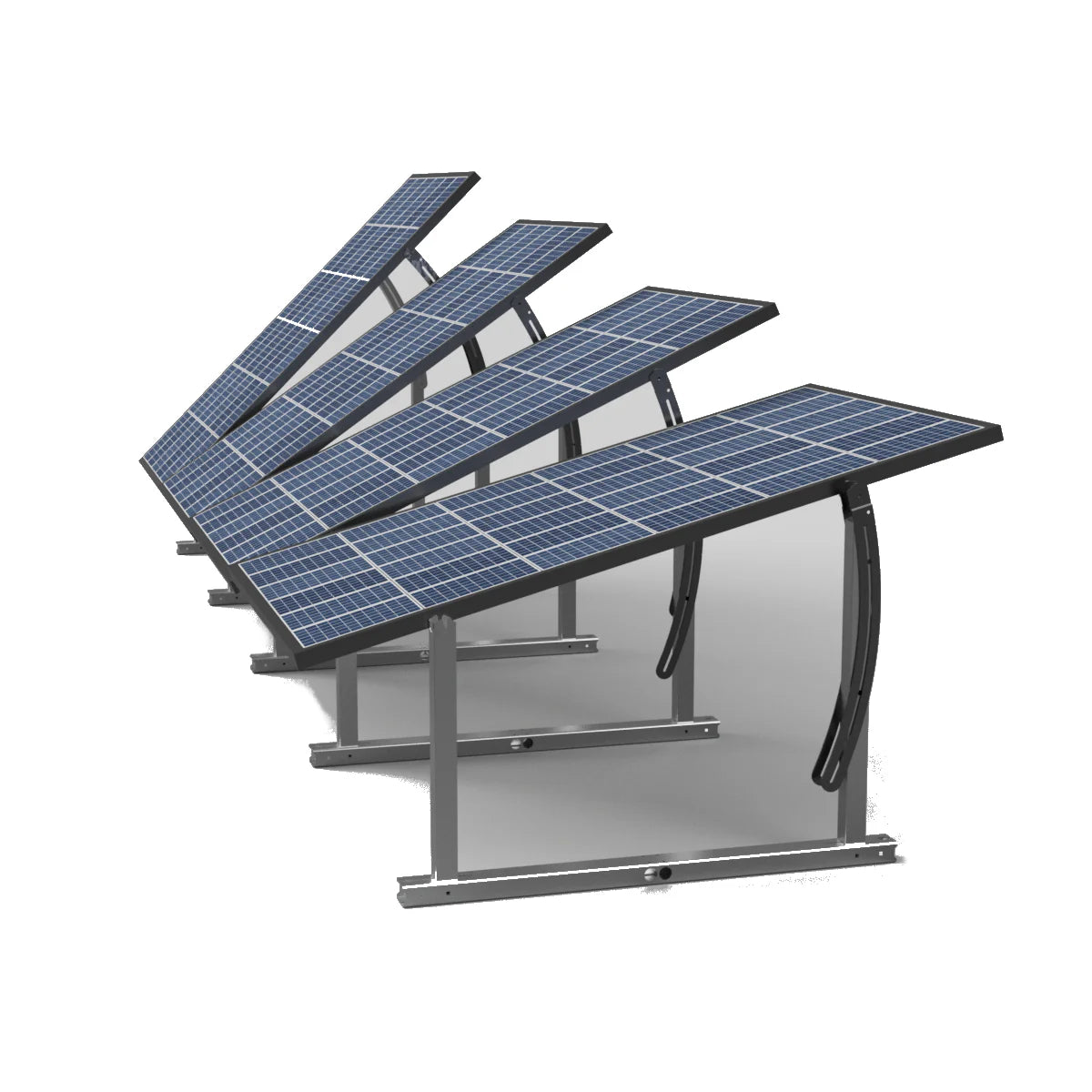

- Holds the panels at a 15 to 45 degree angle (easily adjustable). Also available in 15 degree and 30 degree, angles.
- Ships in a compact box via ground parcel transport – no need for expensive freight deliveries
- When purchasing these mount, you will require one more mount then the solar panels you need (Ex: 4 panels, 5 mounts)
- The price shown is for one individual frame
Data & Engineering Sheet: Download
Installation Instructions: Download
