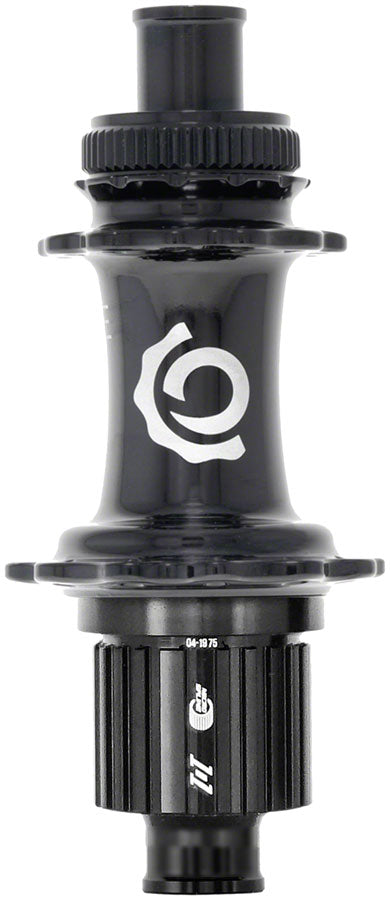

At the heart of the Solix rear hub is a continuously-phased five-pawl freehub seamlessly integrating with a 121 tooth drive ring - offering 605 points of contact translating to an ultra-fine .59° engagement. Crafted from A2 tool steel using precision wire EDM the pawls and drive rings are engineered for maximum durability. To bring resistance and freewheeling noise to a minimum we’ve reduced the driving diameter pawl rotation and pawl spring pressure and changed the FH seal layout.
Matched hubshell bearing specs to evenly distribute loads an updated bearing preload method to optimize performance and longevity and freehub bearings with up to 233% higher capacity vs TorchThe combination of endcap debris shields and new full-contact lip seals provide exceptional bearing protection in even the worst conditionsUnique scalloped design of the hub flanges effectively distributes stress - improving strength while reducing weight
| Rear Axle |
12mm Thru x 148mm |
| Cassette Body Type |
Shimano Micro Spline |
| Color |
Black |
| Skewer Included |
No |
| Bearing Type |
Sealed Cartridge |
| Weight |
227 |
| Defined Color |
Black |
| Spoke Interface |
J-Bend |
| Hub Drilling |
28 |
| Hub/Brake Compatibility |
Center-Lock Disc |
| Freehub |
Micro Spline |
