Product Description

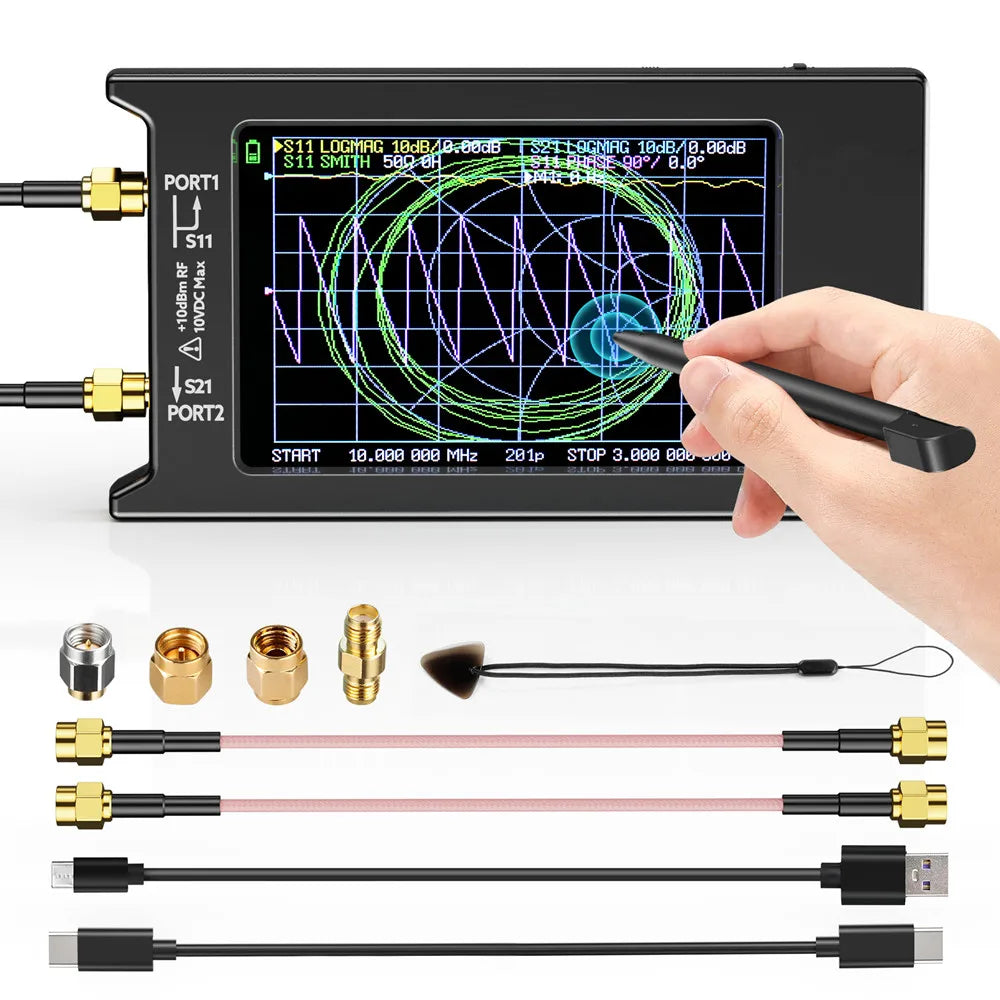

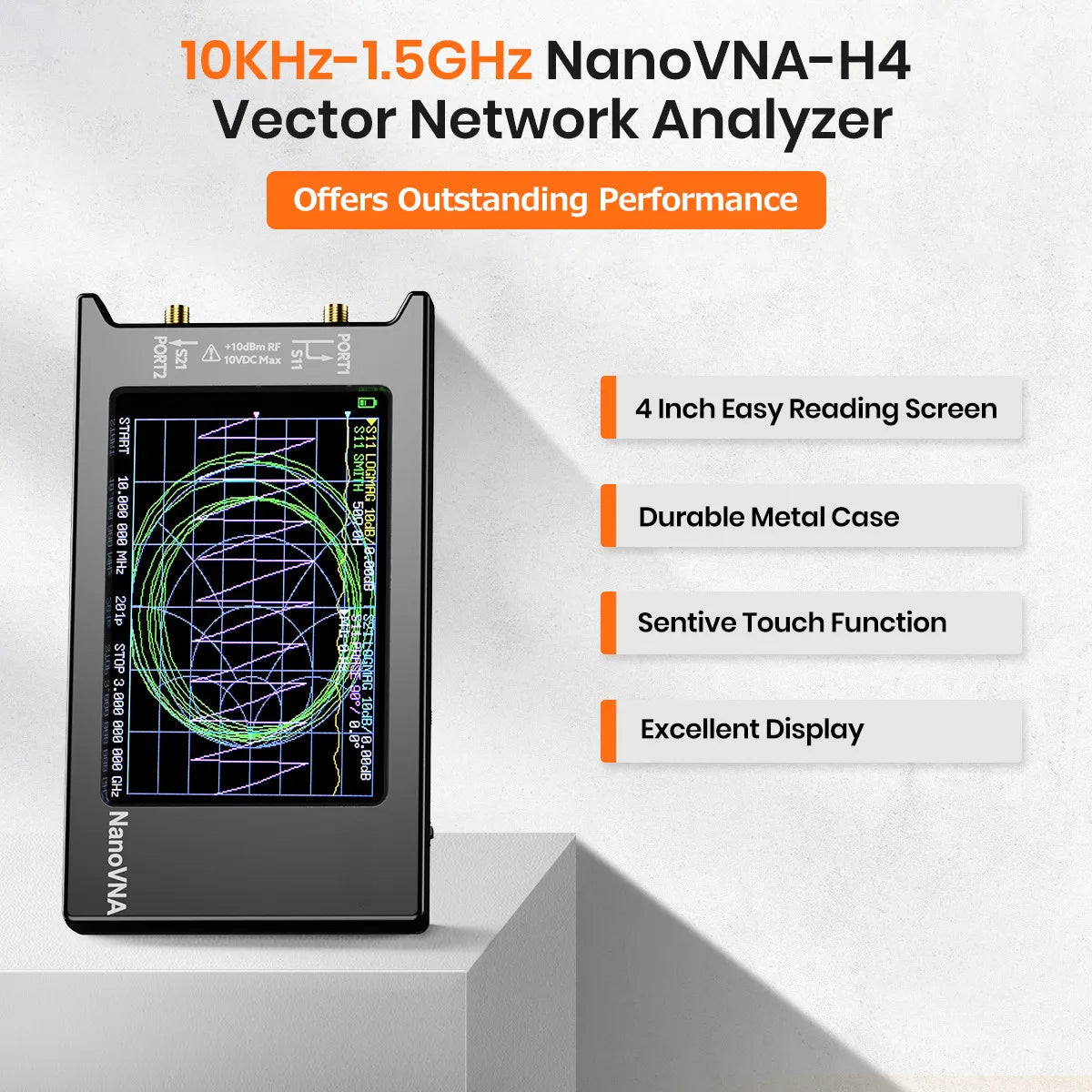

Compact and portable vector network analyzer designed for antenna tuning, RF testing and field measurements. Features a high-contrast 4-inch display, built-in rechargeable battery, SD card storage and PC connectivity for Touchstone export.
Specifications:
- Product Type: Handheld Vector Network Analyzer
- Frequency Range: 10 kHz – 1.5 GHz

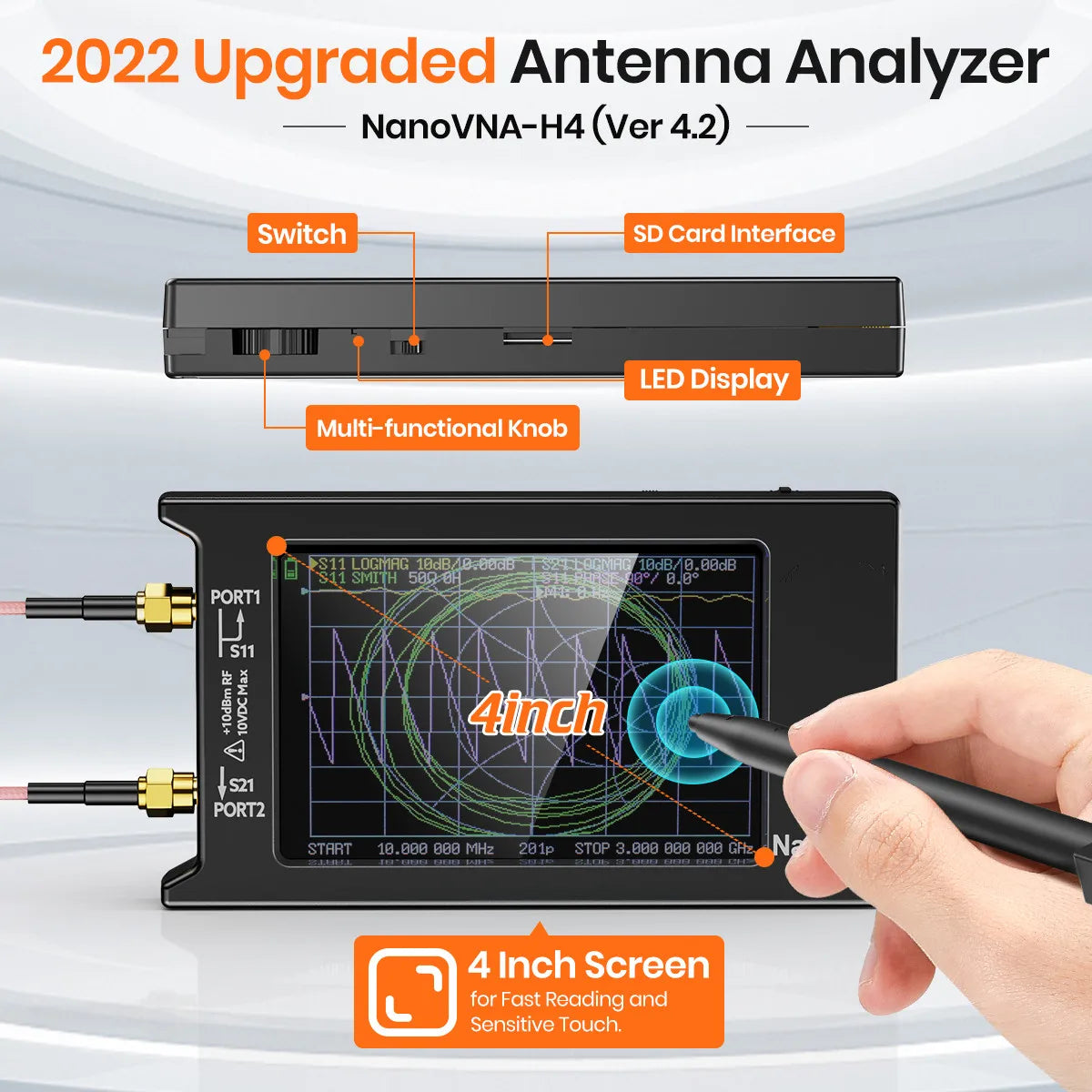

- Display: 3.95 in (10.0 cm) TFT, 320 x 480 pixels
- Case Dimensions: 75 x 133 x 18 mm (2.95 x 5.24 x 0.71 in) excluding protrusions

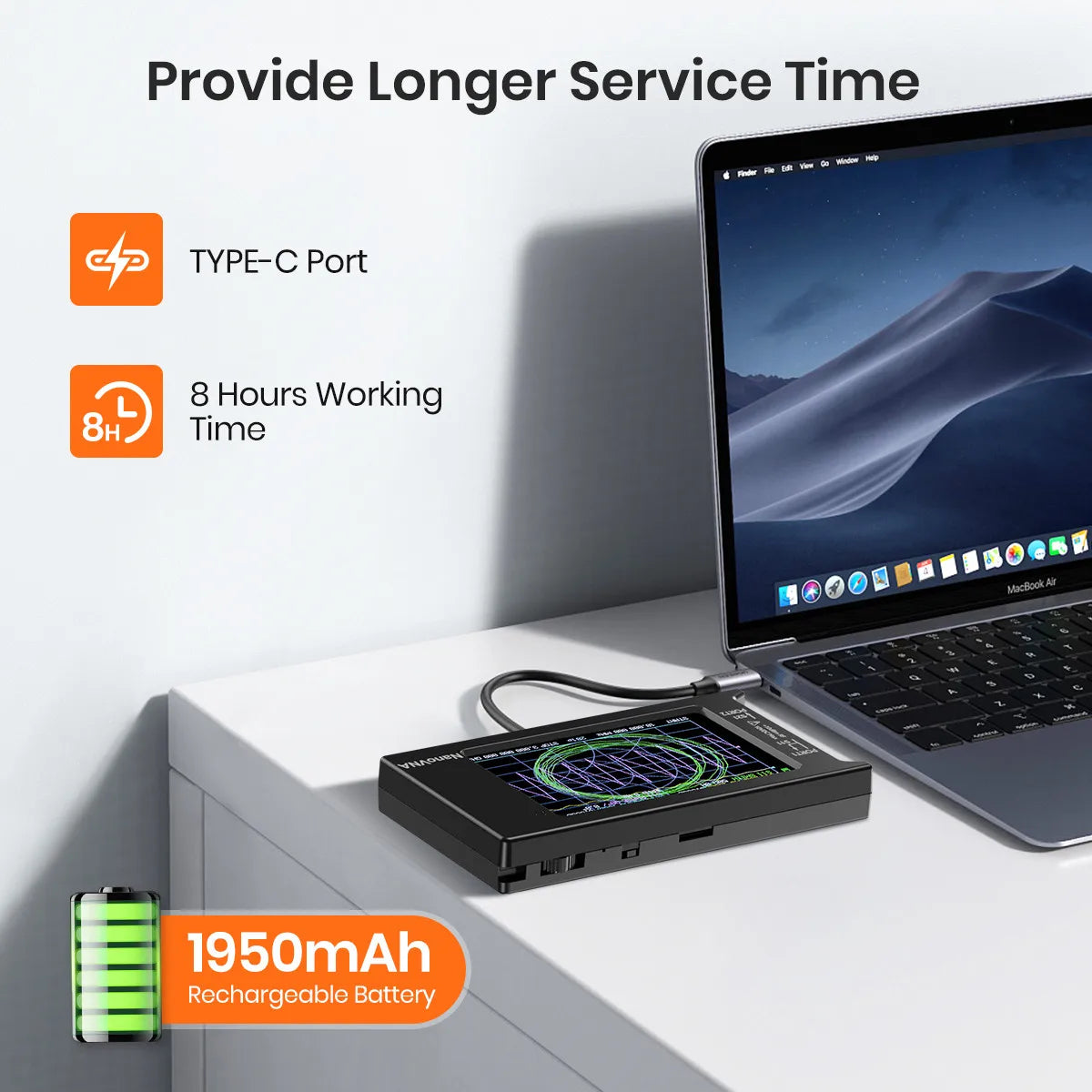

- Battery: Built-in rechargeable 1950 mAh battery
- Power / Charging: USB 5V, 200 mA operation; maximum charging current 1 A
- RF Output: 0 dBm (±2 dBm)

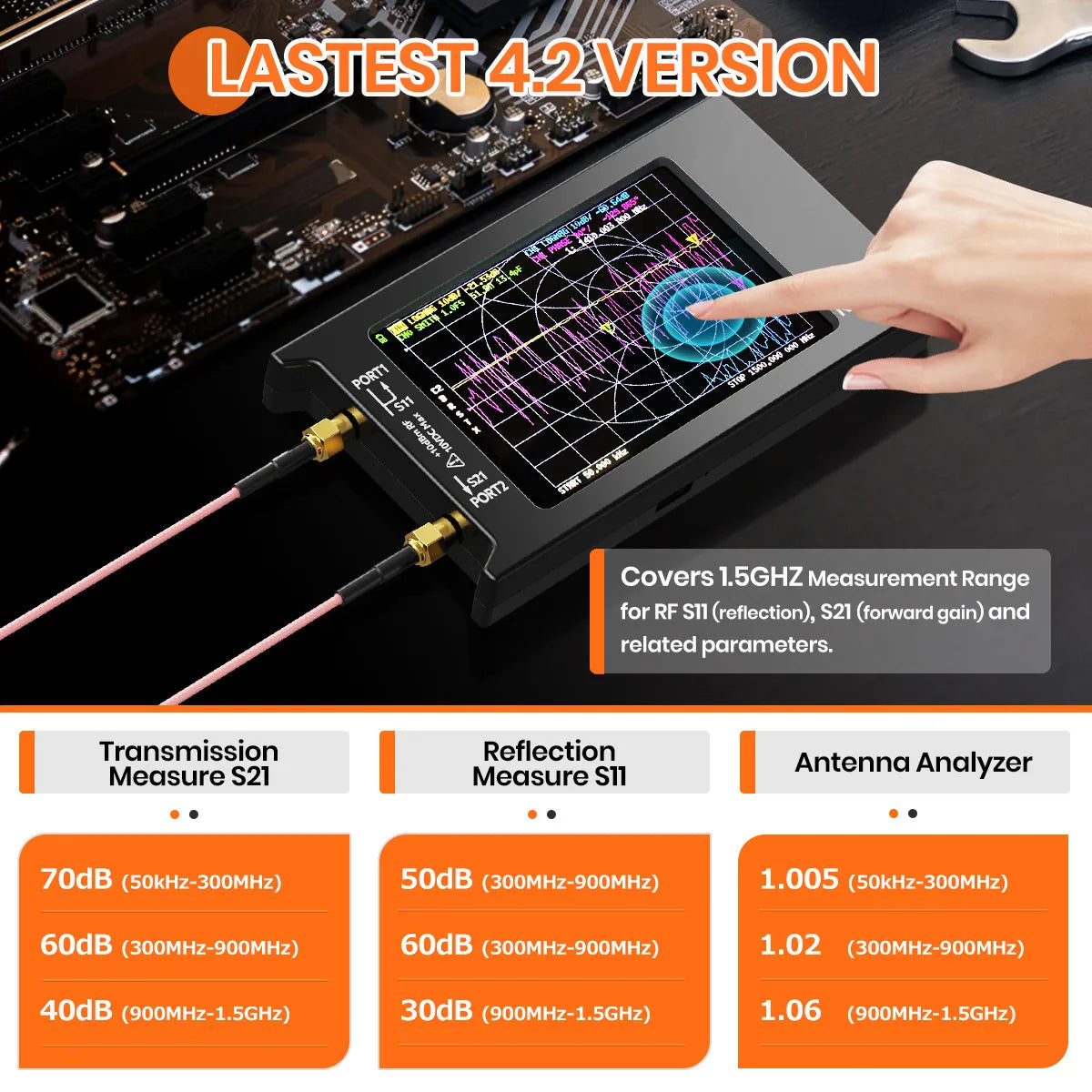

- Measurement Dynamic Range: 70 dB (50 kHz–300 MHz), 60 dB (300 MHz–900 MHz), 40 dB (900 MHz–1.5 GHz)
- Measurement Points: 101 (fixed)
- Ports & Interface: USB Type-C (CDC serial), SMA RF ports
- Supported Measurements: S11 and S21 (TX/RX). S12 and S22 available with manual transceiver port wiring change
- Calibration: SMA male calibration kit included (OPEN, SHORT, LOAD)
- Software & Export: Compatible with PC software for display and Touchstone (SNP) export
- Shielding: Metal shield to reduce external interference and improve accuracy
- Certification: CE
- Additional Display Features: Display tracking 4, Markers 4, Setting save slots 5
- Frequency Stability / Tolerance: Frequency tolerance <2.5 ppm, stability <0.5 ppm

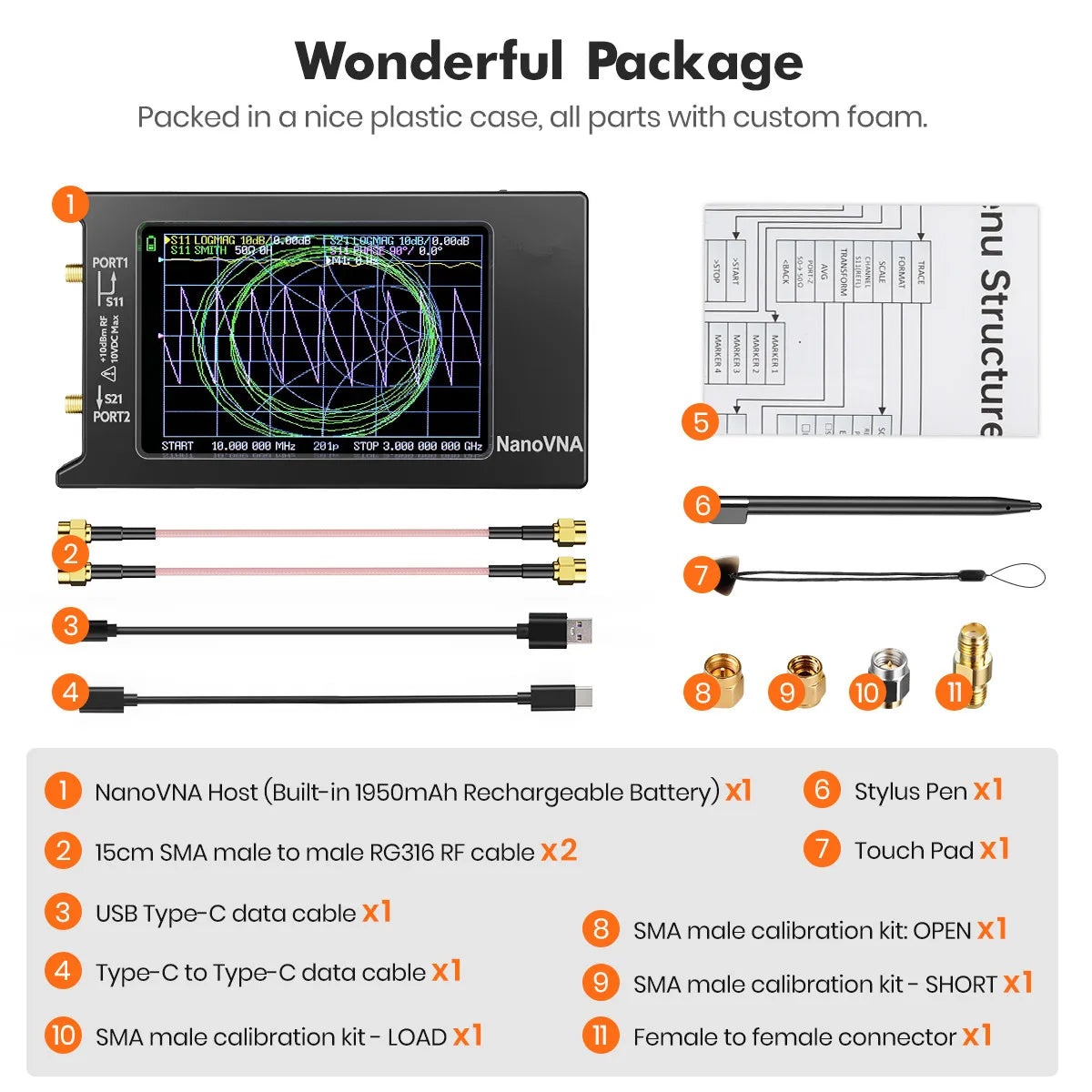

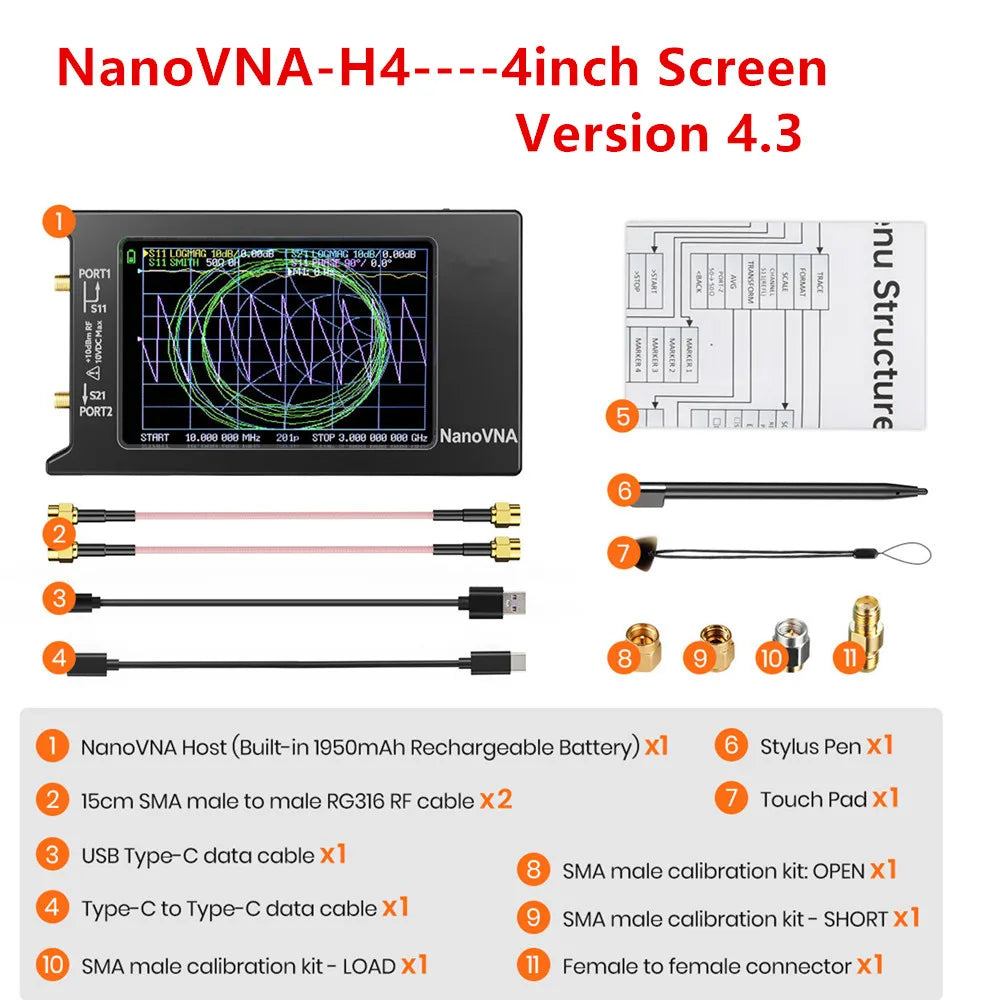

- Package List: 1x Vector Network Analyzer (with 1950 mAh battery), 1x USB Type-C data cable, 1x Type-C to Type-C cable, 2x 15 cm SMA male-to-male RG316 RF cables, 1x SMA OPEN calibration, 1x SMA SHORT calibration, 1x SMA LOAD calibration
