Product Description
Review fault codes and live vehicle data from a Windows PC with the FW 3201 Multidiag Pro+ diagnostic scanner. This interface is intended for supported passenger vehicles, light vans, trucks, buses, and trailers, with coverage and functions determined by the vehicle and software version.
Key Features
- Reads and erases diagnostic fault codes where supported
- Displays live vehicle data and parameters
- Supports system scanning, controller identification, basic settings, and service functions where supported
- Works with 12V and 24V vehicle systems
- Supports listed CAN, K/L, VPW, PWM, and RS485 communication protocols
- Available in Bluetooth and non-Bluetooth variants
- Single-board FW 3201 hardware configuration
- Requires a Windows PC for software use
Diagnostic Coverage
Depending on the vehicle and installed software, the scanner may support engine, ignition, ABS, SRS, transmission, instrument, and comfort-system diagnostics. It also lists automatic system scanning, battery-voltage monitoring, flight-recorder capture of live parameters, and generic EOBD/OBDII emissions-related diagnostics.
Coverage is not universal. Available systems, functions, supported years, and software requirements vary by make, model, year, control module, and selected variant. Confirm compatibility with the vehicle and the specific function you need before ordering.

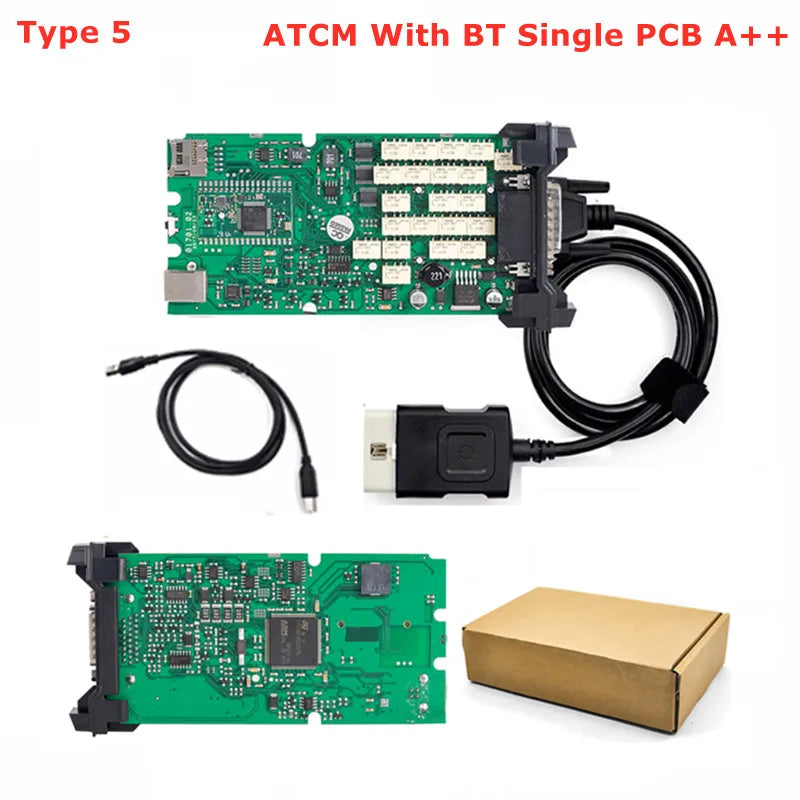

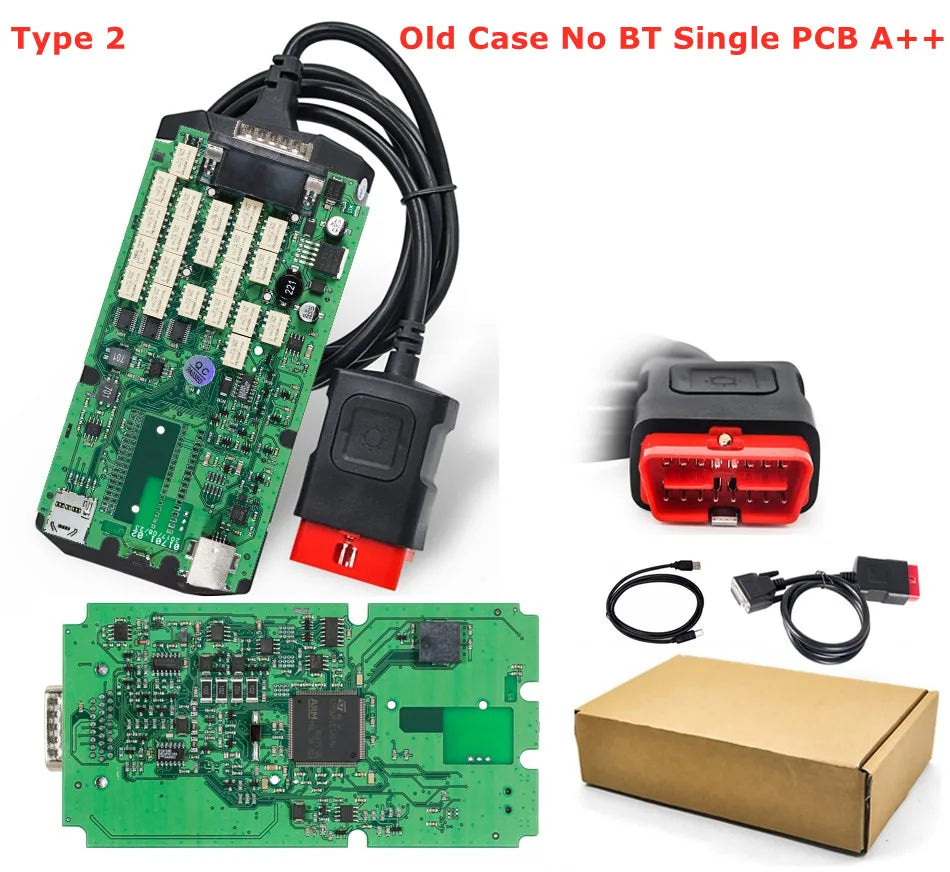

Variant Options
The visible options include Bluetooth and non-Bluetooth versions with “4.3” in the option name, such as “1PCB A BT 4.3” and “1PCB A No BT 4.3.” The source does not explain every part of these option labels, so select the option that matches your required connection and confirm the software version before checkout.
Package Contents

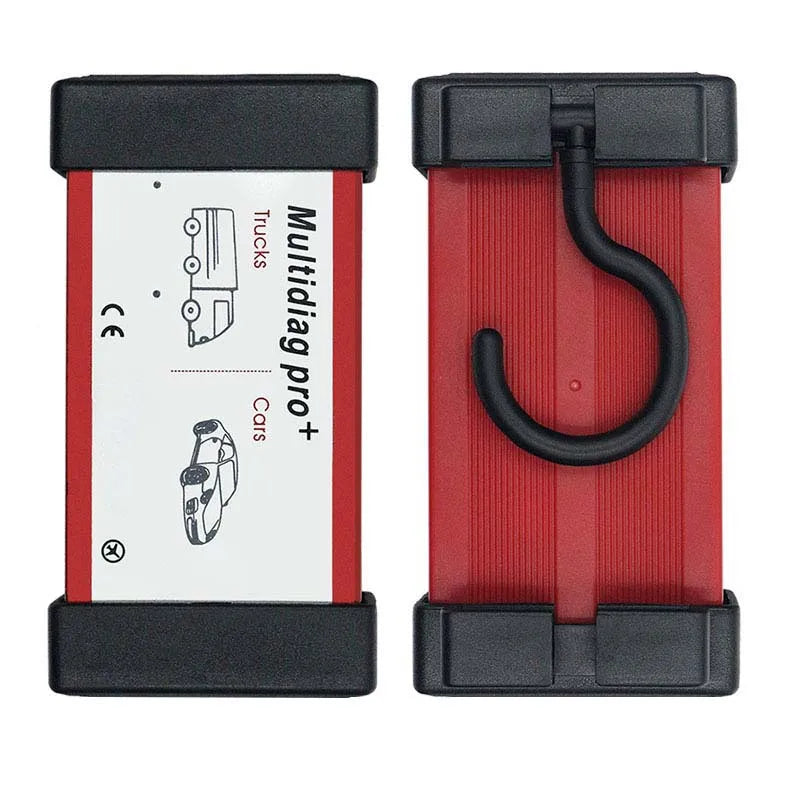

- FW 3201 Multidiag Pro+ diagnostic interface
- OBD2 cable
- USB cable
- Software media or software access, depending on the selected variant
- Product packaging
Computer and Vehicle Requirements
- Windows PC required
- Vehicle must use a supported communication system and connector
- 12V or 24V vehicle-system support is listed
- Software installation and available functions vary by selected version
- Bluetooth availability depends on the selected option
Before You Buy
- Check the vehicle make, model, year, engine, control module, and diagnostic function you need.
- Confirm whether you want the Bluetooth or non-Bluetooth option.
- Confirm your Windows version and computer requirements against the software supplied with the selected variant.
- Verify whether the needed cable, software access, and diagnostic coverage are included in the selected option.
- Use coding, settings, or service functions only when you understand the procedure and its effect on the vehicle.
- The source does not provide a universal vehicle list, complete Windows-version list, cable pinout, software license terms, or guaranteed coverage for a specific vehicle.
Frequently Asked Questions
What vehicles can it diagnose?
The source describes support for compatible cars, light vans, trucks, buses, and trailers. Exact coverage depends on the vehicle and software version, so compatibility should be confirmed before ordering.
Does it work with 24V vehicles?
Yes, 12V and 24V vehicle systems are listed.
Is Bluetooth included?
Bluetooth and non-Bluetooth options are shown. Choose the option that matches your preferred connection.
Does it require a computer?
Yes. The supplied description says a Windows PC is required.
Can it erase fault codes?
Reading and erasing diagnostic fault codes are listed functions where supported by the vehicle and software.
Does it include software?
The package description lists software media or access depending on the selected variant. Confirm the exact software delivery method and version before purchase.
