Product Description
This RFID Proximity access controller using proximity system is one of the modern access control systems. The state-of-the-art CPU and integrated circuit techniques are applied to keep all the data from loss due to power failure. It is powerful and can open the door using proximity cards, passwords, or the hybrid. The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed. This product offers a method for controlling access safely and automatically, qualifying it as an ideal equipment for businesses, offices, factories, and communities.
Features:
-
Armature plate: 74Lx32Wx11H(mm)
-
Holding Force: 60kg(130lbs)
-
Mode: NC (locked whilst power supply is operating), fail safe mode
-
Voltage: DC12V
-
Current Draw: 0.11A ~0.15A
-
Safety function: Built-in voltage spike suppressor
-
Opening Mode: 90 degree swinging door
-
Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door, etc.
-
Net Weight: 550g
- Current Rating: 3A@36VDC Max
- Suitable for Door: Hollow Door
- Operating temp: 10～+55℃(14-131F)
- Operating Humidity: 0-95% (non- condensing)
- Panel Material: Fireproof Material
- Power Supply: DC voltage 12V±10% Current < 0.1A
- Ambient temperature: 0℃—60℃
- Relative humidity: 20%—80%
- Memory capacity: 500 user cards or 50 door opening passwords
- Working distance: 5－15CM
- Card Type: EM or EM compatible cards
- Lock Size: 80Lx37.3Wx23.3H(mm)

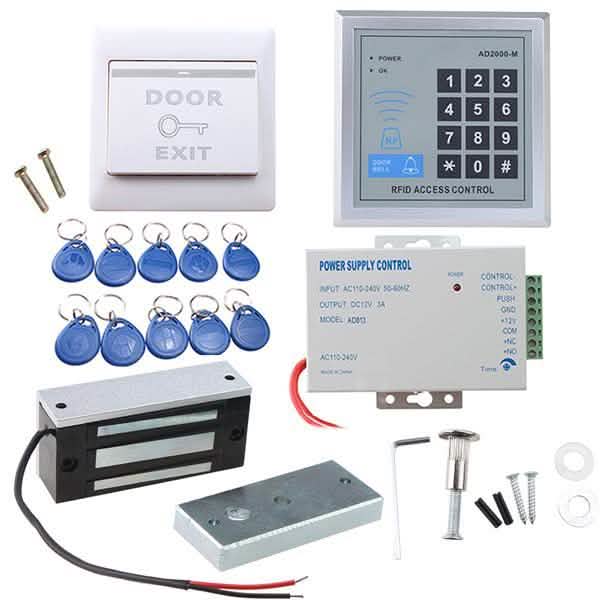

Package Includes:

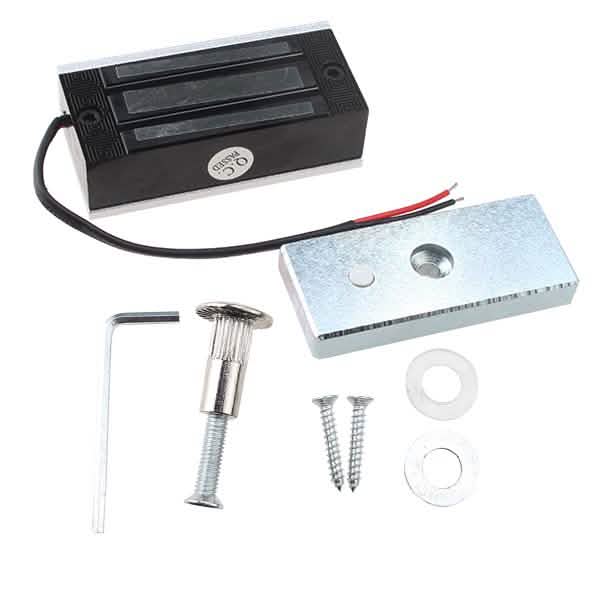

- 1 x Magnetic Door Lock main body 60kg Strong Force(NC mode)
- 1 x Armature faceplate

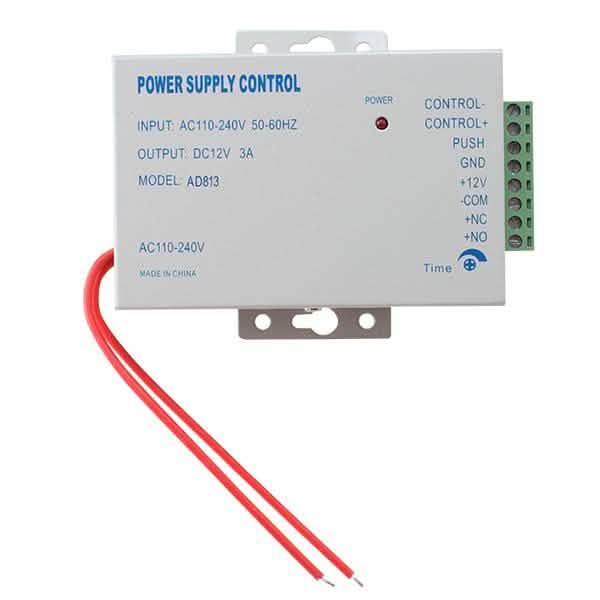

- 1 x Access Control Power Supply
- 1 x Push Release Button

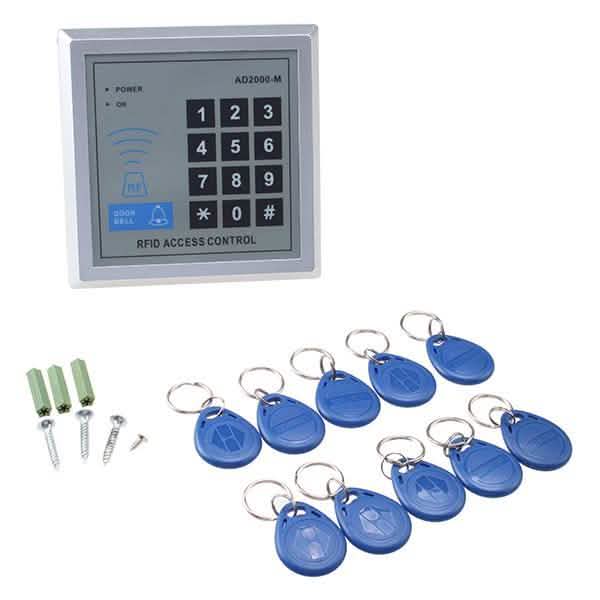

- 1 x RFID Proximity Door Entry keypad
- 10 x RFID Key Fobs
- 1 x package Mounting hardware kit (for Magnetic lock)
- 1 x package Mounting hardware (for keypad)
- 1 x package mounting accessories. (for button)
- 1 x Manual(for magnetic lock)
- 1 x Manual(for power supply)
- 1 x Manual(access control keypad)
