Product Description

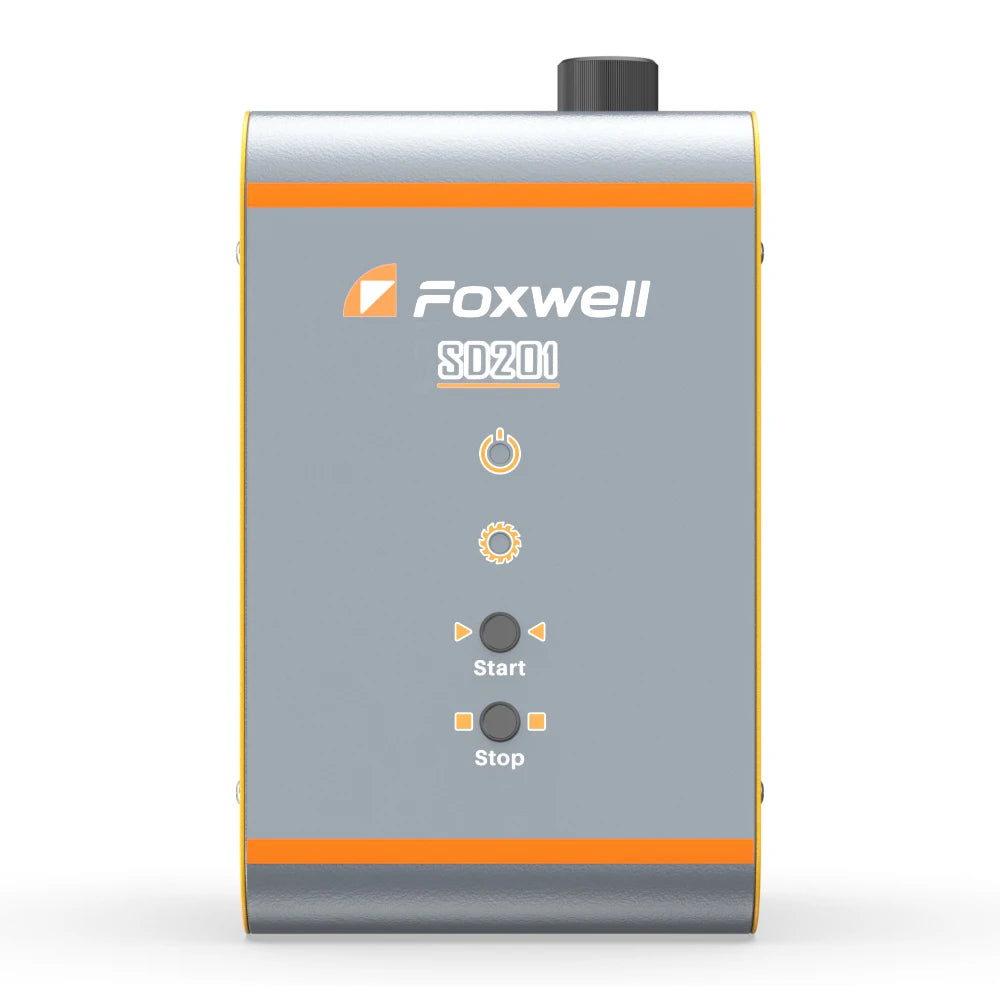

Find leaks in automotive pipes and sealed systems with this FOXWELL SD201 12V smoke leak detector. The unit combines a built-in air pump, smoke generation, flow meter, and pressure output for visual leak testing across EVAP, intake, vacuum, fuel, exhaust, and other vehicle systems.
Product Overview
The SD201 is powered by a 12V vehicle battery. Inject the specified test fluid, connect the supplied smoke hose and adapter to a sealed system, then use air or smoke mode to check for changes in flow and visible smoke escaping from a leak. The source describes a pressure output of 0.8-1.2 bar and short smoke output time.
Key Features
- 12V automotive smoke leak detector
- Built-in air pump
- Air and smoke testing modes described in the source

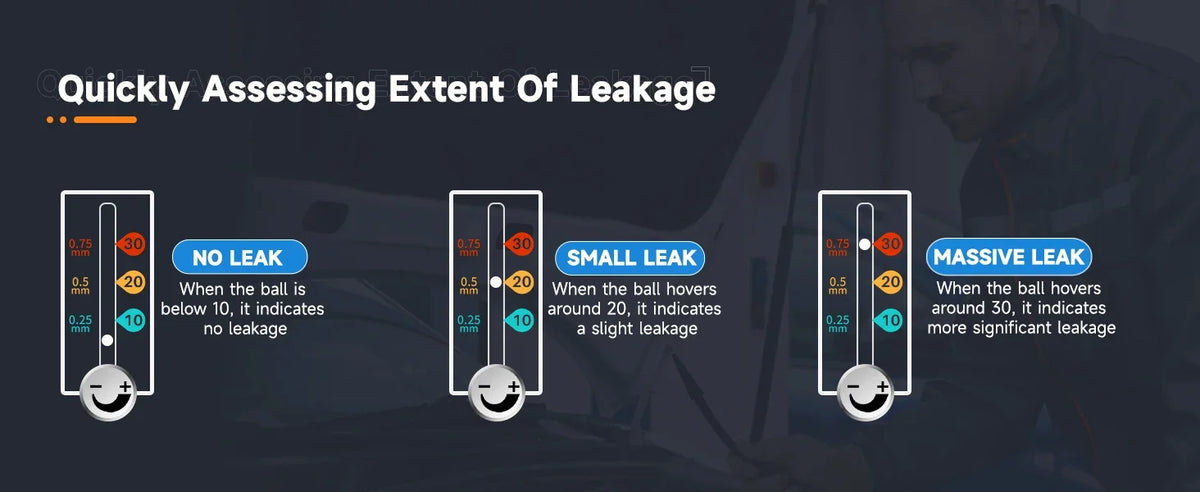

- Flow meter for observing flow changes

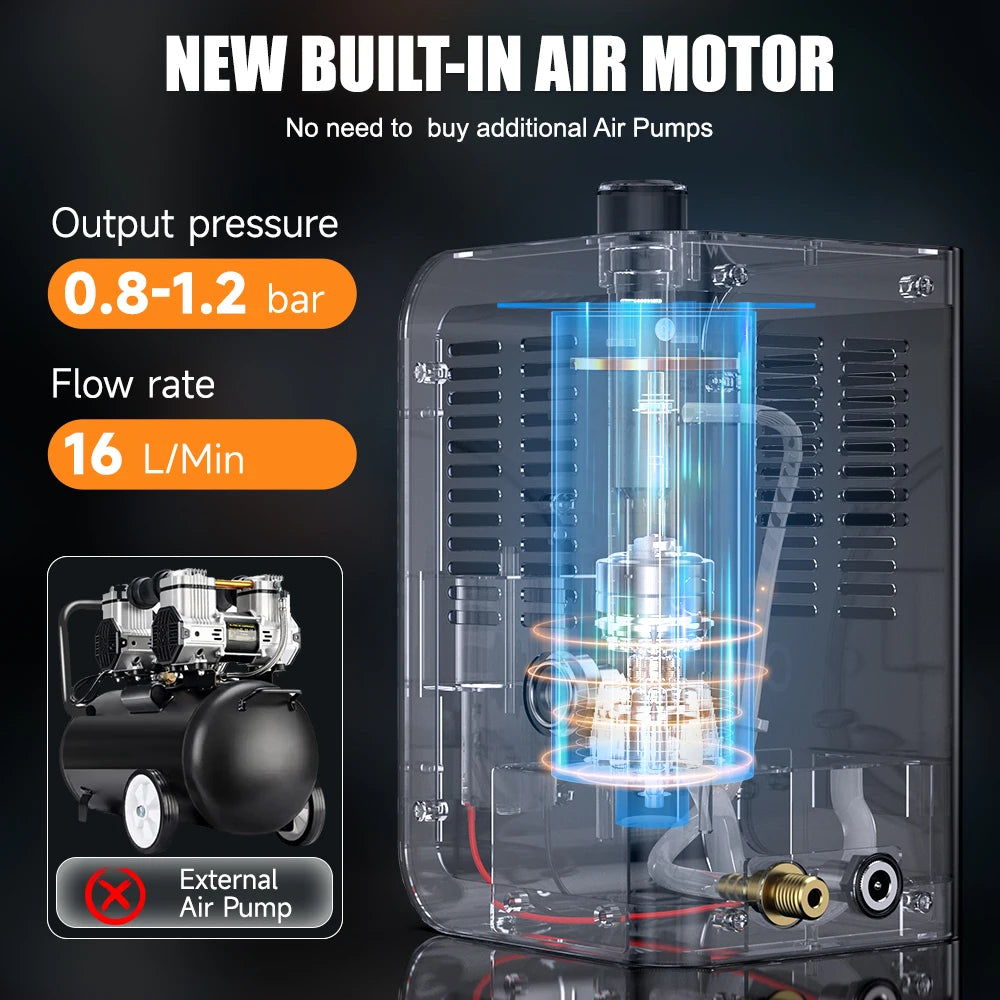

- Pressure output listed at 0.8-1.2 bar
- Smoke output described as visible within approximately 10 seconds

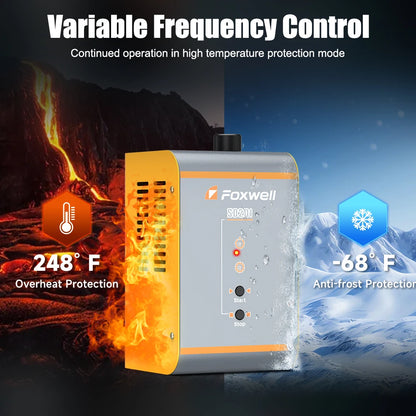

- Overheat protection when equipment temperature exceeds 75°C
- Protection after extended operation, with a 10-minute work cycle described in the source
- Conical adapter and airbag adapter listed for different intake and pipe connections
- Variable-frequency operation technology listed
- Portable design with hook described in the source
Systems and Vehicles Listed

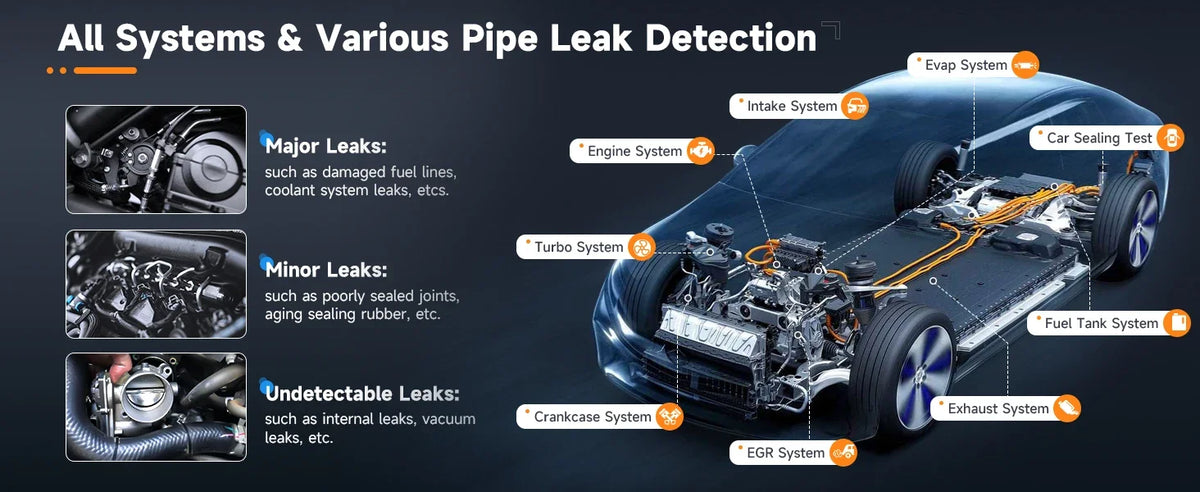

The source describes testing for crankcase, intake, vehicle sealing, fuel tank, turbo, EVAP, exhaust, brake hoses, power-steering hoses, cooling-system hoses, air-conditioning hoses, turbocharger hoses, fuel hoses, and other pipe fittings.
Vehicle applications listed include cars, motorcycles, snowmobiles, beach bikes, light trucks, heavy-duty trucks, and speedboats. Confirm the adapter, pressure, and testing procedure for your specific vehicle and system.
Product Specifications
- Brand: FOXWELL
- Model: SD201
- Product type: Automotive smoke generator and leak detector
- Power input: 12V vehicle battery
- Pressure output: 0.8-1.2 bar listed
- Operating protection: Overheat protection above 75°C listed
- Power connection: Red clamp to positive (+), black clamp to negative (-), according to the source
- Origin listed: Mainland China
- Ships-from options shown: United Kingdom, Australia, United States, Poland, Spain, Germany, Mexico, Italy, France, and Czech Republic
How the Test Works

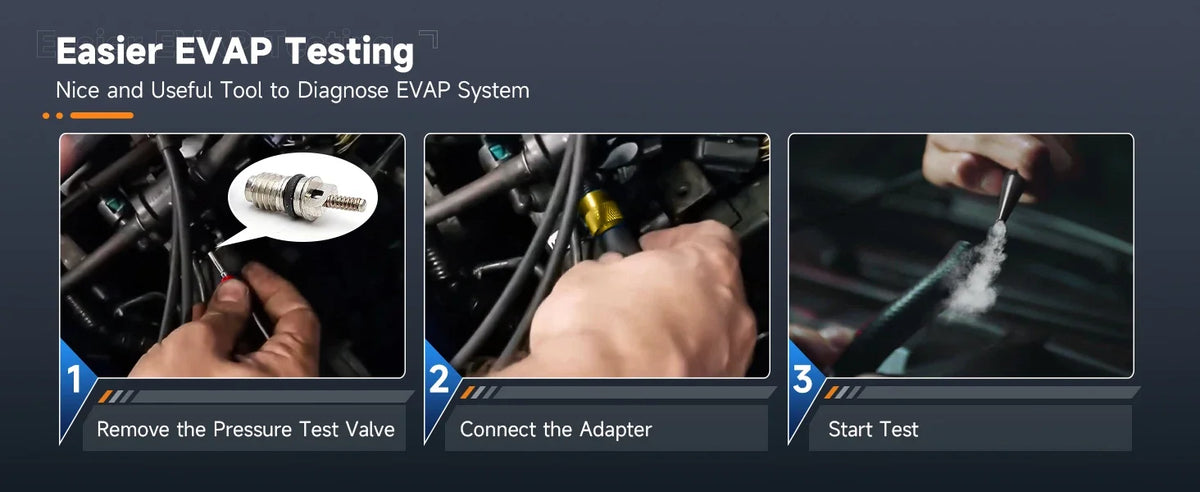

- Prepare the system and seal the pipe being tested.
- Add approximately 10-20 ml of test oil as directed by the source, without exceeding the device’s specified fluid amount.
- Connect the hose and the appropriate adapter.
- Connect the unit to a fully charged 12V battery, observing polarity.
- Use air mode and watch the flow meter for changes.
- Switch to smoke mode to help locate the visible escape point.
- Disconnect power and remove the equipment after testing, following the manual.
The source suggests baby oil as smoke fluid. Confirm the approved fluid and procedure in the manufacturer’s instructions before use, and never use fuel, solvent, or another unapproved flammable liquid.
Before You Buy
- Confirm that your power source is a fully charged 12V battery.
- Check that the included adapters fit the pipe or system you need to test.
- Use a suitable fluid only as directed by the manual.
- Operate in a well-ventilated area and follow vehicle and equipment safety procedures.
- Do not exceed the pressure appropriate for the system being tested.
- Allow the unit to cool and follow the stated work-cycle limits to prevent overheating.
- The detailed listing consistently identifies SD201, but one section refers to the product as “SD101 PRO.” Confirm the model name and packaging before ordering.
- The source does not provide a complete dimensions list, flow-rate specification, or confirmed adapter inventory in text. Confirm the package contents for the selected shipment.
Package Information

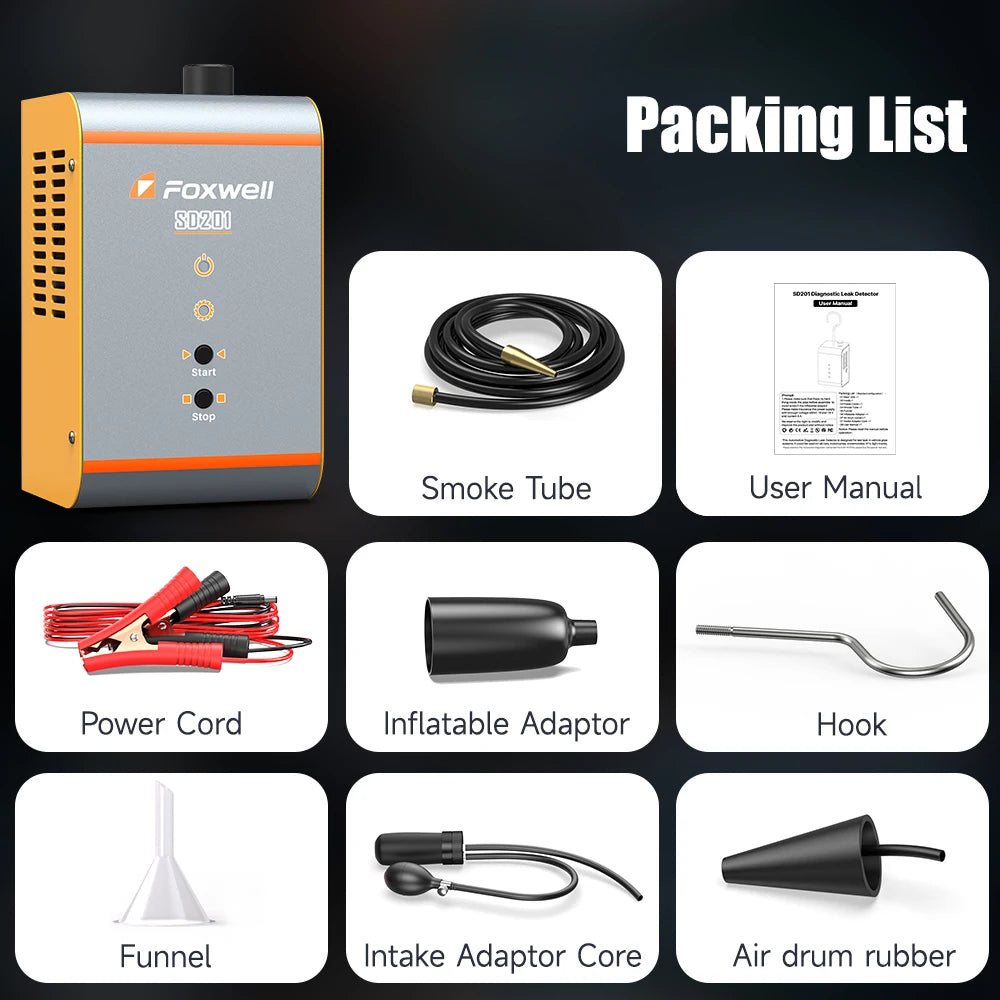

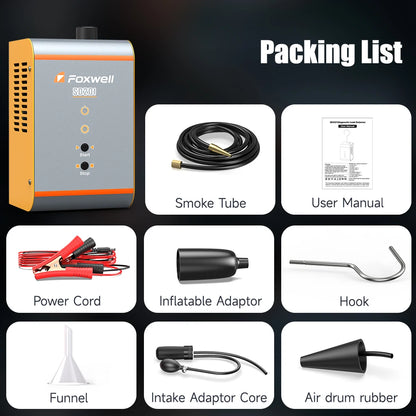

The source includes packing-list images and describes adapters, a smoke hose, and connection accessories, but it does not provide a complete text inventory. Confirm the exact package contents before ordering.
Frequently Asked Questions
What power does it use?
It is listed for use with a fully charged 12V vehicle battery.
What can it test?
The source lists EVAP, intake, crankcase, fuel, turbo, exhaust, vehicle-sealing, and other automotive pipe systems.
Does it include an air pump?
Yes. A built-in air pump is described.
How much pressure does it produce?
The source lists 0.8-1.2 bar output pressure. Use only the pressure appropriate for the system being tested.
How quickly does smoke appear?
The source describes a large amount of smoke within approximately 10 seconds, depending on operating conditions.
How do I connect it to the battery?
The supplied instructions say to connect the red clamp to positive and the black clamp to negative. Follow the manual and observe polarity.
What model is this?
The product title and most of the listing identify FOXWELL SD201, while one section says SD101 PRO. Confirm the model before ordering.
