Product Description

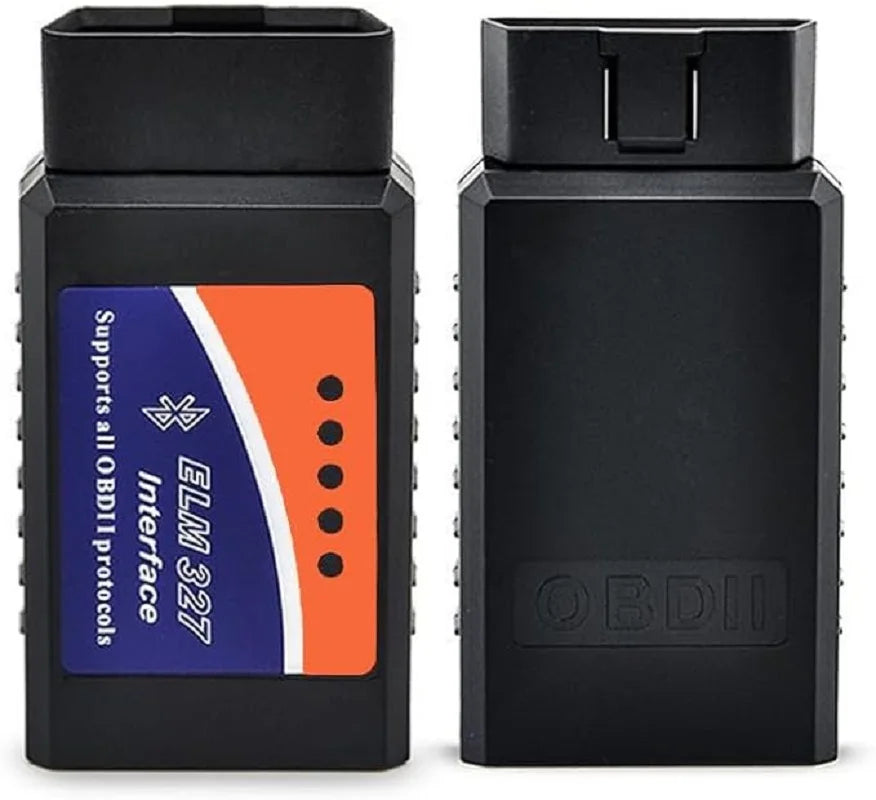

Powerful, compact OBD-II Bluetooth scanner that plugs into your vehicle to read and clear trouble codes, monitor live sensor data, and support fast, on-the-go diagnostics for OBD2 compliant cars.
Specifications:
- Product Type: OBD2 Code Reader & Scan Tool
- Chipset/Compatibility: ELM327 compatible
- Supported OBD-II Protocols: ISO9141-2 (5 baud init, 10.4 Kbaud); ISO14230-4 KWP (5 baud & fast init, 10.4 Kbaud); ISO15765-4 CAN (11/29 bit ID, 500/250 Kbaud)
- Connectivity: Bluetooth wireless with Serial RS232 output
- Baud Rate: 9600 or 38400
- Operating Voltage: 12V DC (12 volts)
- Operating Current: 40 mA
- Indicators: LED status indicators
- Protection: Built-in short-circuit and over-voltage protection

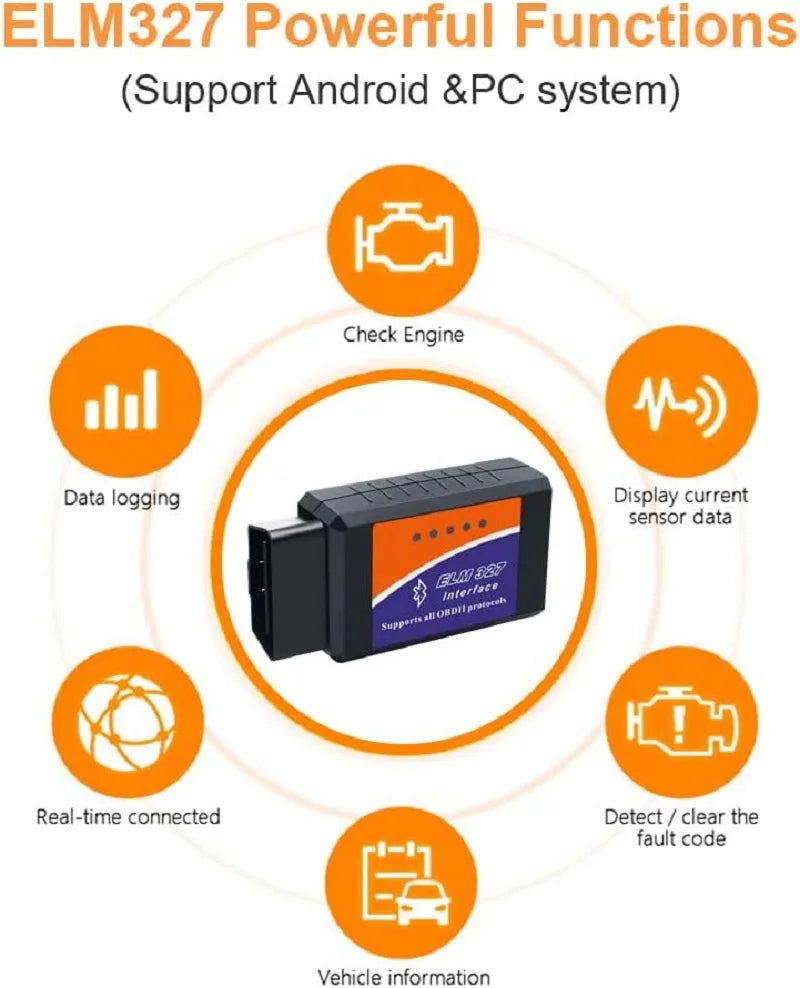

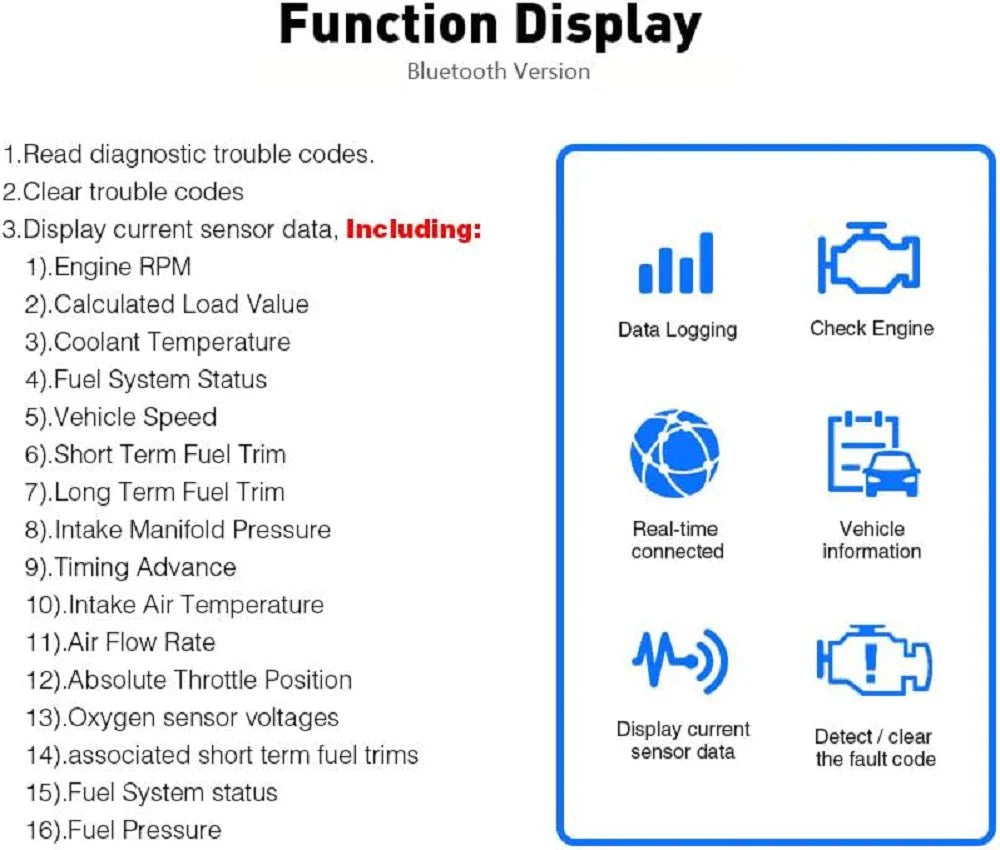

- Functions: Read and clear generic and manufacturer-specific diagnostic trouble codes, turn off MIL/check engine light, display live sensor data, data logging and graphical display (software-dependent)
- Live Data Parameters: Engine RPM, vehicle speed, coolant temperature, fuel system status, short- and long-term fuel trim, intake manifold pressure, intake air temperature, air flow rate, throttle position, oxygen sensor voltage, fuel pressure, and more
- Output/Input: OBD Tx/Rx and RS232 Tx/Rx
- Compatibility: Works with OBD-II compliant vehicles; requires compatible app or PC software for full functionality

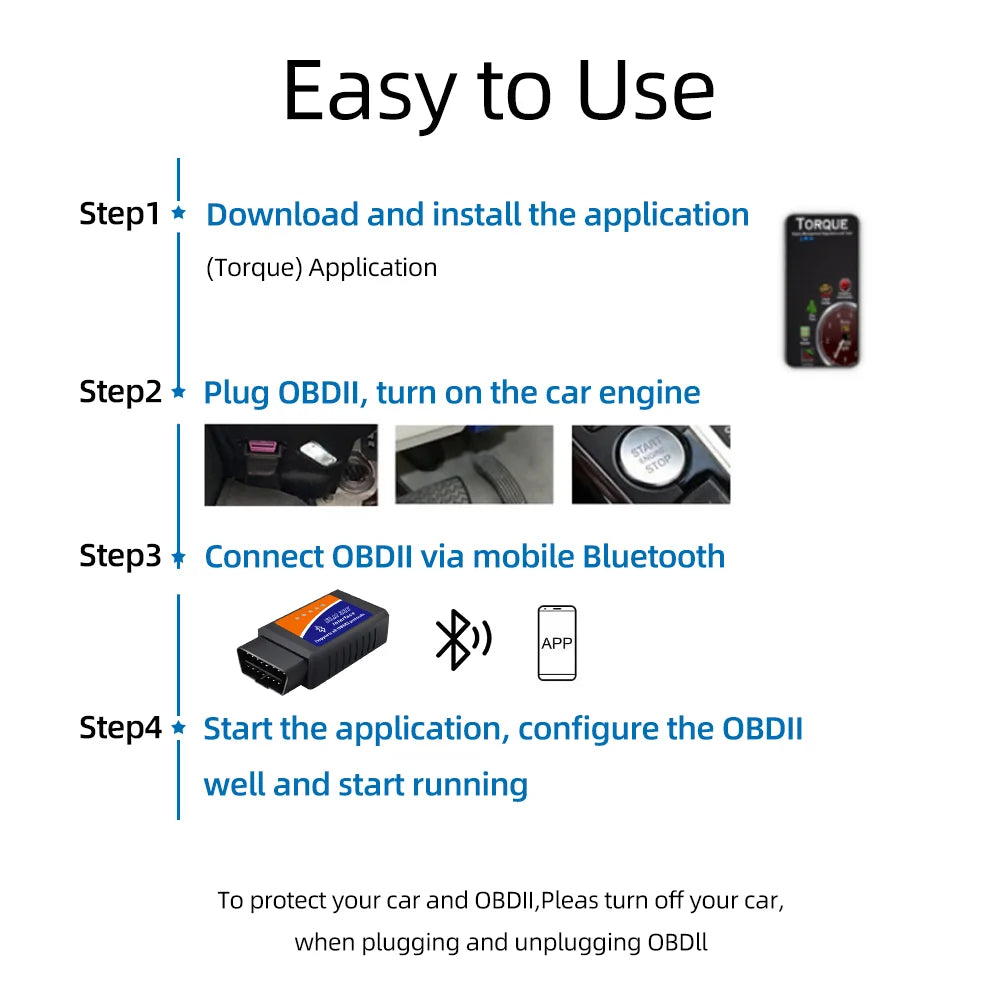

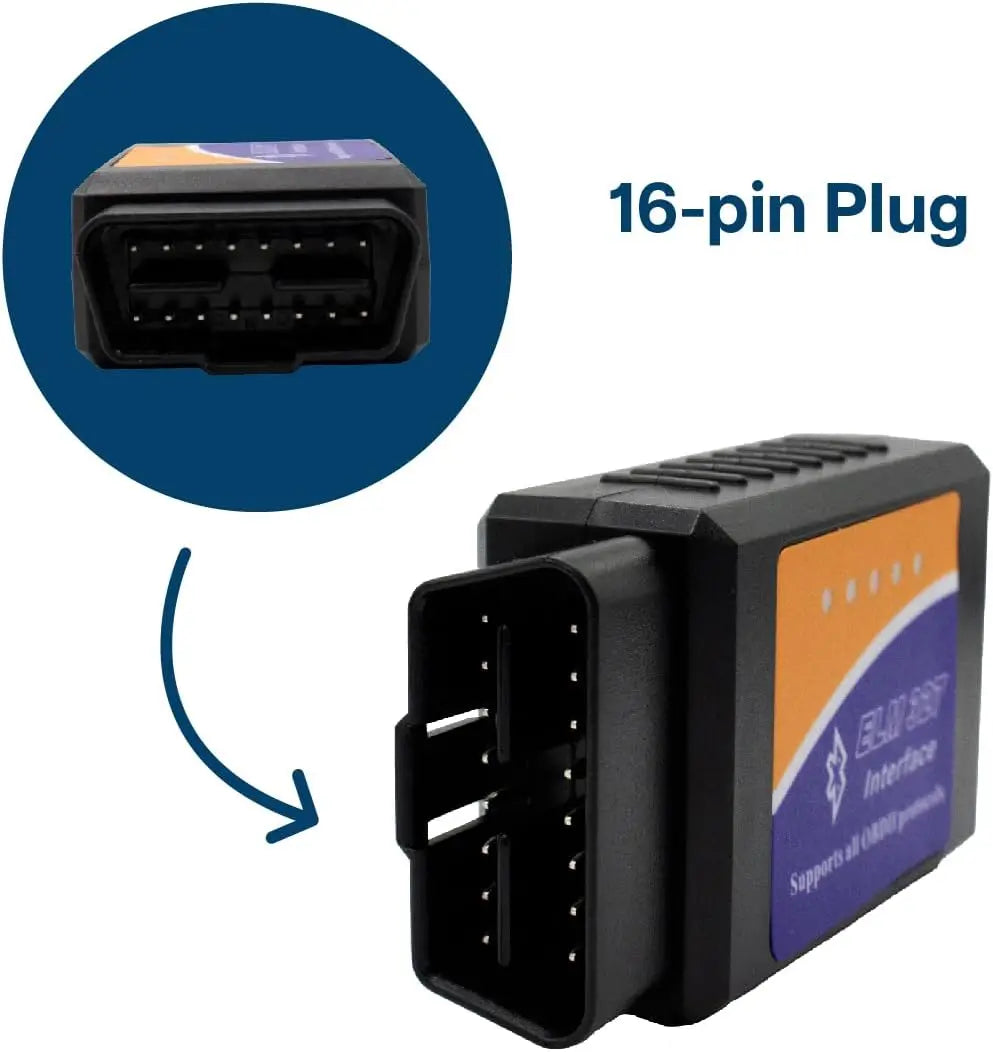

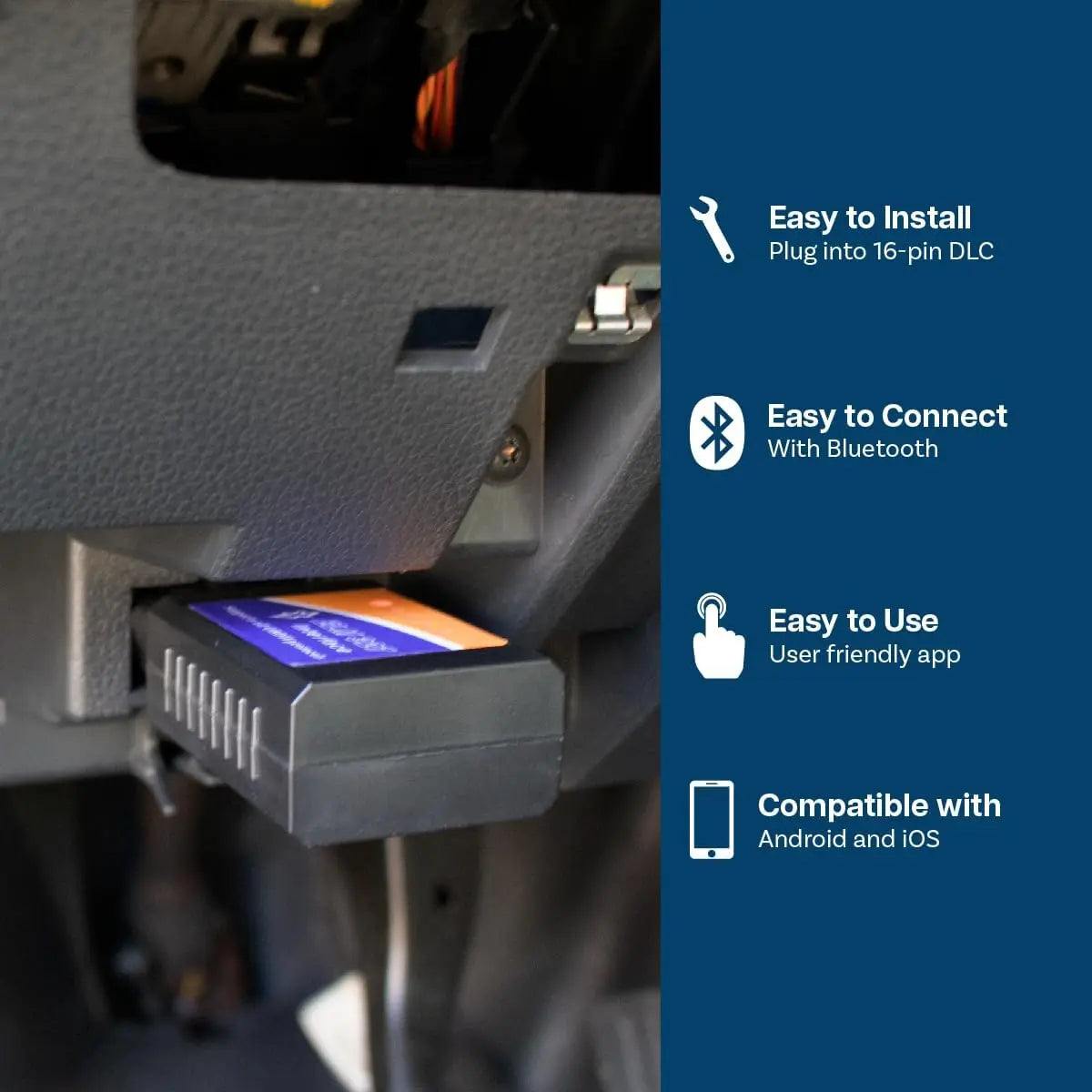

Easy to use: simply plug the scanner into the 16-pin OBD-II port, pair via Bluetooth with your smartphone or laptop, and start diagnosing vehicle issues instantly. Ideal for DIY mechanics and professional technicians who need fast, reliable fault detection and live data monitoring.
