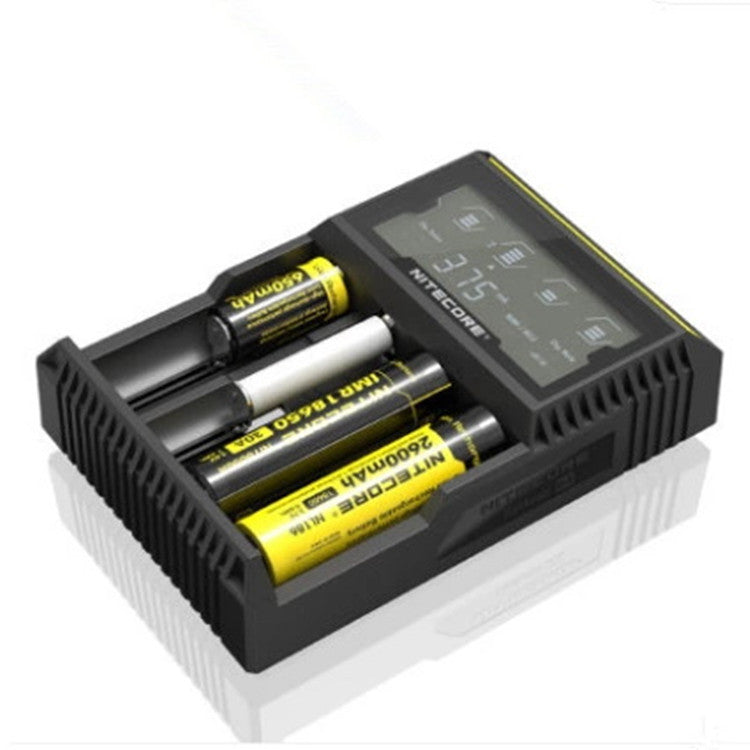

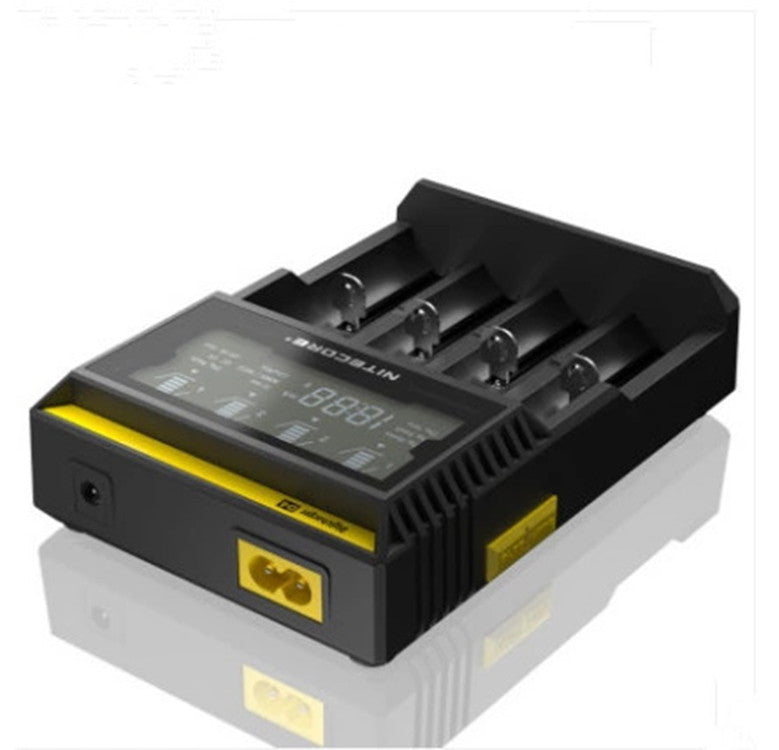

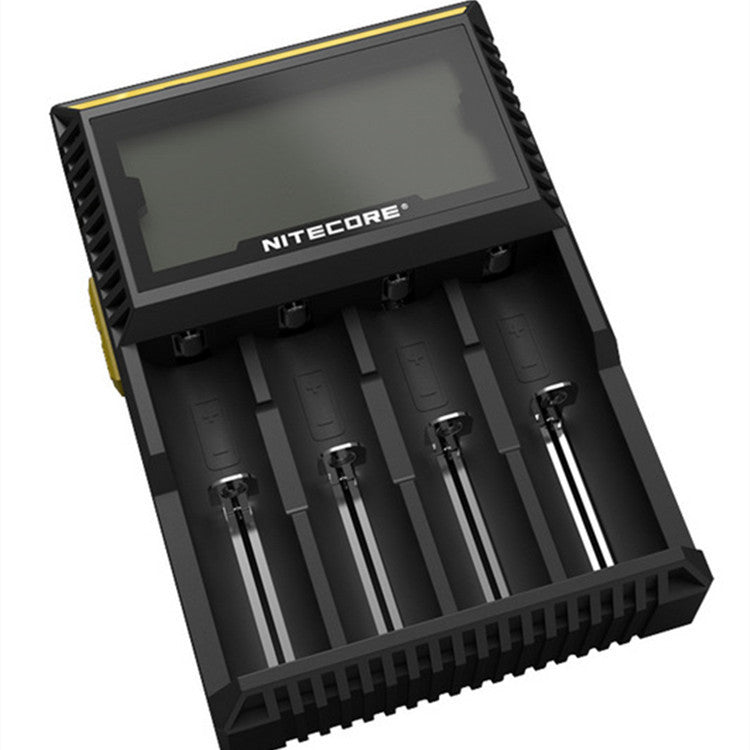

Product Description
Model: D4
Input voltage: DC 12V 1.0A
Output voltage: 4.2V ± 1% / 3.7V ± 1% / 1.48v ± 1%
Output current: 375ma * 4 / 750ma * 2
Size: 143mm * 99mm * 36mm
Product features]
Lithium battery charger is specially used for charging lithium-ion battery. Lithium ion battery has high requirements for charger and needs protection circuit, so lithium battery charger usually has high control precision and can charge lithium-ion battery with constant current and constant voltage.
[charging process]
When the power supply is not connected, the LED light on the circuit board is not on
The power supply is connected to the circuit board, and the green LED is on continuously. At this time, the circuit board is waiting for the lithium battery to be placed
After the lithium battery is put in, it starts to charge, and the LED turns orange
When the lithium battery is fully charged, it stops charging and the LED turns orange
After the lithium battery is fully charged, the battery is removed, the LED turns green, and the lithium battery is put in again for charging
During charging, the charging percentage is displayed
LED light:
Keep green: waiting for battery
Continuous yellow: charging
Full or charged for 6 hours
Flashing orange: warning message (output short circuit, reverse of positive and negative poles, abnormal temperature)
