Product Description

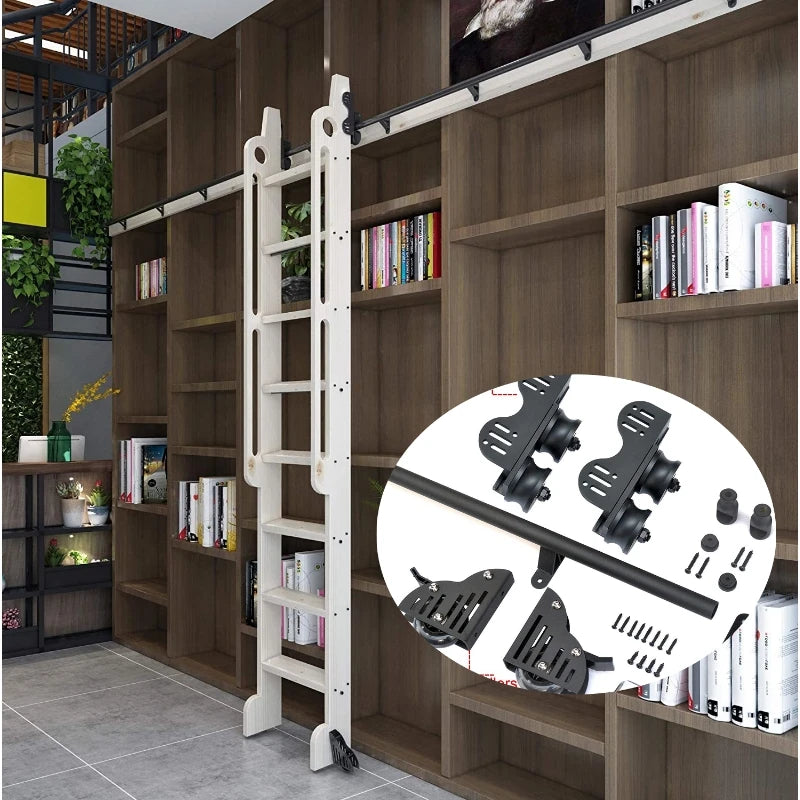

The DIYHD 6.6FT (200cm) retractable sliding library ladder hardware kit. Includes a 3.3FT full hardware set plus a 3.3FT extension track that join together for 6.6FT total rail length. Round tube track with tensible stand-up rolling wheel design that folds flat when not in use to save space. Floor roller with brake for stability at the base. Metal and aluminium construction. Available in Black or brushed Silver. Hardware kit only - wooden ladder is not included.

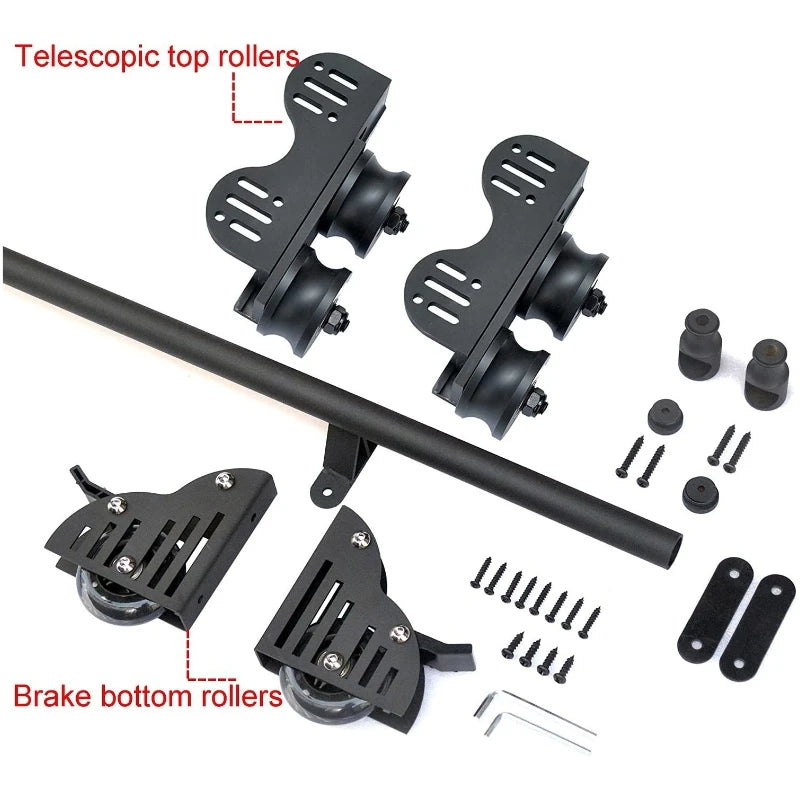

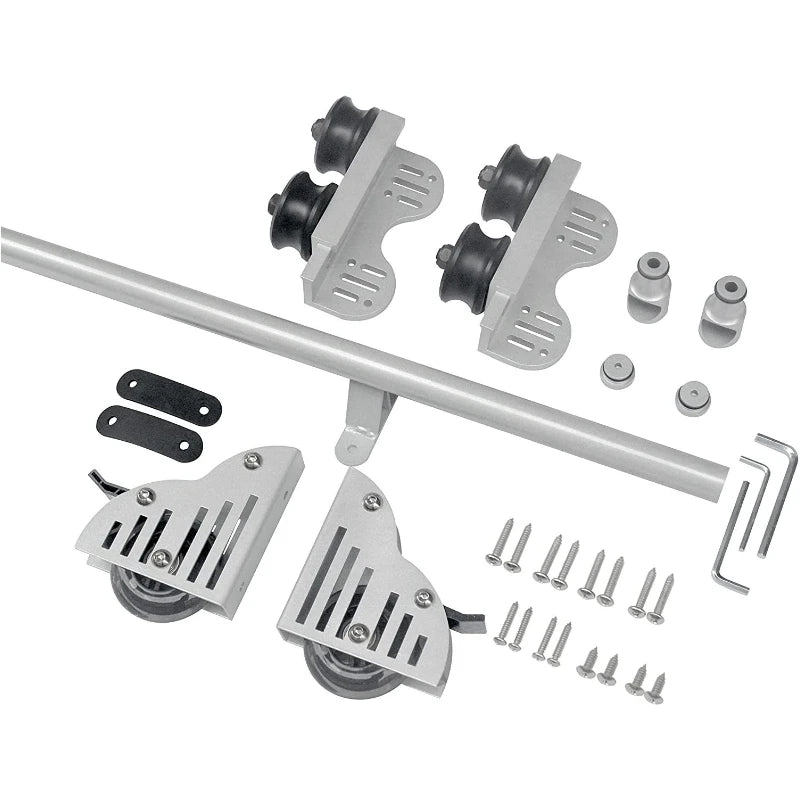

What's in the Box
3.3FT Full Hardware Set
- Top roller x2
- Floor roller x2
- 3.3FT round tube with 2 brackets x1
- Stop x2
- End cap x2
- Screws x1 set
3.3FT Extension Track
- 3.3FT round tube with 2 brackets x1
- Joint-in tube connector x1
Key Features

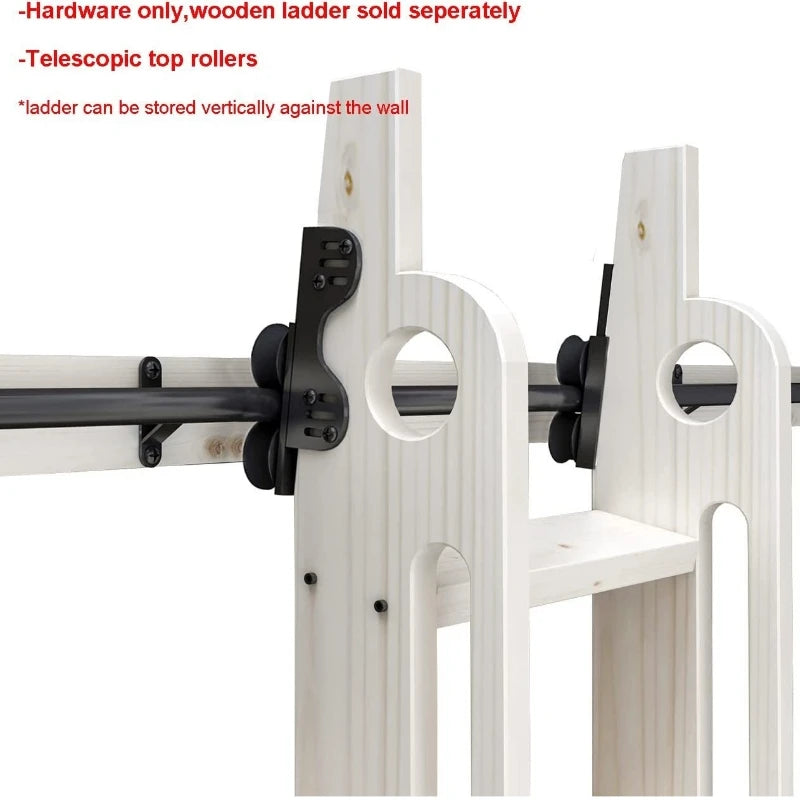

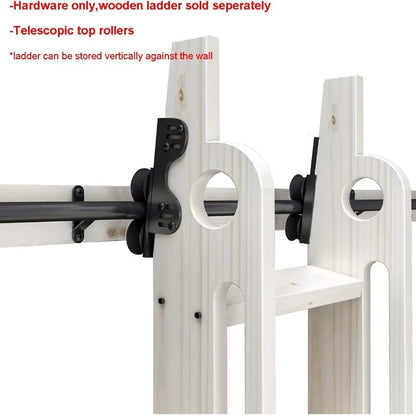

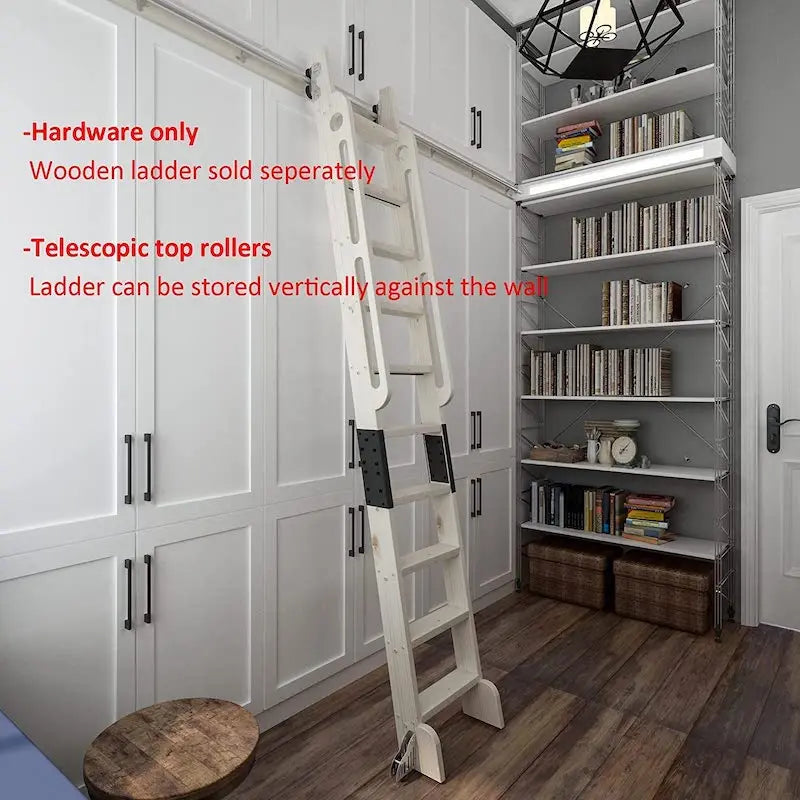

- Retractable / tensible rolling wheel design - the top rollers stand upright during use and fold flat (tensible/retractable) when the ladder is stored against the wall, reducing the footprint and preventing the hardware from protruding into the room when not in use
- Floor roller with brake - the floor roller stabilises the base of the ladder during use; the brake engages to prevent unintended rolling when the ladder is in use and disengages to allow the ladder to slide along the rail
- Round tube track - 25mm diameter round tube rail, 3mm wall thickness; connects via a joint-in tube connector to extend from 3.3FT to 6.6FT total length; brackets mount to the wall or shelving unit with the included screws

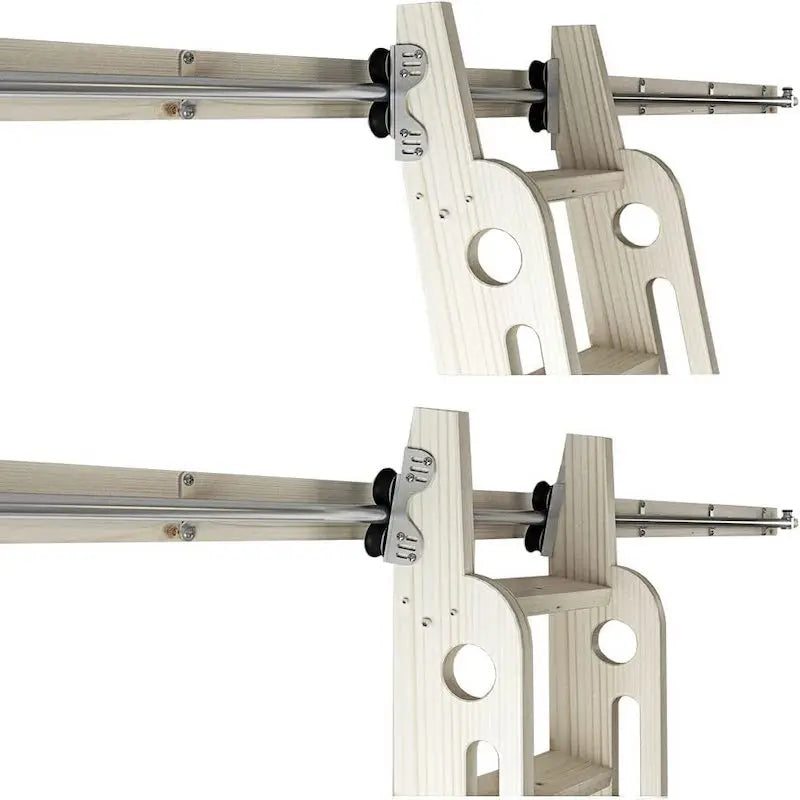

- Black or brushed Silver finish - both finishes suit library, study, and retail shelving aesthetics; Black provides a matte industrial look, brushed Silver a more contemporary finish
- Metal and aluminium construction - durable hardware suitable for regular daily use in a home library, retail display, or storage setting
Rail Specifications
- Total rail length: 6.6FT (200cm) — 3.3FT base + 3.3FT extension joined
- Tube diameter: 25mm
- Tube wall thickness: 3mm
- Bracket spacing (between 2 brackets): 19 5/8"
- Bracket length: 3 1/8"
- Bracket screw length: 1 1/4"
- Minimum wall/surface width for installation: 3 1/8" wide, 1 1/4" thick
- Finish options: Black / Brushed Silver
- Material: Metal + Aluminium
- Weight: 8.5kg
Compatibility
This hardware kit is designed to support a wooden rolling library ladder. The kit does not include a ladder - a wooden ladder with the appropriate rung and rail spacing must be sourced separately. The rolling wheel hardware is compatible with round-rung ladders. Refer to the product images for ladder profile compatibility examples. Ensure the installation surface (wall, shelving unit, or cabinetry) is structurally capable of supporting the weight of both the hardware and a loaded ladder.
Installation Notes
Wall or surface mounting requires the installation area to have a minimum width of 3 1/8" and depth of 1 1/4" at each bracket point. The two track sections are joined using the included joint-in tube connector. All mounting screws are included. Please note: customs duties and import taxes may apply depending on your shipping destination and are the responsibility of the buyer - these are not included in the product price.
