Product Description
Product Information:
Features:
Speed and battery display

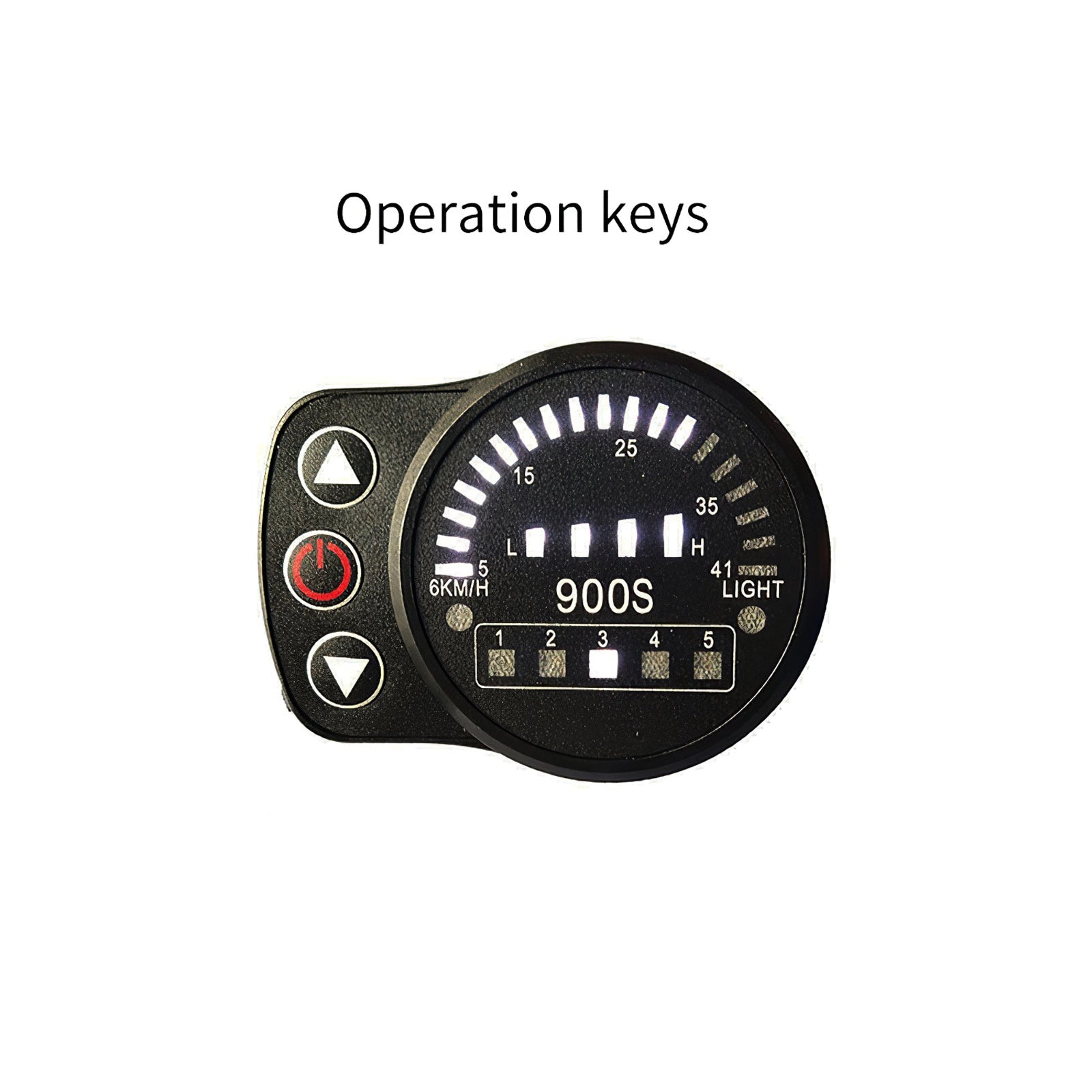

Nine-segment LED speedometer, display 0-40km/h speed, 1-5 PAS level + 4 battery capacity LEDs, when the battery is undervoltage, the undervoltage indicator flashes.
Boost
Function 6Km/h boost function, the boost light flashes when boosting, it can be used while driving, driving easier. Five gears
Memory
Five-speed imitation torque switch high, medium, low gear and speedometer display, with speed memory function, can automatically retrieve the speed status after power on again.
Headlight switch
Equipped with a headlight switch function, which can turn on and off the lights. When the headlights are turned on, the headlight indicator lights up. 24V, 36V, 48V
General DIY
The power supply voltage can be automatically identified and compatible. Users can adjust motor parameters, speed parameters, speed parameters and other parameters according to different models.
Water proof

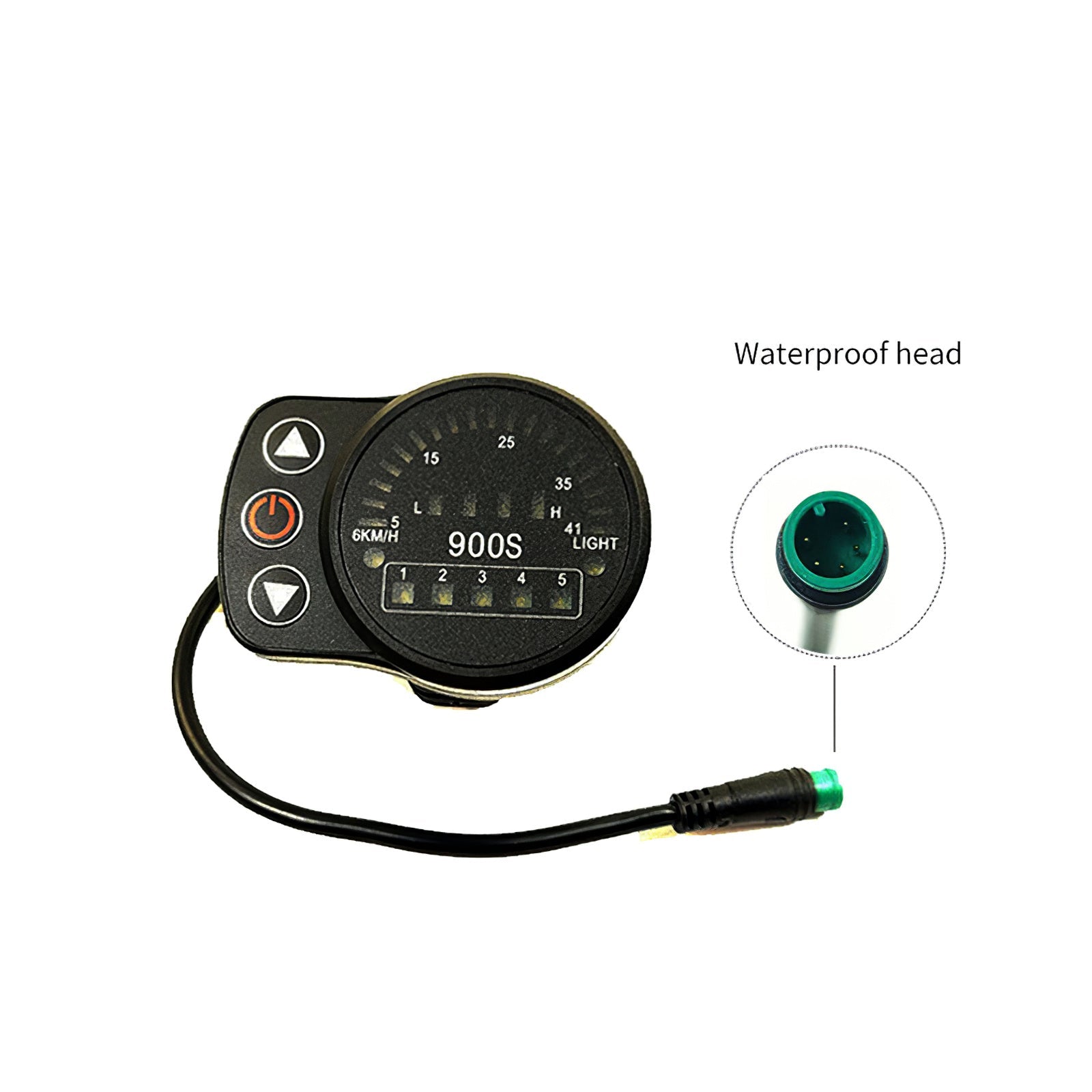

900S Waterproof Connector: High-efficiency 5-pin waterproof connector. It cannot be directly connected to the controller. Sitting on a 1 in 4 bus cable
Specification:
Type: Electric bicycle display instrument
Material: ABS + electronic components
Item color: black
Quantity: 1 piece
Voltage: General 24V 36V 48V
Plug: 5-pin SM/waterproof connector
Cable length: about 180cm/70.74 inches (SM) with connector about 25cm/9.83 inches (WP)
Display speed: 0-40km/h
Size: 7 * 5.3 * 5cm / 2.75 * 2.08 * 1.97 inch (L * W * H)
Packing List:
1*Display instrument
1*Instruction
1*Packing box
