Product Description

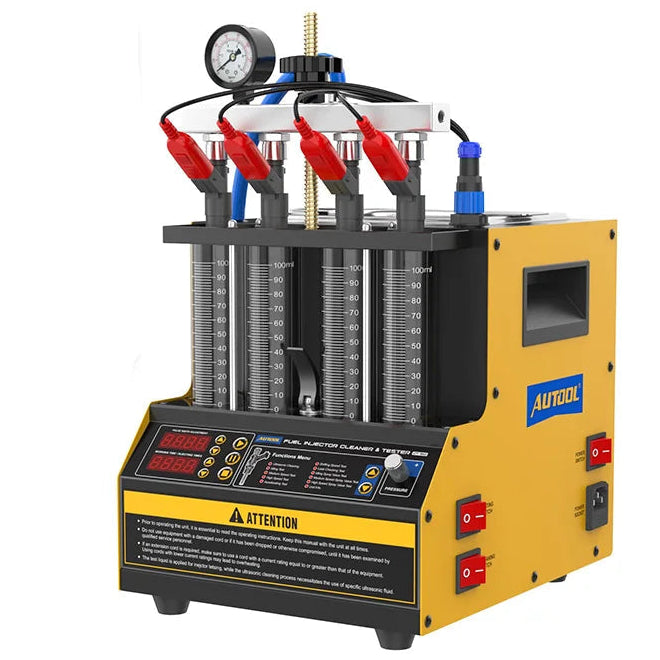

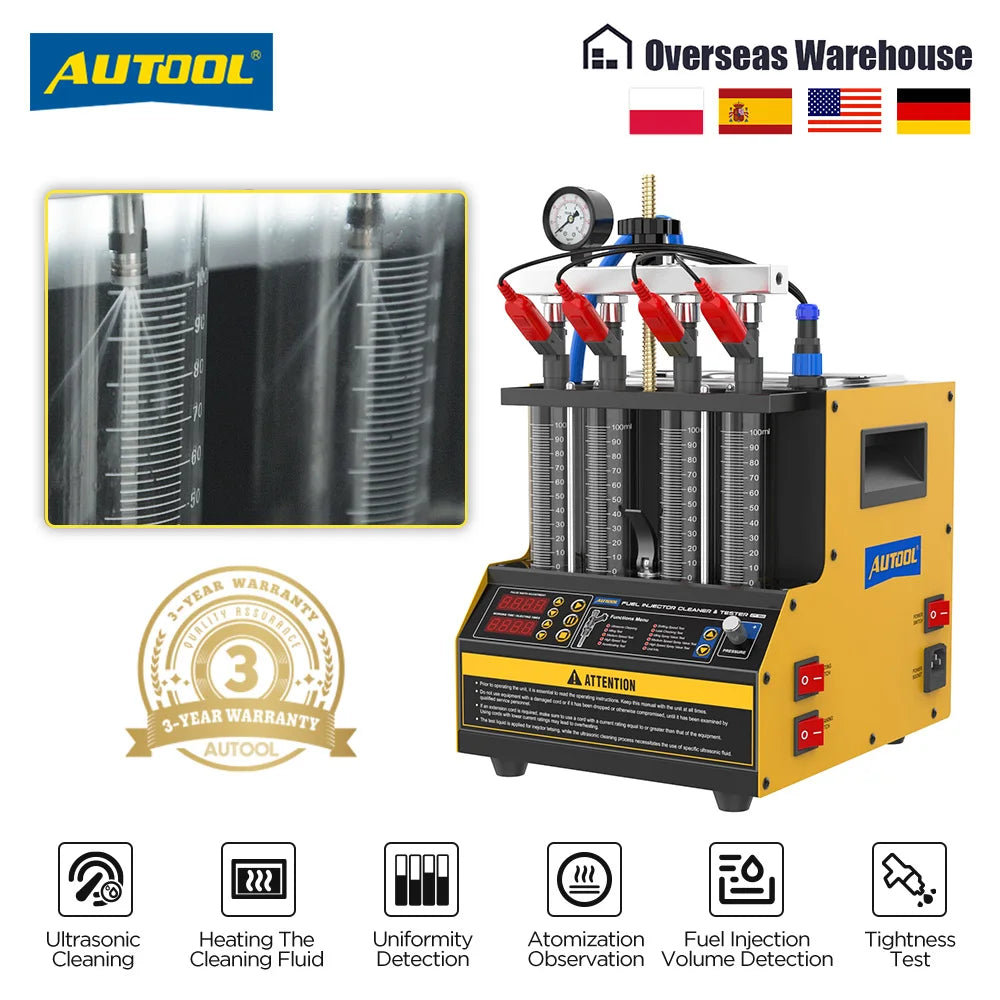

Clean and evaluate automotive and motorcycle fuel injectors with the AUTOOL CT160. This microcomputer-controlled machine combines ultrasonic cleaning, heated cleaning fluid, fuel-injector testing, tightness testing, and atomization observation in one benchtop system.
Product Overview

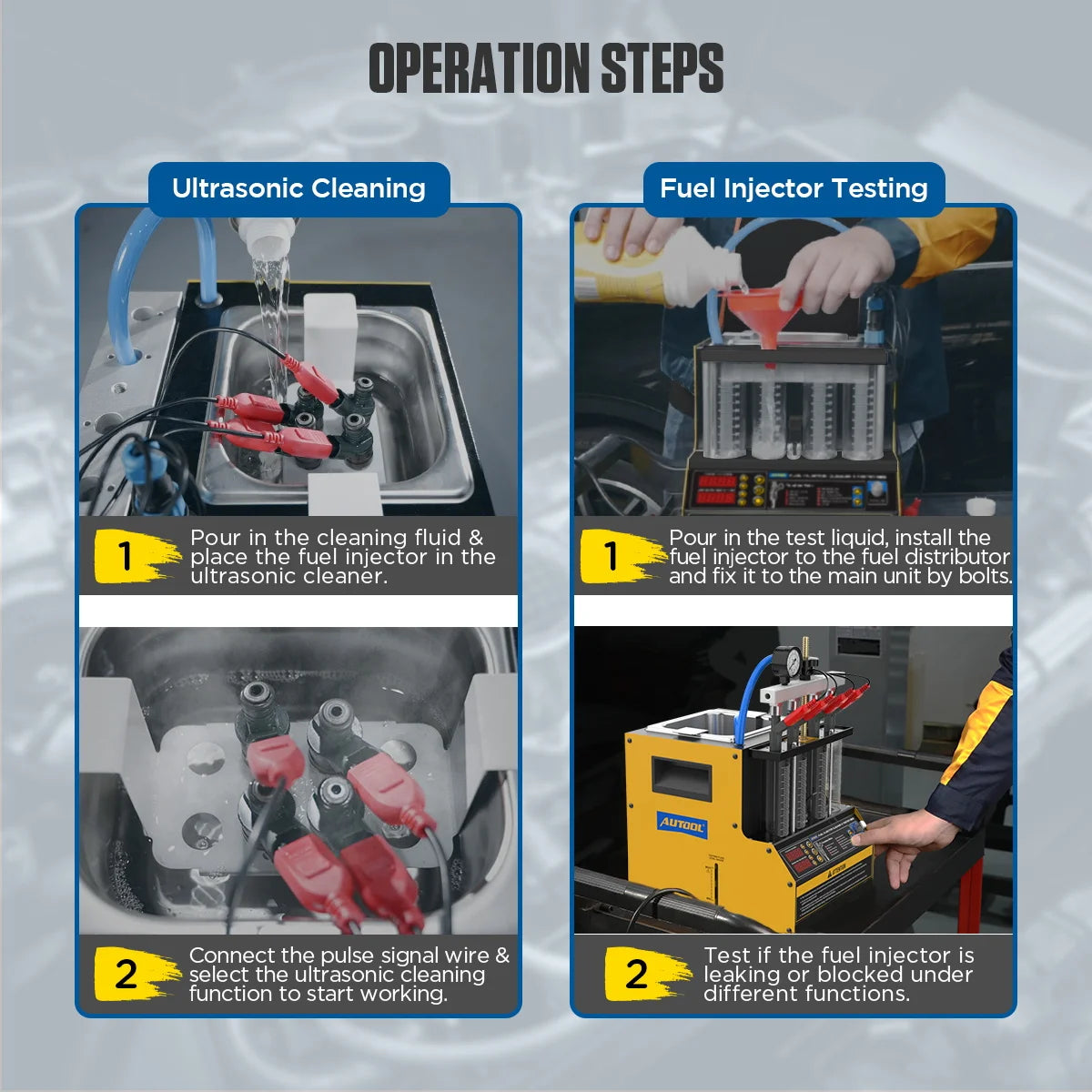

The CT160 is listed for cleaning and testing fuel injectors under simulated engine operating conditions. Its functions include ultrasonic cleaning, fuel-fluid heating, spray and atomization observation, leakage testing, and multiple speed and injection tests. Use the machine with the correct cleaning and test fluids and follow the included manual.
Key Features
- Ultrasonic fuel-injector cleaning with heated cleaning fluid
- Microcomputer oil-pressure closed-loop control listed
- Atomization observation
- Injector tightness and leakage testing
- Nine fuel-injector test programs listed
- Cleaning tank capacity: 1,300 ml
- 40 kHz ultrasonic cleaning frequency
- Ultrasonic cleaning power: 70W
- 180 ml cylinder volume

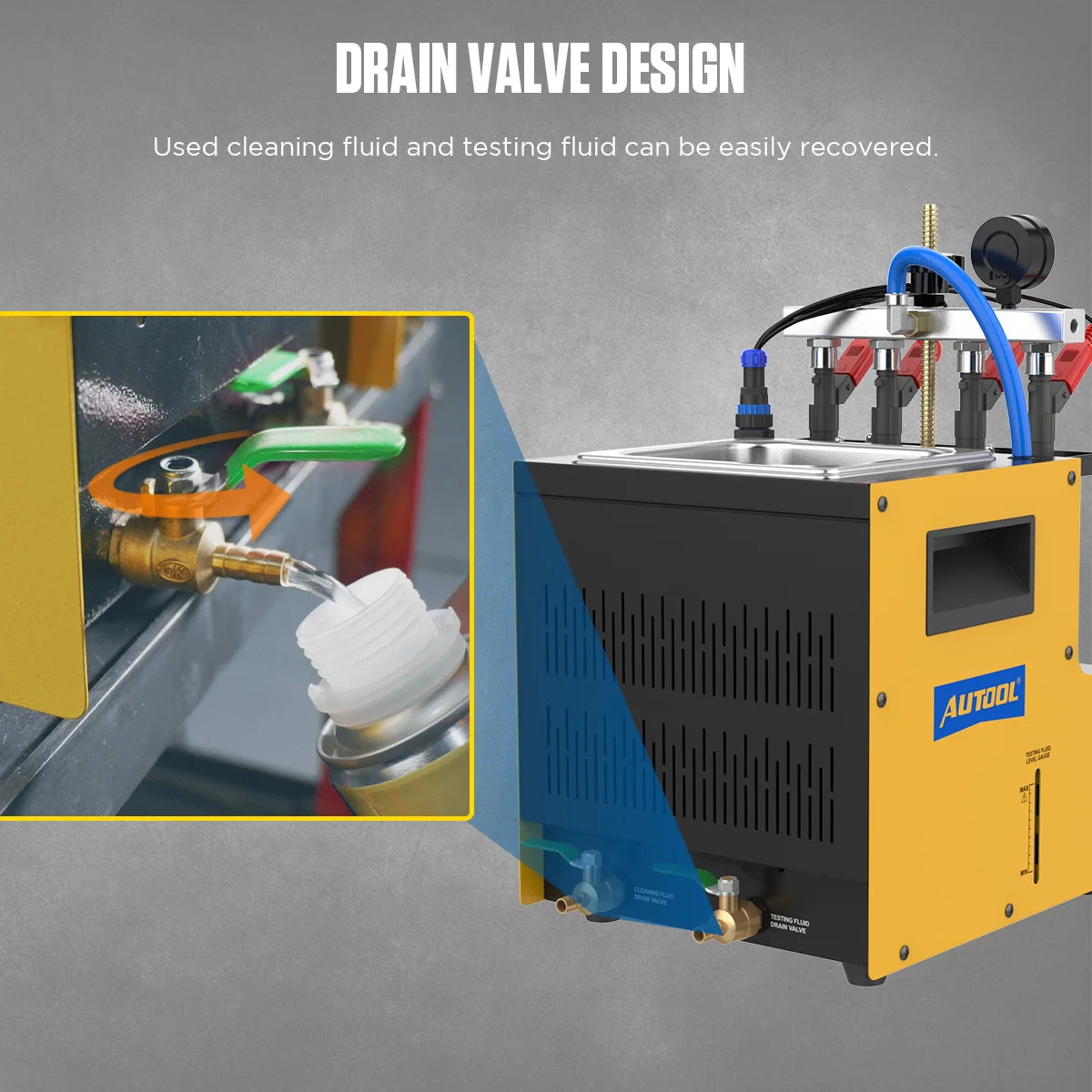

- Oil and testing fluid recovery described in the supplied information
- Designed for automotive and motorcycle injector testing according to the source listing

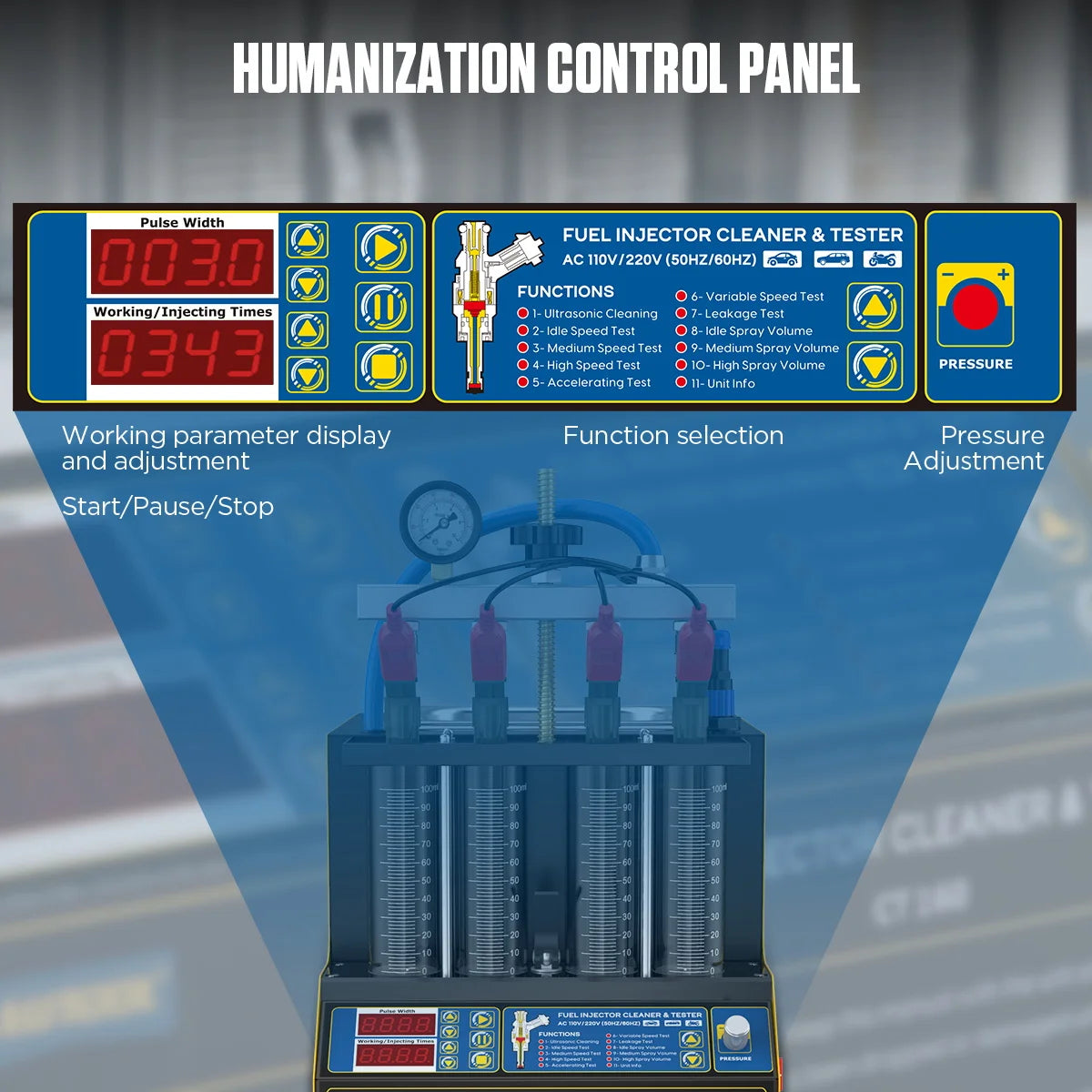

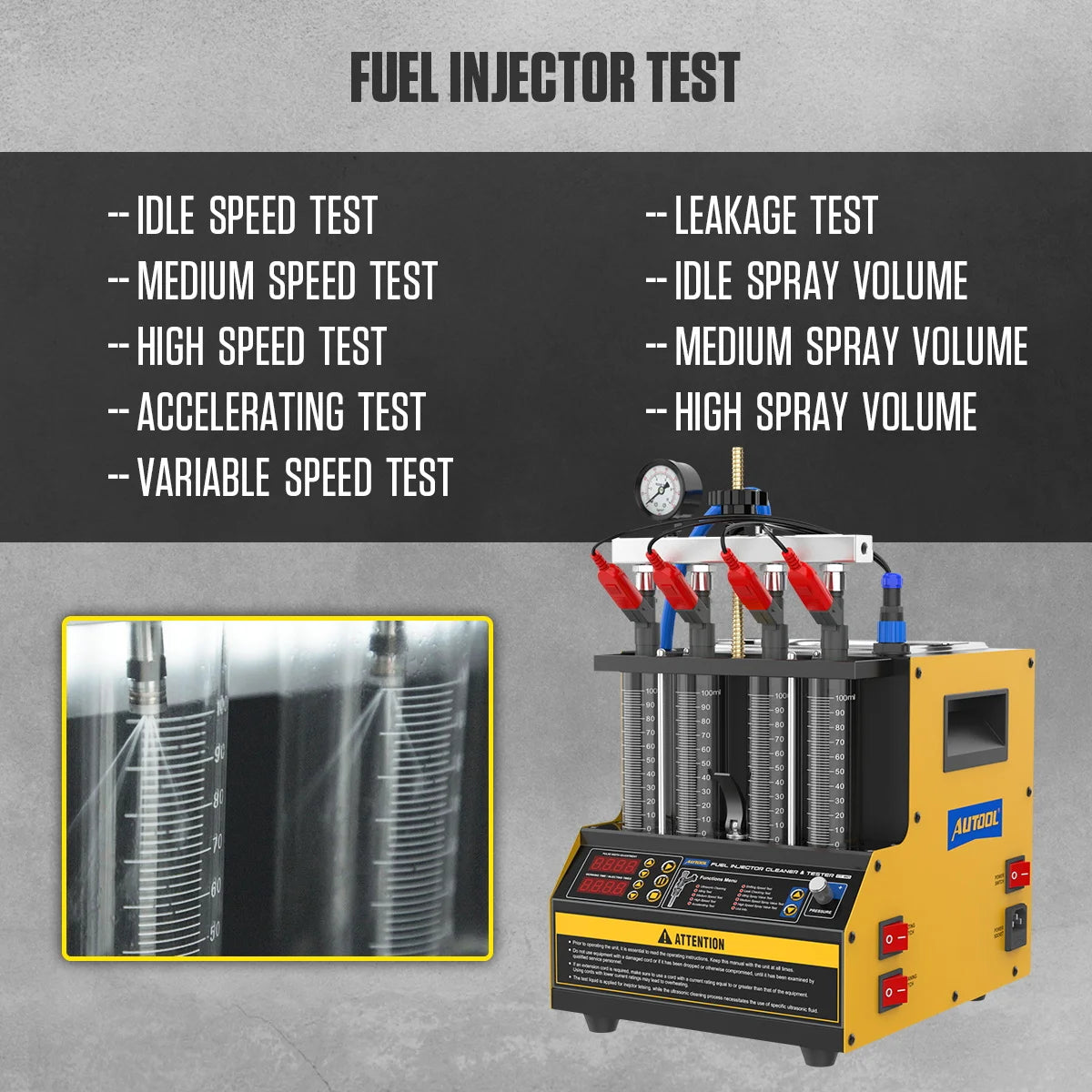

Test Programs Listed
- Idle-speed test
- Medium-speed test
- High-speed test
- Accelerating test
- Variable-speed test
- Leakage test
- Idle spray test
- Medium spray test
- High spray-volume test

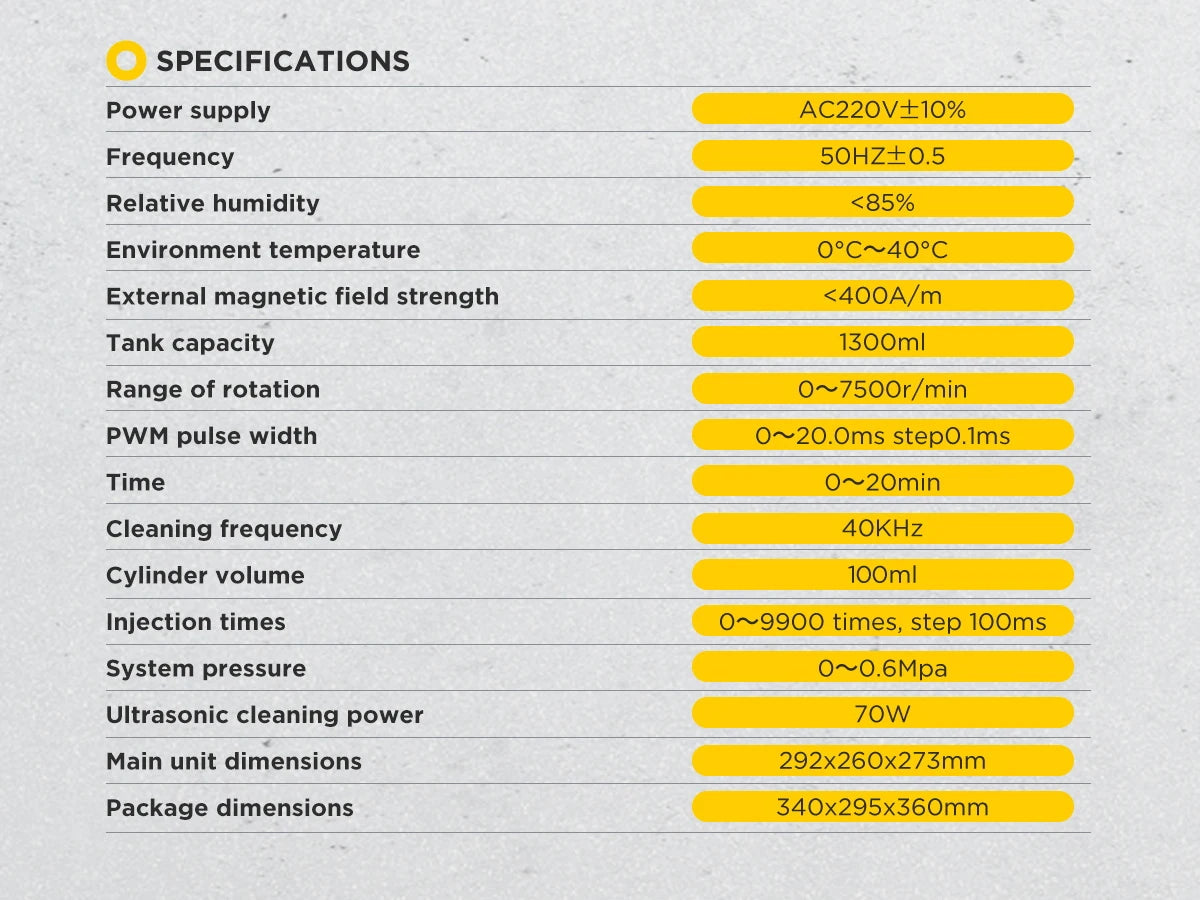

Technical Specifications
- Brand: AUTOOL
- Model: CT160
- Product type: Fuel-injector diagnostic and cleaning machine
- Tank capacity: 1,300 ml
- Rotation range: 0-7,500 r/min
- PWM pulse width: 0-20.0 ms, 0.1 ms steps
- Timer range: 0-20 minutes
- Injection times: 0-9,900 times, with 100 ms steps as listed
- System pressure: 0-0.6 MPa
- Ultrasonic frequency: 40 kHz
- Ultrasonic cleaning power: 70W
- Cylinder volume: 180 ml
- Machine weight listed: 8 kg
- Package dimensions: 340 x 295 x 360 mm
- Origin listed: Mainland China
- Ships-from options shown: Poland, United States, Germany, and Spain
Power and Working Environment
- Working-environment specification: AC220V ±10%
- Frequency listed: 50 Hz ±0.5
- Operating temperature listed: 0°C to +40°C
- Relative humidity listed: Below 85%
- External magnetic field strength listed: Below 400 A/m
- No open flames are allowed around the machine according to the supplied instructions
Important: Another source section states that the applicable voltage is compatible with 110V or 220V, while the working-environment specification states AC220V ±10%. Confirm the correct voltage version for your destination before ordering or powering the machine.

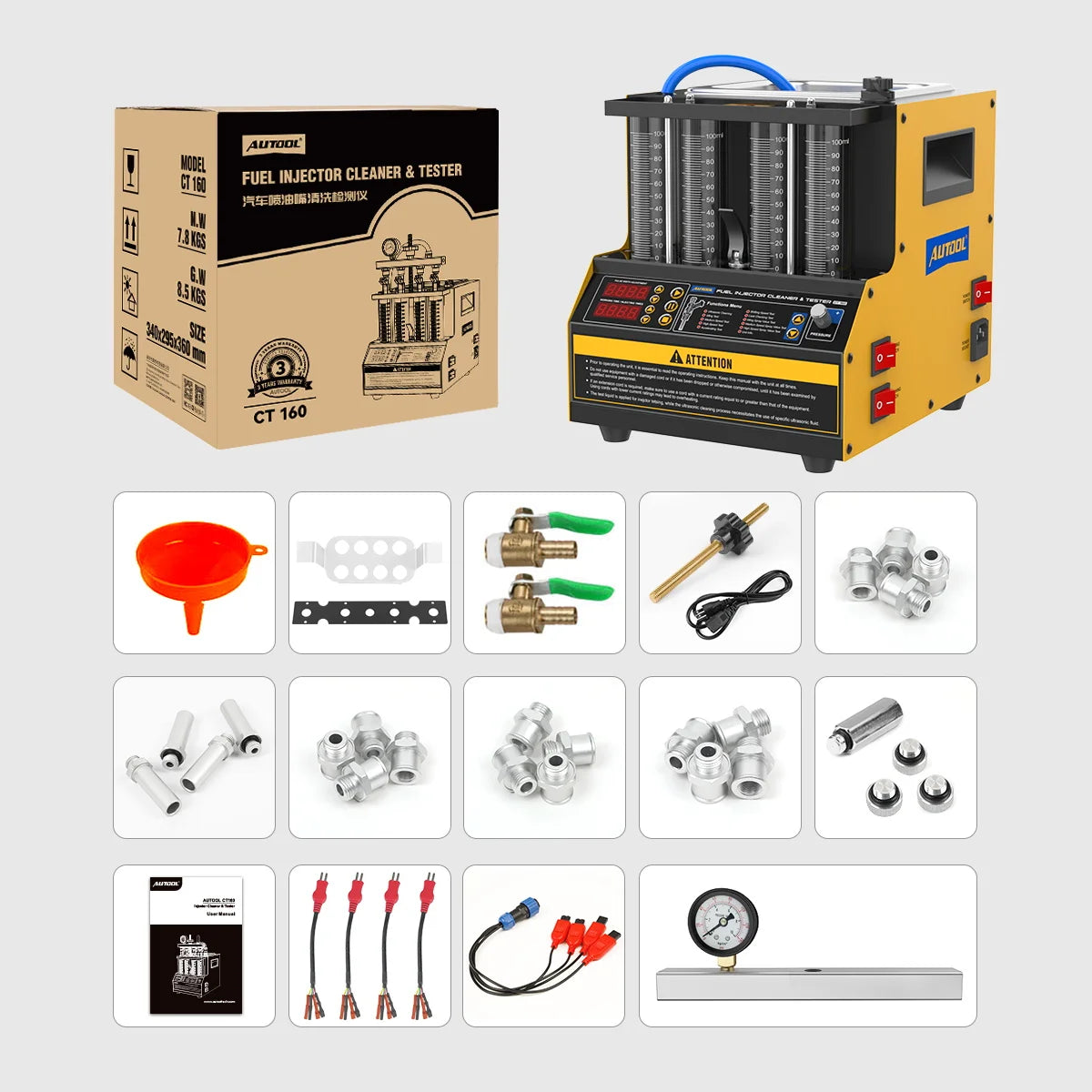

Package Contents
- 1 AUTOOL CT160 main unit
- 1 refilling funnel
- 1 ultrasonic cleaning stand
- 1 testing pad
- 2 oil drain valves
- 1 lock pole
- 1 lock nut
- 4 extended plugs
- 4 motorcycle top oil-inlet connectors, 10 mm
- 4 motorcycle top oil-inlet connectors, 11 mm
- 4 motorcycle top oil-inlet connectors, 10.6 mm
- 4 car top oil-inlet connectors, listed as 10.6 mm and 13.4 mm
- 3 plugs
- 1 signal wire
- 4 adapter cables
- 1 oil rail
- 1 user manual
Ideal Uses
Use the CT160 for fuel-injector cleaning, spray-pattern observation, leakage checks, and repeatable test routines on compatible automotive and motorcycle injectors. The included connectors are listed for motorcycle and car applications, but exact injector compatibility should be confirmed before use.
Before You Buy
- Confirm the machine voltage version. The source lists both AC220V ±10% and general 110V/220V compatibility.
- Verify that the included connectors fit the injectors you plan to test.
- Use only suitable cleaning and test fluids and keep open flames away from the machine.
- Review the 0-0.6 MPa pressure range and the listed test settings for your application.
- The supplier listing states a three-year warranty and lifetime maintenance, but terms, exclusions, and service coverage were not provided. Confirm them before purchase.
- The source does not specify noise level, exact supported injector types, fluid compatibility, or regional electrical certification.
Frequently Asked Questions
What does the AUTOOL CT160 do?
It is a fuel-injector cleaning and testing machine with ultrasonic cleaning, heated cleaning fluid, atomization observation, and leakage testing functions.
How large is the cleaning tank?
The listed tank capacity is 1,300 ml.
What test programs are included?
Nine programs are listed, including idle, medium, high, accelerating, variable-speed, leakage, and spray tests.
What is the ultrasonic cleaning frequency?
The listed frequency is 40 kHz, with 70W ultrasonic cleaning power.
Does it support car and motorcycle injectors?
The supplied listing describes automotive and motorcycle use and includes car and motorcycle connector sets. Confirm compatibility with your specific injector before use.
What voltage does it require?
The working-environment section lists AC220V ±10%, while another section states compatibility with 110V or 220V. Confirm the exact version before ordering.
Is a manual included?
Yes. One user manual is listed in the package contents.
