Product Description

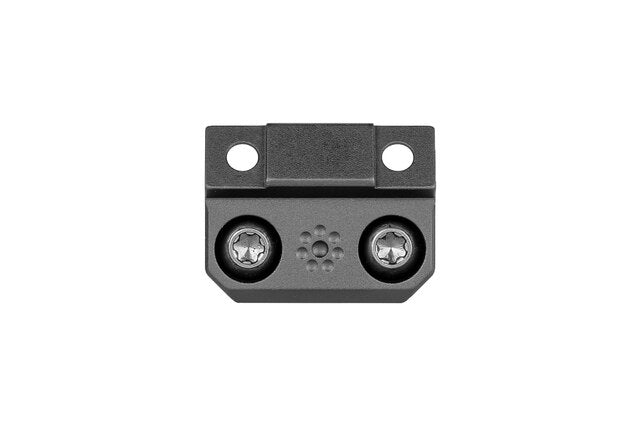

The Patent Pending Arisaka Side Scout Mount MCX is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights, the Modlite PLHv2 and OKW weapon lights, the Arisaka 300 and 600 Series Lights, the Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount that tucks the light underneath either side of NGAL, ATPIAL-C, AN/PEQ15, and LA-5/PEQ laser/illuminators. It will also allow the light to clear the QD lever on the Steiner DBAL I2, A3, and D2.
Designed primarily for the SIG MCX and MPX, the Side Scout Mount MCX will also work well on the B&T GHM and APC series, CZ Scorpion and Bren, IWI Tavor, and AR15 M-Lok handguards even without a laser.
Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300 and 600 Series.
M620, M951/2 and M961/2 series lights can also be used with the Offset Scout Mount with the addition of the Arisaka Offset M620 Adapter.
Length: 1.265"
Weight: 0.4 oz
The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP20/T20 Torx driver for installation (not included). Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243. Made in the USA.
