Product Description

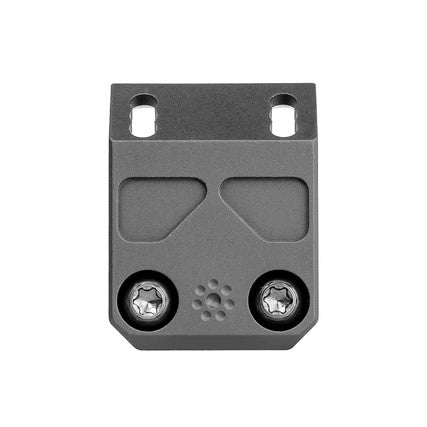

The Patent Pending Arisaka Offset Scout Mount is designed specifically for lights that utilize the Scout-style mounting platform.. It replaces the stock Picatinny rail adapter with a low profile mount for the SIG MCX Virtus M-Lok handguards.
Please note: this mount is designed specifically for the standard MCX VIRTUS handguard which has a tall profile with flat sides. If you have the MCX suppressor compliant handguard you should use the normal Offset Scout Mount M-Lok.

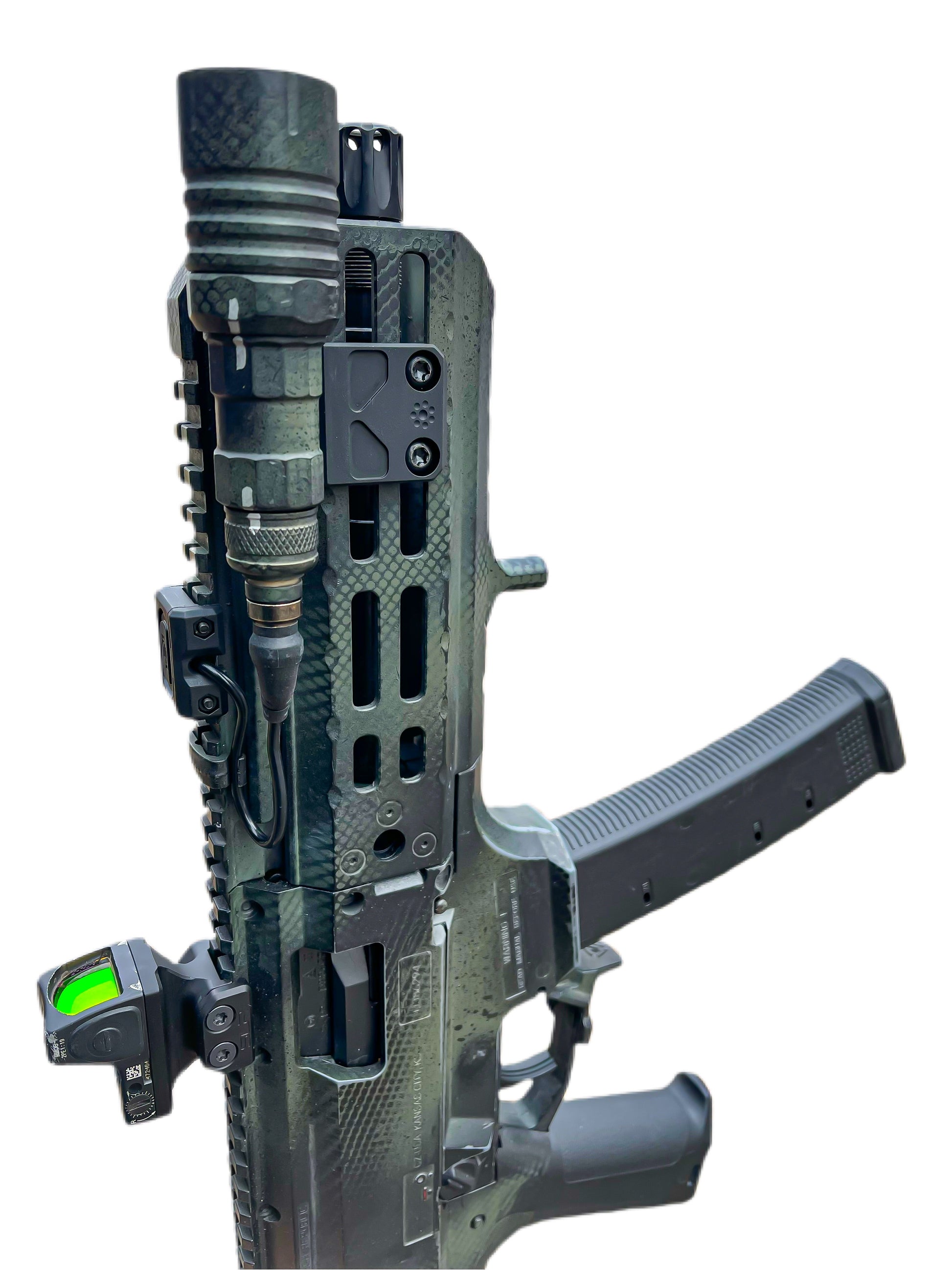

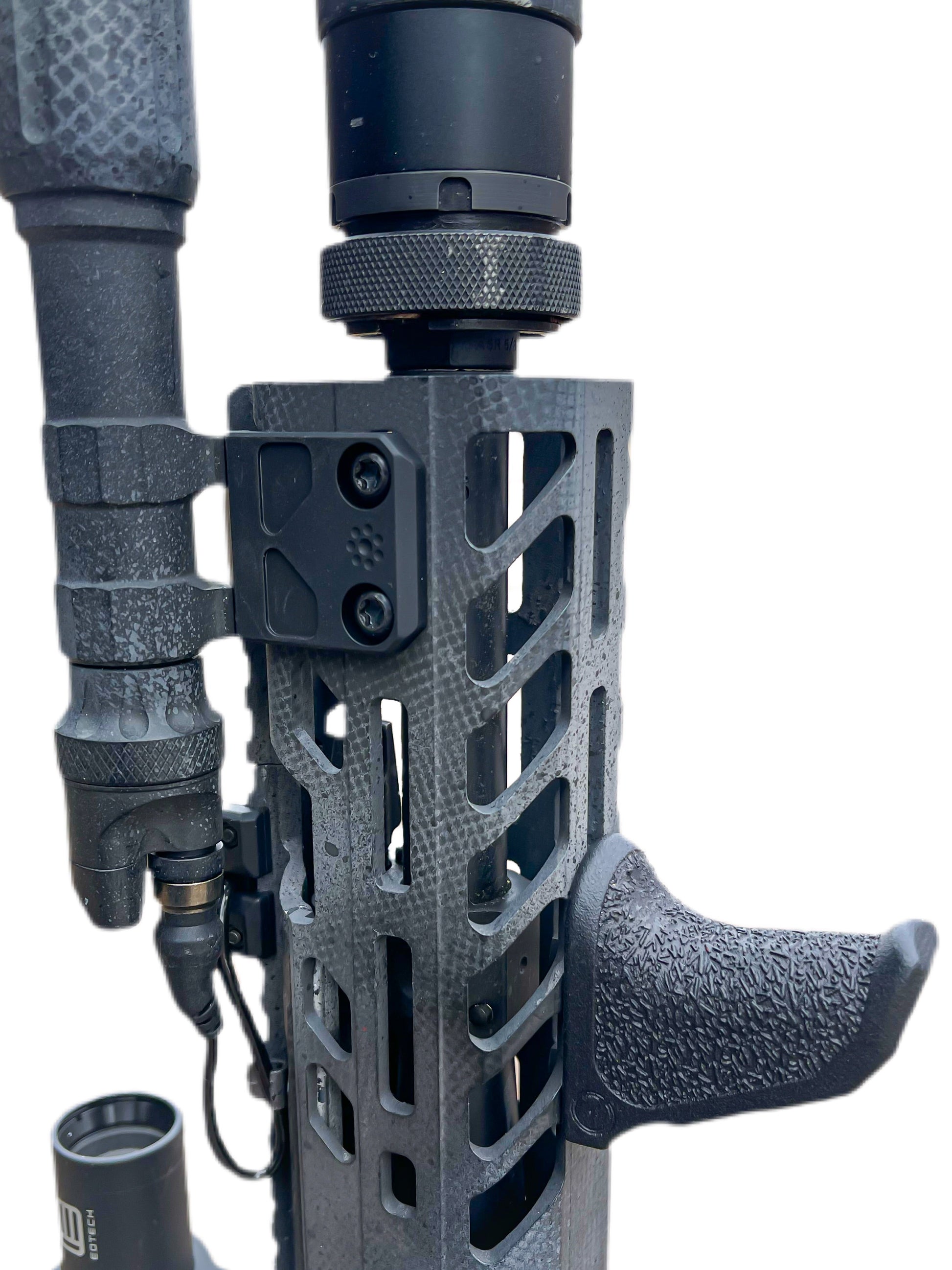

When used on the side mounting surfaces of M-Lok handguards, the Offset Scout Mount places the light at a 45 degree angle and tucks it in closer to the rail system. Oriented upwards, the light is located at approximately the 1:30 or 10:30 clock positions. Oriented downwards, the light is located at approximately the 4:30 or 6:30 clock positions.
The Offset Scout Mount also provides three lateral mounting positions for the light body, which allows the user to position the light closer or farther away from the top rail, front sights, or other accessories. Three positions are provided, spanning approximately 0.240".
The Offset Scout Mount MCX orients the light at a 45 degree angle and tucks it in closer to the top rail at the 1:30 or 10:30 clock positions. It also provides three lateral mounting positions for the light body, which allows the user to position the light closer or farther away from the top rail, front sights, or other accessories. Three positions are provided, spanning approximately 0.240".
Compatible with the Modlite 183560 and 18650 bodies/lights, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300 and 600 Series.
Length: 1.265"
Weight: 0.6 oz
The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP20/T20 Torx driver for installation (not included). Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243. Made in the USA. Made in the USA.
