Product Description

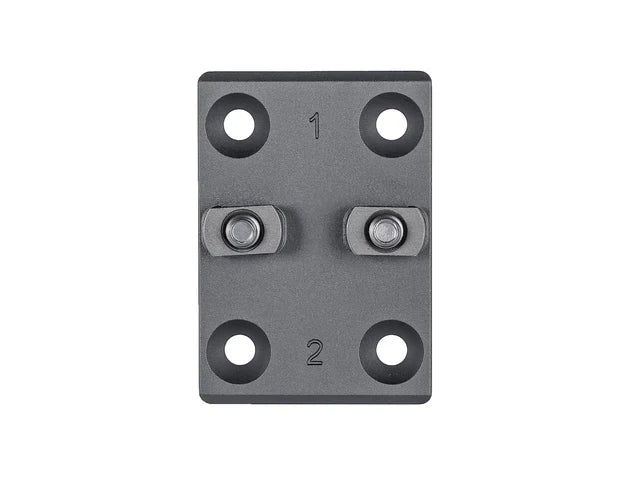

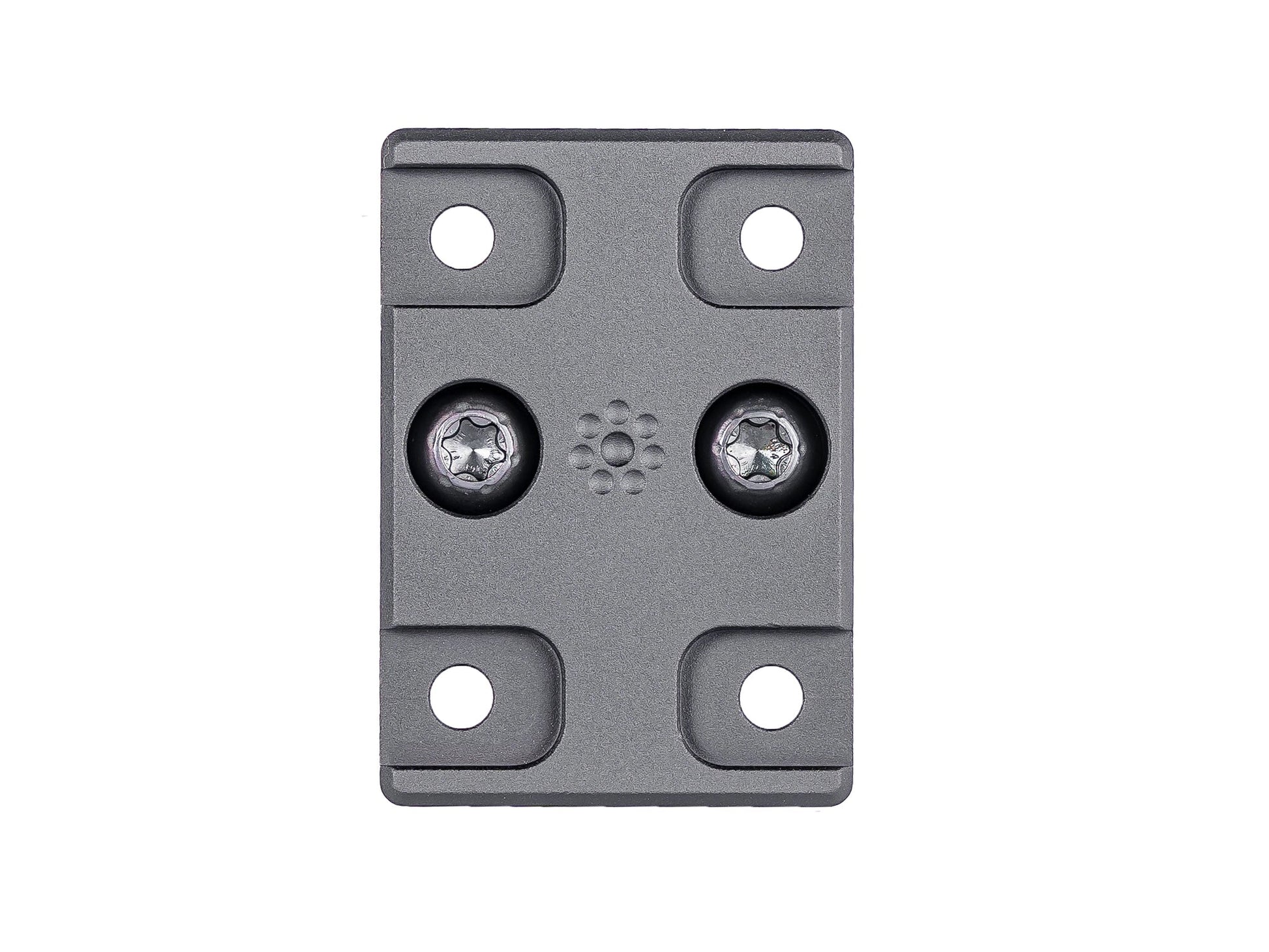

The Arisaka Dual Side Scout Mount (DSSM) has the ability to mount two Scout lights side by side and only occupies a single M-Lok slot. This mount allows the user to run a powerful white light like the 18350/18650 Modlite PLHv2/OKW, plus a supplemental infrared illuminator like the B.E. Meyers Kiji or Modlite IR heads.
It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards, and tucks the light underneath either side of the ATPIAL laser/illuminator series, including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ. It will also allow the light to clear the QD lever on the Steiner DBAL I2, A3, and D2.
As a bonus, the Dual Side Scout Mount also works nicely on the Sig MPX PCC and MCX Virtus M-Lok handguards.
SKU: DSSM-M
Length: 1.3"
Width: 1.86"
Thickness: 0.2"
Weight: 0.9 oz

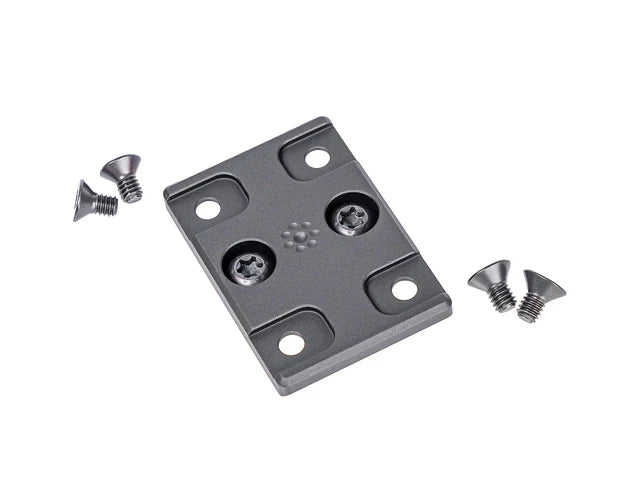

The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach two light bodies to mount. Requires an IP20/T20 Torx driver for installation (not included). Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with medium strength threadlocker. Made in the USA.
