Product Description

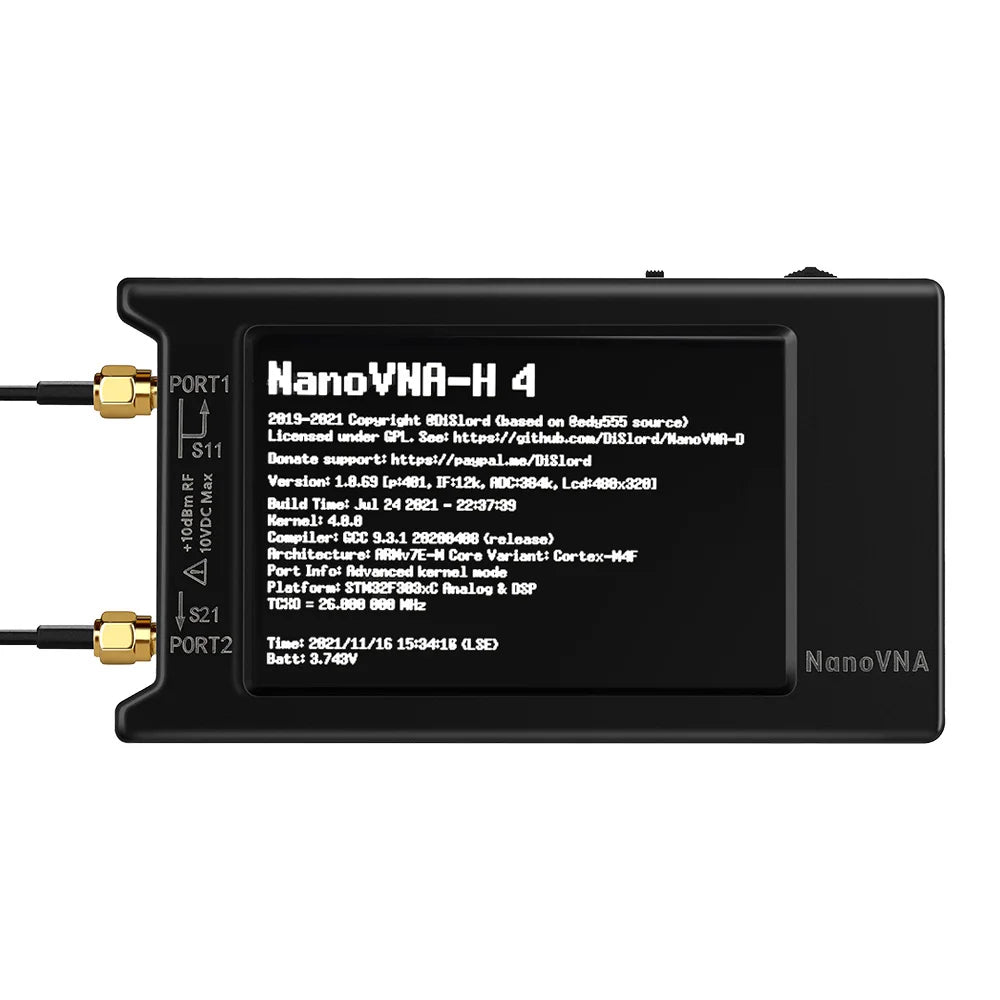

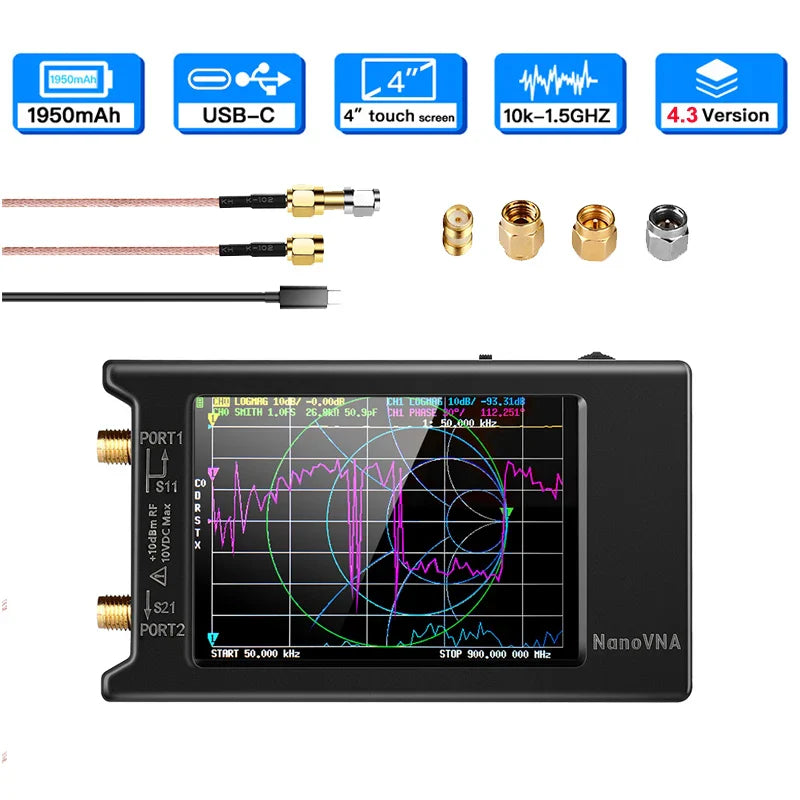

Compact and precise, this portable vector network analyzer delivers reliable S-parameter testing for antenna tuning, ham radio, and RF diagnostics on the go. Ideal for hobbyists and technicians, it features a bright 4.0-inch display, SD card data export, rechargeable battery and USB-C connectivity for easy field use and PC analysis.
Specifications:
- Product Type: Handheld Vector Network Analyzer (portable antenna analyzer)
- Battery Included: Yes
- Battery Capacity: 1950 mAh
- Measurement Frequency: 10 kHz – 1.5 GHz
- RF Output: 0 dBm (±2 dBm)

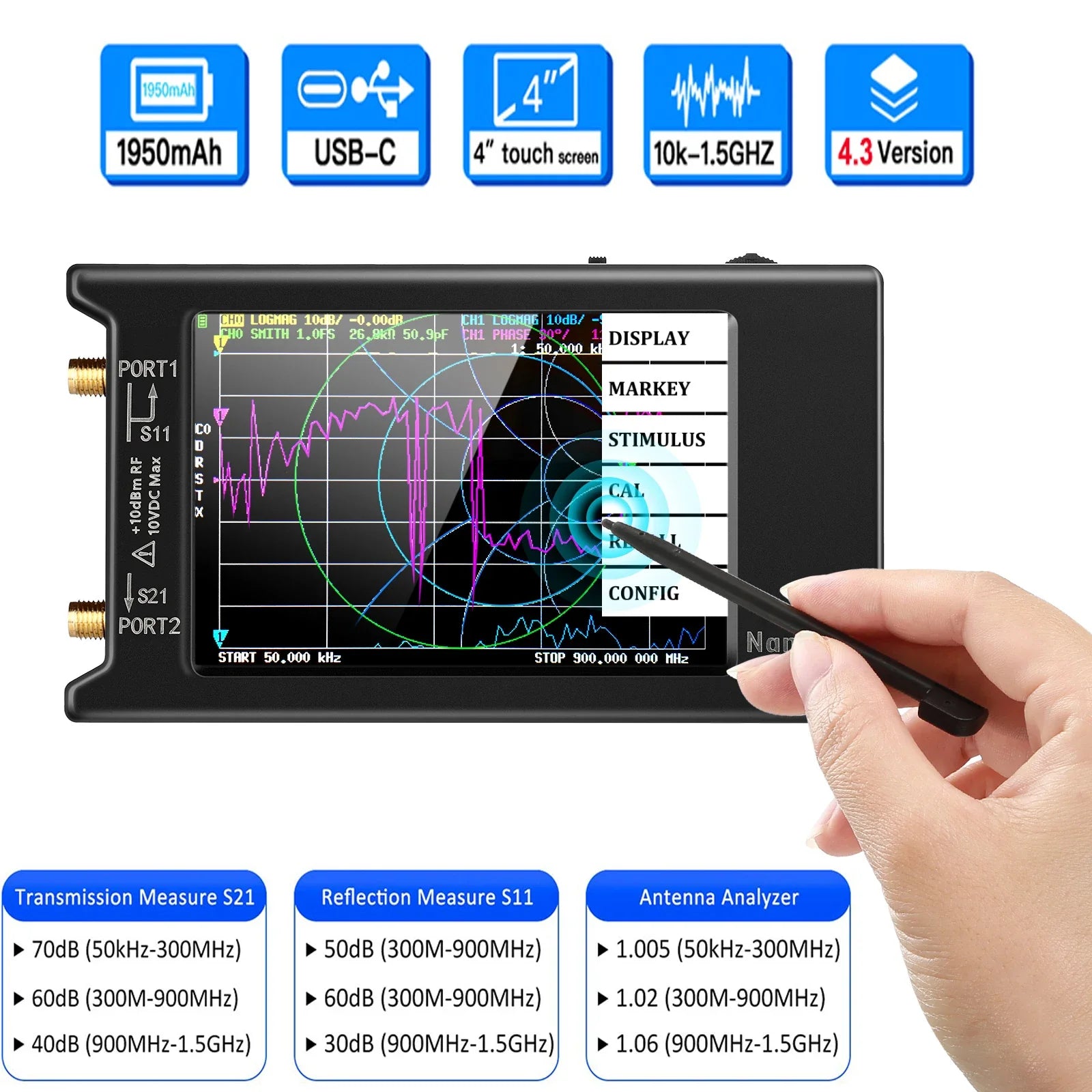

- Measurement Range: 70 dB (50 kHz–300 MHz); 60 dB (300 MHz–900 MHz); 40 dB (900 MHz–1.5 GHz)
- Port SWR: < 1.1

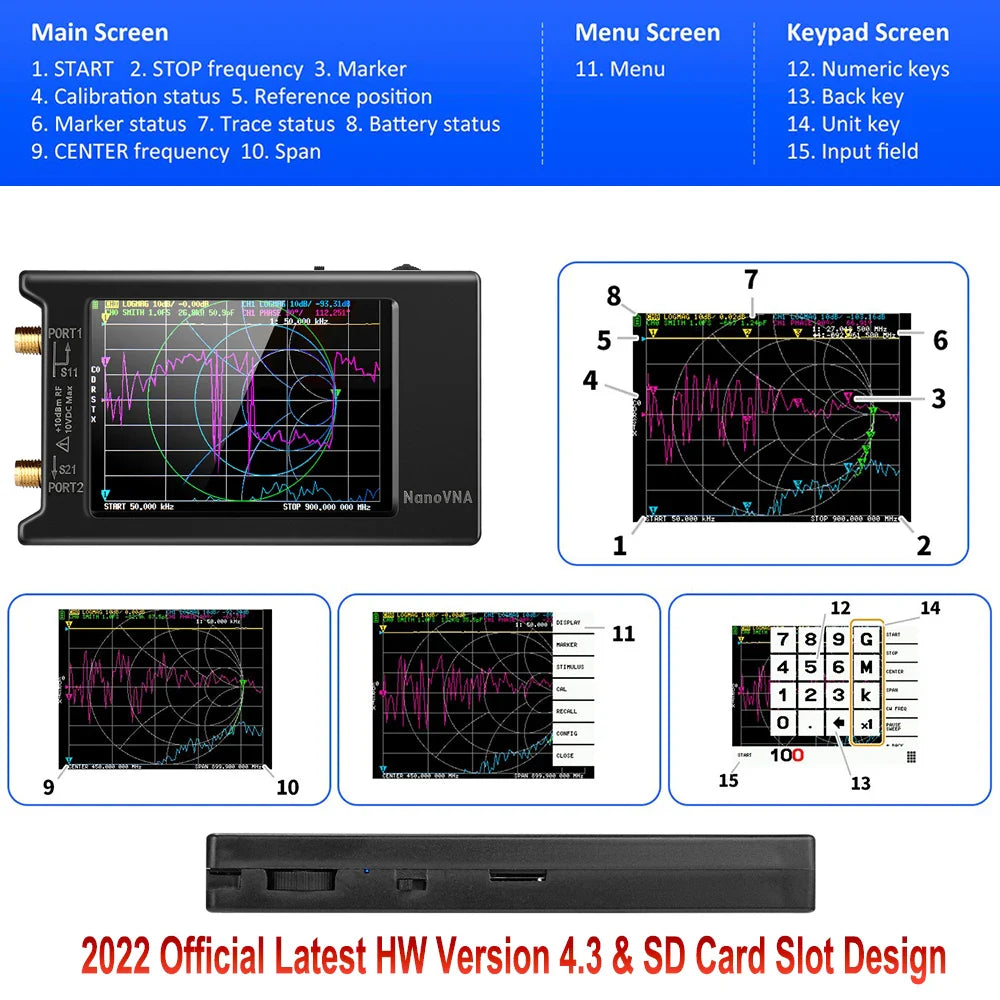

- Display: 3.95 inch (10.0 cm) TFT, 320 x 480 pixels
- Case Dimensions: 75 x 133 x 18 mm (2.95 x 5.24 x 0.71 in)
- USB Interface: USB Type-C (CDC serial)
- Power / Charging: USB 5V 200 mA, built-in battery, max charging current 1 A
- Number of Scanning Points: 101 (fixed)
- Display Tracking / Markers / Save Slots: Display Tracking: 4; Markers: 4; Settings Save Slots: 5
- Frequency Tolerance: < 2.5 ppm
- Frequency Stability: < 0.5 ppm
- Hardware Version: 4.3
- SD Card Slot: Yes (data export/storage)
- PC Software Compatibility: Compatible with NanoVNASaver for visualization and Touchstone (SNP) export
- Metal Shield: Integrated shielding to reduce external interference and improve accuracy
- Harmonic Measurement Note: Harmonic measurements may introduce errors due to nonlinear transformation of the fundamental wave

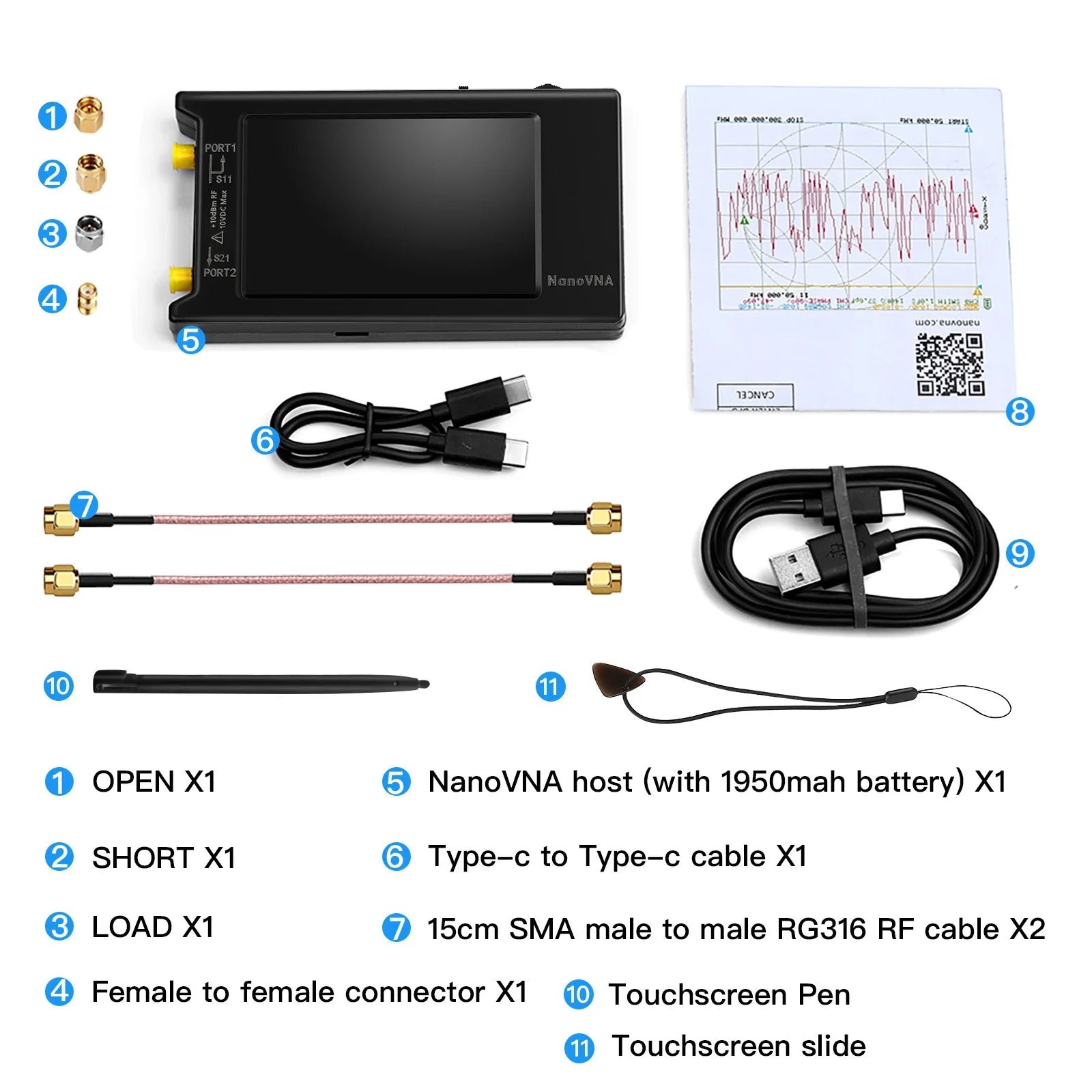

What's Included:
- Main Unit: Handheld VNA with built-in 1950 mAh battery x1
- USB Cables: USB Type-C data cable x1; Type-C to Type-C cable x1
- RF Cables: 15 cm (5.9 in) SMA male-to-male RG316 RF cable x2
- Calibration Kit: SMA male calibration kit — OPEN x1, SHORT x1, LOAD x1
