Product Description

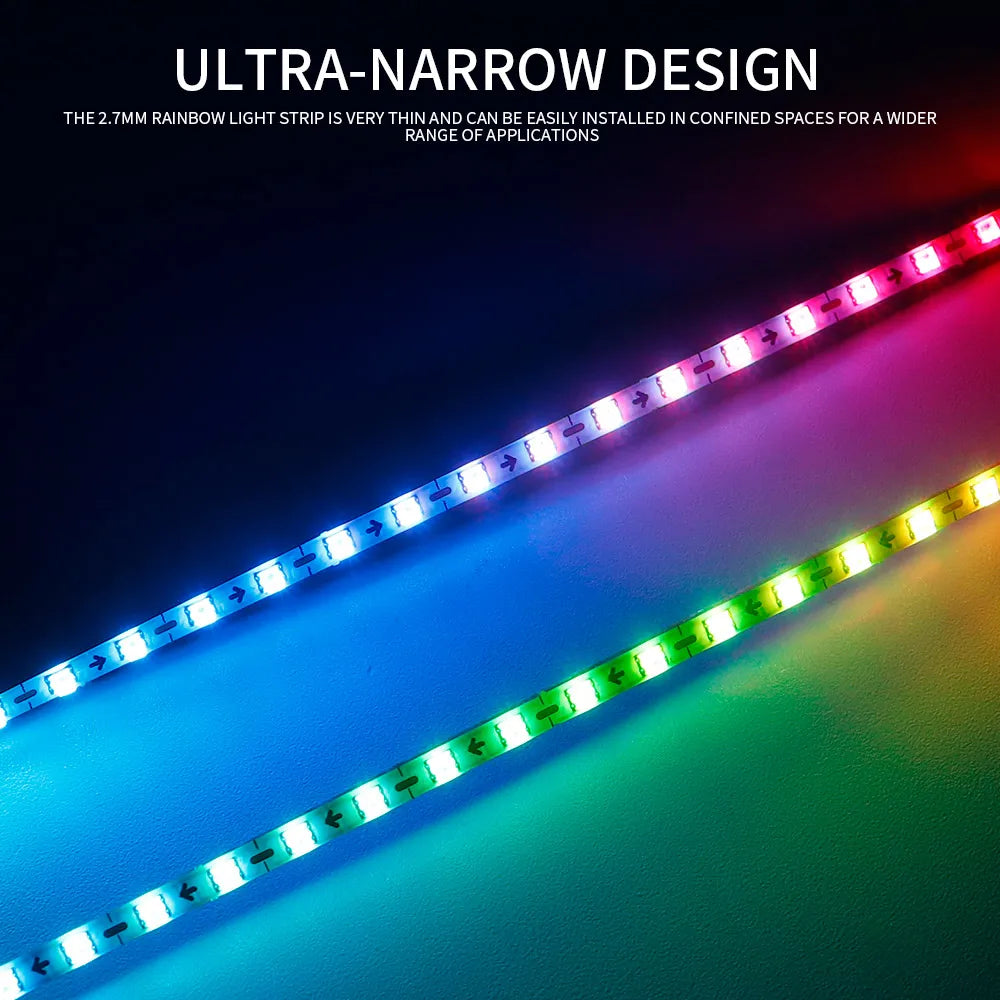

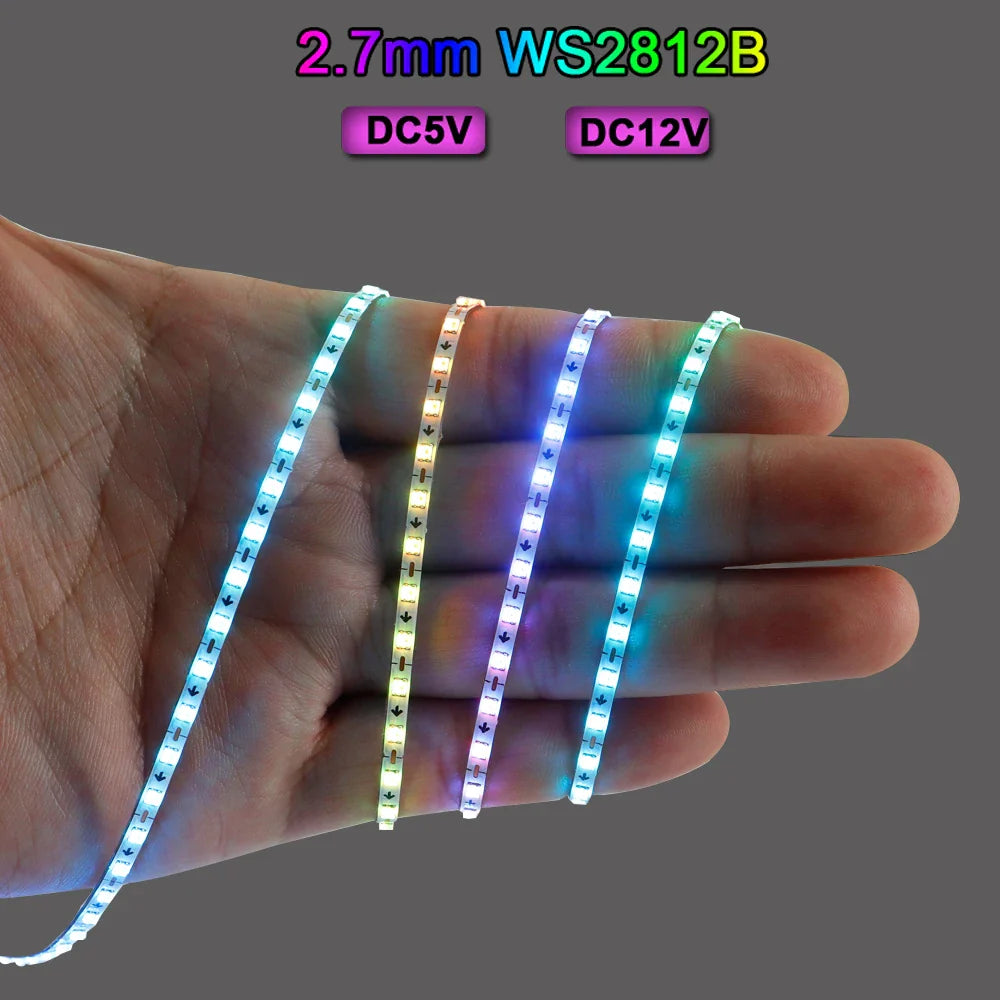

Illuminate your projects with a super-slim, individually addressable DreamColor LED strip. This ultra-narrow 2.7 mm strip features 160 LEDs per meter for smooth color effects, perfect for accent lighting, displays, costumes, decor, and creative DIY projects.
Specifications:
- Average Life: More than 50,000 hours
- Certifications: CCC, CE, FCC, RoHS
- Batteries Included: No
- Smart Device: Yes
- Item Type: LED Strip
- LED Chip Brand: Epistar

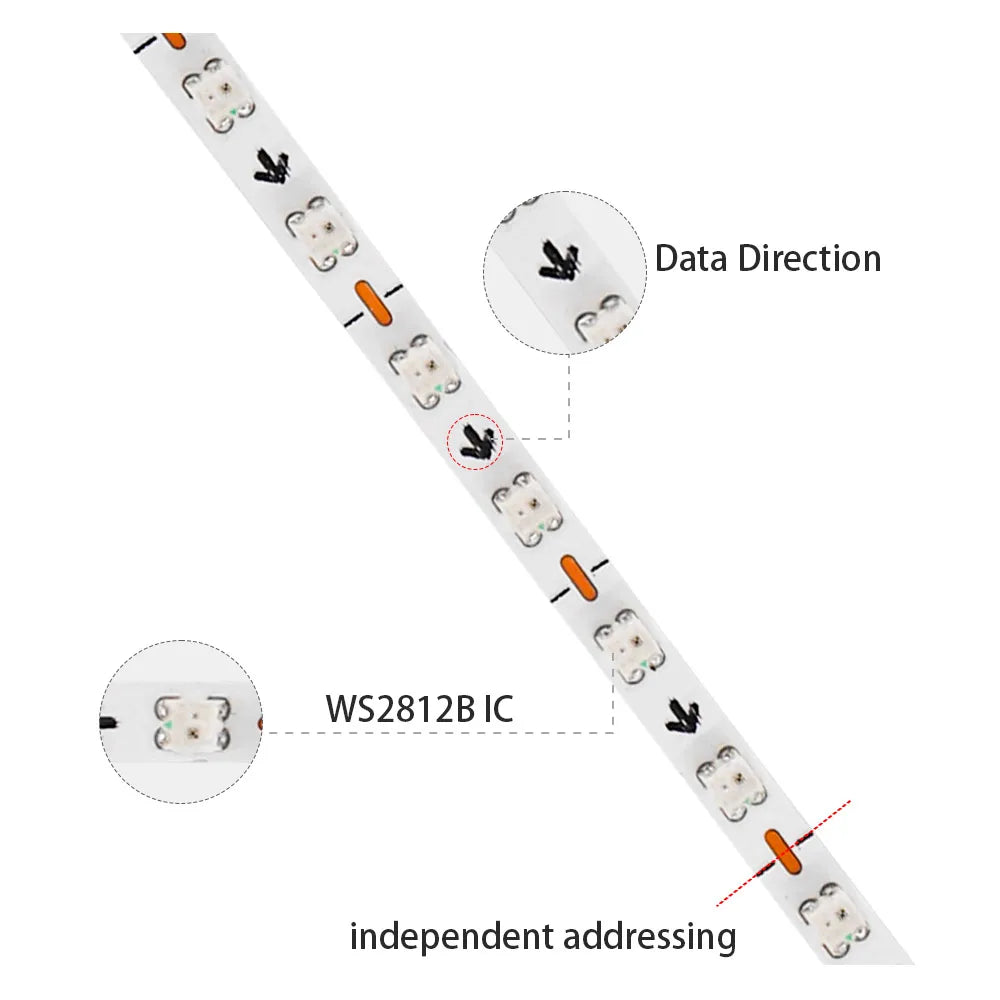

- LED Chip / SMD Size: WS2812B, SMD2020
- LED Density: 160 LEDs/m (approx. 49 LEDs/ft)
- Luminous Flux: 60–249 (per LED range)
- PCB Width: 2.7 mm (0.106 in)
- Power Consumption: 5.76 W/m (≈1.76 W/ft)
- Voltage: DC 5V / DC 12V
- Power Source: DC power supply (not included)
- Waterproof / IP Rating: IP20 — non-waterproof

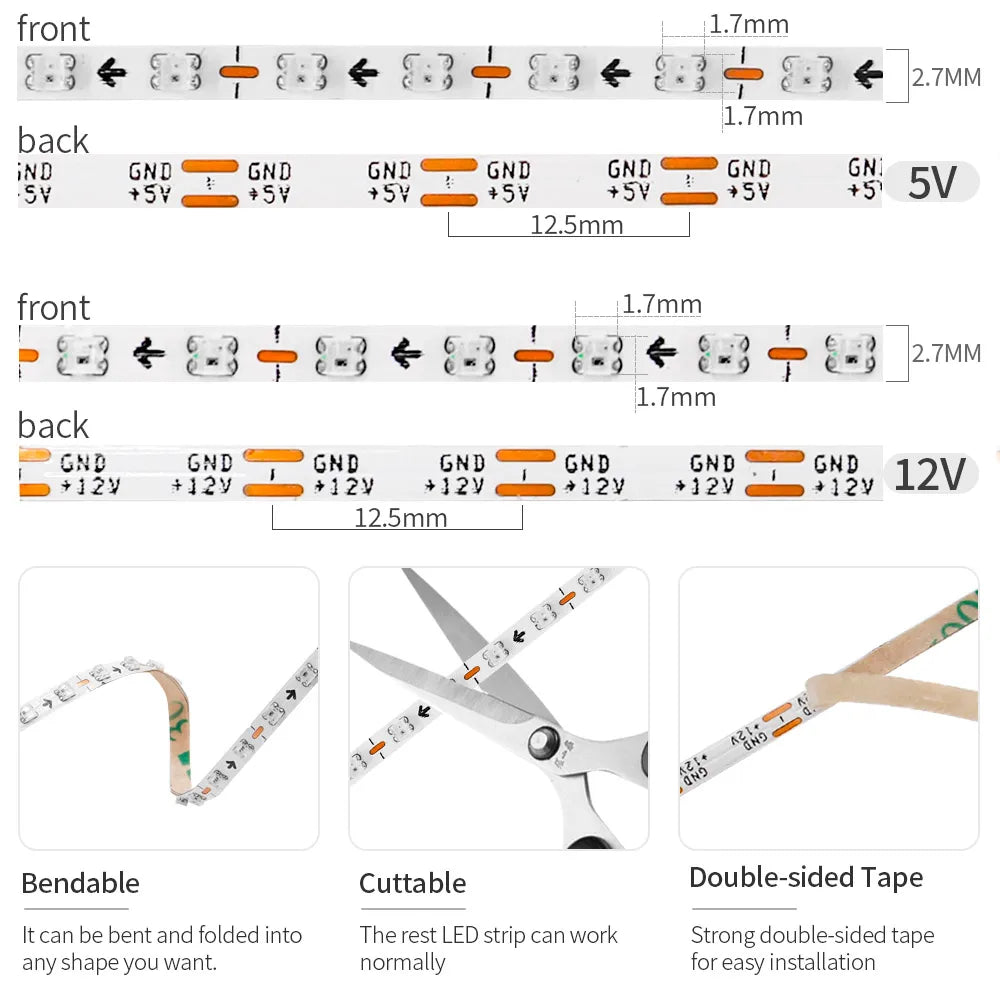

- Cut Segment: Cut every 2 LEDs (~12.5 mm / 0.49 in)
- Typical Wattage: ~6 W/m (varies by configuration)
- Length Options: 1 m to 5 m (1 m / 3.28 ft; 2 m / 6.56 ft; 3 m / 9.84 ft; 4 m / 13.12 ft; 5 m / 16.40 ft)
- Operating Temperature: -20°C to +45°C (-4°F to +113°F)
- Storage Temperature: -20°C to +60°C (-4°F to +140°F)
- Viewing Angle: 180°

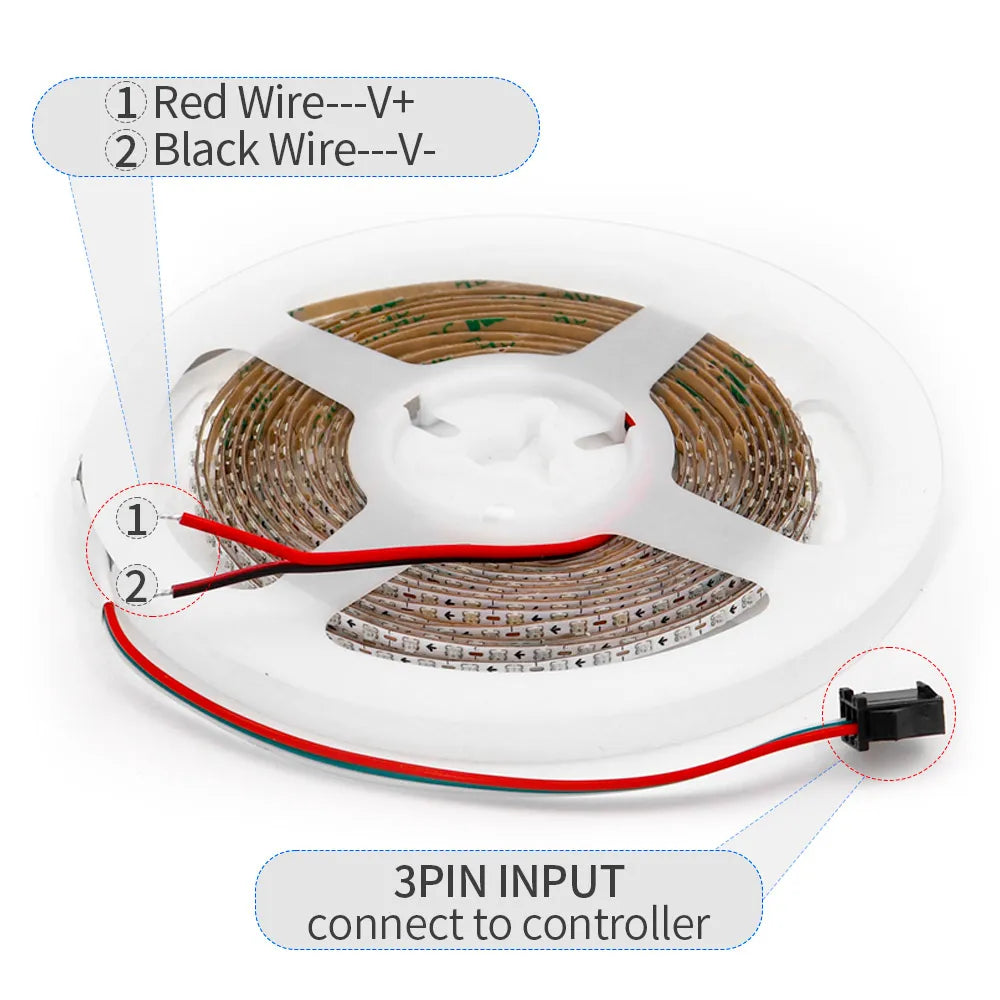

- Pins / Wiring: 3 wires — 5V+ (red), DATA (green), GND (white)
- Controller Required: Requires WS2812B data controller (not included)
- Power Supply Required: LED DC power supply required (not included)
Important Notes:
- Strips are commonly spot-welded every 0.5 m in manufacturing; this is normal and not a defect.
- Do not bend the super-narrow strip sharply to avoid damage.
- Use the correct voltage: DC 5V strips must use a 5V supply (do not exceed 5.5V). DC 12V strips must use a 12V supply (do not exceed 12.5V).
- If white appears warm/orange at long runs, increase supply voltage or use a closer power injection point to prevent voltage drop.
