Product Description

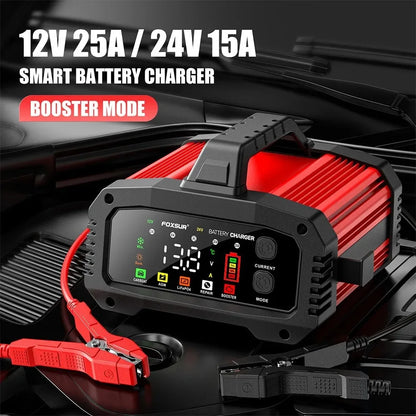

High-output smart charging for 12V and 24V batteries
This automatic battery charger is designed for compatible 12V and 24V battery systems. It provides up to 25A output at 12V or 15A at 24V, with an 8-stage charging process and a color display to monitor charging status.
Key specifications
- Input: 100-240V AC, 50/60Hz
- Rated output: 12V 25A or 24V 15A
- Supported battery capacity range: 6-400Ah
- 8-stage automatic charging
- Selectable charging current: 2A, 8A, automatic, 20A, or 25A
- Aluminum-alloy housing with fan cooling
- Approximate dimensions: 192 x 216 x 125 mm
- Approximate net weight: 1.5 kg
Battery compatibility
The supplier lists compatibility with common lead-acid battery types, including wet, AGM, gel, EFB, and calcium batteries, as well as LiFePO4 batteries. Confirm your battery chemistry, voltage, capacity, and manufacturer charging requirements before use.

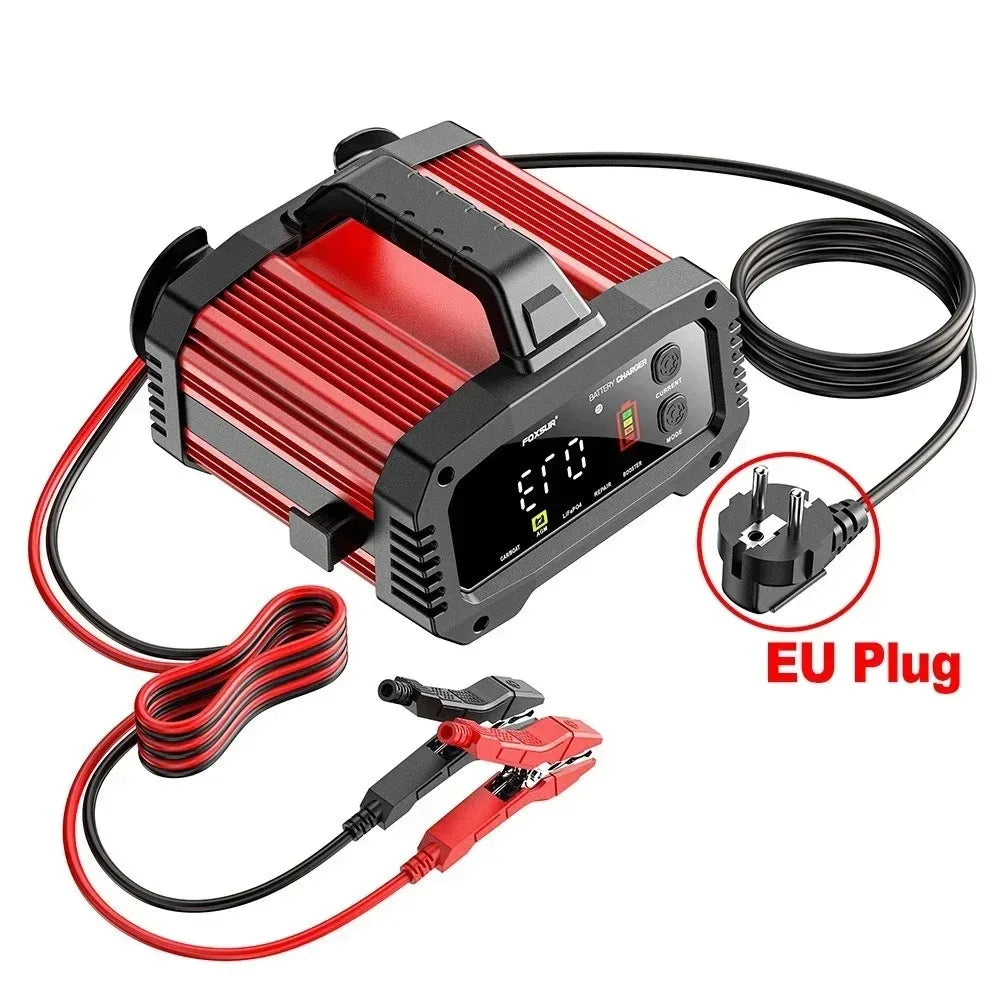

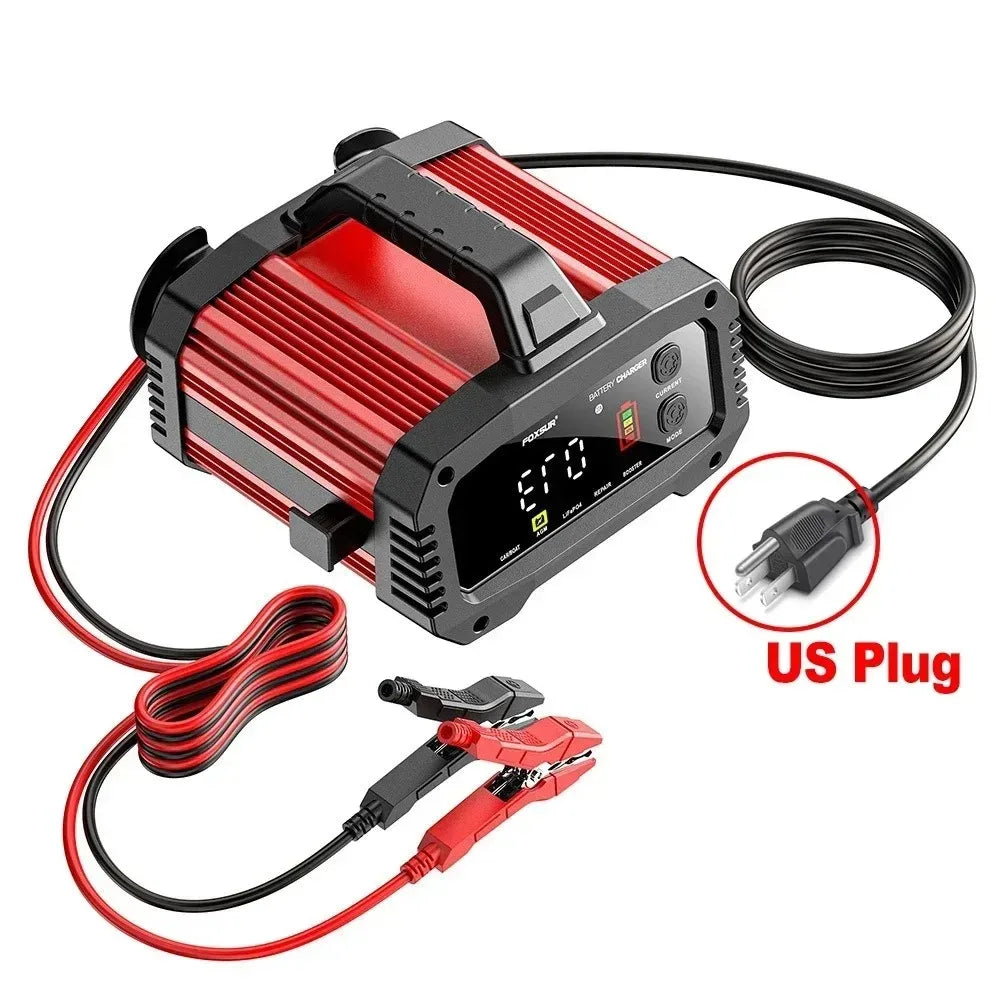

Choose the correct plug
Select the US plug or EU plug option to match your wall outlet. The charger accepts 100-240V AC input, but the plug selection must suit your location.
Safety first

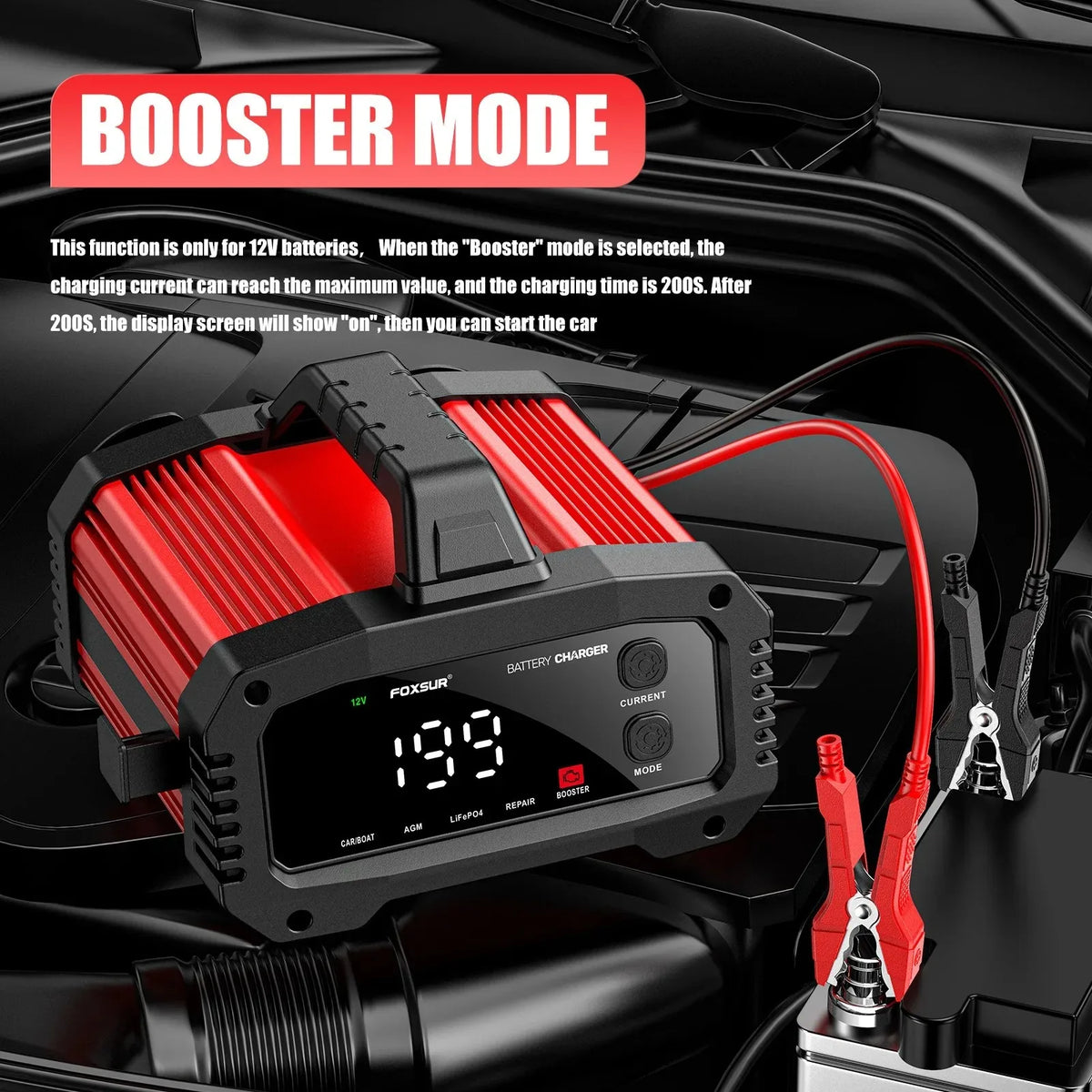

Use only in a dry, well-ventilated area and follow the included instructions. Verify 12V or 24V battery voltage before connecting. Connect clamps with the charger unplugged, observe polarity, and keep sparks or flames away from lead-acid batteries. Do not charge damaged, frozen, leaking, or incompatible batteries. The listed car-assist/booster function is not a substitute for safe jump-starting procedures.
FAQ
Can it charge both 12V and 24V batteries?
Yes. The listed output is 25A for 12V batteries and 15A for 24V batteries. Confirm your battery voltage before use.
Which battery types does it support?
The supplier lists lead-acid types such as AGM, gel, EFB, wet, and calcium, plus LiFePO4. Always confirm your specific battery’s charging requirements.
What battery sizes can it handle?
The listed battery capacity range is 6-400Ah.
Does it have protection features?

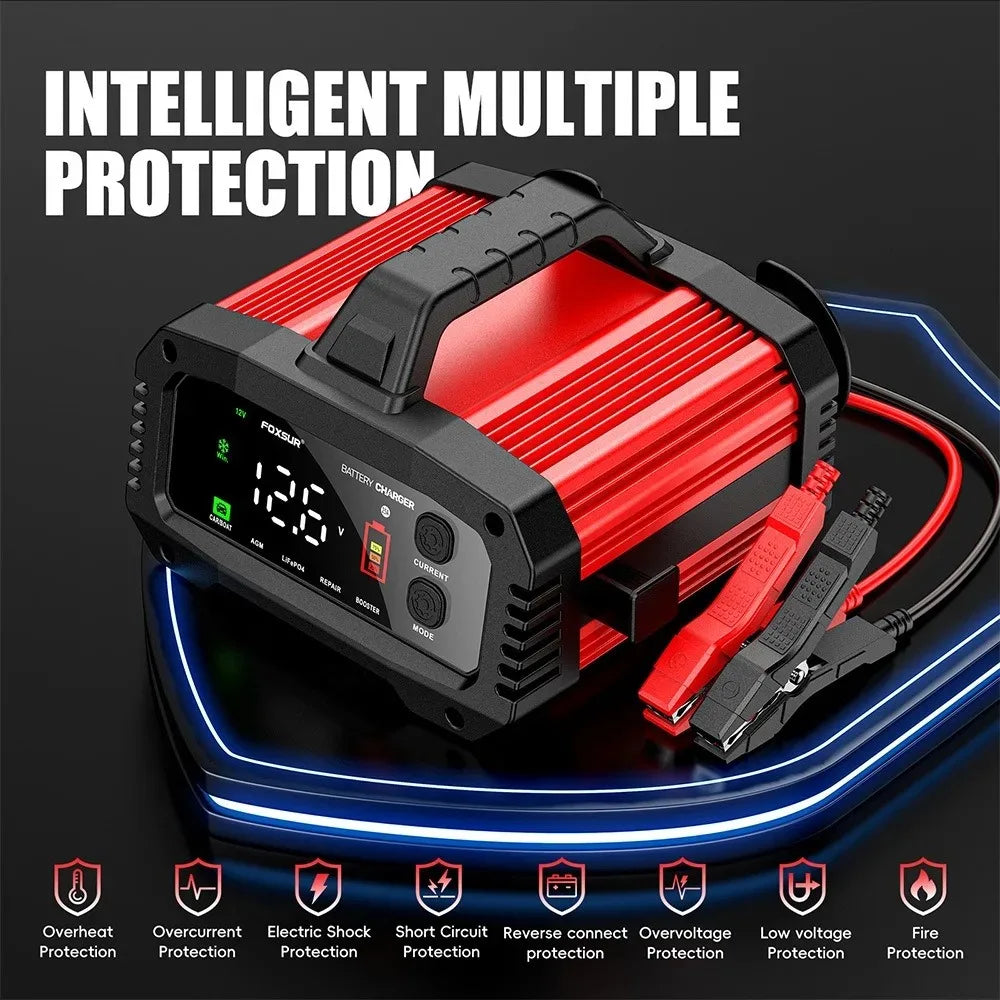

The supplier lists reverse-polarity, short-circuit, no-battery, over-voltage, and over-temperature protection. Correct connection and safe use are still essential.
Which plug should I order?
Choose US plug for compatible North American outlets or EU plug for compatible European outlets.
