Product Description
- Fuel EX Gen 6 gives you 140/150mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models — even alloy
- It features modern geometry that's ready for steep and loose descents, and hammering up climbs
- With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
- You'll have all the space you need for your treats and tools with in-frame storage
- Its upgraded FOX Factory rear suspension offers buttery-smooth travel and keeps pedaling efficient
Internal Storage
Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Slack or steep, the choice is yours
Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.
Adjust the sus for full send
Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.
Size-specific stays
Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.
Business in the front, party in the back
Craving the nimble ride of 27.5˝ wheels but don’t want to sacrifice the speed of a 29er? No need to choose. Fuel EX is mullet-ready, just throw Mino Link in high, toss on a 160mm fork, and get ready to party.

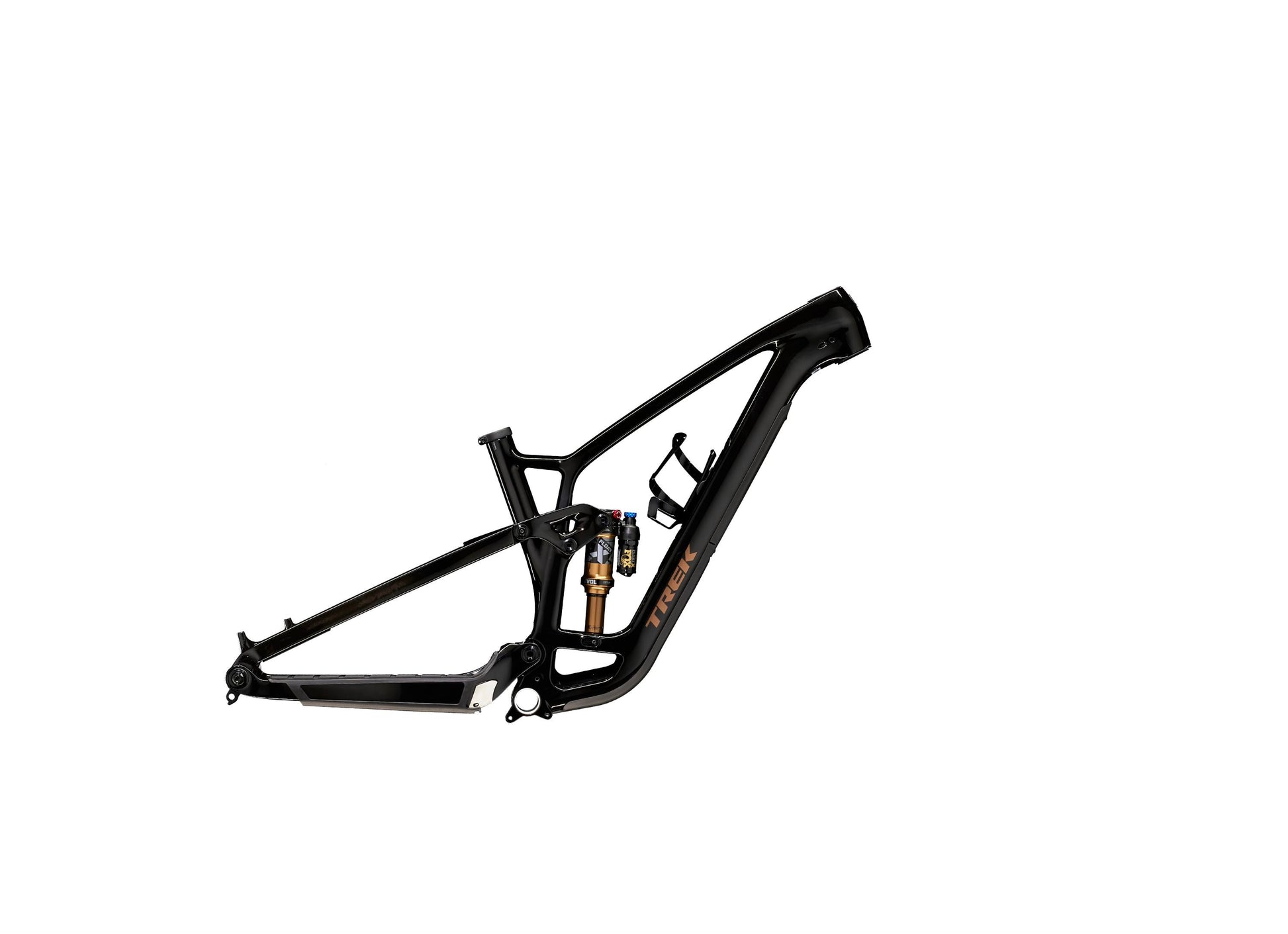

| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel |
| Shock | Fox Factory Float X, 2-position damper, 185mm x 55mm |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
Geometry Chart
| B B Drop | 2.1 |
| B B Height | 33.7 |
| Chainstay Length | 43.4 |
| Eff Seat Tube Angle | 78.9° |
| Eff Top Tube | 51.6 |
| Frame Reach | 40.4 |
| Frame Size Letter | XS |
| Frame Stack | 57.2 |
| Head Angle | 64.9° |
| Head Tube Length | 9.5 |
| Offset | 4.4 |
| Position | High |
| Seat Tube | 36 |
| Seat Tube Angle | 71.2° |
| Standover | 71.9 |
| Trail | 11.9 |
| Wheelbase | 114.4 |
| Wheel Size | 27.5" |
