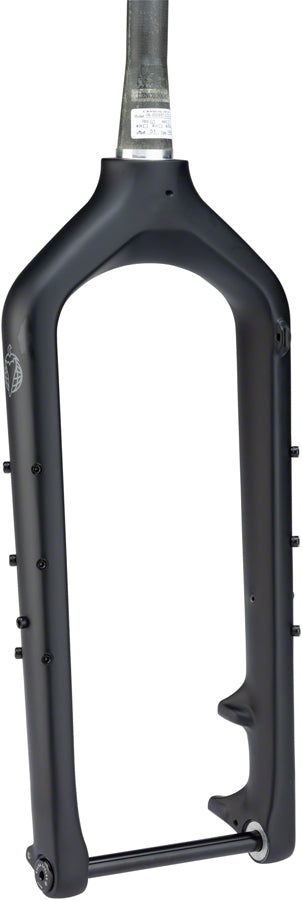

The Kingpin Deluxe fork is perfect for fat bike expeditions keeping you nimble even when fully loaded. Dual Three-Pack mounts on each leg let you attach water bottles or Anything Cages and mid-blade mounts fit low rider racks for panniers. Or ditch the gear and hit the trails with an ultra-light and responsive fork.
High modulus carbon fiber constructionTapered 1-1/8” to 1-½” steerer tube160 minimum rotor size; 203mm maximum rotor sizeDual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottlesMid-blade mounts for low rider racks Internal routing for 150mm spaced dynamo hubsMaximum Tire / Rim sizes: 26 x 5” 27.5 x 4.0” 29 x 3.0”150 x 15 mm thru axle includedFront Axle Size: 15 x 198L TP=1.5 TL=9
| Steerer Type |
Tapered |
| Brake Mount (Fork) |
Post Mount 160 |
| Offset |
51 |
| Material |
Carbon |
| Axle to Crown Length |
483 |
| Front Axle |
15mm Thru x 150mm |
| S.H.I.S. Stem Clamp Diameter |
28.6 |
| Color |
Matte Carbon |
| Crown Race |
40 |
| Wheel Size |
29+ |
| Defined Color |
Black |
| Steerer Tube Length (mm) |
260 |
