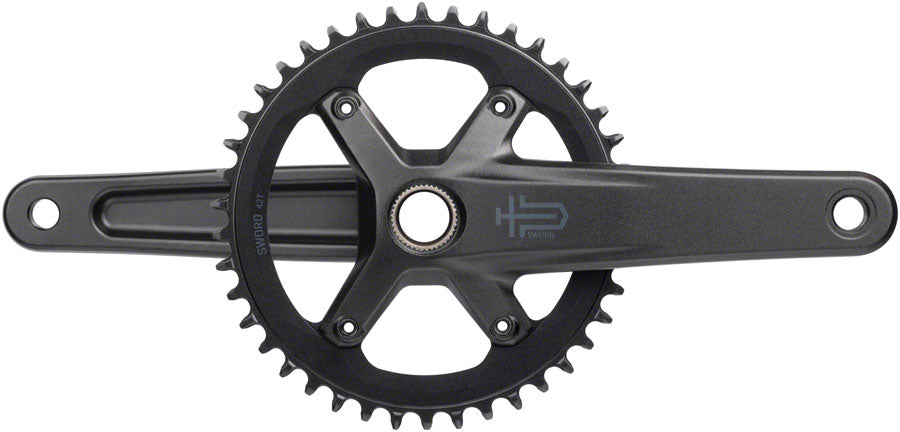

The Sword 1x crankset is designed for simplicity. With a single chain-retaining ring mounted to the crankset's outer ring position it pairs perfectly with the rest of the Sword 1x drivetrain to give you the stiffness chain security and ease of ownership you expect from a 1x drivetrain. It's designed to be as compatible as possible: the 24mm spindle is compatible with a ton of aftermarket bottom brackets and it's easy to convert from a 1x to a 2x crank by simply installing microSHIFT Sword 2x chainrings.
Wide design optimized for 50mm chainline24mm spindle compatible with Shimano bottom brackets1x chain-retaining ring works well with clutch derailleurEasy conversion from 1x to 2x
| Color |
Gray |
| Rings |
42 |
| Number of Chainrings |
Single |
| Crank Length (mm) |
175 |
| Crank Intended Use |
Gravel |
| Drivetrain Speeds |
10 |
| Weight |
810 |
| BB Included |
No |
| Pedal Spindle |
9/16" |
| Spindle Interface Type |
Shimano Hollowtech II |
| Chainring BCD |
110 Shimano Asymmetric |
| Chainline/Hub Compatibility |
135/142 MTB Hubs |
| Defined Color |
Gray |
| Length |
175Mm |
| Chainring Size |
42T |
